QEP 99731 LASH Flat Floor and Wall Tile Leveling System User Guide

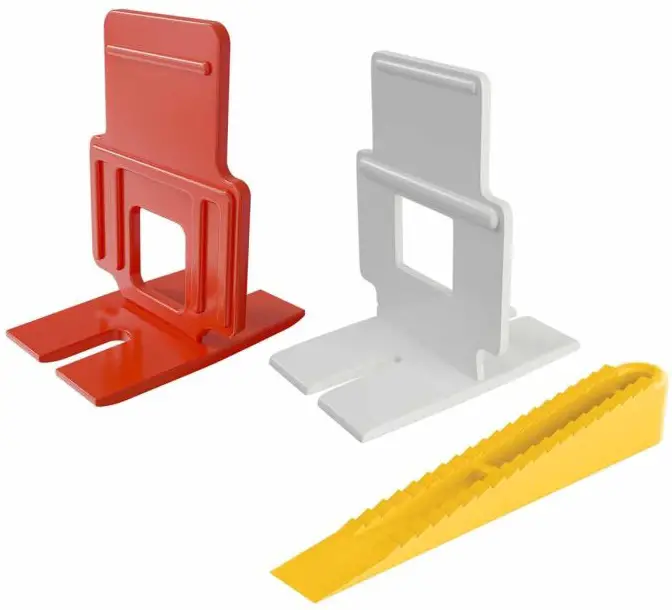

Patented 2-part System
For use with tile 1/4″ to 7/16″

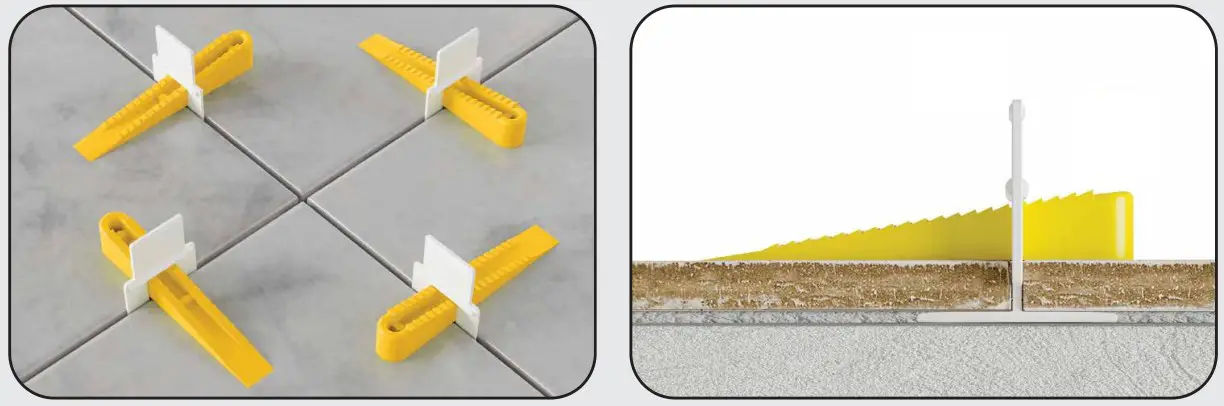

LEVEL
Anchor adjusts to the tiles so they remain level throughout the installation.
ALIGN
Designed to address variations in tile thickness.
SPACE
Produces a 1/16″ or 1/8″ wide grout joint between tiles.
HOLD
Holds tiles firmly in place to ensure a lippage-free surface.
Designed for quick installation, the LASH® Tile Leveling System reduces costly call backs by ensuring that the finished floor surface is lippage-free. It is the perfect system to use with large format rectified porcelain, thin porcelain tile, marble and stone where narrow grout joints are required. This fast, simple system is the most cost effective installation method on the market to eliminate lippage.
The LASH System provides narrow 1/16″ or 1/8″ grout lines. For grout joints up to 1/4″, traditional spacers can be used.
Easy to install and remove!
| Item # | Type | Quantity |
| 99730 | A Clips 1/16″ | 100/bag (8/case) |
| 99731 | A Clips 1/16″ | 300/Box (4/case) |
| 99740 | A Clips 1/16″ | 1000 Bulk Box (50 boxes/pallet) |
| 99781 | A Clips 1/8″ | 100/bag (8/case) |
| 99782 | A Clips 1/8″ | 300/Box (4/case) |
| 99783 | A Clips 1/8″ | 1000 Bulk Box (50 boxes/pallet) |
| 99726 | B Wedges | 100/bag (8/case) |
| 99727 | B Wedges | 300/Box (4/case) |
| 99757 | Installation Pliers | (6/case) |
| Estimated Coverage* AA+B | |||
| Tile Size | 100 Pack | 300 Pack | 1000 Pack |
| 6″ x 24″ | 25 ft2 | 75 ft2 | 250 ft2 |
| 12″ x 24″ | 50 ft2 | 150 ft2 | 500 ft2 |
| 18″ x 18″ | 56 ft2 | 168 ft2 | 560 ft2 |
| 24″ x 24″ | 100 ft2 | 300 ft2 | 1000 ft2 |
*Coverage varies depending on tile installation pattern and tile quality.
The LASH system should only be used with a minimum 1/4″ x 3/8″ x 1/4″ square trowel notch to apply the setting material. Back buttering your tile is always recommended.

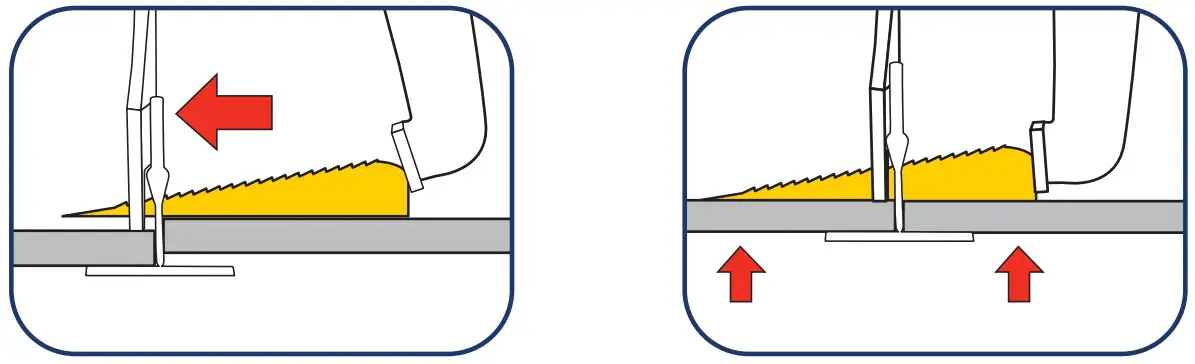

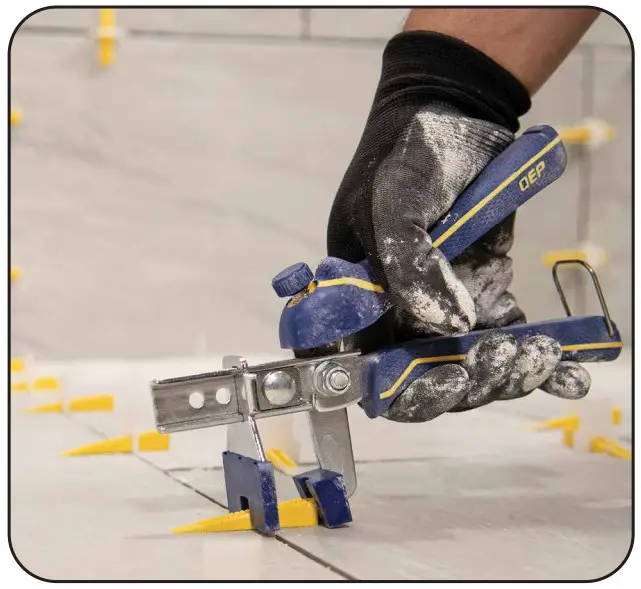

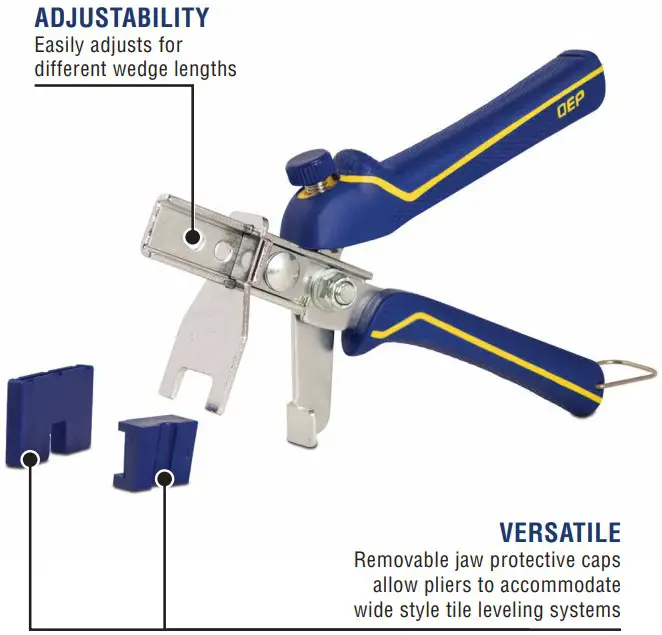

Speed up Installation with PRO Pliers
- Ensure wedges are set properly in the leveling clips every time (One to Two Clicks).
- Can also be used with the Original LASH® Tile Leveling System and all similar Tile Leveling Systems.
Professional Tools for Professional Results
