Givi SR9430 Top Case Support Brackets

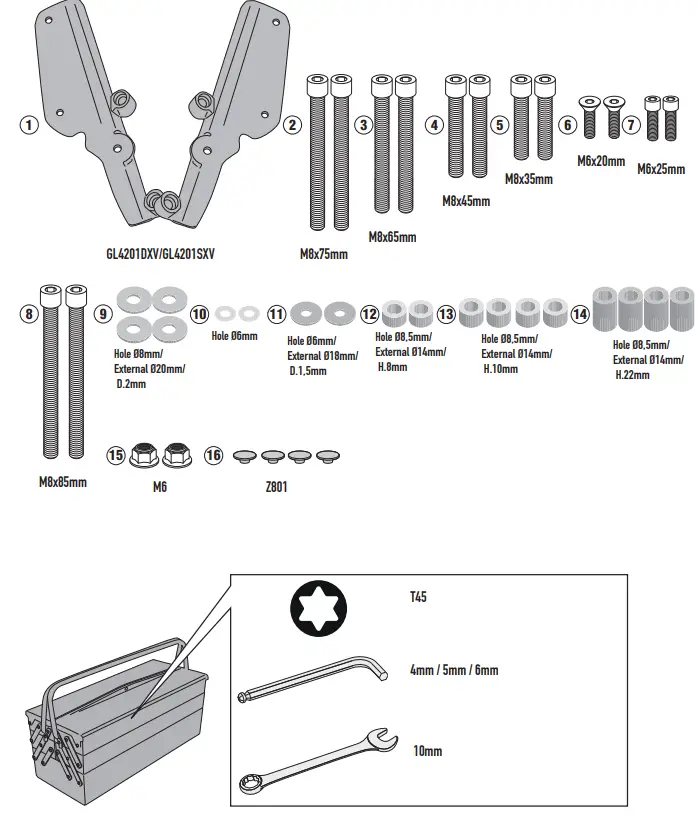

PARTS

MOUNTING INSTALLATION INSTRUCTIONS

Product Information

The SR9430-KR9430 is a fitting kit of the plate containing various components required for mounting on KTM 790 Adventure, KTM 790 Adventure R, KTM 890 Adventure, and Husqvarna Norden 901. It includes screws, washers, screw caps, and original parts.

• Features: TCEI M8X75, TCEI M8x65, TCEI M8x45, TCEI M8x35, TSP M6x20, TCEI M6x25, TCEI M8x85
• Components included: Vite – Screw – Vis – Schraube Tornillo – Parafuso, Rondella – Washer – Rondelle Scheibe
  • Arandela – Arruela, C14L8F8,5T, C14L10F8,5T, Coprivite – Screw Cap – Cache Vis – Stopsschraube Tapa Tornillo – Capa do Parafuso, Componenti Originali – Original Parts, Parties Originales – Original Bauteile, Componentes Originales – Componentes Originais

Product Usage Instructions

Follow the below instructions to mount the fitting kit of the plate on your motorcycle:

1. Remove the necessary parts from your motorcycle based on the diagram provided in the manual.
2. Arrange the components of the fitting kit.
3. Start by fixing the M9 plate using the M8x75mm screws and 820RON washers.
4. Fix the M8 plate using the M8x65mm screws and 820RON washers.
5. Fix the M5/M5M/M6M plate using the M6x20mm screws and 618RON washers.
6. Fix the C14L8F8,5T components using the M6x25mm screws and 618RON washers.
7. Fix the C14L10F8,5T components using the M6x25mm screws and 618RON washers.
8. Fix the coprivite components using the M8x45mm screws and 6DADIAFLN screw caps.
9. Fix the remaining components according to the diagram provided in the manual.

Note: Use T45 4mm/5mm/6mm tools for fixing the screws and Z801 for fixing the screw caps.

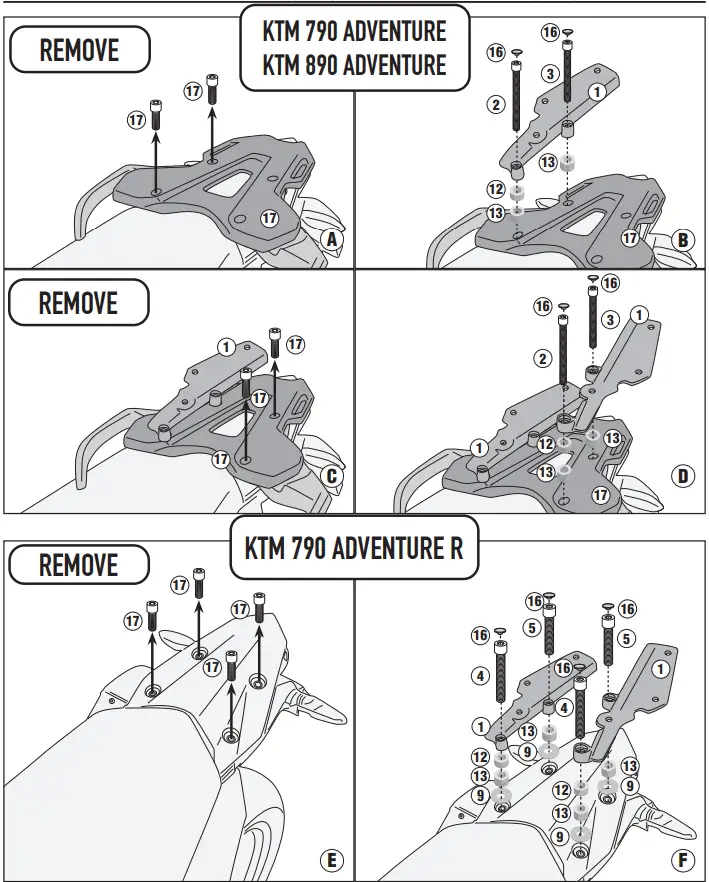

KTM 790 ADVENTURE (2019/2020)/KTM 790 ADVENTURE R(2019/2020)

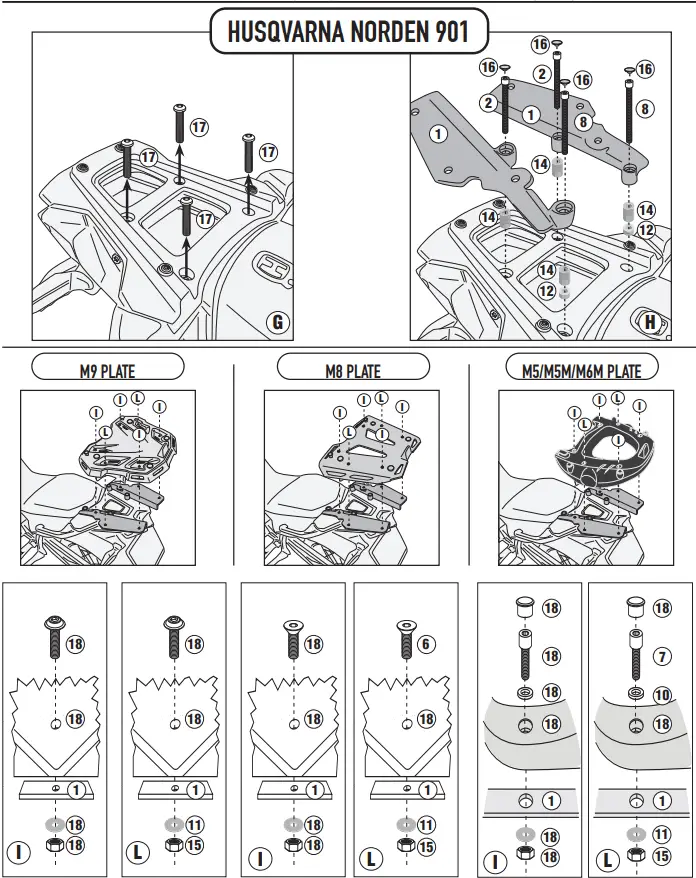

KTM 890 ADVENTURE (2021)/ HUSQVARNA NORDEN 901(2022)

©Copyright 27/01/2022LF-Rev0
