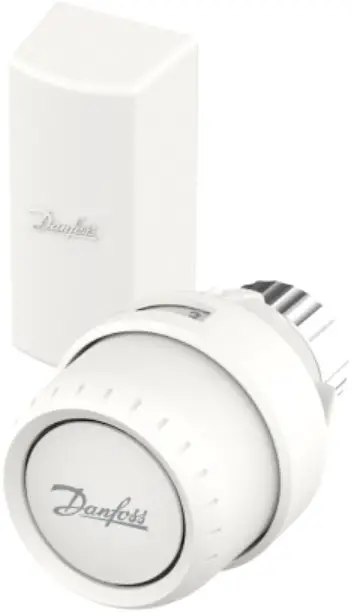

Danfoss RS-015G4042 Thermostatic Sensors Installation Guide

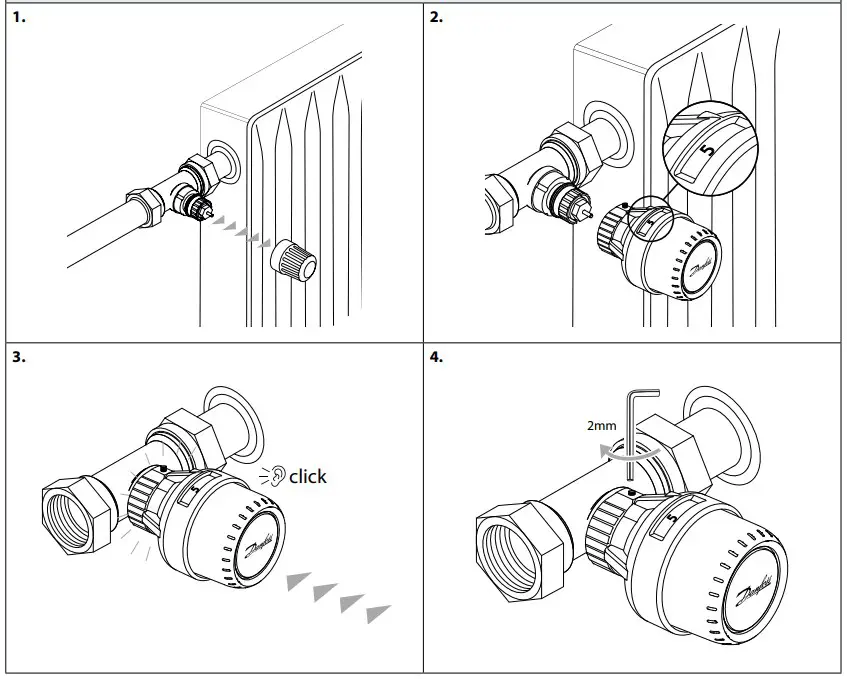

Installation

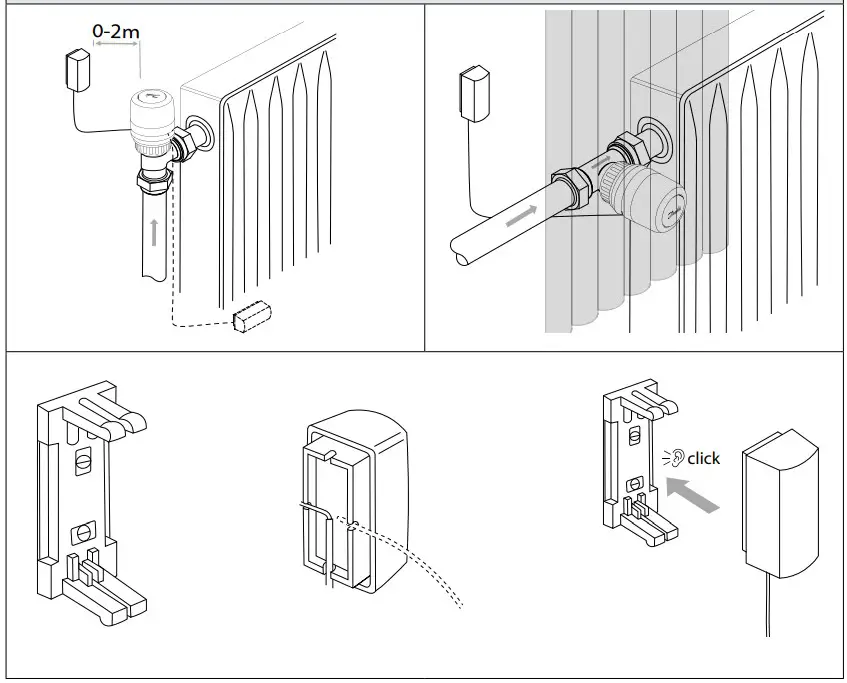

Remote sensor
Temperature Limitation
| Code no. | |
 | 013G1237 |
 | 013G1236 |

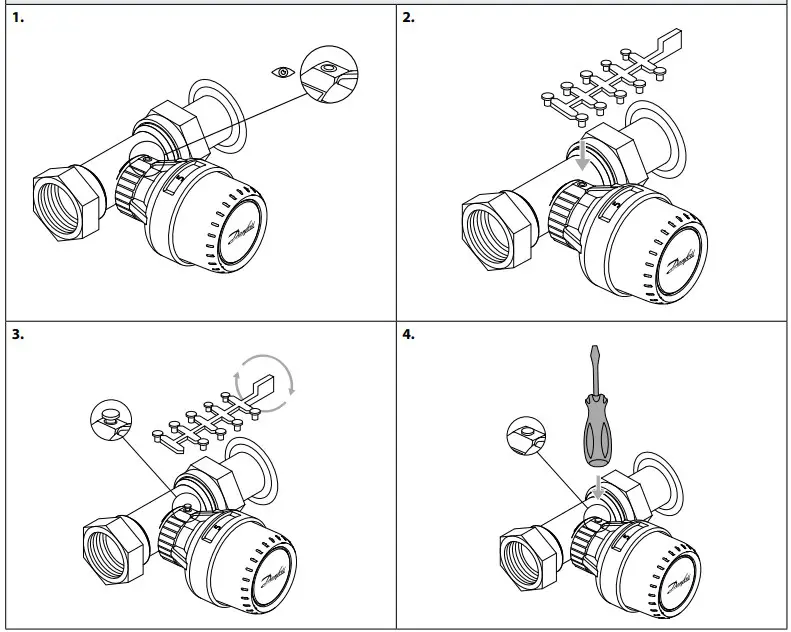

Theft protection
| Code no. | |
 | 013G1232 (20 pcs.) |
 | 013G1236 |

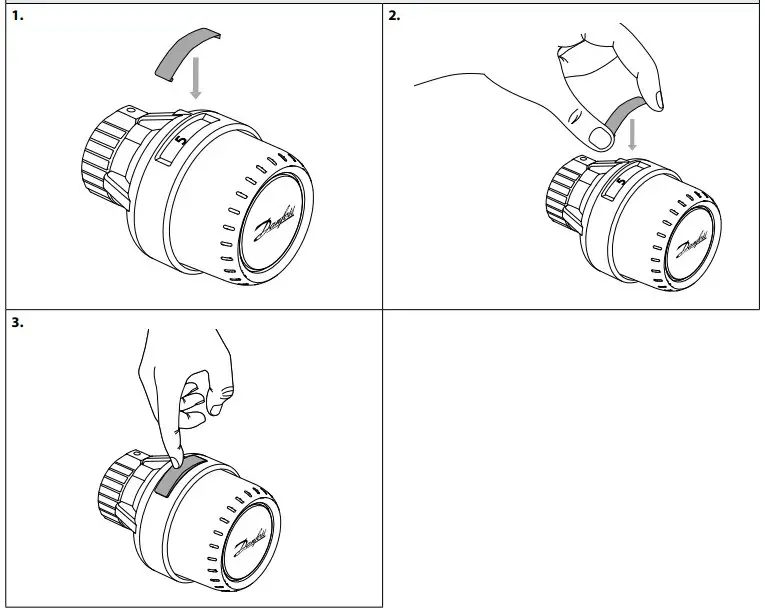

Scale cover
| Code no. | |
 | 015G4952 (20 pcs) |
