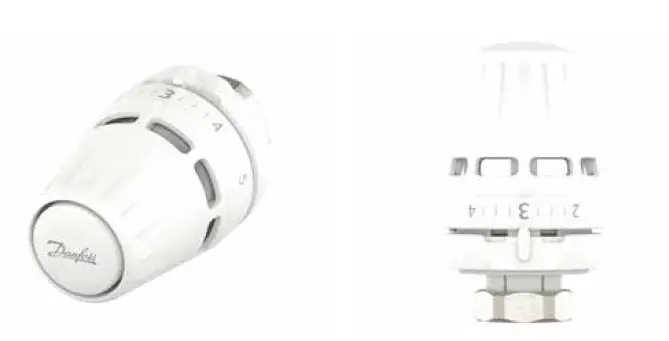

Danfoss 015G3636 Regus M30 x 1.5 Thermostatic Sensors
Product Information
This user manual provides installation instructions for a product with code number 013G5287. The product requires a torque of 15Nm and has a size of 32. The manual also includes information on the maximum and minimum settings for the product.
The product has a blind mark with markings in different languages, including English, German, French, and Spanish.
Product Usage Instructions
- To install the product, follow the instructions provided in the manual under the “Installation Guide” section.
- Use a torque wrench to apply a torque of 15Nm during installation.
- The product has a size of 32.

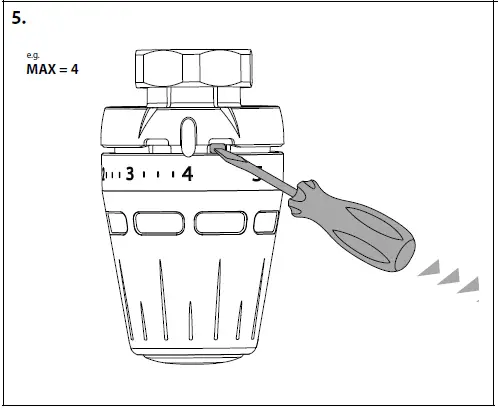

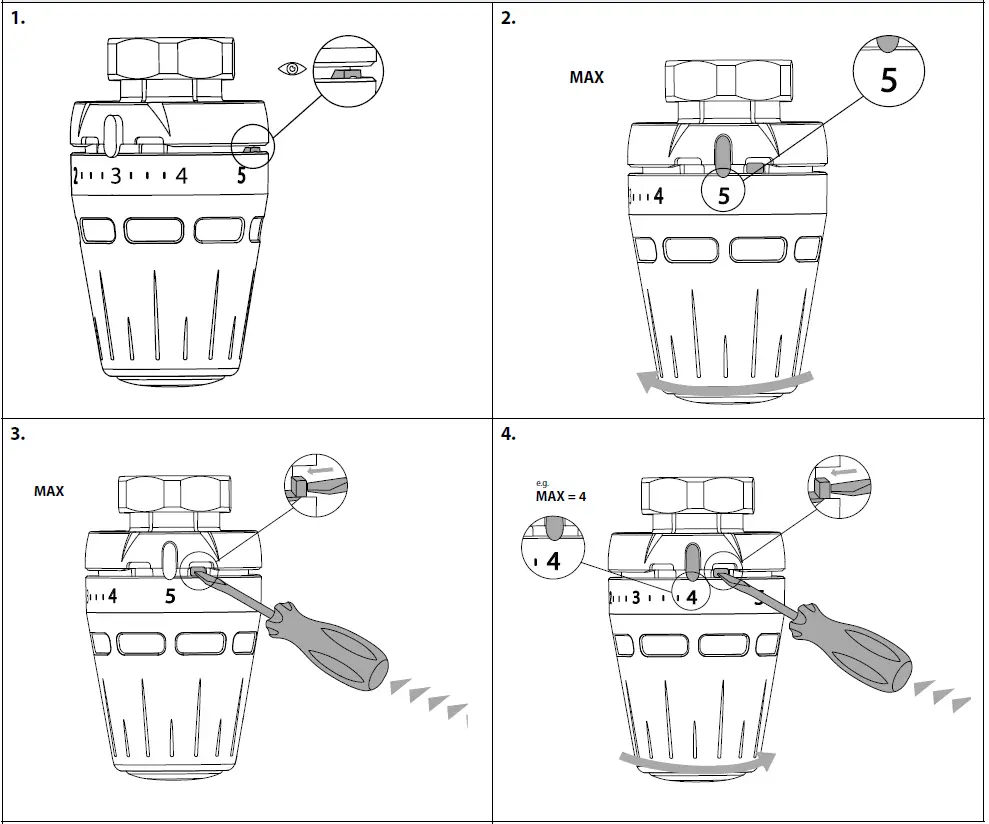

- The maximum setting for the product can be adjusted as per your requirement. For example, if you want to set it to 4, turn the adjustment knob until it reaches 4.

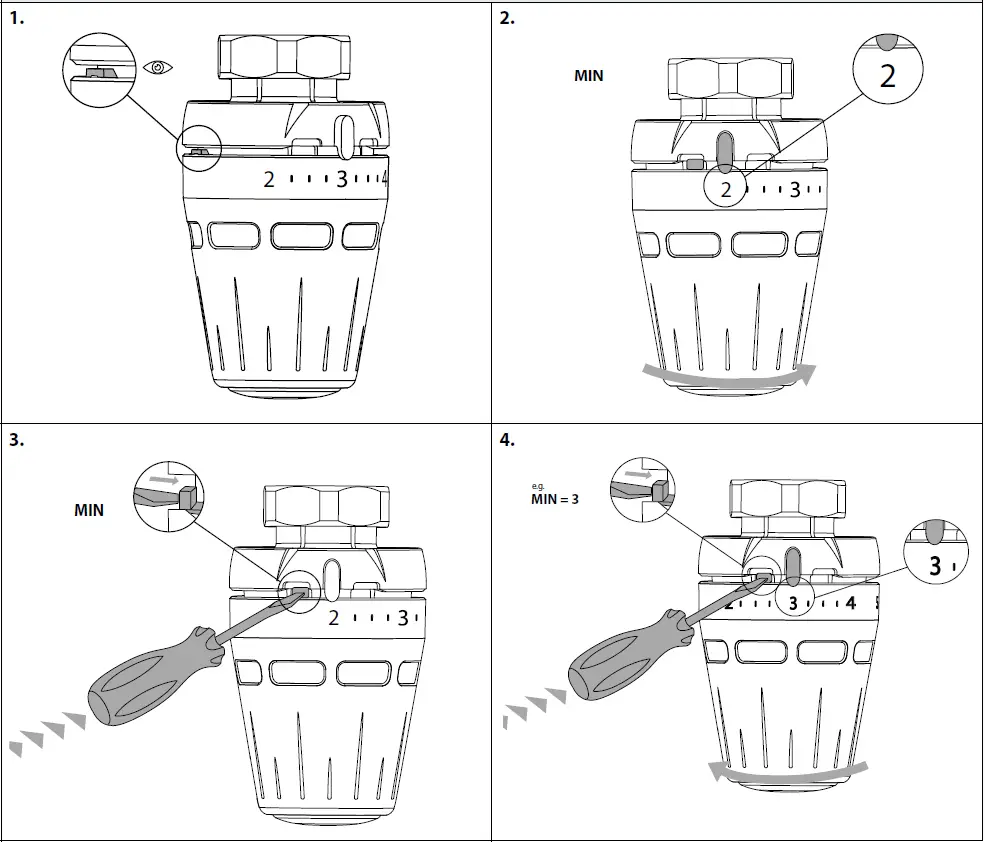

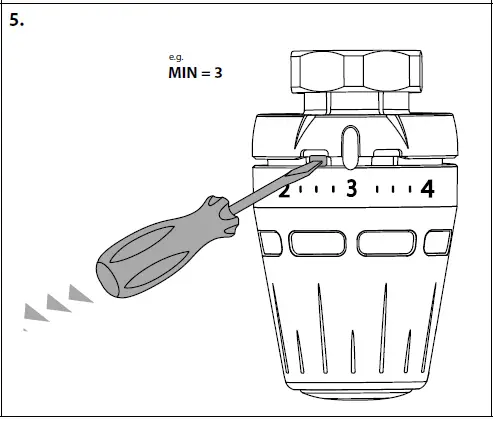

- Similarly, the minimum setting for the product can also be adjusted. For example, if you want to set it to 3, turn the adjustment knob until it reaches 3.
- For more detailed information on using the product, please refer to the user manual provided.

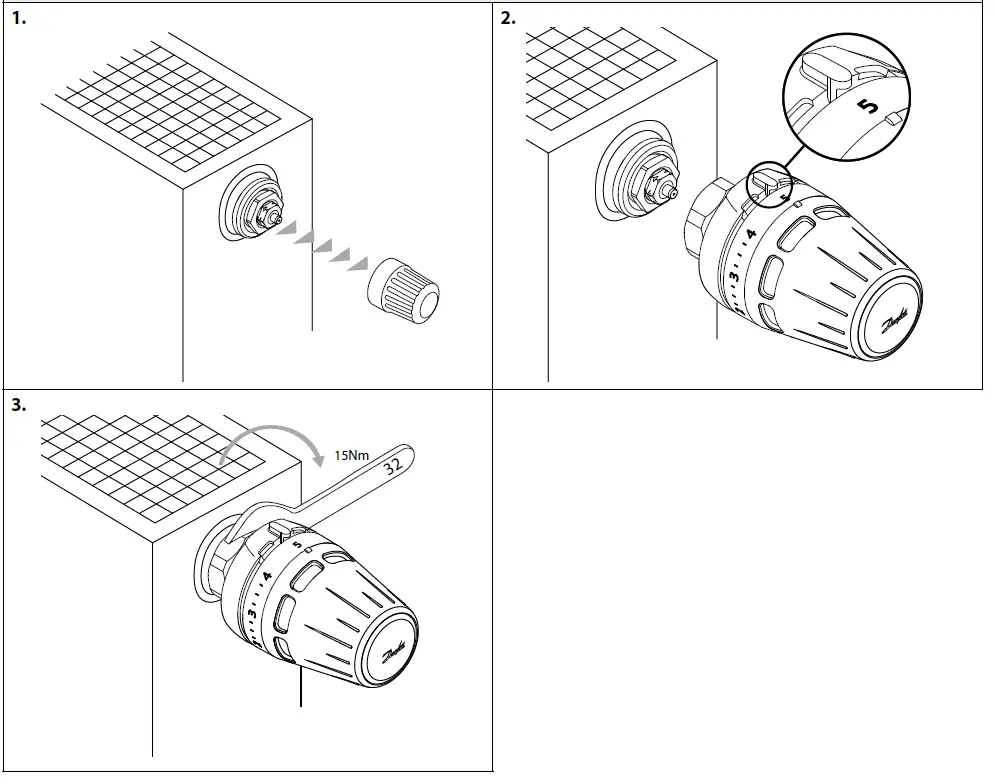

Installation
BIV Installation
Temperature Limitation

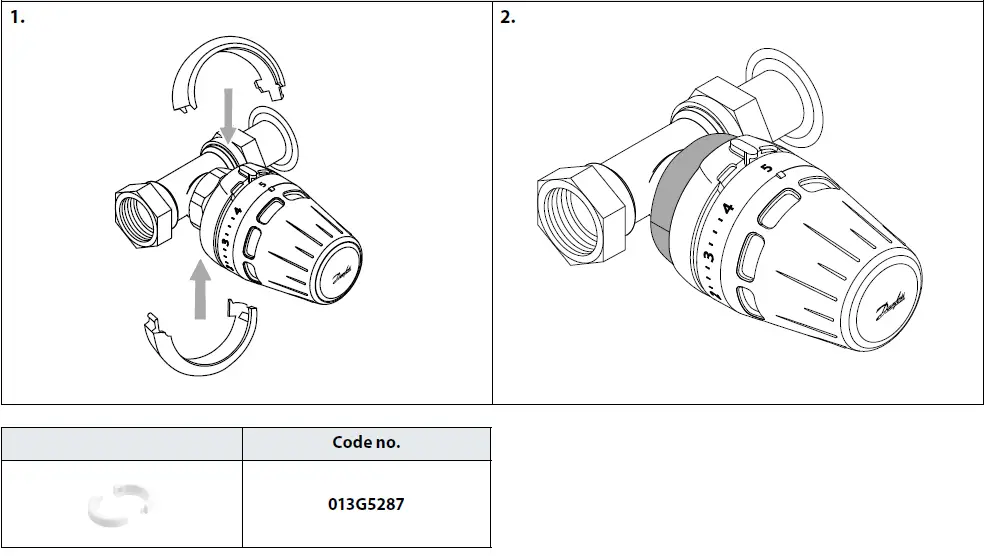

Theft protection
Blind mark
