SONY XAV9000ES Wireless High-Resolution Digital Auto Media Receiver

Mobile ESTM 6.75`’ (17.1cm) Wireless High-Resolution Digital Auto Media Receiver

Enjoy pure detail in everything you listen to with the XAV-9000ES, our premium Mobile ESTM 2-DIN media receiver. A new 6.75 in (17.1 cm) capacitive HD touchscreen lets you customize audio and visuals easily, and a full suite of connectivity for your smartphone includes LDAC to wirelessly stream HighResolution Audio with exceptional sound quality.

Bullets

• Bezel-less 6.75 inch (17.1 cm) HD (1280 x 720) capacitive touchscreen
• LDACTM High-Resolution Audio wireless streaming
• Time alignment and 14-band EQ for pitch-perfect sound customization
• Native 192 kHz / 24-bit WAV, FLAC, ALAC audio playback, and DSD file playback via 192 kHz / 24-bit PCM conversion
• USB Type-C® for compatible smartphone

Features

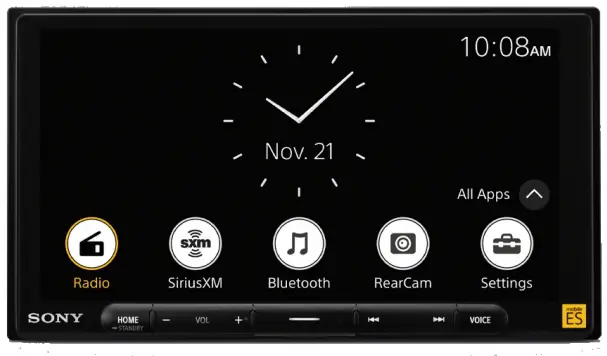

• Flush Surface 6.75-Inch HD1280x720 Capacitive Touchscreen
  Our first double-DIN Mobile ESTM media receiver features a new 6.75 inch (17.1 cm) capacitive touchscreen with 1280 x 720-pixel resolution. It offers crisp detail, higher brightness and contrast for a superior in-car experience.
• High-Resolution Audio Compatible
  Enjoy the subtle nuances of studio-quality sound. The XAV-9000ES supports a variety of highresolution audio codecs including native 192 kHz / 24-bit WAV, FLAC, ALAC audio files, and DSD (22.4MHz) files via 192 kHz / 24-bit PCM conversion. LDAC enables Bluetooth® streaming of all these codecs with exceptional sound quality2.
• ESS Digital-to-Analog Converter
  Experience the same caliber of sound usually reserved for high-end home audio products, thanks to the ESS DAC chip ­ a premium converter that provides optimum quality, from all your digital music files. With high performance 32-bit processing and eliminated timing jitter, this D/A converter delivers an unprecedented dynamic range and low harmonic distortion.
• Premium 4-ch Class A/B Amplifier
  Giving unmatched audio quality to the built-in amplifier, a dedicated power circuit is designed for each of the left and right channels, while an overall amplifier block includes updated circuit configurations, patterns, and choices of components, minimizing interference. Furthermore, the volume control circuit utilizes a select audio IC with less distortion and noise. The results are smooth highs, tight bass, wide dynamic range, and a more accurate soundstage.
• Choices for Optimum Performance
  Carefully selected components ensure superb sound quality. The dedicated choke coil features powerful bass while filtering unwanted frequencies, for controlled and dynamic audio reproduction. Audiophile-grade capacitors deliver effortless power for clear and tight bass, while multi-layer polymer capacitors help ensure low overall harmonic distortion and natural sound character.
• Anti-Resonance Dual-Layer Chassis
  The dual-layer design of the chassis separates analogue and digital circuitry, preventing electromagnetic interference for uncompromised sound quality.
• Sound Customization
  The 192 kHz / 24-bit DSP offers pristine sound processing and time alignment, 14-band equalizer, and 8-band parametric equalizer. Together with the updated 3-zone crossover, which enables biamp front 2-way speaker drive settings, you can dial in the perfect combination of front, rear and subwoofers.
• Bi-Amp Front 2-Way Speaker Drive Settings
  Designed for front component speaker configurations, this setting lets you apply independent crossover, PEQ and even time-alignment settings to individual drivers in bi-amp front speakers. Now you can customize sound for each component speaker using the same detailed control normally reserved for front and rear speaker groups.
• 3-Camera Trigger Inputs
  Drivers can see the images of up to three connected cameras when shifting the vehicle’s transmission lever to the reverse position or tap the dedicated icons on the home screen. By utilizing the supplied trigger wires, each camera image can be switched on and off, or from one to another automatically by detecting the vehicle’s turn signals or sensing compatible signals such as that for a connected front camera. An adjustable parking guide is also available for reverse gear.
• Wire-Free Smartphone Connectivity
  Thanks to built-in Wi-Fi and the supplied GPS antenna, users can leave their smartphone in their pocket and still access full device integration.3
• Wireless Apple CarPlay®
  iPhone users will be able to make phone calls, listen to music, send and receive messages, access their favorite apps, get directions with real-time traffic conditions — including third party navigation apps — and so much more directly from the dashboard, all while allowing the driver to stay focused on the road.4
• Wireless Android Auto™
  Designed with safety and convenience in mind, Android Auto is a simpler way to use a smartphone with the car’s display. Drivers can talk to Google on Android Auto and stay connected, entertained and informed while keeping their eyes on the road. Just say “Hey Google” or press the voice control button on the 9000ES to get started.5, 6
• USB Type-C® Compatible Rear Connection Terminals
  USB Type-C terminal is available for any compatible device, allowing high-current charge up to 3A.
• Quick Wake Up
  With the quick wake up feature, customers are ready to go right after turning on the ignition. 7
• Simple Button Controls
  The button design features large keys to seamlessly fit with the sleek display. Access volume, source, sound settings and voice control, for safe and easy operation on the road.
• iDatalink® Maestro® Compatible
  iDatalink® Maestro® compatibility connects the 9000ES to the vehicle’s onboard computer, turning it into a customized display for factory-equipped functions and features. Users can interact with vehicle infotainment and information directly on the 6.75″ touchscreen.8
• Enhanced 5V 3-pre Out Connectivity
  For future expandability, the 5V 3-pre out connectivity allows customers to build a full acoustic system, including a newly available stereo subwoofer connection, and a 4-channel stereo amplification for even louder and more powerful sound reproduction.
• HD Graphical User Interface
  Enhanced for safety and ease of use, it features a high-contrast Mobile ES TM color scheme while customizable wallpaper suits your vehicle and style.

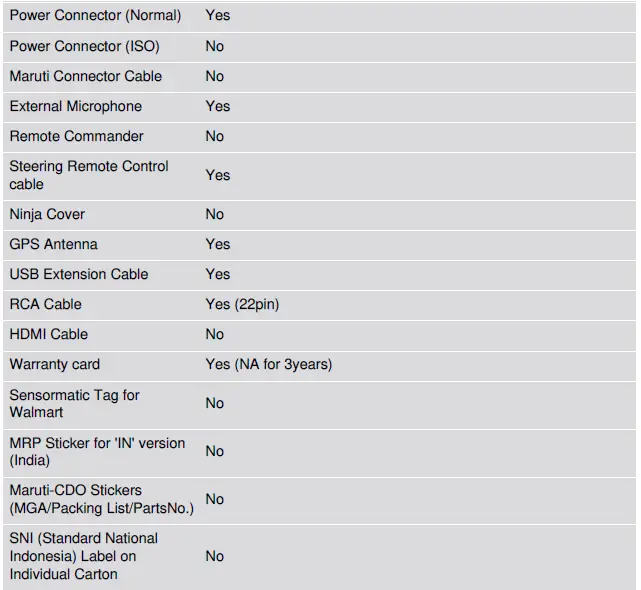

Specification

1. Mobile ES and Mobile ES logo are trademarks, or registered trademarks of Sony Corporation.
2. Interoperability and compatibility among Bluetooth® devices vary.
3. Wi-Fi connection available for Apple CarPlay and Android Auto only.
4. Apple, iPhone and CarPlay are trademarks of Apple Inc. Learn more at www.apple.com/ios/carplay.
5. Active data plane required. USB connection requires the Android Auto app on Google Play and on Android-compatible smartphones running Android 8.0 or higher. Wireless connection available depending on device, country or region. Learn more at: https://support.google.com/androidauto/. Android Auto may not be available on all devices and is not available in all countries or regions. Google, Android, Android Auto, and Google Play are trademarks of Google
6. Download app from Google Play. Network services, content, and operating system and software subject to terms and conditions and may be changed, interrupted or discontinued at any time and may require fees, registration and credit card information.
7. Less than 8 seconds. Time measured approximately until safety caution is displayed.
8. Maestro® RR and RR2 sold separately. Features vary by vehicle. For details, visit http://maestro.idatalink.com/ iDatalink® Maestro® are registered trademarks of Automotive Data Solutions Inc.

©2023 Sony Electronics, Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony and the Sony logo are trademarks and or registered trademarks of Sony Corporation. Bluetooth and the Bluetooth logo are trademarks of Bluetooth SIG, Inc. All other trademarks are trademarks of their respective owners. Features and specifications are subject to change without notice.
