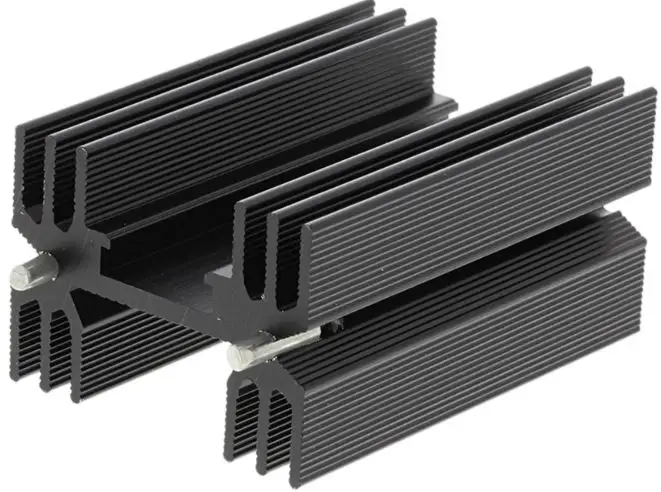

RS PRO 2342378 Heat Sinks
Product Information
Features
- RS PRO Heatsinks
- RS Stock No.: 2342378
- RS PRO Professionally Approved Products bring professional quality parts across all product categories
- Tested by engineers and provides comparable quality to leading brands without a premium price
Buy this product from https://uk.rs-online.com/
Product Description
The RS PRO Heatsink is suitable for use with universal square Alu. It is made of Aluminium. The quoted thermal resistance is with fins vertical in free air. The length dimension refers to the extrusion length along the fins.
General Specifications
- For Use With Universal Square Alu
- Material: Aluminium
- Mounting: Application Finish
Notes:
Mechanical Specifications
- Length Dimension: 50mm
- Width Dimension: 35mm
- Height Dimension: 25mm
Electrical Specifications
- Thermal Resistance
Buy this product from https://uk.rs-online.com/
The drawing below is for illustration purposes only. If any further information is required, please contact us.
Buy this product from https://uk.rs-online.com/
Product Usage Instructions
To use the RS PRO Heatsink, follow these instructions:
- Select a suitable location for the heatsink installation.
- Ensure that the heatsink is compatible with the device or component you want to cool.
- Place the heatsink on top of the device or component, aligning the mounting holes if applicable.
- If necessary, apply a thin layer of thermal paste between the device/component and the heatsink for better heat transfer.
- Secure the heatsink in place using screws or other appropriate mounting methods.
- Ensure that the fins of the heatsink are in a vertical position for optimal thermal performance.
- Provide adequate airflow around the heatsink to dissipate heat effectively.
- Monitor the temperature of the device/component to ensure proper cooling. Adjust the positioning or add additional heatsinks if necessary.
If you have any further questions or need assistance, please refer to the product manual or contact us.
Features
- For Use With: Universal Rectangular Alu
- Mounting: PCB Mount
- Thermal Resistance 5.50°C/W
RS PRO Heatsinks RS Stock No.: 2342378
RS PRO Professionally Approved Products bring to you professional quality parts across all product categories. Our product range has been tested by engineers and provides a comparable quality to the leading brands without paying a premium price.
Product Description
The RS PRO Heatsink is suitable for use with universal square Alu. Its material is Aluminium. Thermal resistance quoted is with fins vertical in free air. Length dimension refers to extrusion length along fins.
General Specifications
| For Use With | Universal Rectangular Alu |
| Material | Aluminium |
| Mounting | PCB Mount |
| Application | High Power Semiconductor Device, Optoelectronic Device |
| Finish | Anodized |
|
Notes | · Thermal Resistance is calculated based on a distributed heat load and vertically mounted fins anodised heatsink with a 60⁰C temperature. · Under general operating conditions the thermal mounting arrangement of the device is not known and therefore the figures should be used as a guide to selection. · We recommend that the effectiveness of any heatsink is tested in the specific operating environment to which it will be subjected. |
Mechanical Specifications
| Length | 50mm |
| Width | 35mm |
| Height | 25mm |
| Dimension | 50 x 35 x 25mm |
Electrical Specifications
| Thermal Resistance | 5.50°C/W |

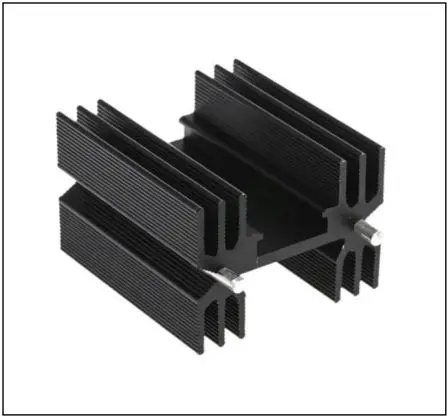

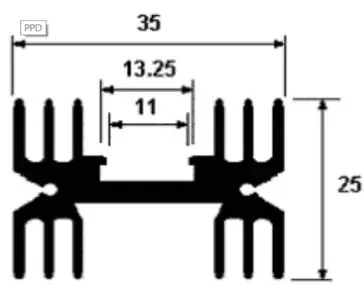

The drawing below is for illustration purposes only. If any further information is required please contact us.
Buy this product from https://uk.rs-online.com/
