Mill Cus1800mecwa Compact Fan Heater Instruction Manual

CUS1800MECWA Compact Fan Heater
Instruction Manual

Thanks for buying Mill
Our company was founded in Norway in 1992 by Cato Bryn, specializing in the distribution of oil-filled radiators and other types of heaters. From 1992 to 2009, we had gained significant knowledge and expertise of different types of heaters, thus enabling us to sell to many of the largest retailers in the Nordic countries.
In 2010, Cato’s son, Philip joined the company. Philip looked at the heating industry with fresh new eyes and wondered why there had been so little change with the appearance of portable heaters in the last 20 years, especially since the interior design, in general, had changed dramatically over the years. Philip thought consumers should have more styles to choose from other than the typical old-fashioned, traditional heaters.
Since heaters are part of so many homes, Philip and Cato decided to use their extensive knowledge to re-invent the design of heaters. They wanted to create beautiful, modern, and minimalistic heaters, using the most advanced technology, that would complement people’s homes. They launched the brand “Mill’ in 2012.
Mill offers revolutionary, innovative Norwegian designs. We are continuously innovating to complement our line of products to meet consumers’ demands.
Prospering on our success in the Nordics we decided to promote Mill at some of the world’s largest electronic fairs and home shows, and the feedback from retailers and distributors all over the world was amazing. We are proud to say that consumers in over 25 countries can now keep warm with style!

Follow us on social media:
fb.com/millheat
@millheat
millheat.com

Please read the instructions carefully before use.
Take good care of this manual for later use.

STORE THIS INSTRUCTION
MANUAL FOR FUTURE USE!
NEVER TOUCH YOUR HEATER OR ITS
CASING WITH WET HANDS!

IN ORDER TO AVOID OVERHEATING, DO NOT COVER THE HEATER.

Important safety information

You must obey common safety guidelines when using electrical products, especially in the presence of children.

WARNING! To avoid electric shock or damage due to the heat, always make sure the plug is pulled out before the heater is moved or cleaned.

READ THE INSTRUCTIONS CAREFULLY

• The product is intended for home use only.
• Make sure the heater is connected to the house’s regular mains as indicated on the heater.
• New heaters will produce a specific odor when used the first time. This will stop after a short time and is completely harmless.
• Check for any pieces of packing foam or cardboard that may have fallen into the heating elements of the heater. These pieces must be removed to avoid unpleasant odors.
• Prevent the heater from overheating – do not cover.
• Always turn off the heater and unplug it when not used for a long period of time.
• Pay special attention if the heater is used in rooms where children, the handicapped, or the elderly reside.
• The heater should not be set up directly beneath an electrical socket outlet.
• The cord must not be laid under any kind of carpet. Make sure the cord is laid in such a way that nobody can trip on it.
• The heater must not be used if either the cord or plug is damaged. The heater must not be used if it has been dropped on the floor is damaged in any other way causing it to malfunction.
• The cord must be repaired by the manufacturer or by an expert if it has been damaged, to avoid dangerous situations.
• Avoid using extension cords, which may overheat and could possibly start a fire.
• Never cover the air vents on the heater. Avoid potential fire hazards by making sure the air intakes are not blocked or covered. The heater should be used in rooms with normal flat floors.
• The heater should not be installed in close proximity to flammable materials of any kind because there can always be a risk of fire.
• The heater must never be used in rooms where gasoline, paint, or other flammable liquids are stored, such as in a garage.
• Never touch an electric heater with wet hands. The heater should be installed so a person showering or taking a bath cannot come into direct contact with it.
• Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• The heater must be switched off, the plug removed and the heater must cool down before it is moved.
• Avoid overloading the mains (the circuit) where the heater is connected. The heater may overload the electrical circuit if other electrical devices are plugged into the same socket outlet.
• Do not use this heater in small rooms when they are occupied by persons not capable to leave the room on their own unless constant supervision is provided.
• The product cannot be used by children under 8 years of age and persons with reduced physical or mental abilities or lack of experience and knowledge unless they have been given supervision or instruction in the safe use of the product and understand the hazards involved.
• Children should not play with the product. Cleaning and maintenance should not be done by unsupervised children.
• Children under the age of 3 should be kept away from the product unless they are under constant supervision.
• Children aged 3 to 8 years are only permitted to turn the product ON/OFF, assuming the heater is mounted according to the assembly instructions and the children have received instruction or supervision in the safe use of the product and understand the hazards involved.

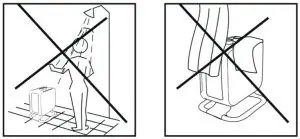

• Do not use this heater in the immediate surroundings of a bath, a shower, or a swimming pool.

ATTENTION! This heater is only meant to be used as a supplementary heating source, and must not be used without supervision

Specifications

Before first use

After unpacking the heater, check to make sure the product was not damaged during transport. Contact the retailer or importer if you discover any visible damages to the product.
Keep the outer packaging to transport the heater in the future. If you want to dispose of the packaging, make sure it is done properly. Keep plastic bags away from children.

First, use

After turning on the heater for the first time or after an extended period without use, the heater can produce a burnt odor for a short time. This is normal.
Please read all the instructions carefully before use. Save the instruction manual for future use.
Attention! The heater is equipped with a tip-over switch which turns the heater off when tipped over. When moving and/or tilting the heater you would hear a sound that may sound like a loose part inside – this is the tip-over switch and it is completely normal.

Description of heater

See figure 1 on a separate illustration sheet

A With aluminum foot

1. Heat emission
2. Thermostat
3. Output selector
4. Legs (aluminum)

B Without aluminum foot

1. Heat emission
2. Thermostat
3. Output selector

Parts for models with aluminum foot

See figure 2 on separate illustration sheet

• 8 screws (4 pre-mounted)
• 2-foot brackets
• 2 rails for the feet

Assembly

See figure 3 on separate illustration sheet

1. Remove the pre-mounted screws on both legs before you insert them into the brackets so that you get a stable foot.
2. Attach the legs to the brackets by tightening 2 screws into each bracket. Do not tighten completely in order to fit the foot into the square tracks of the heater.
3. Place the heater gently on its head and use the supplied screws to mount the feet.
4. Place the foot in the square tracks and fasten each foot bracket with two screws.
   Wait to tighten the screws until all four screws have been fastened. You can now tighten the screws attaching the legs and brackets.
5. NEVER USE THE HEATER BEFORE THE LEGS HAVE BEEN TIGHTLY SCREWED.

Instructions

Control Panel
See figure 4 on separate illustration sheet

1. Thermostat: Adjust the desired heat setting
2. Output selector:
   O: OFF
   Fan (only fan, no heating)
   I: 1200W
   II: 1800W

WARNING! BE SURE THE FOOT IS FITTED CORRECTLY AND ACCORDING TO THE INSTRUCTIONS BEFORE USING THE HEATER!
ATTENTION! This heater is only meant to be used as a supplementary heating source, and must not be used without supervision

Usage

1. Set the output selector to the OFF position (O) and the thermostat to a minimum. Plug the heater into a grounded outlet.
2. Set the output selector to position for fan only (no heating).
3. Set the output selector to position I or II. Turn the thermostat up to the maximum position.
   When the desired room temperature has been reached, turn the thermostat slowely down until you hear a click. The thermostat can now remain in this position until a different room temperature is desired. As soon as the room temperature falls below this level, the heater will automatically switch on again. When the room has again reached the desired temperature, the heater will switch off again.
4. lf you wish to change the room temperature, repeat the instructions in step 3.
5. The heater has on overheat protection that turns the device off if any parts become extremely hot.
6. To switch the heater off, turn the output selector to the O position. lf the heater will be left unused for a longer period of time, pull the plug.

Maintenance

1. For cleaning, always unplug the heater and leave it to cool.
2. Wipe the heater regularly with a damp cloth and dry the surface before turning on the heater again.
3. The heater must be cleaned at least once a month during the heating season.
   CAUTION! The heater should never be immersed in water. Avoid using detergents to clean the heater. Never let any water get inside the heater; this can be hazardous. 4. Dust etc. should be removed with a soft cloth. 5. The heater can be stored in a dry and clean place. 6. If the heater stops working, do not attempt to repair it yourself because it can cause a fire hazard and/or electric shock.

Warranty

The warranty is valid for 2 years. The heater will be repaired or replaced during this time should any malfunction occur. The warranty applies if the heater is used according to these instructions and the customer can present a purchase receipt. If the heater malfunctions in any way, please contact the store where it was purchased or the importer.

Waste disposal

The symbol indicates that this product is not to be disposed of together with household waste. This product must be delivered to a recycling service or container for electrical appliances and electronic equipment. This is done to avoid health risks and prevent harm to the environment. Local businesses (or the environmental station in your neighborhood) are required by law to accept and recycle such products, as a means of environmentally sound disposal.

Seasonal energy efficiency

Information required for the electric local space heaters
Model identifier(s): CUS1800MECWA, CUS1800MECW, CUS1800MECBA

Mill International B.V.
De Giesel 5
6081 PG Haelen
The Netherlands
www.millheat.com
