Operating Instructions

MAGIRA ALASKA

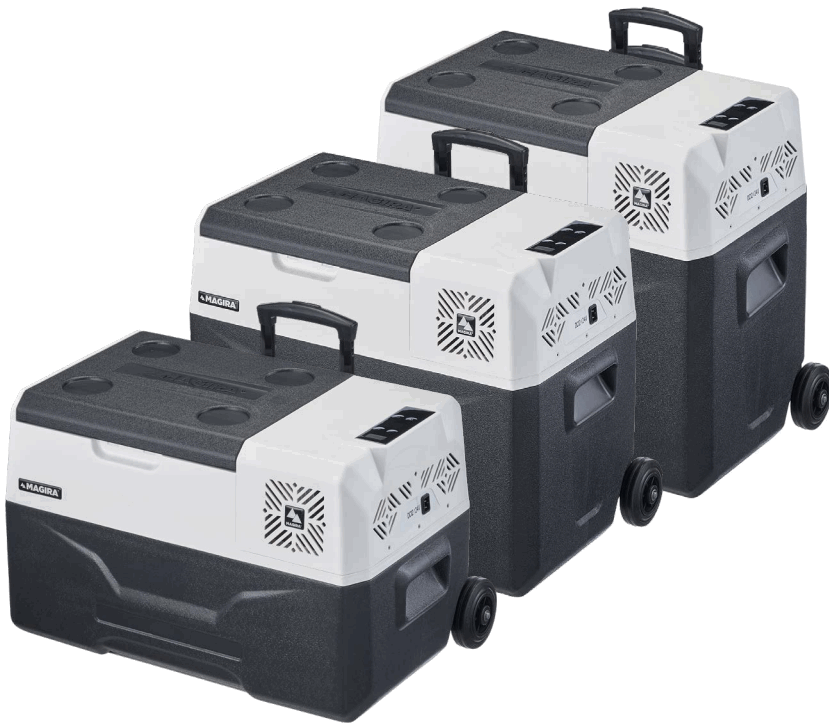

Mobile Fridge MF30-C/MF40-C/MF50-C
DC 12 V/24 V | AC 100 V/240 V

Electric Compressor Cool Box

MAGIRA Fridge-Control

Please read these operating instructions carefully before the initial operation and keep them in a safe place. If you hand over your mobile fridge (hereinafter referred to as „device“), please also hand over these operating instructions The manufacturer is not liable for damage caused by improper use or incorrect operation. This is a warning sign. It is used to warn of the possible danger of injury. Observe all safety instructions with this icon to avoid possible injury or death. You will find the complete operating instruction and updates for your product at www.magira.eu Warnings in these operating instructions are classified as follows for better differentiation:

WARNING

Please observe the safety instructions. If you have any questions, please contact our customer center.
You can find the telephone number on the back.

Safety Instructions

Non-observance of these safety instructions may result in serious injuries or even death!

• Children aged between 3 and 8 years may only load and unload the device. Commissioning is not permitted. Children under 3 years of age must be kept away from the device. Parents are liable for their children
• Cleaning and maintaining of the device is not allowed by children without supervision
• Children are not allowed to play with this device
• Every user must have received instruction in the safe use of the device and understand the resulting dangers
• Children over 8 years of age may only use this device if they are supervised and have understood the instructions
• Persons with reduced physical, sensory or mental abilities or a lack of experience and knowledge may use this device only after instruction and if they have understood them

Risk of Death by Electric Shock

• If the device shows visible damage, you are not allowed to put it into operation
• If the connection cable is damaged, it must be replaced by a qualified person to avoid any hazards.
• Repairs on this device may only be done by qualified technical staff
• Nonobservance can result in considerable dangers

Risk of Explosion

Do not store explosive substances such as aerosol cans in the device

Risk of Fire

• When setting up the device, ensure that the connecting cable is not pinched or damaged
• Keep the ventilation openings clear on all sides, ensure that there is sufficient ventilation for installation constructions
• Do not use mechanical devices or other aids to accelerate the defrosting process
• Do not damage the cooling circuit

CAUTION

Risk of Health

• First, check whether the cooling capacity is sufficient for your application and whether it meets the requirements for cooling your food or drugs
• Foodstuffs may only be stored in the device in their original packaging or suitable containers
• If the lid of the device is left open for a long period of time there may be a strong temperature increase in the cooling compartments
• If you do not use the device for a longer period of time, please switch it off. Defrost the device completely. Clean and dry all surfaces thoroughly (see chapter 4)
• Leave the lid open (at least in the ventilation position) to prevent mold growth.
• Clean the surfaces that may come into contact with food regularly

ATTENTION

Risk of Damage

• Only transport the device in an upright position
• Compare the existing power supply with the voltage specification on the nameplate
• Do not use any electrical appliances inside the mobile fridge unless it is recommended by the manufacturer
• The device may not be exposed to rain
• At the end of its service life, this device must be disposed of correctly (see chapter 7)

Product Description

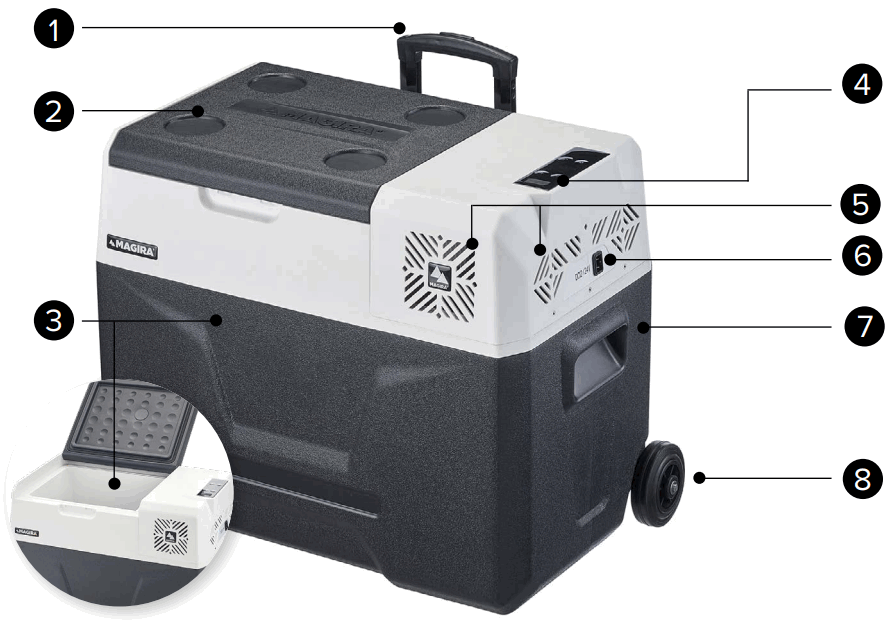

Device

Telescopic Handle
1 Cup Holder
2 Cooling Zone
3 Display with Control Panel and USB-Port
4 Cooler Ventilation
5 Connection for Power Cable
6 Carrying Handle
7 Wheels

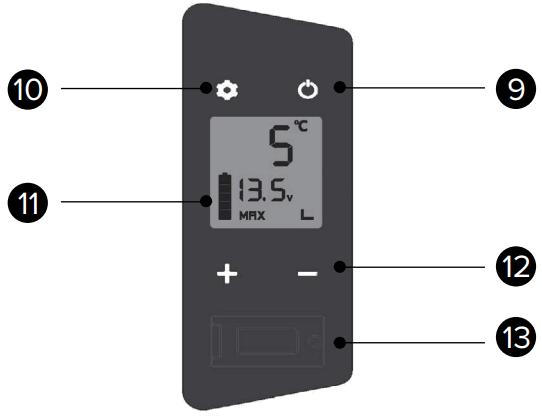

Display

9 On/Off Button
10 SET – Settings
11 Battery Display
– not relevant for this model
12 Temperature Control
13 USB Port

Handling

Connecting the Device

Only connect the device to the power supply system with the supplied cable

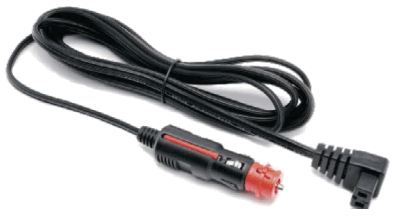

To 12 V On-board Power Supply of Vehicles
For connection to the 12 V/24 V on-board power supply of vehicles, please use this connection cable. Use the 12 V/24 V socket (cigarette lighter)

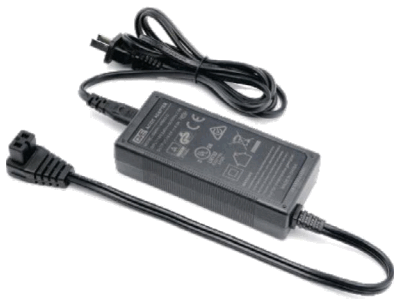

To Electrical Grid
Use this cable to connect the device to the 110 V/230 V electrical grid.

Switch On

If the device is connected to the power supply, press the On/Off button 9 for at least 3 seconds to start the device.

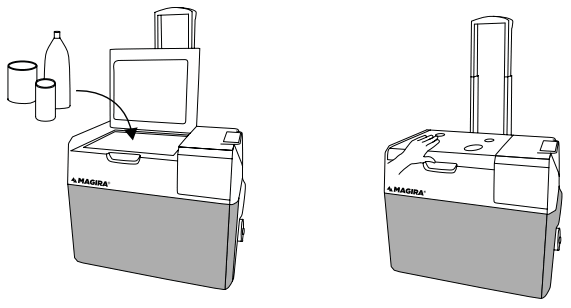

For optimum cooling performance, use food that has already been cooled down.

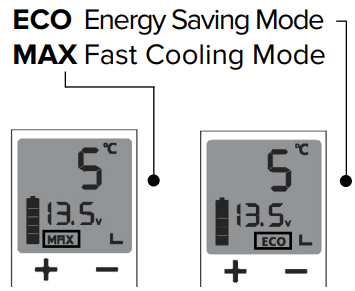

Settings

Press the SET button 10 briefly to enter the different modes of the device.
Then press the SET button 10 again to switch the desired mode.

Please note:
The factory setting for delivery is MAX

Set Temperature

To set the temperature in the cooling zone, press the respective temperature controls +/- 12.

Using the Device Without Power

Please ensure an uninterrupted power supply during operation.
The device is not designed for operation without a power supply and can only keep its temperature to a limited time, depending on the outside temperature.

Using the Device in a Car (Battery Protection)

The device is equipped with a three-stage battery monitor.
To protect your battery, the unit switches off when the respective battery voltage falls below (error F1).

• Use the High mode if you have connected the device to your starter battery
• Use the Medium mode if you have connected the device to your starter battery and the conditions are good (e.g. no severe cold, no severe heat, no long periods of standing)
• Use the Low mode only when using separate supply batteries to ensure vehicle starting. If this mode is used when connected to the starter battery, it may not be possible to start the vehicle

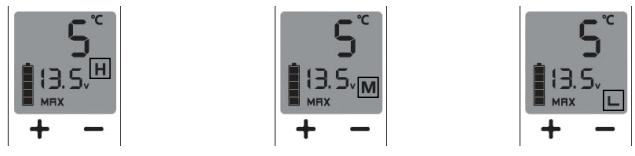

Adjustment:
Press the SET button 10 for at least 3 seconds until the currently set mode (H, M, or L) flashes.
Then press the SET button 10 again to switch the desired mode.
The corresponding mode will be saved as soon as the letter stops blinking.

PV = Protection Value
Undervoltage protection, as soon as this voltage is reached, the device immediately switches off all consumers and cannot be switched on again.

SV = Startup Value
If this voltage is dropped below, the compressor will not start to cool down again. The control remains active until the voltage rises again and the device can operate normally or the voltage drops below the Protection Value (protective shutdown).

Error Codes

Switch Off and Store

To switch off the device, press the On/Off button 9 for at least 3 seconds and unplug the device from the power supply system.

When the device is not in use, please remove all food, clean the device (see chapter 4) and store it safely and dry.
Leave the lid open a little to ensure air circulation.

Cleaning

Safety Instructions

• Disconnect the device from the power supply system before cleaning!
• Do not immerse the device in the water!
• Do not expose the device to running water

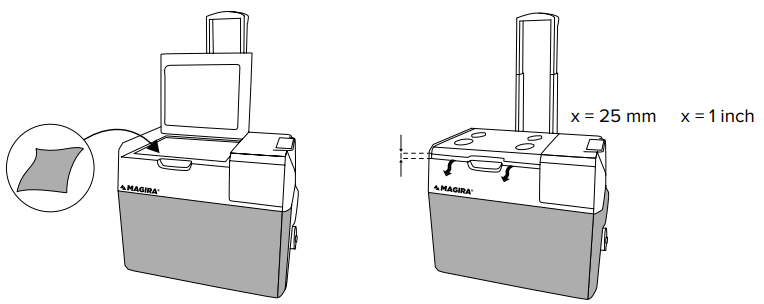

Proper Cleaning of the Device

• Only clean the device when it is switched off
• Take out all food before cleaning
• To defrost, remove the plugin the bottom
• Wipe the inside of the appliance with a damp cloth and, if\ necessary, a little kitchen cleaner and rub it dry
• Leave the lid open a little bit for air circulation

Intended Use

The mobile fridge is suitable for:
✔ Use in vehicles
✔ Camping purposes
✔ Cooling food and keeping food frozen

The mobile fridge is not suitable for:
✖ Storage of corrosive or solvent-containing substances
✖ Freezing of food products

Disclaimer of Warranty

The statutory warranty period shall apply. In case of a defect, please contact the manufacturer or your authorized distributor.

To process your warranty or repair request, you must send the following documents:

• Copy of the invoice with date of purchase
• Description of the error as detailed as possible

Disposal

If possible, place the packaging material in the recycling waste

If the device is finally taken out of operation, please contact the nearest recycling center for information or you’re authorized distributor about the applicable disposal regulations

Technical Data

*4 °C cooling temperature
