Receivers

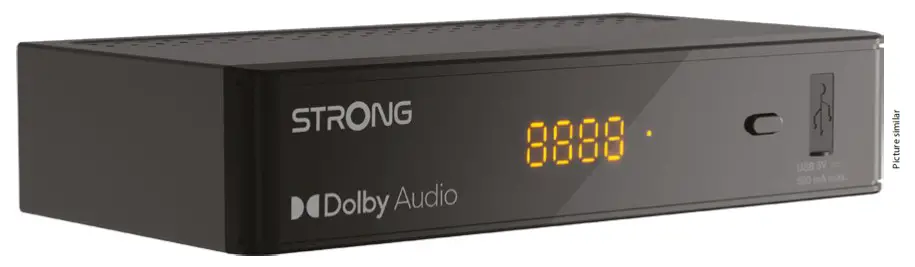

DIGITAL HD SATELLITE RECEIVER
SRT 7015
Sit back, relax and enjoy HD TV!
Watching TV with the SRT 7015 is a delight: HD pictures up to 1080p, surround sound via digital audio output, SatCR support. Furthermore you can play digital Free-To-Air TV and radio via satellite. Connect a USB storage device and playback music or watch photos and videos directly on your TV. The easy and feature rich menu makes the SRT 7015 a pleasure to use. You will surely appreciate features such as the Electronic Programme Guide (EPG), 8 favourite lists, 2000 channels and the parental control for locking selected channels with a password. Sit back, relax and enjoy a reliable allrounder for fantastic home entertainment in HD.
- HDTV receiver for digital Free-To-Air TV and radio programmes via satellite 1
- Supports Dolby ® Digital Plus 2
- USB port for playback of files 3 and software updates
- Supports SatCR for connecting up to 8 receivers to 1 SatCR LNB
- Display showing channel number in operating mode and time in standby
- 2000 channels/64 satellites memory capacity
- Exceptional picture quality and excellent sound
- Electronic Programme Guide (EPG) for on-screen information of present/next events for up to 7 days 4
- Up to 8 programmable timers
- Power saving: switches to standby after a definable time
- Fast and easy channel database up/download to/from USB device
- Teletext and full multi-lingual DVB subtitling supported 4
- Multiple audio track support 4
- 8 favourite lists for TV and radio channels
- Parental control for locking selected channels with a password
- Multi-lingual On Screen Display (OSD)
- Easy to use channel handling options for finding, editing, moving, favouring and locking of channels
- Power on with the last viewed channel
- Video output via: HDMI
- Digital audio output via S/PDIF coaxial for connection to a digital amplifier
- Automatic, network and manual channel scan options
- Supports MPEG-1/2, MPEG-4 and H.264
- Supports DiSEqC 1.0, 1.1, 1.2, GOTO X, SatCR
- Connections: SAT IN, USB, HDMI, S/PDIF coaxial, DC power
- Accessories: Remote control, 2x AAA batteries, power adapter
1 Subject to your local signal conditions
2 Dolby Digital Plus, Dolby and the double-D symbol are registered trademarks of Dolby Laboratories
3 STRONG cannot guarantee the playback of video files although extensions are listed, as it depends on codec used, data bit rate and resolution (all MPEG codec formats are supported).
4 Availability depending on broadcaster

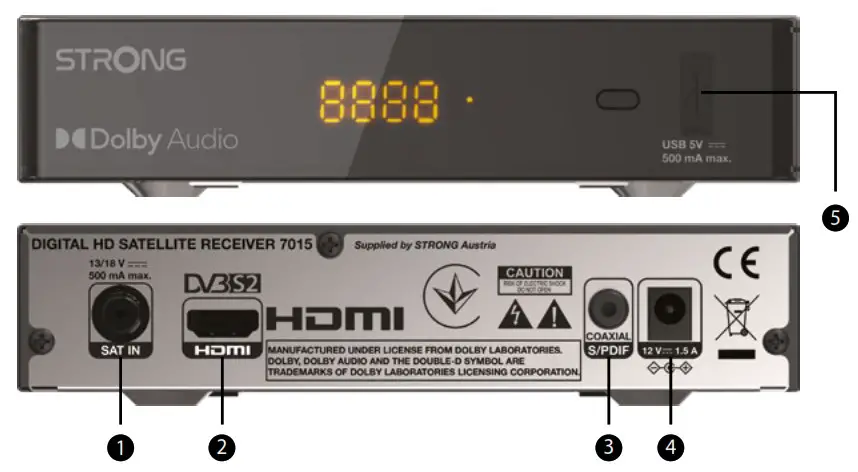

- SAT IN
- HDMI
- Digital audio amplifier (S/PDIF coaxial)
- Power adapter
- USB (front side)
Demodulator
Demodulation: QPSK, 8PSK
Input symbol rate: DVB-S QPSK: 2 ~ 45 Ms/s DVB-S2 8PSK/
QPSK: 2~45 Ms/s
FEC decoder: Auto, 1/2, 2/3, 3/4, 5/6, 7/8 in DVB-S mode
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 in DVB-S2 mode
3/5, 2/3, 3/4, 5/6, 8/9, 9/10 in 8PSK mode
Video Decoder
Input rate: Max. 20 Mbit/s
Aspect ratio: 16:9, 4:3 Pan&Scan, 4:3 Letterbox, Auto.
Video resolution: 480i, 480p, 576i, 576p, 720, 1080i, 1080p, 50/60Hz
Audio Decoder
Audio decoding: MPEG-1/2 Layer 1 & 2
Audio mode: Stereo, L/R, Stereo Audio Support:E-AC3,
Dolby Digital, Dolby Digital Plus*
Sampling rate: 32, 44.1, 48 kHz
Tuner
Type1 F Type, IEC169-24, Female
Input frequency range: 950 – 2150 MHz
RF impedance: 75 Ohm unbalanced
Signal level: -65 to -25 dBm
LNB power: 13/18 V DC (+/- 5%), max. 0.5 A, overload protected
Switch versions: DiSEqC 1.0, 1.1 LNB options: Universal, SatCR (max. 8 users)
Motor drive options: DiSEqC 1.2, GotoX (DiSEqC 1.3)
System & memory
Main processor: Ali M3510G
Flash memory: 8 MB
System memory: 64 MB
Connectors
SAT IN
USB 2.0 port: Type A/500 mA (max.)
HDMI 1.3
S/PDIF (coax.)
Power adapter (12 V, 1.5 A)
General data
Power supply: AC 100 – 240 V ~ 50/60 Hz
Input voltage: DC 12 V, 1.5 A
Power consumption: < 18 W
Power consumption in standby: max. 0.65 W
Operating temperature: 0 ~ +40°C
Storage temperature: -10 ~ +70°C
Operating humidity range: 10 ~ 95% RH, non-condensing
Size (W x D x H) in mm: 171x104x41 incl. feet + connectors
Weight in kg: 0,260
Subject to alterations.
In consequence of continuous research and development technical specifications, design and appearance of products may change. The terms HDMI, HDMI HighDefinition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories. All product names are trademarks or registered trademarks of their respective owners. © STRONG 2023. All rights reserved. *Dolby Digital, Dolby Digital Plus and the double-D symbol are registered trademarks of Dolby Laboratories
EAN SRT 7015: 9120072375064
PBC: 5
Technical aterations reserved23 Jan 2023 15:57
