Heinner Hvc-vbs750pp Vacuum Cleaner User Manual

HVC-VBS750PP Vacuum Cleaner
User Manualwww.heinner.ro

HVC-VBS750PP Vacuum Cleaner

• Vacuum cleaner
• Power: 750W
• Suction power: 200W

Thank you for choosing this product!

INTRODUCTION

Before using the appliance, please read carefully this instruction manual and keep it for future reference.
This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.
In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

PACKAGE CONTENT

➢ Vacuum cleaner
➢ Sofa brush
➢ Crevice brush
➢ User manual
➢ Warranty card

DESCRIPTION OF THE APPLIANCE

1. Modern and elegant design
2. Multiple air-filter system guarantees a hygienic cleaning
3. Drivers accessories: floor brush, nozzle etc
4. User-friendly wire rewinder pedal

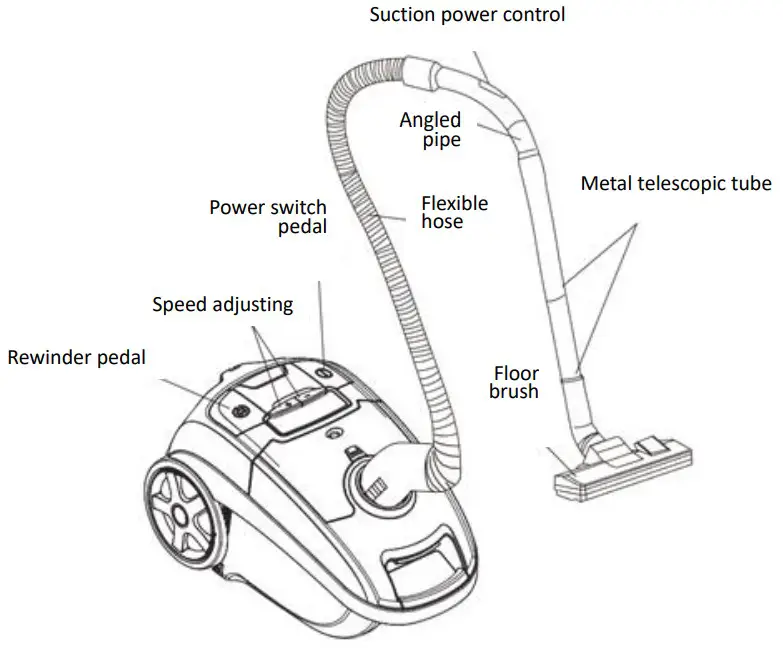

KNOW YOUR VACUUM CLEANER

IMPORTANT SAFETY INSTRUCTIONS

• If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a similarly qualified person in order to avoid a hazard. For house- hold use only.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance, for household use only.

Forbid	Do not use for absorbing detergent, kerosene, glass, needle, cigarette ash, water, match etc.
Forbid	The appliance should not be exposed to heat.
Forbid	Do not vacuum any moist or liquid substances. Never immerse the appliance in water.
Forbid	Unplug the appliance from the mains supply Socket after use and before everycleaning pull the mains cable, in order todisconnect the appliance from themains.
Forbid	Do not put any object into openings. Do not use with any opening blocked. Keep the appliance free of dust, lint, hair etc.
Forbid	Do not use the vacuum cleaner without dust container or dust filter in place.
Forbid	Do not vacuum any flour, cement etc., in order to avoid the overloads.
Forbid	The appliance should only be cleaned with a dry or damp cloth, it should never be immersed in water. Do not use any solvents for cleaning.

ASSEMBLY VACUUM CLEANER

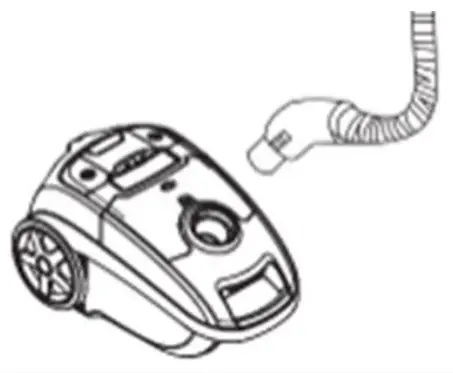

Connect the hose with vacuum cleaner
Insert flexible hose into the air-intake: Press the knob until it clicks into the position. Remove the flexible hose: Unplug the appliance and press the knob at the end of the hose.
Remove it from the air-intake opening.

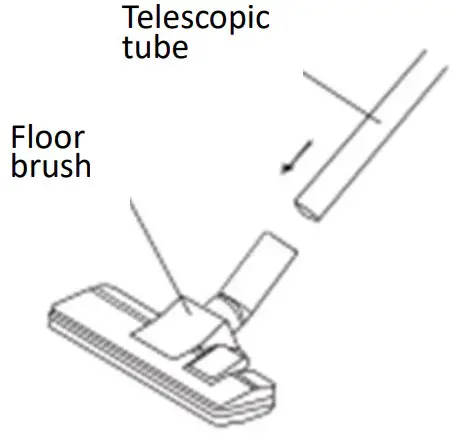

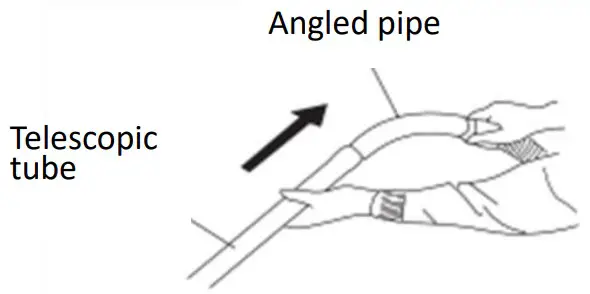

Fit the telescopic to the angled pipe.Fit the floor brush to the telescopic tube.

OPERATION

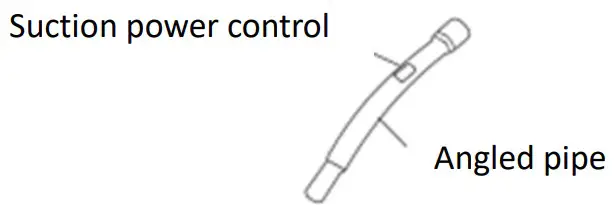

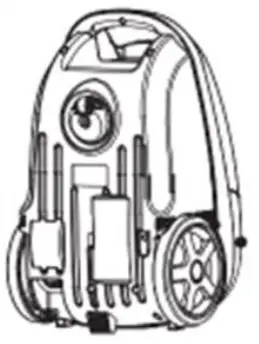

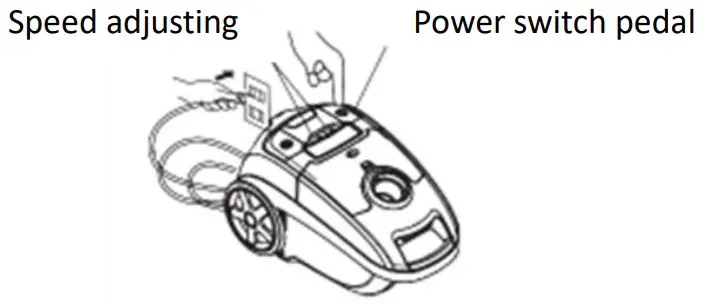

A yellow mark on power cord shows the ideal cable length. Do not expend the cable beyond the red mark. To rewind the power cord, press the rewinder pedal with one hand and guide the cord with the other hand. The suction power can be adjusted with the sliding control on the angled pipe too. Press the power switch to switch the appliance on. Use the electronic speed adjusting to control the suction power of the cleaner. Put the telescopic tube into the fixing hook of the appliance when you have a break.
Caution: Do not transfer the appliance when the fixing hook is used.

CLEANING TOOLS

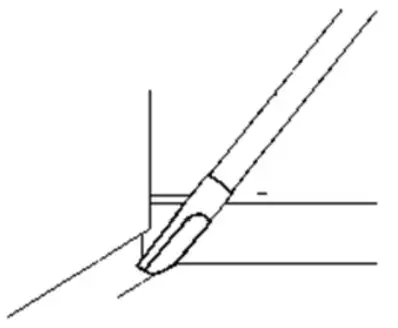

Crevice tool:
For cleaning corner edge and draws etc.:

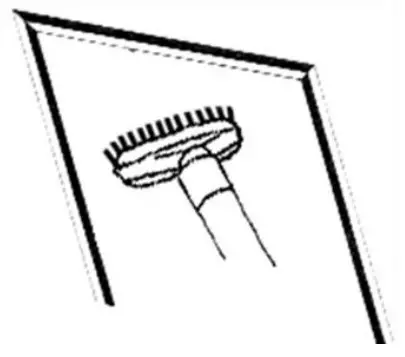

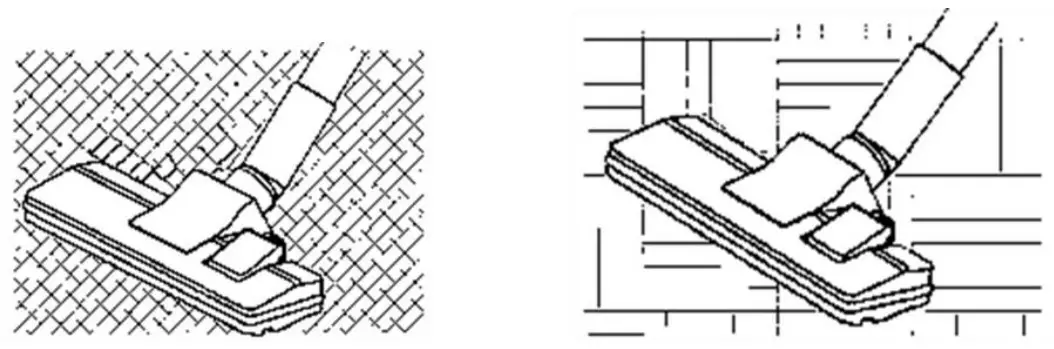

Where is difficult to reach, such as gaps and the keyboard, bookshelf and windows. Sofa brush: For cleaning bed, sofa, couch etc. Use of the selector on floor brush: Bristles extended for carpets. Bristles retracted for hard floors. If the angled pipe has blockage insert it into the air-intake and switch the appliance on.

CLEANING AND MAINTENANCE

Empty the dust container

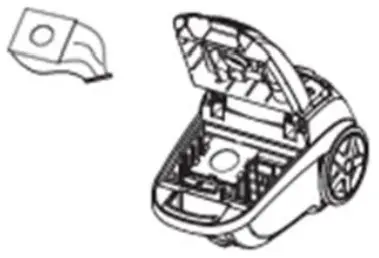

1. After removing the flexible hose, press the cover lock button and open the dust container.
2. Remove the dust filter from the container.
3. Replace the dust filter in the container.
4. Close the dust container until it is locked in the position.


Change filter

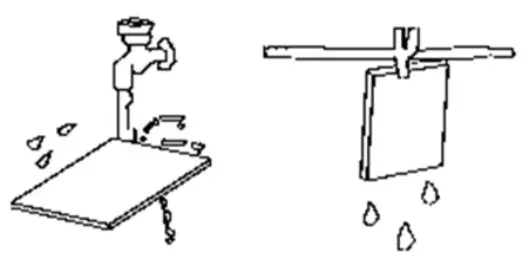

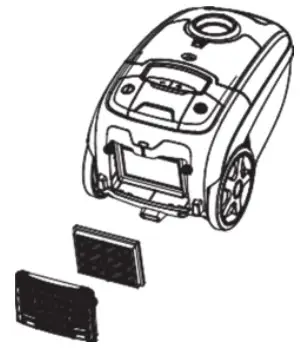

Replace the motor filter: Open the dust container and remove the motor filter. Fix the new filter in the position. Replace the outlet filter: Detach the grille by pulling firmly away from the appliance, remove the outlet filter and replace the new filter. Fix the grille again. Clean the filter: Clean the filter in water and allow them to dry completely before replacing them. Clean the cloth dust bag

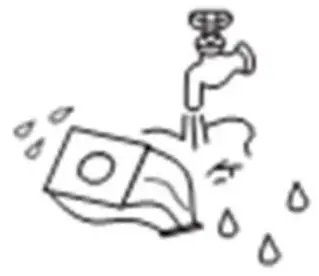

Clean the cloth dust bag with water and a little detergent (if needed). Allow the filter to dry completely before replacing.

ERROR DETECTION

Before you contact our services center, please check the following points:

Warning:
If the supply card is damaged, it must be replaced by the manufacturer or its server agent of a similarly qualified person in order to avoid a hazard.

TECHNICAL DETAILS

Environment friendly disposal
You can help protect the environment!
Please remember to respect the local regulations: hand in the non-working electrical equipment’s to an appropriate waste disposal center.
HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product
names are trademarks or registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from NETWORK
ONE DISTRIBUTION.
Copyright © 2013 Network One Distribution. All rights reserved.
www.heinner.com,
http://www.nod.ro
http://www.heinner.com,
http://www.nod.ro
This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution
Marcel Iancu Street, 3-5, Bucharest, Romania
Tel: +40 21 211 18 56,
www.heinner.ro,
www.heinner.com
www.heinner.com
750W, 50/60Hz, 220-240V
