Roswell C920-0300 Dual Zone Volume Control Instructions

Roswell C920-0300 Dual Zone Volume Control Instructions

ROSWELL LOGOC920-0300

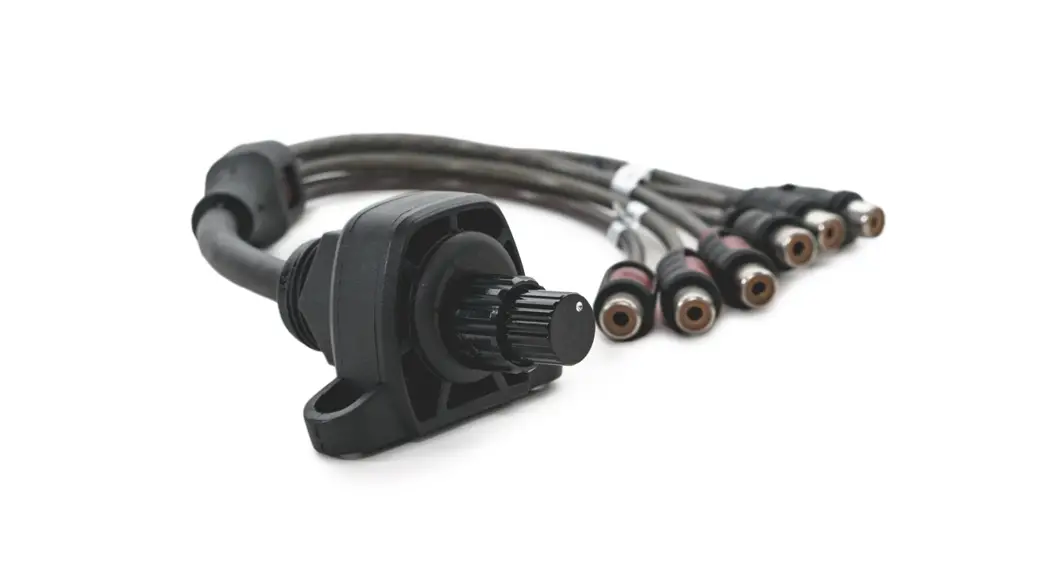

Dual Zone Volume Control
Instructions Manual

Contents hide
1 C920-0300 Dual Zone Volume Control
2 EXAMPLE WIRING DIAGRAM
3 Documents / Resources
4 Related Posts

C920-0300 Dual Zone Volume Control

(FUN) – CTION
We design it. We built it. You enjoy it.

ROSWELL C920 0300 Dual Zone Volume Control - FIG 1ROSWELL C920 0300 Dual Zone Volume Control - FIG 2

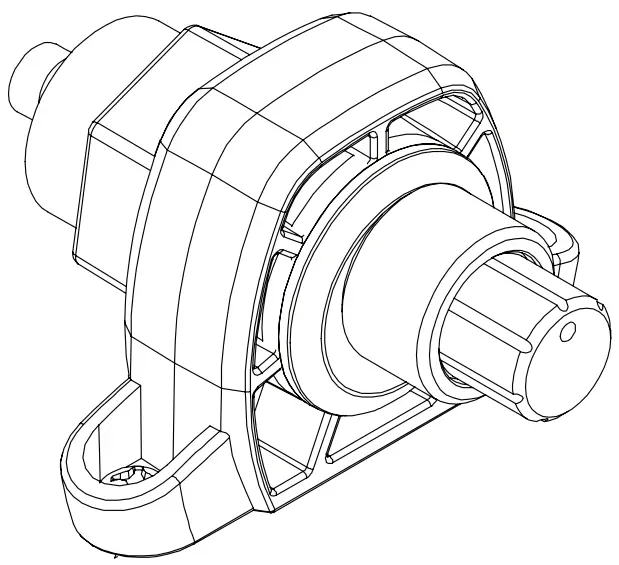

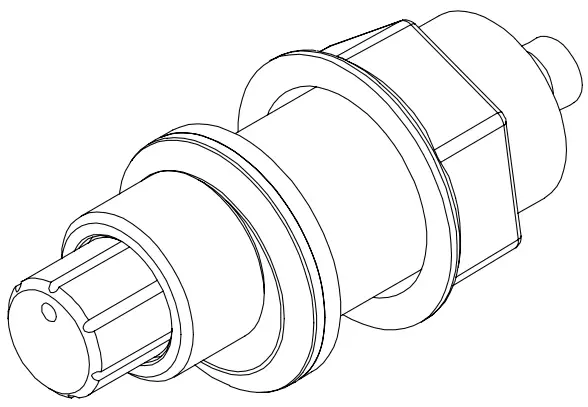

Surface Mount

or

Flush Mount

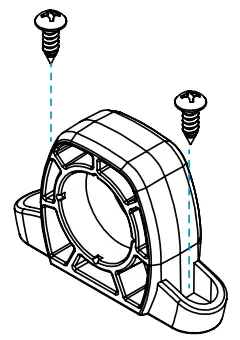

Screw mount to a flat surfaceROSWELL C920 0300 Dual Zone Volume Control - FIG 3

1

Drill hole 7/8″ Where you want your DZVC locatedROSWELL C920 0300 Dual Zone Volume Control - FIG 4

ROSWELL C920 0300 Dual Zone Volume Control - FIG 5

2

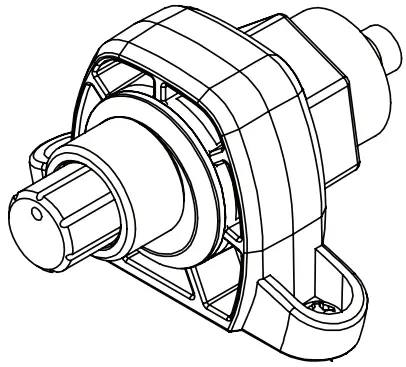

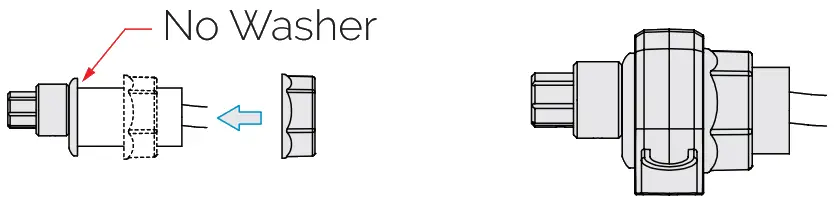

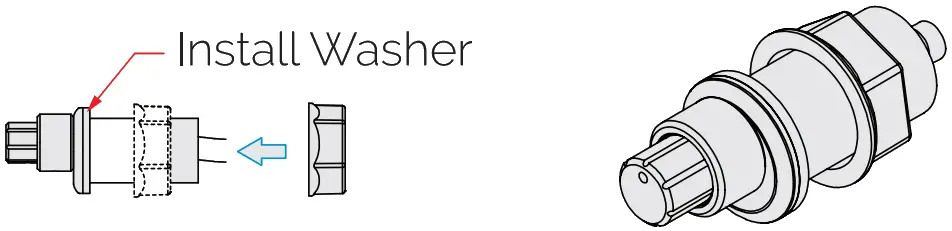

Run your DZVC through the mounting hole and install the backing nut. Once happy with orientation tighten the backing nut.

ROSWELL C920 0300 Dual Zone Volume Control - FIG 6
ROSWELL C920 0300 Dual Zone Volume Control - FIG 7

3

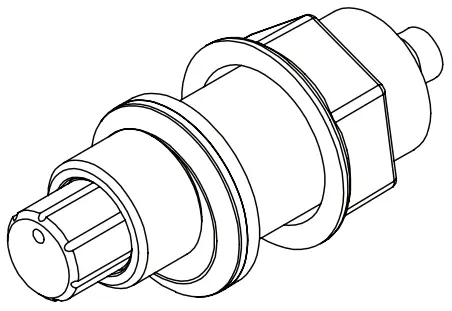

Enjoy your music to the fullest

ROSWELL C920 0300 Dual Zone Volume Control - FIG 8

For installation assistance, email [email protected]

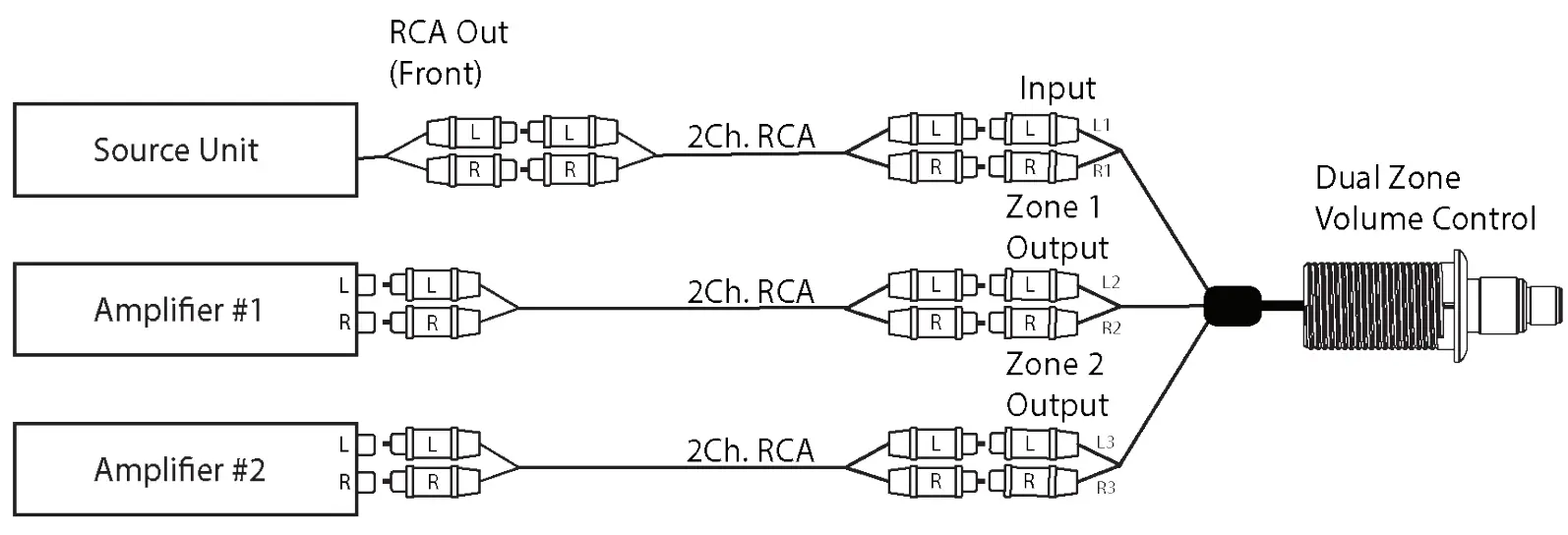

EXAMPLE WIRING DIAGRAM

ROSWELL C920 0300 Dual Zone Volume Control - FIG 9

Welcome to the family.
www.roswellmarine.com

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals

Genelec 9101b Wireless Volume Control User Manual
Genelec 9101b Wireless Volume Control User Manual
Monacor Att-325st Eas Volume Controller Instruction Manual
Monacor Att-325st Eas Volume Controller Instruction Manual
Monacor Att-306peu Wall-mounted Pa Volume Control Instruction Manual
Monacor Att-306peu Wall-mounted Pa Volume Control Instruction Manual
Ralston Instruments Qtvc Volume Controller Instruction Manual
Ralston Instruments Qtvc Volume Controller Instruction Manual
Nvs-ac10006vc Volume Controller User Manual
Nvs-ac10006vc Volume Controller User Manual
Thomann Volume 1 - Passive Volume Controller User Guide
Thomann Volume 1 - Passive Volume Controller User Guide
Voxx Electronics R6867t Digital Control Center Instruction Manual
Voxx Electronics R6867t Digital Control Center Instruction Manual
Rockville Vol85 Series Wall Mounted Volume Controllers Owner's Manual
Rockville Vol85 Series Wall Mounted Volume Controllers Owner's Manual
Power Dynamics Pdvc Series Volume Control Instruction Manual
Power Dynamics Pdvc Series Volume Control Instruction Manual
Urbanista 21322 Gofit And Volume Control User Manual
Urbanista 21322 Gofit And Volume Control User Manual

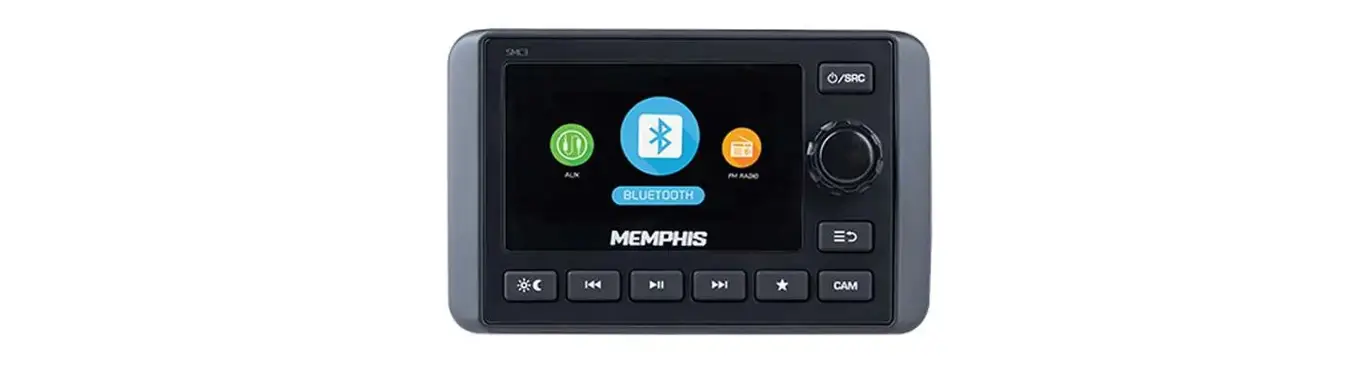

Memphis Smc3 Multi-zone Media Center User Manual
