LO-RIYA Riya Grey Stone Stroller
User Manual

www.lionelo.com

LO-RIYA Riya Grey Stone Stroller

Introduction

Dear customer!
Thank you for placing trust in us and choosing Lionelo.
Our products are manufactured with utmost care to provide your child with comfortable travel and, above all, safety. Thanks to the use of high-quality materials and modern  solutions, we provide you with a product perfect for everyday use.
Before you use the product for the first time, please read this operating manual carefully. Wrong use of the product may pose a threat to child’s life.
Should you have any remarks or questions concerning the product, please do not hesitate to contact us: [email protected]

The product satisfies requirements of the following standards:
EN1888-1:2018 and EN1466:2014+AC:2015 (applies to carrycot in 2in1 and 3in1 sets).
IMPORTANT! Please carefully read this manual before use and keep for future reference
Producer: Brandline Group Sp. z o.o.
ul. A. Kręglewskiego 1, 61-248 Poznan, Poland

WARNINGS FOR STROLLER IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. Never leave the child unattended.
2. Ensure that all locking devices are engaged before use.
3. To avoid injury ensure that the child is kept away when unfolding and folding this product.
4. Do not let the child play with this product.
5. Always use the restraint system.
6. Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
7. This product is not suitable for running or skating.
8. This product is suitable for both babies and children aged 0-3, whose weight does not exceed 1 5 kg.
9. The best position for transporting newborn babies is as low as possible.
10. If you wish to take the child out of the stroller or put it inside, make sure the wheel locking mechanism is active.
11. Basket maximum load is 2 kg.
12. Any loads on the bar, sunshade or sides of the stroller may affect its stability.
13. The product is intended for one child only.
14. Do not use accessories which have not been approved by the manufacturer.
15. If you equip the product with a sling, through special adapters, which may also be used as a child safety seat, remember it cannot substitute the crib. If the child needs to  sleep, put it in a suitable crib.
16. Use only spare parts delivered or recommended by the manufacturer/distributor.
17. Keep the product away from fire and sources of heat.
18. Do not use the product on stairs.

WARNINGS FOR CARRVCOT (APPLIES TO 2IN1 SET)
IMPORTANT – Before you start using the product, please carefully read this manual and keep for future reference

1. NOTE! This product is only suitable for a child who cannot sit up unaided.
2. NOTE! This product is not suitable for children who can sit, turn from side to side and lift on its hands and knees. Child’s maximum weight up to 9kg.
3. NOTE! Only use on a firm, horizontal level and dry surface.
4. NOTE! Do not let other children play unattended near the carry cot.
5. NOTE! Do not use if any part of the carry cot is broken, torn or missing.
6. Use solely spare parts delivered or recommended by the manufacturer.
7. Keep the product away from fire and sources of heat.
8. Check the bottom and grips of the carrycot for any signs of damage and wear.
9. Make sure the grips are mounted and locked in a proper position before you lift or move the carrycot.
10. Child’s head in the carrycot must not be lower than the child’s body.
11. Do not put an additional mattress into the carrycot.

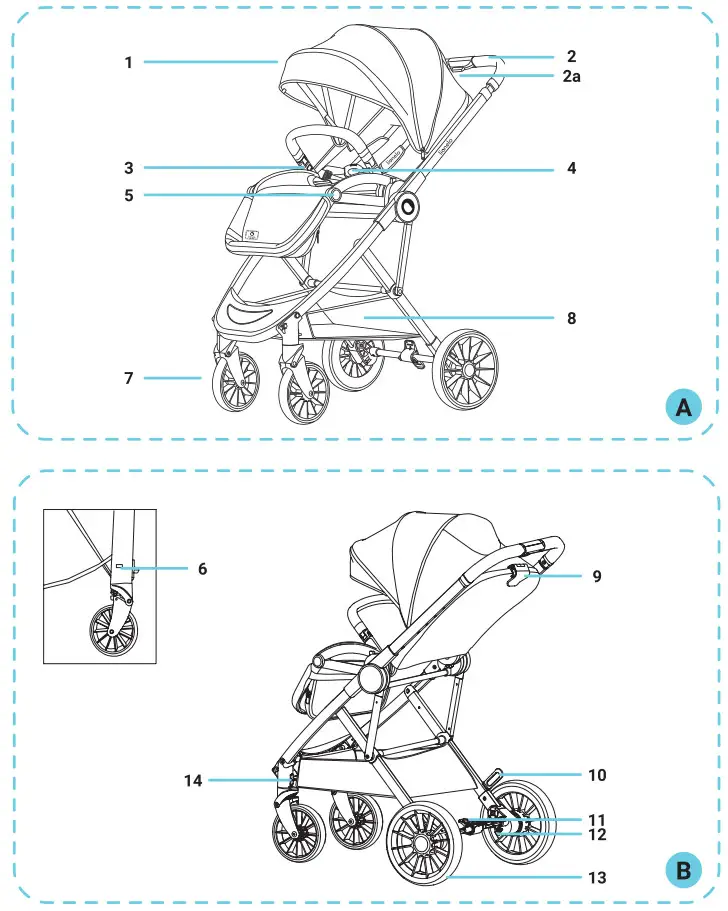

Stroller parts list (fig. A, B)

1. Sunshade
2. Handle
   2a. Handle adjustment key
3. Bow release key
4. 5-point harness
5. Footrest adjustment key
6. Front wheel release key
7. Front wheels
8. Basket
9. Backrest adjustment lever
10. Folding lock
11. Locking mechanism
12. Rear wheel release key
13. Rear wheels
14. Swivel wheel lock key
    2in 1 set includes stroller frame with seat and carrycot.

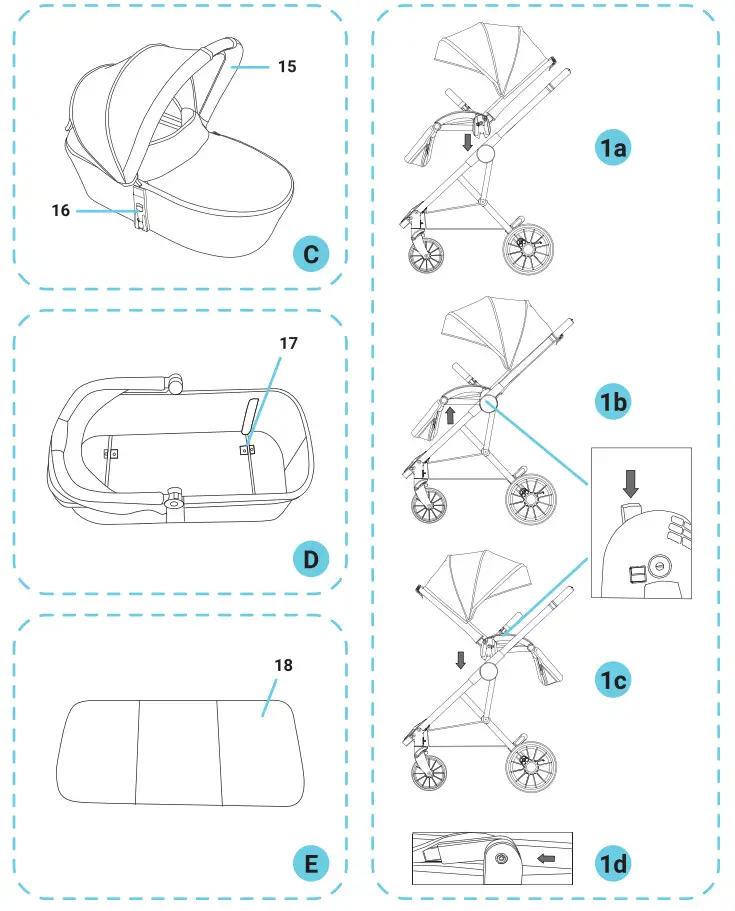

    Carrycot parts list (fig. C, D,E) – applies to 2in1 set
15. Sunshade
16. Carrycot connector with key
17. Carrycot supports
18. Mattress

How to assemble and disassemble stroller

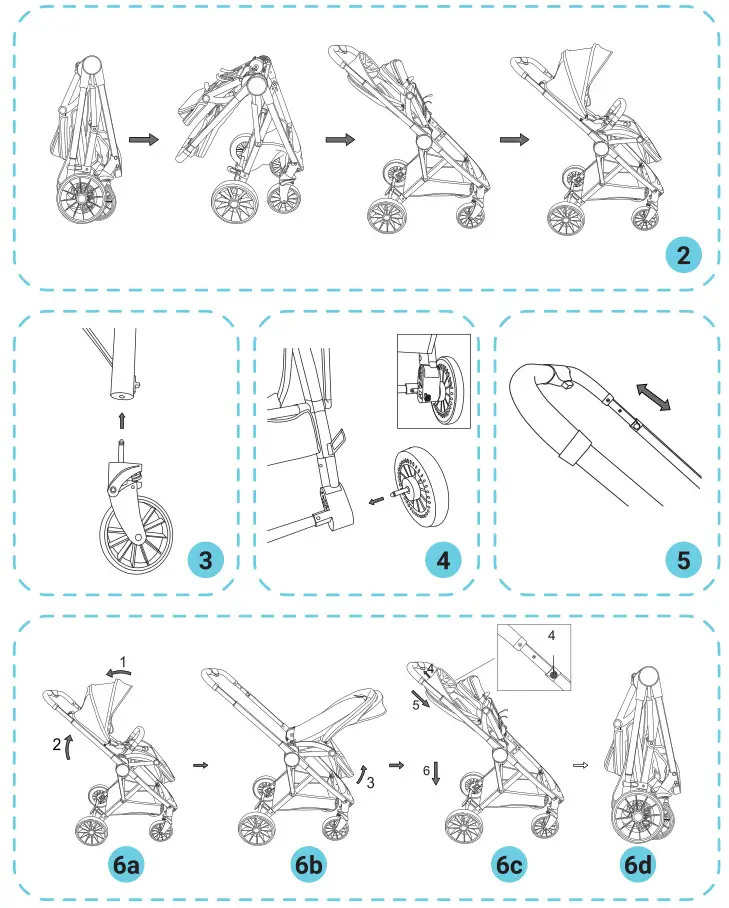

1. Stroller frame unfolding: open the unfolding lock (10) and then pull the handle up until you can hear a click (fig. 2)
2. Place the seat on the stroller frame (fig. 1 a). Unfold and secure the seat with a bow until you can hear a click.
   Correct assembly of the seat on the frame is signaled by the click. Make sure the seat has been properly mounted in the stroller frame.
3. To remove the seat from the stroller frame, press the release key on both sides of the seat and then lift them (fig. 1 b).
4. To assemble the seat in a rear-facing position (fig. 10) press the release key and then lift the seat and place it in a desired position. The seat is properly mounted when you can hear a distinctive click.
5. To remove the sunshade, unzip it and then pull up plastic elements on both sides (fig. 10)
6. To remove seat covering, unzip it around footrest and under the seat, and unzip belts at the base of the seat.
   How to assemble and disassemble front wheels
7. Slide wheel shank into corresponding holes on stroller frame (fig. 3).
8. To remove front wheels, press the release key (6) and pull the wheels out.
   How to assemble and disassemble rear wheels
9. Slide wheel shank into corresponding holes on stroller frame (fig. 4).
10. To remove rear wheels, press the release key (12) and pull the wheels out.
    How to assemble and disassemble rear wheels
11. Slide wheel shank into corresponding holes on stroller frame (fig. 4).
12. To remove rear wheels, press the release key (12) and pull the wheels out.
    How to fold stroller frame in forward-facing position
    Fold the sunshade (fig. 6a), tilt the backrest to the front, fold the footrest as showed by the arrow no. 3 (fig. 6b), next press the handle adjustment key with one hand and lock key with the other, and fold the stroller as showed by the arrow no. 5 (fig. 6c).
13. Dynamically lower the handle as far as you can (fig. 60d).
    Make sure the folding lock is engaged.
    How to fold stroller frame in a rear-facing position

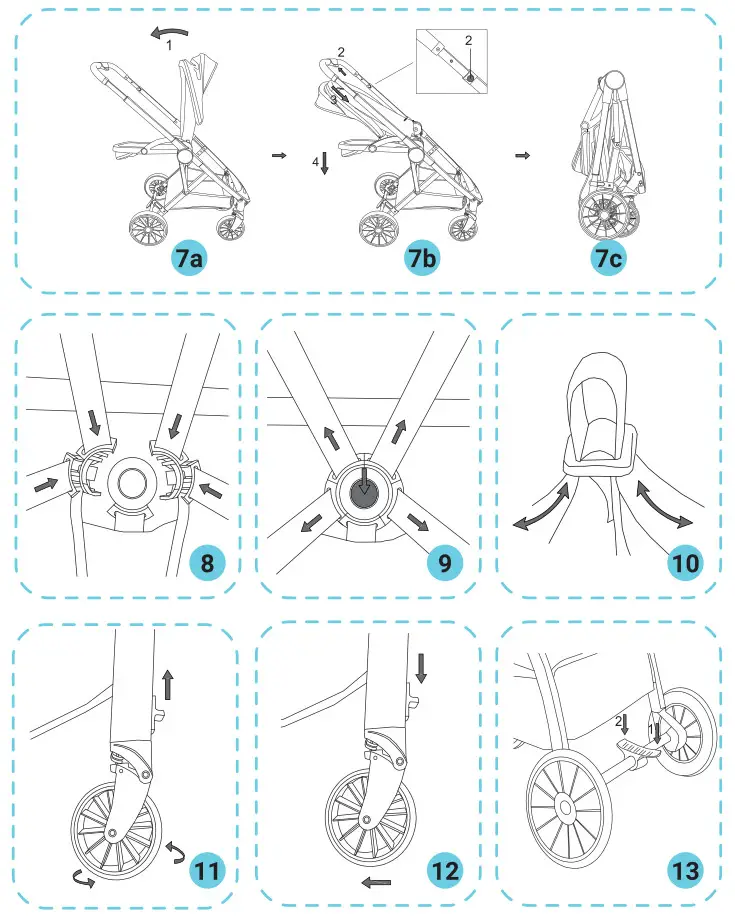

14. Fold the backrest to the back (fig. 7a). Next, follow steps of folding the stroller in a forward-facing position analogically (fig. 7b, 7c). Make sure the folding lock is  engaged.
    How to use a harness
15. Safety belts adjustment: insert belts into the central buckle until you can hear a click (fg. 8). To remove belts, press the key in the central buckle (fig. 9)
16. To adjust length of belts, pull them through relevant loops in the seat so that they correspond to child’s height (fig. 10) Swivel wheel lock key
17. Swivel front wheels: to unlock, firmly slide the lock key (7 4) upwards (fig. 11 ). To lock, slide the lock key downwards (fig. 12).
18. Locking mechanism: to lock, press the pedal as showed by the arrow no. 1 (fig. 13). To unlock, press the pedal as showed by the arrow no. 2 (fig. 13)
19. Note: make sure the stroller is locked when immobilized.
    How to adjust backrest

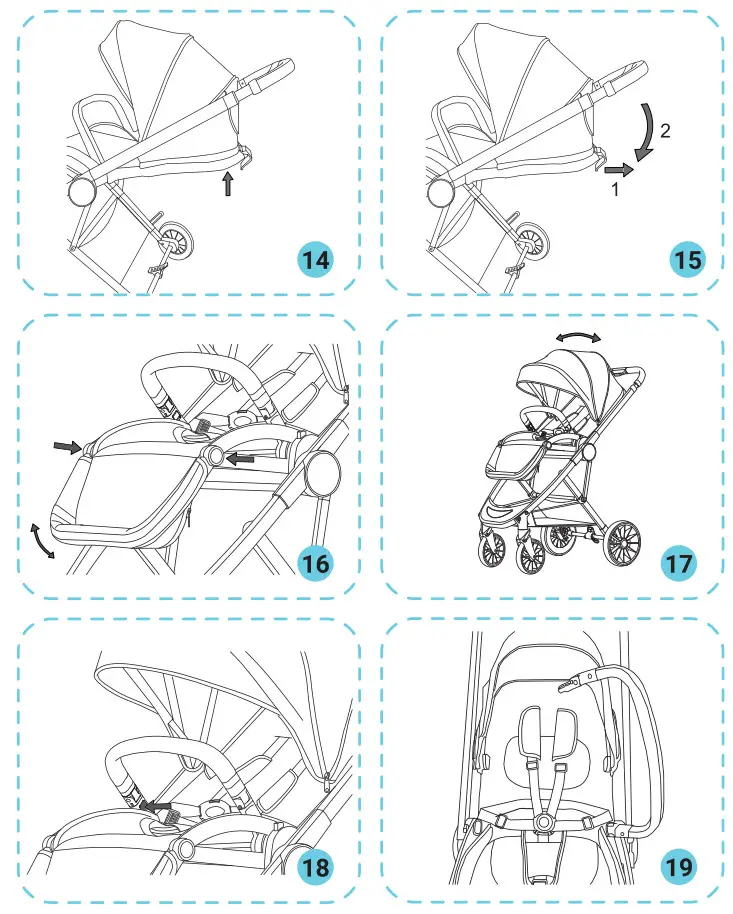

20. To set the seat in a sitting position, push the backrest upwards until you can hear a distinctive click (fig. 14).
21. To lower the backrest, press the backrest adjustment lever and set the desired position (fig. 15).
    How to adjust footrest
22. To choose one of three available footrest positions, press footrest adjustment keys (5) and then push the footrest downwards or upwards, depending on your preferences  (fig. 16)
    How to adjust sunshade
23. To increase sunshade range, unzip it and pull out the additional part (fig. 17).
    How to adjust bow
24. To remove a bow, press release keys (3) and take the bow out (fig. 18, 19). If you can hear a click, it means the installation is correct.
    How to assemble and disassemble carrycot (applies to 2in1 set)

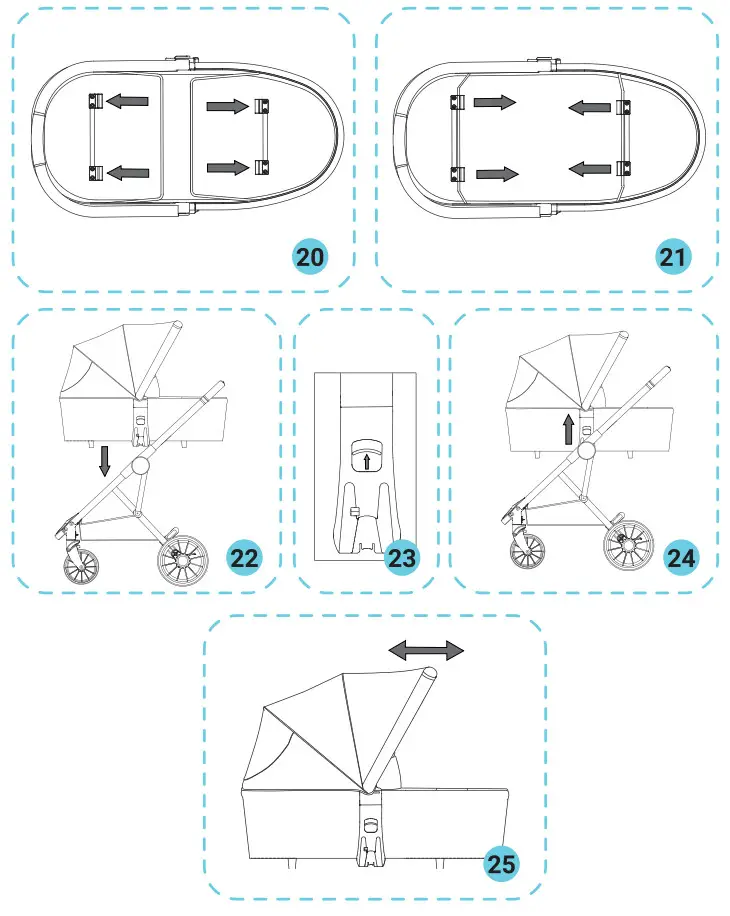

25. Insert metal bars into carrycot supports (fig. 20, 21 ). To lock supports, pull until you can hear a click.
26. Zip the internal covering of the carrycot and put the mattress in.
27. To fold the carrycot, follow the steps presented in points 25-26 in a reversed order.
28. Place the carrycot on the stroller frame so that the child is facing the person who handles the stroller (fig. 22). A click suggests the assembly is correct. Make sure the  carrycot has been properly mounted on the frame.
29. To remove the carrycot from the stroller frame, press release keys (16) on both sides of the carrycot and then lift the carrycot (fig. 23, 24).
30. To adjust the carrycot sunshade, set it as you like (fig. 25).
31. You can move the carrycot when the handle is positioned at the angle of 90.
    How to assemble and disassemble child safety seat (applies to 3in1 set)
    Connectors are compatible with these products: Lionelo (Astrid, Mari Carrier, Greet Carrier)

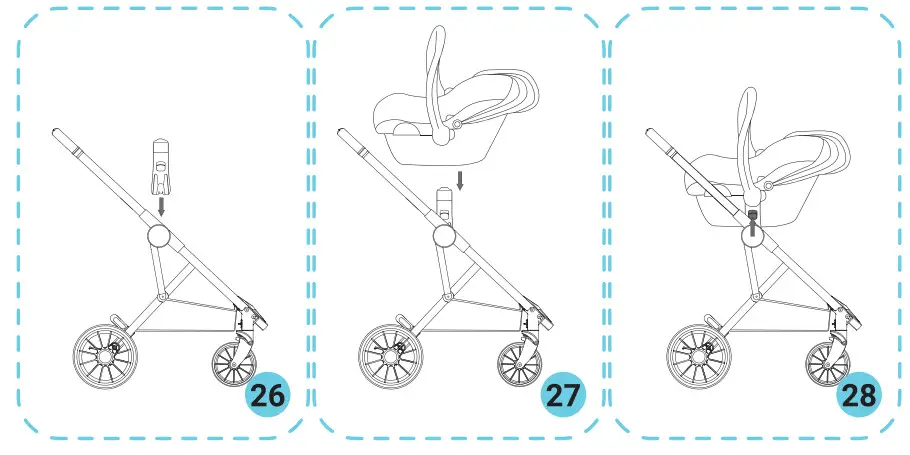

32. Insert connectors into corresponding spots on the stroller frame until you can hear a click, and connectors are locked (fig. 26). Pay attention to Rand L marking.
33. Insert the child safety seat into the stroller frames until you can hear a click and connectors are locked (fig. 27). Make sure the child safety seat has been properly  mounted on the frame.
34. To detach the child safety seat, press child safety seat keys and then take the product from the connectors (fig. 28).
35. When placing the child safety seat in the stroller frame, make sure the child is facing the person who handles the stroller.

How to clean and maintain

1. Clean the dust and sand off the wheels and stroller frame on a regular basis. You can clean these parts with a wet cloth.
2. Wash the upholstery of the stroller and its basket manually at the temperature of 30°C. Do not dry mechanically.
3. Wash the upholstery of the carrycot and cover manually at the temperature of 30°C. Do not dry mechanically.
4. You should regularly inspect particular parts of the stroller for their correct operation, resistance and potential damage.
   In case of any defects, please contact the authorized service center.
5. Use spare parts recommended by the manufacturer only.
6. Make sure the stroller is not directly exposed to sunlight and high temperatures for a long time. Sunlight may cause the fabrics to fade.
7. Do not use strong chemicals to clean this product. The pictures are for reference only. The real design of the products may differ from the pictures presented.
