BE-SSGBCXX HEAVY-DUTY ROOTGRAPPLE BUCKET

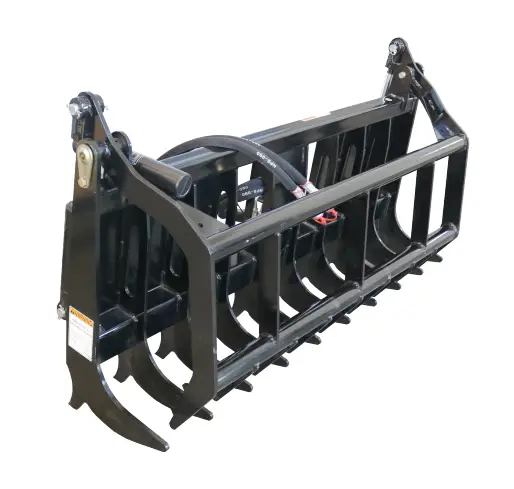

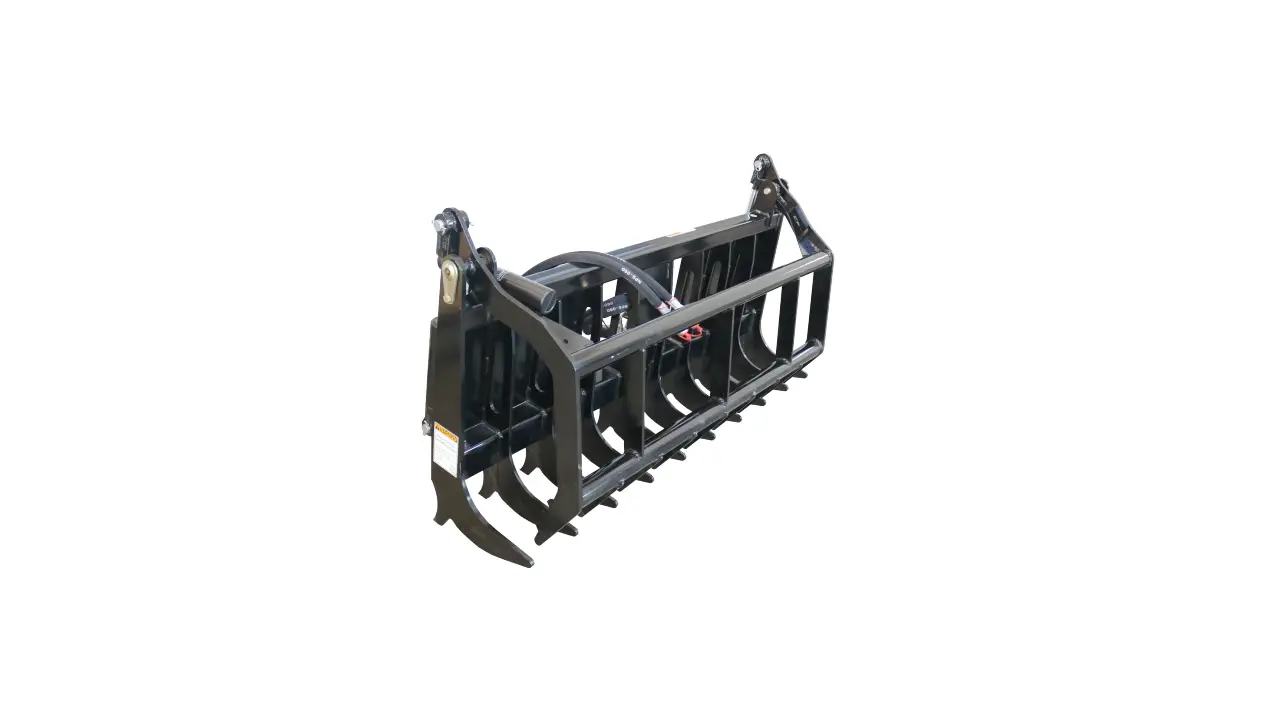

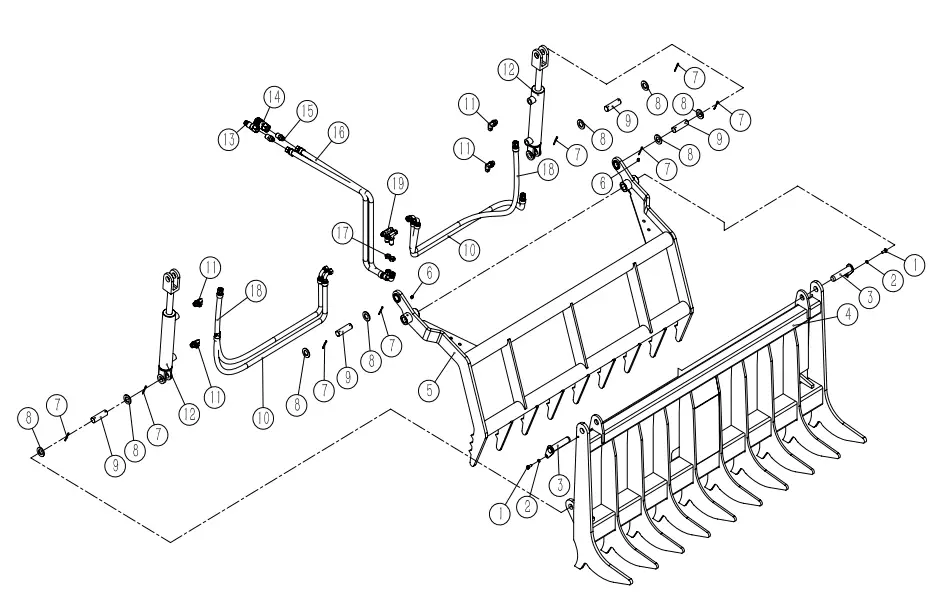

EXPLODED VIEW & PARTS LIST
| REF | PART NO | DESCRIPTION | QTY |
| 1 | 104.102B.001 | Bolt M8 × 20 | 2 |
| 2 | 104.102B.002 | Spring washer 8 | 2 |
| 3 | 104.102B.003 | Pin shaft weldment | 2 |
| 4 | 104.102B.004 | Lower splint weldment | 1 |
| 5 | 104.102B.005 | Upper splint weldment | 1 |
| 6 | 104.102B.006 | Oil cup M8x1 | 2 |
| 7 | 104.102B.007 | Split pin 4 × 45 | 8 |
| 8 | 104.102B.008 | Flat washer 24 | 8 |
| 9 | 104.102B.009 | Pin shaft 25 | 4 |
| 10 | 104.102B.010 | Oil Hose 01 | 2 |
| 11 | 104.102B.011 | Elbow 3 / 4-16 | 4 |
| 12 | 104.102B.012 | Cylinder | 2 |
| 13 | 104.102B.013 | Plane quick-change connector npt1 / 2 (male connector) | 1 |
| 14 | 104.102B.014 | Plane quick-change connector npt1 / 2 (male connector) | 1 |
| 15 | 104.102B.015 | Connector 3 / 4-16 to npt1 / 2 | 2 |
| 16 | 104.102B.016 | Import and export tubing | 2 |
| 17 | 104.102B.017 | Nut 8wlnms | 2 |
| 18 | 104.102B.018 | Oil Hose 02 | 2 |
| 19 | 104.102B.019 | Tee 8WJTX | 2 |
