User Manual
Loewe Bild 3.55
EU energy efficiency class: A
Screen diagonal (in cm) / Screen diagonal (in inch): 139 / 55
Power consumption “ON”1 (in W): 115
Annual energy consumption (kWh)2: 159
Power consumption in standby mode / off (in W): 0.37 / 0
Resolution (in pixels): Ultra HD (3840 x 2160)
OLED

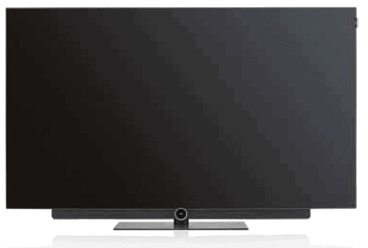

Box contents: Set up option table
TS Plate 3.55 OLED
W* 122.8 / H 78.9 / PD 6.7 / TD 27.0
Manually rotatable (+/– 20°), Loewe assist system remote control incl. batteries
Set-up options
Set up option wall
WM Slim / VESA Size 300
W* 122.8 / H 73.9 / PD 6.7 / TD 8.1
Chrome Silver, flat mounting
Set up option wall, tiltable
WM 67, Black
W* 122.8 / H 73.9 / PD 6.7 / TD 9.8
Set up option wall, flexible
WM Isoflex 32 – 55³
W* 122.8 / H 73.9 / PD 6.7 / TD 12.6
Aluminum folds flat, and can be pulled out, rotated, and pivoted intelligent cable management
TV
Versions
Basalt grey
| Model | Article no. | EAN Code |
| 55 | 57461D83 | 4.01E+12 |

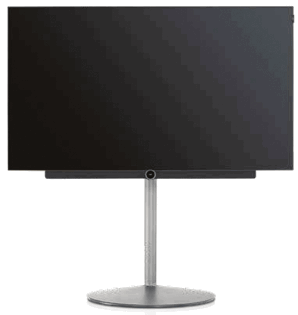

Set up option floor, manual rotation
FS Plate 55_65
W* 122.8 / H 126.8 / PD 6.7 / BP 56.0
Light Grey, manually rotatable (+/– 20°) concealed cable routing
Dimensions in cm: W = width, H = height, PD = product depth, TD = total depth, BP = diameter/dimensions of base plate. Technical modifications and errors excepted.
* The width of the TV can vary by up to 4 mm from the product specification on the side where the Loewe logo tag is located.
1 To EN 62087: 2012.
2 On the basis of four hours of operation per day, 365 days a year. Actual energy consumption depends on the purpose for which the TV is used.
3 Only in conjunction with a VESA Size adapter.
Technical information
Loewe Bild 3 oled
| Image+ (Image) | |
| Resolution (in pixels) | Ultra HD (3840 x 2160) |
| Display technology | OLED (WRGB Pixel) |
| Screen diagonal (in cm/inch) / Response time (in ms) | 139 / 55 / 1 |
| Peak luminance (in cd/m²) / Viewing angle (horizontal/vertical) | 800 / 120° |
| Ultra HD Super Resolution Scaling / Image+ Active / 24 p motion picture display |  |
| Interior auto-dimming (OPC) / Home Mode |  |
| Digital+ (Television Standards) | |
| DVB-T2 |  |
| Sat-IP / DVB-C to IP | |
| MPEG / MPEG2 / MPEG4 (H.264) / HEVC (H.265) | |
| DVB radio |  |
| Sound+ (Audio) | |
| Output in W (sine / music) | 2 x 20 / 2 x 40 |
| Acoustic speaker concept | Speaker Box |
| Mimi Defined | |
| Integrated 5.1 AV-Receiver / Digital audio link |  |
| Dolby Digital/ Dolby Digital Plus |  |
| Individual bass and treble control / Loudness | |
| Automatic Volume Control (AVC) | |
| Audio out available: variable / fixed / Subwoofer | |
| Assist+ (Operation) | |
| Loewe os / Home Screen (incl. favorites) | |
| HDR (Dolby Vision / HDR 10 / HLG) | |
| Electronic Program Guide / EPG Keyword Search | |
| MediaText (HbbTV) / Video text (Level 2.5) | |
| Menu languages²/Context-Related Help | |
| Parental Lock / Automatic turn-off / Timer | |
| Instant Channel Zapping / Quick Start Mode | |
| The individual channel lists incl. AV and radio | 6,000 |
| Digital Link HD (CEC) | |
| PIP (AV) | |
| media update (via USB / Internet) | |
| Hotel Mode | |
| Media+ (Multimedia functions) | |
| DR+ / storage capacity in GB / USB recording |  |
| DR+ Streaming server / client / Follow-Me |  |
| Multi Recording |  |
| Photo player / Music player / Video player (via Home network and USB incl. Ultra HD) | |
| Digital Media Renderer (incl. Ultra HD) / Bluetooth Music Player | |
| Internet Apps (MediaNet) / Internet Browser / Internet radio (incl. search function) | |
| Connectivity+ (Connectors) | |
| HDMI with HDCP 2.2 | |
| LAN network connection / integrated WLAN | |
| Common Interface (CI+)⁵ 2 | |
| Home Control Interface IP / Home Control Interface RS232 / IR-Link⁶ | 4 (4 x 2.0b) |
| Digital Audio-Out (coaxial / optical) | |
| Analogue Audio-Out (L/R) / Headphone (jack 3.5 mm) | 2 |
| Micro-AV (Center In) | |
| USB |  |
| Bluetooth Connection | |
| Screen Mirroring (Miracast) | ₇ |
| Environment | |
| EU energy efficiency class (Energy Class A++ to E) / Annual energy consumption (kWh)⁸ | A / 159 |
| Power consumption in standby mode / off (in W) | 0.37 / 0 |
| Power consumption “ON”⁹ (in W) / Peak luminance ratio in % | 115 / 66 |
| Mercury content in mg / contains lead | 0,0 / traces |
| Miscellaneous | |
| Weight in kg | 23.2 |
| Power switch / Mains voltages | / 220–240 V, 50 / 60 Hz |
= included/installed y = upgradeable/optional
- The reception of DVB-T2 programs is available in selected countries.
- D-GB-F-I-E-NL-CZ-GR-PL-H-FIN-SLO-SK-TR-S-DK-P-RUS-N
- AV-PIP is only available in combination with DVB-T/C/S.
- Available via optional feature upgrade.
- CI Plus is backward compatible with CI. Functionality is dependent on module availability from the supplier.
- Only in conjunction with a corresponding adapter and selected devices (RC5, 36 kHz), to be ordered separately.
- Available via free software update.
- On the basis of four hours of operation per day, 365 days a year. Actual energy consumption depends on the purpose for which the TV is used.
- To EN 62087: 2012.
- Traces may occasionally be found in electronic components (in compliance with the recast European RoHS directive).
Loewe bild3
Loewe Technology GmbH
Industriestraße 11, 96317 Kronach
Germany
www.loewe.tv
Loewe UK Ltd
EK Business Centre
14 Stroud Road, Glasgow, G75 0YA
www.loewe.tv
© Loewe 02/2020
Technical modifications
and errors reserved.
