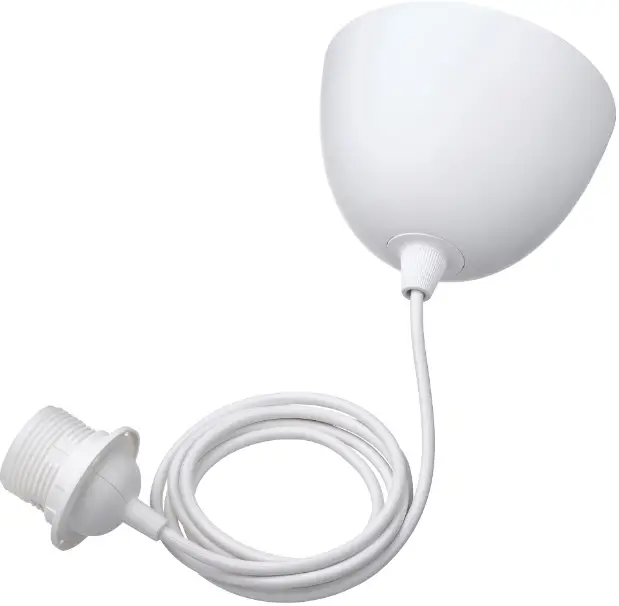

IKEA HEMMA Electric Mount

IKEA-HEMMA-Electric-Mount-product-img

CAUTION
Before starting, turn off the power at the main circuit panel.

INFO

IKEA-HEMMA-Electric-Mount-fig-1

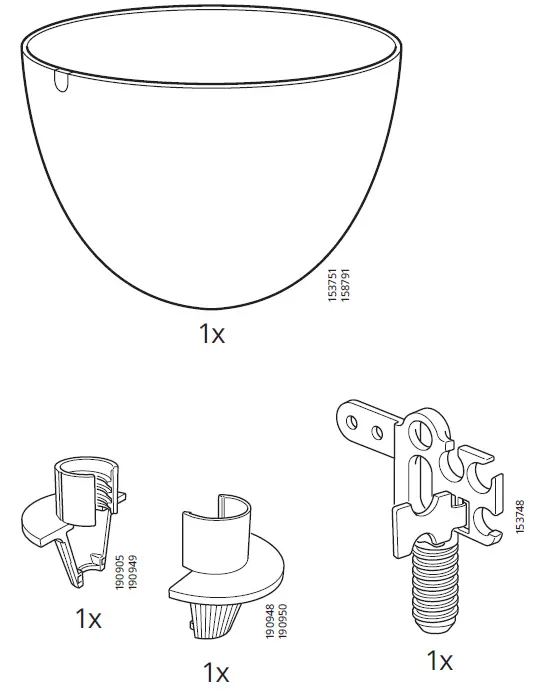

PARTS

IKEA-HEMMA-Electric-Mount-fig-2IKEA-HEMMA-Electric-Mount-fig-3

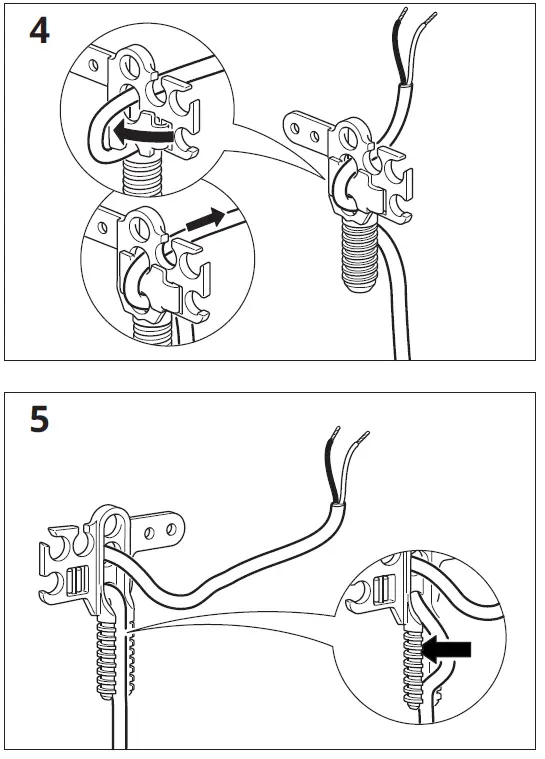

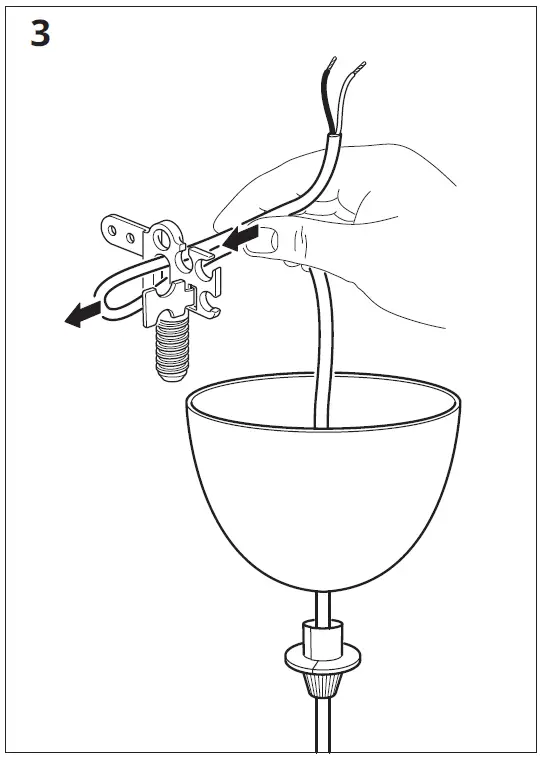

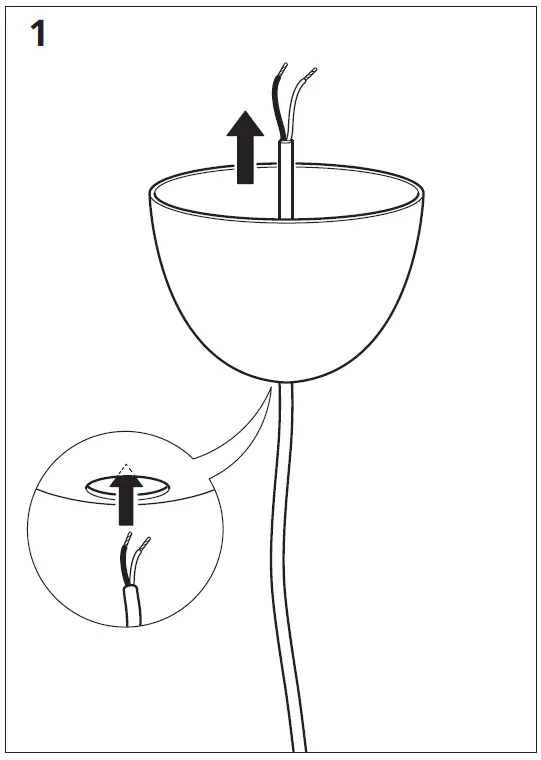

INSTALLATION INSTRUCTIONS

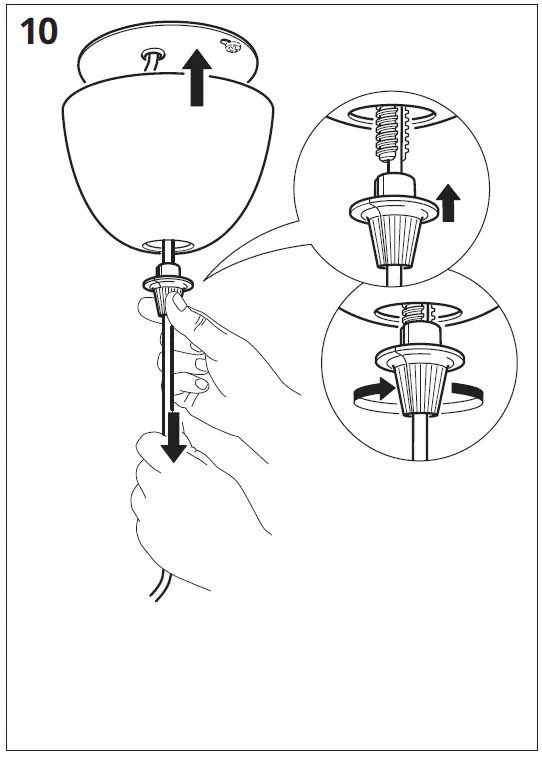

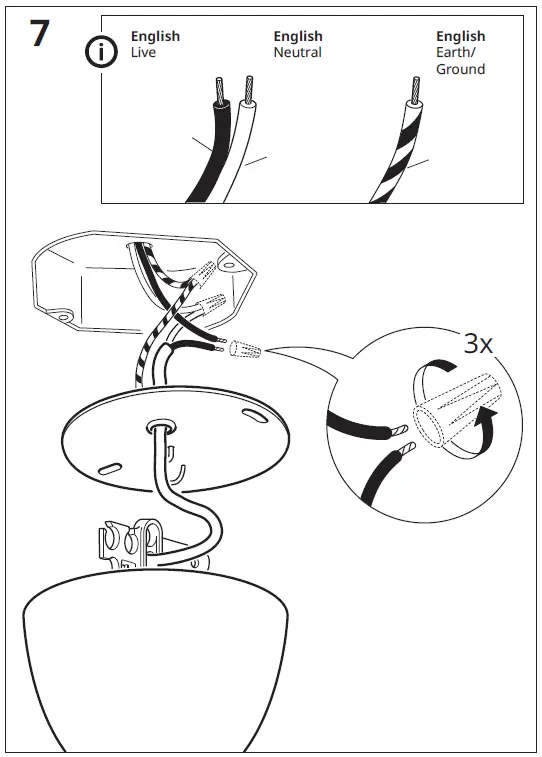

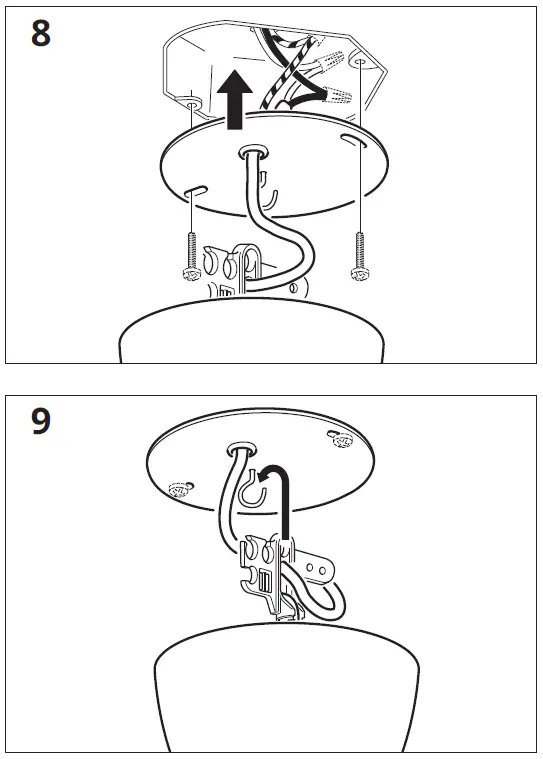

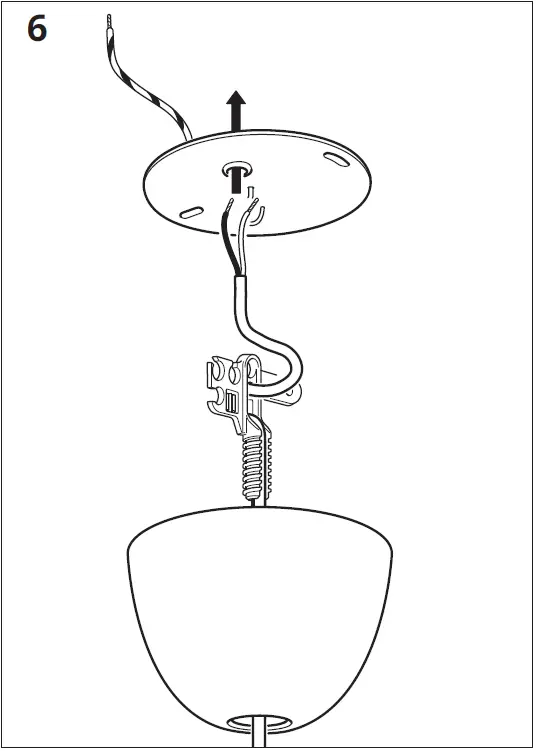

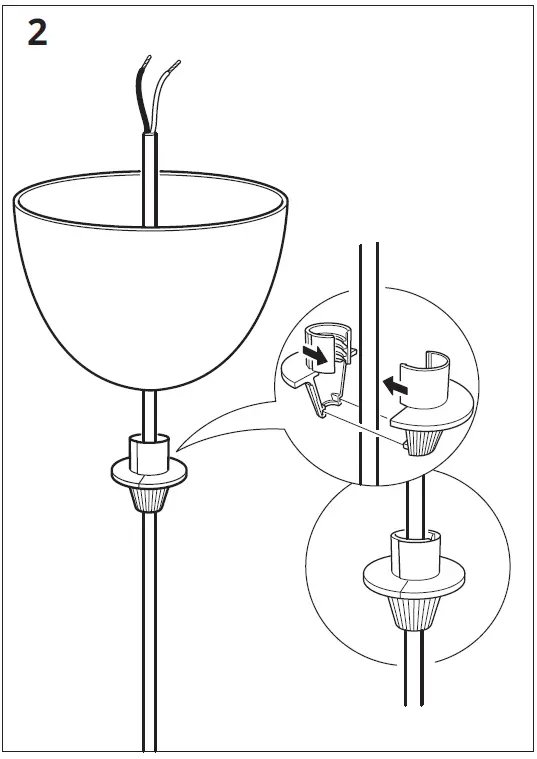

IKEA-HEMMA-Electric-Mount-fig-4IKEA-HEMMA-Electric-Mount-fig-5IKEA-HEMMA-Electric-Mount-fig-6IKEA-HEMMA-Electric-Mount-fig-7IKEA-HEMMA-Electric-Mount-fig-8IKEA-HEMMA-Electric-Mount-fig-9IKEA-HEMMA-Electric-Mount-fig-10IKEA-HEMMA-Electric-Mount-fig-11

CAUTION! Do not over-tighten.

  • Max 1.8 kg/4 lb

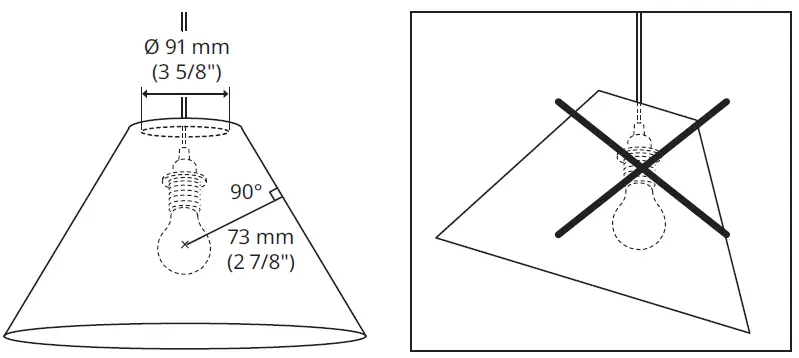

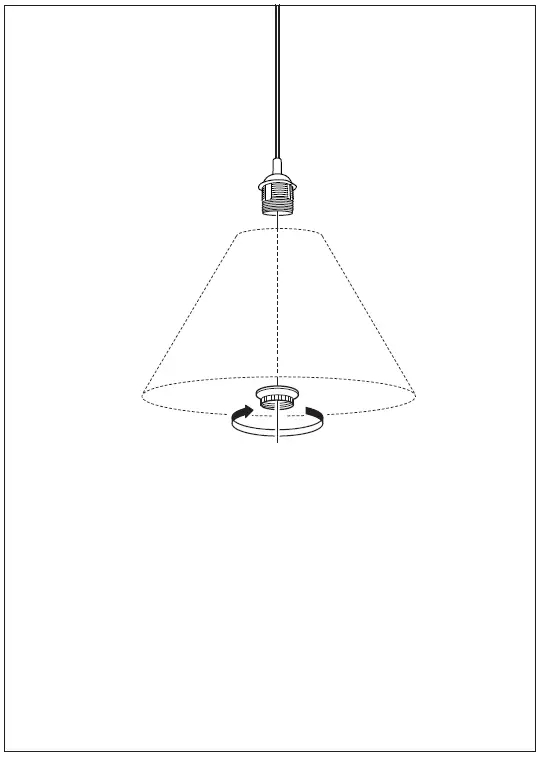

  • IKEA-HEMMA-Electric-Mount-fig-12Use only an open top open bottom lamp shade. For your safety, the dimensions of the shade must be in accordance with the minimum dimensions listed below. Use a maximum 22-watt bulb.
  • USE SHADES ONLY IN THE VERTICAL POSITION. ANY DEVIATION FROM THESE INSTRUCTIONS MAY CONSTITUTE A FIRE HAZARD.

IKEA-HEMMA-Electric-Mount-fig-13

© Inter IKEA Systems B.V. 2017 2022-01-26 AA-2005843-7
