Dongguan
K6

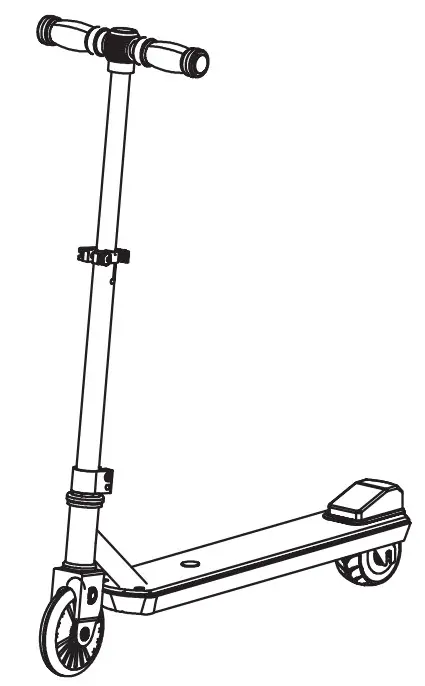

Kids Scooter
- Please read the user manual and get to know the performance of kids’ electric scooters before using the product. Don’t use the scooter when not accompanied by an adult
This is a children’s cycling product. Please do not drive on the public road, do not ride it in wet, slippery, or low visibility environments. It needs parental care when riding to avoid accidents.
Be sure to wear helmets and protective gear when riding

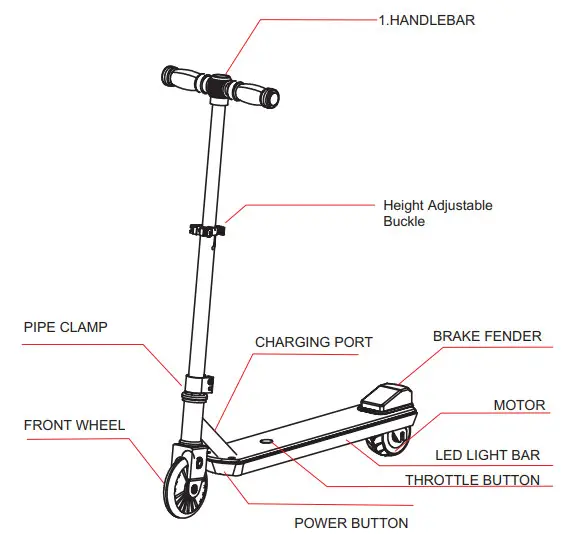

PRODUCT DIAGRAM
SPECIFICATION
| Performance Index | Items | Specs |
| Material &Size | Color | Green |
| Material | Aluminum+Plastic | |
| Folding Size | 742*140*305mm | |
| Height Adjustable | 50mm 3Level | |
| Unfolding Size | 588.5*280*870mm | |
| Pedal Height | 30mm | |
| Weight | Driver Height | 100-160cm |
| Scooter weight | 3.7kg | |
| Max loading | 550kg | |
| Body | Max Speed | 10km/h |
| Max Range | About 8km | |
| Max Climbing | About 5% | |
| Brake | Rear Fender | |
| Riding topography | Flat road | |
| Using Temp. | 0°C–45°C | |
| Waterproof | I PX4 | |
| Motor | Rating Power(W) | 80W |
| Rating Voltage(V) | 18V | |
| Rating Current(A) | 5-6A | |
| Torque(N.m) | 4N.m | |
| No-road Current | 50.5A | |
| No-road Speed | 1200±5% | |
| Motor size | 3.5inch | |
| From wheel size | 5inch | |
| Battery | Battery | 18650 Lithium battery |
| Battery Capacity | 2.0Ah | |
| Rating Voltage(V) | 14.4V | |
| Input Voltage(V) | 16.8V | |
| Smart BMS | Equalization / overcharge / over charge / overcurrent short circuit protection | |
| Charging times | 500–800times | |
| Charger | Rating Power(w) | 13.44W |
| Rating input Voltage(v) | 100-240V AC 50/60Hz 0.5A | |
| Rating Current(A) | 0.8A | |
| Charging time | About 2 H | |
| Rating output voltage(V) | 16.8V |

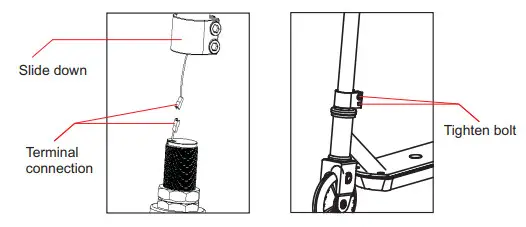

ASSEMBLY
OPERATION STEPS
- Power on/off
Short press the power button on the deck till the light is on to power on the scooter. Long press the power button 3s to turn it off. Auto power off after 3 minutes.
- Gear switch
Gear switch: Quick double-press till the light is on to switch between 6KPH to 10KPH, The default speed is 6KPH.
If you want to brake, using left leg step on the fender and the motor power will be off and speed will slow down gradually.
- Lighting
Connect the Bluetooth 7GO-BT with the phone, play music will lead to Voice mode.
- Kick start mode
The right leg stands on the throttle button on the pedal and the left leg kick and start . - Adjust height
Release the quick-lock buckle to adjust the height, then fix the lock buckle
MAINTENANCE
1) Battery maintenance: In order to guarantee battery life, when the battery is low, please charge the scooter timely (Note: When it is not in use for a long time, it is recommended that charge it once a month), If you want to check or replace the battery please do it with the assistance of professionals. The most suitable temperature of the battery storage is 15℃ -25℃; don’t use and place the scooter when the environmental temperature is higher than 40℃, in order to avoid the lithium battery’s failure and even lead to the combustion. Do not place the scooter in the car during the hot seasons, because it may lead to the lithium battery’s failure or even combustion. level is
2) Tire maintenance: In order to guarantee the tire life, please check the tires regularly. Once the wheel is abnormal, please repair or replace timely, so as not to cause unnecessary damage during the riding. of the scooter
3) Appearance maintenance: Swab the scooter body with water or mild to make your scooter clean. Please do not clean the scooter with irritating potions or any chemical reagents. detergent, will
CHARGING PRECAUTIONS
When charging the kid’s electric scooter, please pay attention to the following points.
- Ensure that it is charged in a dry and clean environment, the input voltage is between 110v-240v and the other end connects the charging port of kids electric scooter.
The red light indicates the scooter is being charged. guaranteed - The light of the charger shows green, indicating that the charging is completed.
- Don’t turn on the scooter during charging for your safety.
- Disconnect the scooter from the charger when the charging is complete.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment.
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement:
The device has been evaluated to meet general RF exposure requirements.
The device can be used in the portable exposure condition with restriction
FCC Radiation Exposure Statement:
The equipment complies with FCC radiation exposure limits set forth for uncontrolled environments. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
Thank you for your reading
