STAGE KEYBOARD
YC88 YC73 YC61
SUPPLEMENTARY MANUAL

Contents hide

1 New Functions in YC Version 1.20

2 New Rotary Speaker Effect

3 New Organ Types

4 Additional Parameters for FM Organ Types

5 New EQ Type

6 New Touch Sensitivity Parameter

7 Menu Layout Changes for EG Control and Filter Control

8 New Live Set Sounds

9 Change Split Point for Live Set Sound

10 New Voice

11 New Functions in YC Version 1.10

12 Changing the setting method of vibrato (CC # 1: Modulation)

13 Comparison of old and new tree diagramsImproved operability

14 Live Set Sound List

15 Voice List

16 Additional new Voices

17 Documents / Resources

18 Related Posts

New Functions in YC Version 1.20

The following functions have been added to the YC88 / YC73 / YC61 due to the firmware version upgrade. This manual describes additions and changes with respect to the Owner’s Manual that came with your instrument.

A new rotary speaker effect has been added.
New FM organ types have been added.
A new setting “FM Color Type” has been added to the “Drawbar Color” setting.
Three EQs have been added to the effect types.
A new setting “Touch Sensitivity” has been added to the “SETTINGS”.
The locations in the menu of “EG Control” and “Filter Control” have been changed.
New Live Set Sounds have been added.
New Voices have been added.

New Rotary Speaker Effect

A new rotary speaker effect, “Studio,” has been added. In addition, the conventional Rtr A and Rtr B have been renamed to “Classic” and “Overdrive,” respectively.

YC88/YC73/YC61 V1.20

Effect	Explanation
Studio	Rotary speaker with three-dimensional effect and greater sense of motion.
Classic	Standard rotary speaker for organs.
Overdrive	Rotary speaker with transistor preamplifier simulation and strong distortion.

Rotary speaker effect settings

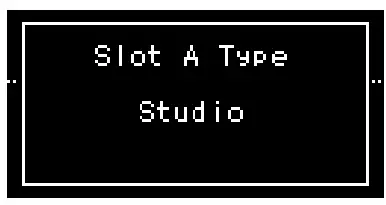

[SETTINGS] button → [Sound] → [Rotary Speaker] → [Type]

Added Rotary Speaker Type to SETTINGS.
Rotary Speaker Type can be set independently for Rtr A and Rtr B.

Rotary Speaker Type

Function name	Description
Slot A	Sets the rotary speaker effect assigned for the Rtr A-type. Settings: Studio, Classic, Overdrive Initial setting: Studio
Slot B	Sets the rotary speaker effect assigned for the Rtr B type. Settings: Studio, Classic, Overdrive Initial setting: Classic

Selection of rotary speaker effects

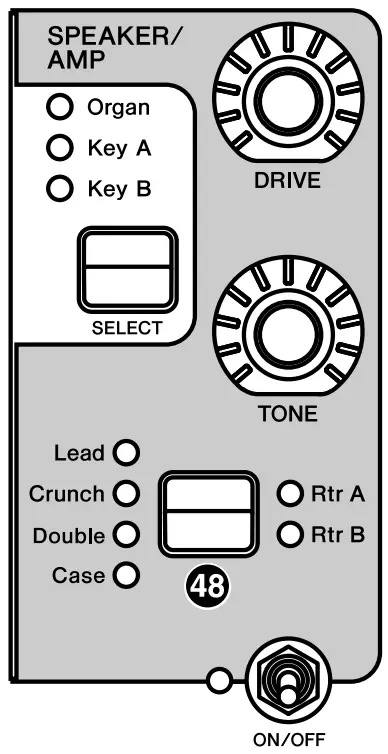

If you select Rtr A or Rtr B with the 48 Effect type switch button in the SPEAKER/AMP section, you can apply the rotary speaker effect set in “Rotary speaker effect settings” above.

NOTE
When you select the Rtr A or Rtr B type in the SPEAKER/AMP section, you can use the [EXIT] + [TONE] knobs to directly change the “Rotary speaker effect settings” for the selected type.

New Organ Types

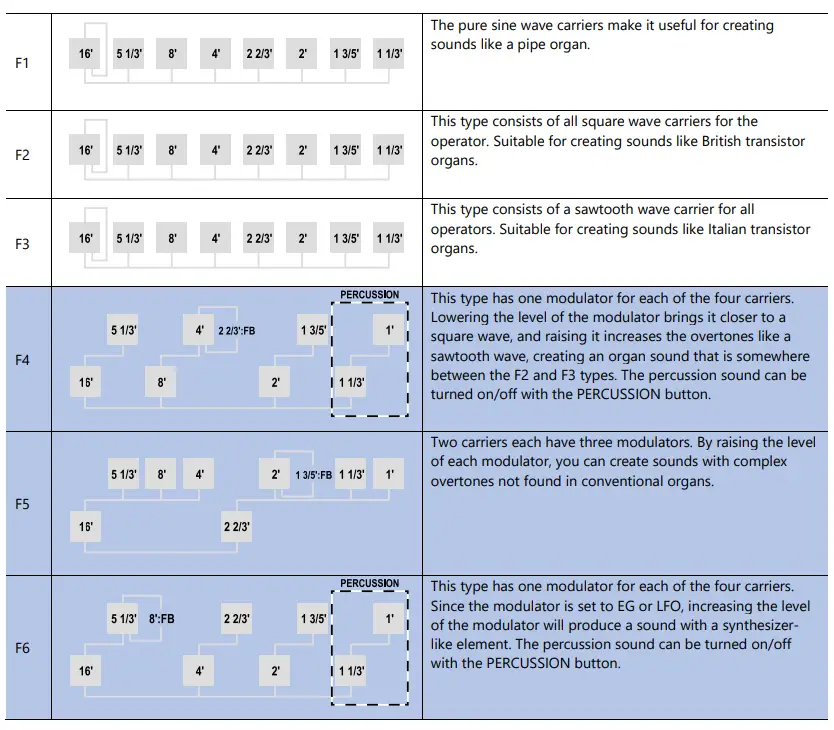

New FM organ types (F4 to F6) have been added, making now a total of six FM organ types.

NOTE
The operator numbers for each algorithm represent the corresponding drawbars. Note that for the F4 to F6 types, the numbers (feet) displayed on the drawbar do not match the pitch of the sound.

Additional Parameters for FM Organ Types

Added FM Color Type to SETTINGS—Drawbar Color.
The new FM Organ type drawbars add two attributes; in addition to the carriers, the modulators and feedback are also included. For these types of organs, the carrier will be the same color as the color set in Upper/Lower, but the modulators and feedback loops are divided into colors related to the carrier color.

Drawbar Color

Function name	Description
Upper	Sets the colors of the drawbar LEDs. These can be set independently for Upper and Lower. Settings: White, Red, Yellow, Green, Cyan, Blue, Magenta Initial setting: Upper = White, Lower = Red
Lower
FM Color Type	Sets the color combination of the drawbar LEDs. It can be divided into up to 3 colors according to the attributes of the carrier, modulator, and feedback. Settings: 1 Color: Carriers, modulators and feedback are all the same color 2 Colors: Two different colors; one for the carriers and one for the others (modulator, feedback) 3 Colors: Carriers, modulators and feedback are all different colors Initial setting: 3 Colors NOTE H type organs and F1 to F3 FM organs always have the colors set for Upper and Lower regardless of the FM Color Type.

Comparison of old and new tree diagrams

･V1.00, V1.10
Settings
└ Drawbar Color
├ Upper
└ Lower

･V1.20
Settings
└ Drawbar Color
├ Upper
├ Lower
└ FM Color Type

New EQ Type

YC88/YC73/YC61 V1.20

Category	Type name	Express	Description	Stereo/Mono
EQ	Tone Control		Shelving equalizer. Use the [DEPTH] knob to adjust the low band, and the [RATE] knob to adjust the high band.	Stereo
	1 Band EQ Narrow		Peaking equalizer with narrow Q (bandwidth). Use the [DEPTH] knob to adjust the gain, and the [RATE] knob to adjust the center frequency.	Stereo
	1 Band EQ Wide		Peaking equalizer with wide Q (bandwidth). Use the [DEPTH] knob to adjust the gain, and the [RATE] knob to adjust the center frequency.	Stereo

New Touch Sensitivity Parameter

[SETTINGS] button → [Sound] → Select the voice section* to be set → [Touch Sensitivity] (* Key A Settings / Key B Settings)
Touch Sensitivity has been added to SETTINGS, and can be set for the Voice sections of Key A and Key B.

Touch Sensitivity

Function name

Description

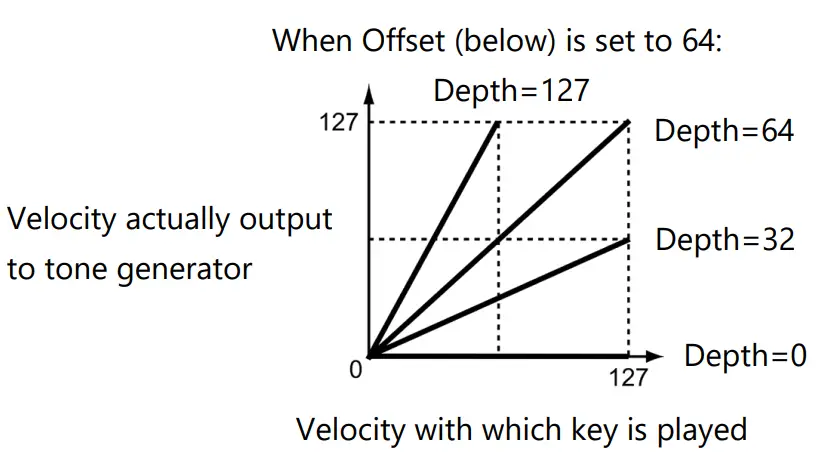

Depth

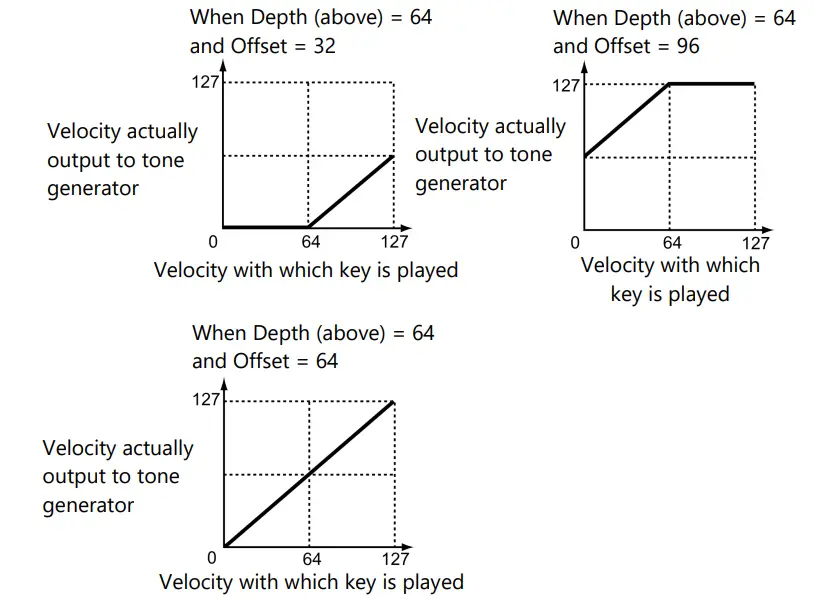

This parameter can be used to select how the velocities with which keys are played will affect the velocities actually output to the tone generator for the current Voice section. As shown in the graph below, the larger the value set, the greater the degree to which output velocities vary in response to changes in the playing velocity (i.e., the steeper the slope of the graph). If a value of 0 is set, the output velocities will be totally unaffected by different playing velocities, resulting in a response similar to that of an organ, where playing strength has practically no effect on the sound produced.

Settings: 0 – 127
Initial setting: 64

Function name

Description

Offset

This parameter can be used to raise or lower all velocities output to the tone generator for the current Voice section. As shown in the graphs, 64 is subtracted from the value set here and the result is doubled to determine the actual amount by which the output velocities are adjusted. However, if the resultant output velocity is less than 1, a value of 1 is used; similarly, if the resultant output velocity is greater than 127, a value of 127 is used.

Settings: 0 – 127

Initial setting: 64

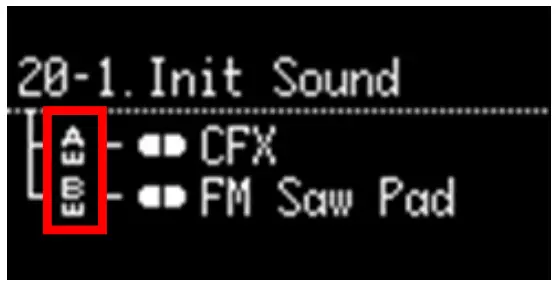

Voice sections where Touch Sensitivity has been changed from the default are displayed with a locked icon.

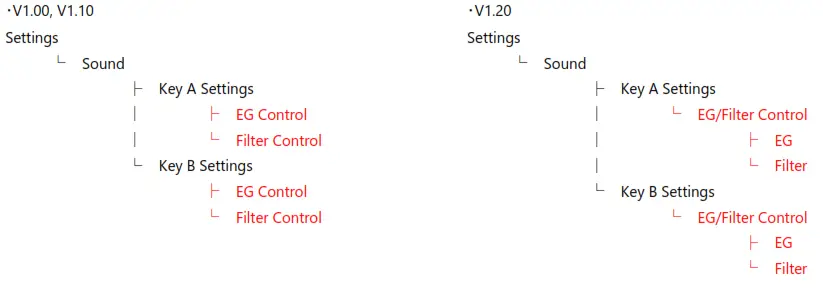

Menu Layout Changes for EG Control and Filter Control

Comparison of old and new tree diagrams

New Live Set Sounds

YC88/YC73/YC61 V1.20

Page	No	Name	Split Point	Section	Voice Name	MSB	LSB	PC
12	1	Modern Jazz	G2	Organ	H1	63	11	1
				Key A	–
				Key B	–
12	2	Soft Hymn	G2	Organ	H1	63	11	2
				Key A	–
				Key B	–
12	3	Prog Organ	G2	Organ	H3	63	11	3
				Key A	–
				Key B	–
12	4	Overdriven Org	G2	Organ	H2	63	11	4
				Key A	–
				Key B	–
12	5	Swish Organ	G2	Organ	H1	63	11	5
				Key A	–
				Key B	–
12	6	FM Organ	G2	Organ	F6	63	11	6
				Key A	–
				Key B	–
12	7	Bell Organ	G2	Organ	F5	63	11	7
				Key A	–
				Key B	–
12	8	Digitorgan	G2	Organ	F4	63	11	8
				Key A	–
				Key B	–
13	1	Violin Layer	G2	Organ	H3	63	12	1
				Key A	Violin
				Key B	Slow Strings
13	2	Hollow Drawbars	C3	Organ	H1	63	12	2
				Key A	–
				Key B	–
13	3	Keys of Rock	G2	Organ	H3	63	12	3
				Key A	Nashville C3
				Key B	Wr Wide
13	4	Rotary Piano	G2	Organ	–	63	12	4
				Key A	U1
				Key B	C7
13	5	At the Pub	G2	Organ	F4	63	12	5
				Key A	Musette
				Key B	–
13	6	Hidden Door	G2	Organ	F5	63	12	6
				Key A	Digi Pad
				Key B	Analog Pad
13	7	Smoky Tines	G2	Organ	F4	63	12	7
				Key A	FM Jazz Gt
				Key B	73Rd Studio
13	8	FM Organ Pad	G2	Organ	F5	63	12	8
				Key A	Mystic Pad
				Key B	FM Bow RM Pad

Change Split Point for Live Set Sound

YC88/YC73 V1.20

Page	No	Name	Split Point	Section	Voice Name	MSB	LSB	PC
1	5	Jazz Lead	C3	Organ	H1	63	0	5
				Key A	–
				Key B	–

YC61 V1.20

Page	No	Name	Split Point	Section	Voice Name	MSB	LSB	PC
1	1	Jazz Lead	C3	Organ	H1	63	0	1
				Key A	–
				Key B	–

New Voice

YC88/YC73/YC61 V1.20

Section	Category	Sub Category	No.	Name	Parameter *Value()**
Organ	–	–	F4	F4	149
			F5	F5	150
			F6	F6	151

New Functions in YC Version 1.10

Yamaha has upgraded the YC firmware, adding the following new functions.
This manual describes additions and changes with respect to the Owner’s Manual that came with your instrument.

The setting method of vibrato (CC # 1: Modulation) has been changed.
Operability has been improved.
New Live Set Sounds have been added.
New Voices have been added.

Changing the setting method of vibrato (CC # 1: Modulation)

The new “P.Mod” parameter (related to pitch modulation) has been added to pitch modulation in the settings for each Sound section of the Live Set Sound.
The “Modulation Lever” parameters “P.Mod Depth” and “P.Mod Speed,” originally in the “Controllers” of the Live Set Sound have been moved to “P.Mod.”
“P.Mod Initial” has also been added to “P.Mod.”
With the “P.Mod Initial” parameter, the amount of change in P.Mod (CC #1: Modulation) can now be set to a value other than 0 when switching Live Sets.

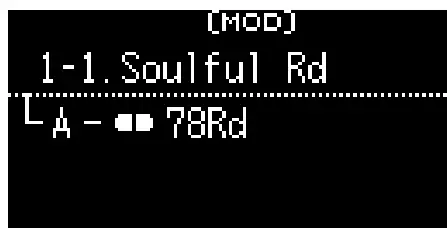

If you change “P.Mod Initial” to a value other than the initial value (0), theicon will be displayed on the top screen.

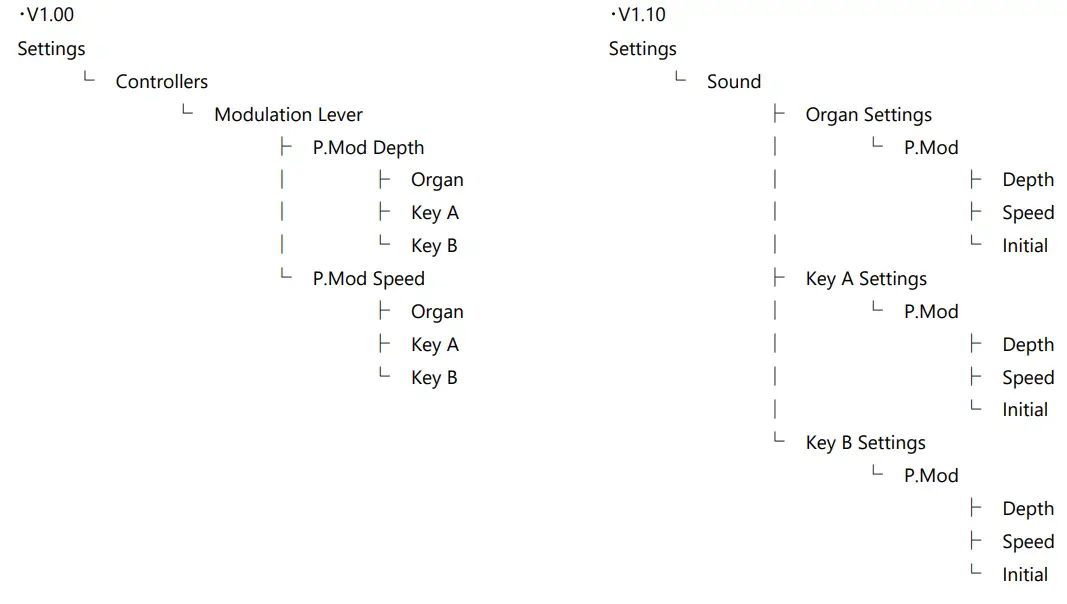

Comparison of old and new tree diagrams
Improved operability

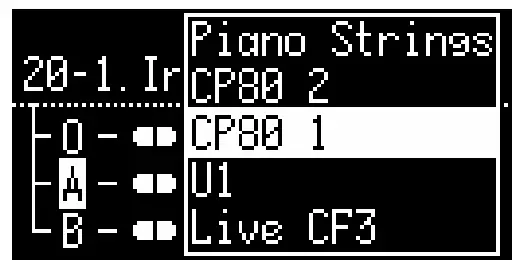

To call up the Voice list, press and hold or double-click the Voice select switch on the top screen.

When you press the [Enter] button on a screen showing a parameter value, the level in the hierarchy now returns to the previous one. This allows you to set other parameters continuously. Press and hold the [EXIT] button to return to the top screen.
NOTE
When you are in the MENU screen, press the [MENU] button to return to the top screen. When you are in the SETTINGS screen, press the [SETTINGS] button to return to the top screen.

Live Set Sound List

V1.0
YC88

Page

Name

SPlit
Point

Section

Voice Name

MSB

LSB

Natural CFX

Organ

KeyA

CFX

Key B

Soulful Rd

Organ

KeyA

78Rd

Key B

FM EP 1

Organ

–

Key A

FM Piano DA

Key B

–

FM Lead

Organ

–

KeyA

FM Syn Lead 2

Key B

Jazz Lead

Organ

Key A

–

Key B

Rock Organ 1

Organ

Key A

Key B

Gospel Shout!

Organ

Key A

–

Key B

Rex Direct

Organ

Key A

Key B

One Ear Upright

Organ

–

KeyA

Key B

–

67 Trem EP

Organ

Key A

67Rd Dark

Key B

–

80s Piano Layer

Organ

KeyA

CFX

Key B

FM The EP

Fat OB Brass

Organ

Key A

OB Brass 1

Key B

OB Brass 2

Jazz Swish

Organ

Key A

–

Key B

Prog 1

Organ

Key A

Key B

Gospel Worship

Organ

Key A

–

Key B

–

Italian Organ 1

Organ

Key A

–

Key B

–

C7 w/Pad

Organ

KeyA

Key B

Analog Pad

Wr Trem

Organ

KeyA

Wr Bright

Key B

–

FM EP+Pad 1

Organ

KeyA

FM The EP

Key B

Lite Strings

Motion Pad

Organ

–

Key A

Mystic Pad

Key B

Analog Pad

Squabble

Organ

Key A

Key B

Casino Fire

Organ

Key A

Key B

–

Page	No	Name	Split Point	Section	Voice Name	MSB	LSB	PC
Co		H Split Lc1113a	G2	Organ	H1	63	2	7
				Key A	–
				Key B	–
ce)	1-	Church	G2	Organ	Fl	63	2	8
				Key A
				Key B

V1.0
YC73

Page	No	Name	P Soint ^pilt	Section	Voke Name	MSB	LSB	PC
1	1	Soulful Rd	G2	Organ	1	63	0	1
				KeyA	78Rd
				Key B
1	2	Natural CFX	G2	Organ	2	63	0	2
				KeyA	CFX
				Key B
1	3	FM EP 1	G2	Organ	–	63 3	0	3
				KeyA	FM Piano DA
				Key B	–
1	4	FM Lead	G2	Organ	–	63 4	0	4
				Key A	FM Syn Lead2
				Key B	–
1	5	Jazz Lead	G2	Organ	H1	63	0	5
				Key A	–
				Key B	–
1	6	Rock Organ 1	G2	Organ	H2	63 6	0	6
				Key A	–
				Key B	–
1	7	Gospel Shout!	G2	Organ	H1	63	0	7
				Key A	–
				Key B
1	8	Rex Direct	G2	Organ	F2	63 8	0	8
				Key A
				Key B	–
2	1	67 Trem EP	G2	Organ	–	63 1	1	1
				Key A	67Rd Dark
				Key B	–
2	2	One Ear Upright	G2	Organ		63	1	2
				KeyA	U1
				Key B
2	3	80s Piano Layer	G2	Organ	3	63	1	3
				KeyA	CFX
				Key B	FM The EP
2	4	Fat OB Brass	G2	Organ	–	63 4	1	4
				KeyA	OB Brass 1
				Key B	OB Brass 2
2	5	Jazz Swish	G2	Organ	I-11	63	1	5
				Key A	–
				Key B
2	6	Prog 1	G2	Organ	H2	63 6	1	6
				Key A
				Key B	–
2	7	Gospel Worship	G2	Organ	H1	63 7	1	7
				Key A	–
				Key B
2	8	Italian Organ 1	G2	Organ	F3	63 8	1	8
				Key A
				Key B	–
3	1	Wr Trem	G2	Organ	–	63 1	2	1

				KeyA	Wr Bright
Key B	–
3	2	C7 w/Pad	G2	Organ	2	63	2	2
				KeyA	C7
				Key B	Analog Pad
3	3	FM EP+Pad 1	G2	Organ	–	63 3	2	3
				KeyA	FM The EP
				Key B	Lite Strings
3	4	Motion Pad	G2	Organ	–	63 4	2	4
				KeyA	Mystic Pad
				Key B	Analog Pad
3	5	Squabble	G2	Organ	H1	63 5	2	5
				KeyA	–
				Key B
3	6	Casino Fire	G2	Organ	H2	63 6	2	6
				Key A
				Key B	–

Page	No	Name	Split Point	Section	voice Name	MSB	LSB	PC
3	7	H Split LdiBa	G2	Organ	1-11	63	2	7
				Key A
				Key B
		Church	G2	Organ	Fl	63	2	8
				Key A
				Key B

V1.0
YC61

Page	No	Name	^Split Point	Section	Voice Name	MSB	LSB	PC
1	1	Jazz Lead	G2	Organ	H1	63	0	1
				KeyA	–
				Key B
1	2	Rock Organ 1	G2	Organ	H2	63	0	2
				Key A
				Key B	–
1	3	Gospel Shout!	G2	O Organ	H1	63	0	3
				KeyA	–
				Key B
1	4	Rex Direct	G2	Organ	F2	63 4	0	4
				KeyA
				Key B	–
1	5	Soulful Rd	G2	Organ		63	0	5
				KeyA	78Rd
				Key B
1	6	Natural CFX	G2	Organ	6	63	0	6
				KeyA	CFX
				Key B
1	7	FM EP 1	G2	Organ	–	63	0	7
				Key A	FM Piano DA
				Key B	–
1	8	FM Lead	G2	Organ	8	63	0	8
				KeyA	FM Syn Lead 2
				Key B
2	1	Jazz Swish	G2	Organ	H1	63	1	1
				KeyA
				Key B
2	2	Prog 1	G2	Organ	H2	63	1	2
				KeyA
				Key B	–
2	3	Gospel Worship	G2	Organ	H1	63		3
				KeyA	–
				Key B
2	4	Italian Organ 1	G2	Organ	F3	63	1	4
				Key A
				Key B	–
2	5	67 Trem EP	G2	Organ		63		5
				KeyA	67Rd Dark
				Key B
2	6	One Ear Upright	G2	Organ		63		6
				KeyA	U1
				Key B
2	7	80s Piano Layer	G2	Organ		63	1	7
				KeyA	CFX
				KeyB	FM The EP
2	8	Fat OB Brass	G2	Organ		63	1	8
				KeyA	OB Brass 1
				KeyB	OB Brass 2
3	1	Squabble	G2	Organ	H1	63	2	1

				Key A
Key B
3	2	Casino Fire	G2	Organ	H2	63		(N
				KeyA
				Key B
3	3	H Split Ld/Ba	G2	Organ	H1	63	1	3
				Key A
				Key B
3	4	Church	G2	Organ	F1	63		4
				KeyA
				Key B	–
3	5	Wr Trem	G2	Organ	–	63	2	5
				Key A	Wr Bright
				Key B	–
3	6	C7 w/Pad	G2	Organ		63	2	6
				KeyA	C7
				KeyB	Analog Pad

I Page	No	Name	Split Point	Section	Voice Name	MSB	LSB	PC
3	7	FM EP+Pad 1	G2	Organ	–	63	2	7
				Key A	FM The EP
				Key B	Lite Strings
3	8	Motion Pad	G2	Organ	–	63	2	8
				Key A	Mystic Pad
				Key B	Analog Pad

V1.0
YC88/YC73/YC61

Page	No	Name	^{SPI It} Poi m	Section	Voice Name	MSB	LSB	PC
4	1	Clean Amp	G2	Organ	H3	63	3	1
				Key A
				Key B
4	2	H Split Ld/Chd	C3	Organ	H1	63	3	2
				KeyA
				KeyB
4	3	F1 Jazz	G2	Organ	Fl	63	3	3
				Key A
				Key B
4	4	Rex Rotary	G2	Organ	F2	63	3	4
				KeyA
				Key B
4	5	Rex Amp	G2	Organ	F2	63	3	5
				KeyA
				Key B
4	6	Italian Organ 2	G2	Organ	F3	63	3	6
				Key A
				Key B
4	7	Italian Organ 3	G2	Organ	F3	63	3	7
				Key A
				Key B
4	8	F21 RdBa	G2	Organ	F2	63	3	8
				KeyA	78Rd
				KeyB
5	1	CFX Bright	G2	Organ		63	4	1
				KeyA	CFX
				Key B
5	2	C7	G2	Organ		63	4	2
				KeyA	C7
				Key B
5	3	70’s C7	G2	Organ		63	4	3
				KeyA	C7
				Key B
5	4	Showbiz Upright	G2	Organ		63	4	4
				KeyA	U1
				Key B
5	5	AP+Strings	G2	Organ		63	4	5
				KeyA	CFX
				Key B	Fast Strings
5	6	Bass Stays Home	G2	Organ		63	4	6
				KeyA	Upright Bass
				KeyB	C7
5	7	78Rd Chorus	G2	Organ		63	4	7
				KeyA	78Rd
				Key B
5	8	67Rd Overdrive	G2	Organ		63	4	8
				KeyA	67Rd Bright
				Key B
6	1	Wr Dist	G2	Organ		63	5	1

				KeyA	Wr Warm
Key B
6	2	FM EP2	G2	Organ		63	5	2
				KeyA	FM The EP
				Key B
6	3	FM EP 3	G2	Organ		63	5	3
				KeyA	FM Pfs Heart
				KeyB
6	4	FM EP 4	G2	Organ		63	5	4
				KeyA	FM Urban EP
				KeyB	FM DX EP
6	5	FM EP 5	G2	Organ		63	5	5
				KeyA	FM The EP
				KeyB	FM DX Road
6	6	Magic Piano	G2	Organ		63	5	6
				KeyA	67Rd Dark
				Key B	FM Pfs Heart

Page

Name

Split
Point

Section

Voice Name

MSB

LSB

80s Soundtrack

Organ

KeyA

78Rd

Key B

Analog Pad

FM EP+Pad 2

Organ

–

KeyA

FM PPS Heart

KeyB

Analog Pad

Swell Backgmd

C³

Organ

–

KeyA

FM Saw Pad

Key B

67Rd Dark

Bass and 73Rd

Organ

Key A

Finger Bass

KeyB

73Rd

Analog Pad

O Organ

KeyA

Analog Pad

KeyB

Noble Pad

Fat Pad

Organ

–

KeyA

JP Strings

Key B

Analog Pad

Massive FM

Organ

–

KeyA

FM Saw Pad

Key B

FM BellSquare

Smooth Strings

Organ

–

Key A

FM Syn Str

KeyB

JP Strings

Stringy Octaves

Organ

–

KeyA

Oct Syn Str

KeyB

Unison Str

Synth Brass

Organ

KeyA

SynthBrassl

KeyB

SynthBrass4

Analog Lead

Organ

KeyA

Classic Mini

Key B

Expressive Lead

Organ

–

KeyA

Sine Lead

Key B

Classic Mini

Monster Lead

Organ

–

KeyA

FM SynLead1

Key B

FM SynLead2

Ep/Lead Split 1

Organ O

–

KeyA

73Rd

Key B

Soft Square

Ep/Lead Split 2

O Organ

–

KeyA

FM DX EP

KeyB

Mini Lead

Pad/Lead

Organ

KeyA

Analog Pad

KeyB

Funky Mini

Icy Split

C³

Organ

KeyA

Digi Pad

KeyB

Mini Lead

Sticky Bass

Organ

–

KeyA

101 Bass

KeyB

Analog Bass

Aggressive Bass

Organ

–

KeyA

101 Bass

KeyB

Analog Bass

Dual Bass

Organ

–

KeyA

FM Saw Pad

KeyB

Unison Bass

FM Harmonic Ba

Organ

–

KeyA

Mini Sub Bass

KeyB

FM Tear Bass

Syn Bell 1

Organ

–

KeyA

Heaven Bell

Key B

–

Page	No	Name	Split Point	Section	Voice Name	MSB	LSB	PC
9	5	Syn Bell 2	G2	_Organ g		63	8	5
				Key A	Far Away FM
				Key B
9	6	Concerto Goldo	G2	Organ		63	8	6
				Key A	Slow Strings
				Key B	Violin
9	7	String Ensemble	G2	Organ		63	8	7
				Key A	Fast Strings
				Key B	Violin
9	8	Big Fanfare	G2	Organ		63	8	8
				Key A	Marcato Str
				KeyB	Brass 3
10	1	Classic Gt.	G2	Organ		63	9	1
				Key A	Classic Gt
				Key B
10	2	Steel Gt.	G2	Organ		63	9	2
				Key A	Steel Gt
				Key B
10	3	Clean Gt.	G2	Organ	3	63	9	3
				Key A	Clean Gt 1
				Key B
10	4	Brass Section	G2	Organ	–	63	9	4
				Key A	Brass 1
				Key B	–
10	5	Brass w/Sax	G2	Organ	–	63	9	5
				Key A	Brass 1
				KeyB	Brass 2
10	6	Upright Bass	G2	Organ		63	9	6
				Key A	Upright Bass
				Key B
10	7	Fingered Bass	G2	Organ	–	63	9	7
				Key A	Finger Bass
				Key B	–
10	8	Slap Bass	G2	Organ	–	63	9	8
				Key A	Slap Bass
				Key B	–

Additional new Live Set Sounds
YC88/YC73/YC61 V1.10

Page	No	Name	Split Point	Section	Voice Name	MSB	LSB	PC
11	1	Nashville C3	G2	Organ	1	63	10	1
				Key A	Nashville C3
				Key B	–
11	2	Early 80s Layer	G2	Organ	–	63 2	10	2
				Key A	Nashville C3
				Key B	74Rd Stage
11	3	Live CF3	G2	Organ	3	63	10	3
				Key A	Live CF3
				Key B
11	4	BigCF+Pad	G2	Organ	4	63	10	4
				Key A	Live CF3
				Key B	Analog Pad
11	5	73Rd Studio	G2	Organ	5	63	10	5
				Key A	73Rd Studio
				Key B	–
11	6	Ballad Rd Layer	G2	Organ	6	63	10	6
				Key A	73Rd Studio
				Key B	FM Pfs Heart
11	7	74Rd Stage	G2	Organ	–	63 7	10	7
				Key A	74Rd Stage
				Key B	–
11	8	Rotating EP	G2	Organ	–	63 8	10	8
				Key A	74Rd Stage
				Key B	–

Voice List

V1.0
YC88/YC73/YC61

Section	Category	Sub C_at_egory	No.	Name	Parameter *Value()**
Organ			H1	H1	0
			H2	H2	1
			H3	H3	2
			Fl	Fl	3
			F2	F2	4
			F3	F3	5
Keys NB	Piano	Grand	01	CFX	6
			02	5700	7
			03	C7	8
		Upright	06	U1	9
		CP	07	CP80 1	10
			08	CP80 2	11
		Layer	09	Piano Strings	12
			10	Piano Synth	13
	E.Piano	Rd	01	78Rd	14
			02	75Rd Funky	15
			03	73Rd	16
			04	67Rd Dark	17
			05	67Rd Bright	18
		Wr	08	Wr Warm	19
			09	Wr Bright	20
			10	Wr Wide	21
		Clavi	11	Clavi B	22
			12	Clavi S	23
			13	Harpsichord	24
		FM	14	FM Piano DA	25
			15	FM DX Road	26
			16	FM The EP	27
			17	FM DX EP	28
			18	FM Pfs Heart	29
			19	FM Urban EP	30
			20	FM PowerClavi	31
	Synth	Pad	01	FM Saw Pad	32
			02	Analog Pad	33
			03	Dark Light	34
			04	Digi Pad	35
			05	Noble Pad	36
			06	Pop Pad	37
			07	Fat Saw	38
			08	Angel Pad	39
			09	FM BellSquare	40
			10	FM Cloud Pad	41
			11	FM Bow RM Pad	42
			12	Itopia	43
			13	Mystic Pad	44
			14	Nowhere	45
			15	FM Choir	46
			16	Lite Strings	47
		Strings	17	JP Strings	48

			18	FM Syn Str	49
			19	Pop Syn Str	50
			20	Unison Str	51
		21	Oct Syn Str	52
		Brass	22	Synth Brass 1	53
			23	Synth Brass 2	54
			24	Synth Brass 3	55
			25	Synth Brass 4	56
			26	OB Brass 1	57
			27	OB Brass 2	58
			28	OB Brass 3	59
			29	FM Brass	60
			30	FM Brass Ens	61
		Lead	31	FM Syn Lead 1	62
			32	FM Syn Lead 2	63
33	Classic Mini		64

Section	Category	Sub c_at_egory	No.	Name	Parameter Value(*)
Keys A B	Synth	I cad	34	Mini Lead	65
			35	Funky Mini	66
			36	Sine Lead	67
			37	Square Lead	68
			38	Soft Square	69
			39	Dirty Hook	70
			40	Sync Saw Lead	71
			41	Nu Mini	72
			42	5th Lead	73
			43	Calliope Lead	74
		Bass	44	Mini Sub Bass	75
			45	Analog Bass	76
			46	101 Bass	77
			47	Synth Bass	78
			48	FM Tear Bass	79
			49	FM DX E.Bass	80
			50	FM BoogieBass	81
			51	FM super bass	82
			52	Unison Bass	83
			53	FM Owl Bass	84
		ChromPete	54	FM Glocken	85
			55	FM Far Away	86
			56	Digi Bell	87
			57	FM Brite Comp	88
			58	Heaven Bell	89
			59	FM Tblr Bells	90
	others	Strings	01	Slow Strings	91
			02	Marcato Str	92
			03	Fast Strings	93
			04	Tremolo Str	94
			05	Pizzicato	95
			06	Tape Strings	96
			07	Violin	97
			08	Cello	98
		Guitar	09	Classic Gt	99
			10	Steel Gt	100
			11	12Strings Gt	101
			12	FM Jazz Gt	102
			13	Clean Gt 1	103
			14	Clean Gt 2	104
			15	Clean Gt 3	105
			16	Banjo	106
			17	Sitar	107
			18	Shamisen	108
			19	Koto	109
		Brass	20	Brass 1	110
			21	Brass 2	111
			22	Brass 3	112
			23	Sf. Brass	113

			24	Trumpet	114
			25	Trombone	115
			26	Horn 1	116
		27	Horn 2	117
		Sax^, ,,,,inds	28	Sax Section 1	118
			29	Sax Section 2	119
			30	Soprano Sax	120
			31	Alto Sax	121
			32	Tenor Sax	122
			33	Baritone Sax	123
			34	Jazz Flute	124
			35	Alto Flute	125
			36	Tape Flute	126
			37	Harmonica	127
38			FM Harmonica	128
39			Pan Flute	129
40			Bag Pipe	130
41			Shakuhachi	131
Bass		42	Upright Bass	132
Bass	43	Finger Bass	133

Section	Category	Sub _Category	No.	Name	Parameter *Value()**
Keys NB	Others	Bass	44	Pick Bass	134
			45	Fretless Bass	135
			46	Slap Bass	136
		ChromPerc	47	Glocken	137
			48	Jazz Vibes	138
			49	Marimba	139
			50	Xylophone	140
			51	Tubular Bell	141
			52	Kalimba	142
		Others	53	Accordion	143
		Others	54	Musette	144

Additional new Voices

YC88/YC73/YC61 V1.10

Section	Category	Sub Category	No.	Name	Parameter *Value()**
Keys NB	Piano	Grand	04	Nashville C3	145
	Piano	Grand	05	Live CF3	146
	E.Piano	Rd	06	73Rd Studio	147
	E.Piano	Rd	07	74 Rd Stage	148
