Rasonic RVC-AJ41 Cordless Handheld Vacuum Cleaner
Please read the operation manual carefully before using and well keep it in a safe place for future reference.
Some figures in this manual may not match with the real object, just for reference only. 1
Thank you for choosing Rasonic cordless handheld vacuum cleaner. Read the operation manual carefully before use and keep it for your future reference.
Important Safeguards
When using the appliance, please follow the below safety precautions: The following chart indicates the degree of damage caused by wrong operation.
WARNING: Indicates that may cause death or serious injury.
CAUTION: Indicates hazards that may cause human injuries or property damages
The following symbols can distinguish the instruction types that need to be strictly followed.
These symbols mean prohibition
These symbols mean requirements that must be followed.
|
| When the appliance is charging or switched on, keep the extension tube, suction inlets or moving parts away from your hair, loose clothing, fingers or any parts of your body (especially mouth, ears and eyes), it is to avoid injury. |
|
Do not put heavy objects on the power cord of the adaptor or let it touch any hot surface. Never clip, modify, stretch or twist the power cord of the adaptor. |
|
|
Never use the appliance when filters and dust cup are not in place, it is to avoid damage due to improper use. |
| Always keep the suction inlet and the exhaust outlet free of blockage. If there is any blockage, please remove them immediately. Otherwise, it will cause loss of suction power or motor overheat. |
| Make sure to unplug the adaptor after fully charged. Charging for a long time may cause hazards | Remove the adaptor from socket and the power switch is at the off position before cleaning | ||
| such as rechargeable battery overheat and burn. | appliance, installing or removing the accessories. | ||
| Do not leave the appliance unattended while it is charging. | Always hold the adaptor plug tightly with hands when insert or remove it. Do not grasp its power cord. | ||
| Do not place the appliance in a bookcase, built-in cabinet or in another confined space. Ensure the appliance is well ventilated. | Do not use the adaptor when its power cord is tangle. | ||
|
| To avoid danger, use the appliance only as described in this manual. Do not use outdoors, on wet surfaces or for other purposes than vacuuming. | Never use deficient or loosen power socket. Make sure the adaptor is dry before use and inserted firmly when use. | |
|
| Children shall not play with the appliance. Using, cleaning and maintenance shall not be made by children without supervision. Please put the appliance and its adaptor in a place not reachable by children. | The appliance must be used with the provided rechargeable battery and charged with the provided adaptor. To avoid the appliance damage and danger, never use the unauthorized rechargeable battery or adaptor. | |
| Never immerse the appliance, rechargeable battery, adaptor or its plug into water or let them wet, it is to avoid electric shock. | To avoid electric shock, never assemble accessories, touch, plug or unplug the rechargeable battery and adaptor with wet hands. | ||
|
| Never use the appliance to suck below materials, otherwise it will cause blockage, damage on major parts and danger. – Flammable materials, hot materials or combustible liquids (e.g. cigarettes, burning ashes and gasoline etc.) – Sharp or metal objects (e.g. needles, broken glass and toothpicks etc.) – Fine powder (e.g. lime, cement, toner and gypsum powder etc.) – Large objects – Water, any liquid or wet surface (e.g. wet carpet) – Chemical substance (e.g. cleanser). | To avoid danger, never use and charge the appliance near the environment of: – Flammable materials, sprays and aerosols – Heat source (e.g. radiator), fire or expose under direct sunlight – Near water – Massive hot air, steam or humid area. | |
|
| The appliance can be used by children aged from 8 years and above and person with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. | Always check the condition of the appliance, adaptor and rechargeable battery. To avoid hazards, please stop using immediately if any damage is found. Please contact Shun Hing Electric Service Centre Limited for checking and repairing. Do not attempt to modify the appliance by yourself or repair with any parts that are unauthorized, otherwise it may cause hazards and warranty becomes invalid. | |
| The appliance contains batteries that are only replaced by skilled persons. | WARNING: For the purpose of recharging the battery only use the detachable supply unit provided with the appliance. |
Maintenance Cleaning and Storage
It is recommended to clean the dust cup and filters regularly, otherwise if the dust cup gets too full or the filters get too dirty, it may weaken the suction power of the appliance.
Clean the dust cup and filter

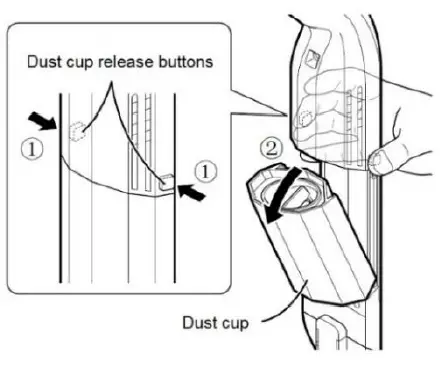

| 1. Press the dust cup release button to remove it from the main body. ATTENTION! The main body and dust cup must be held tightly to prevent dropping due to the removal of accessories. |  |

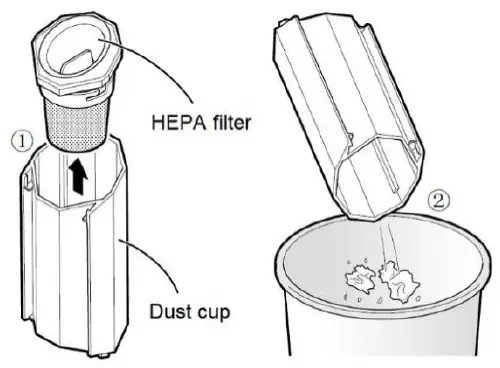

| 2. Remove the HEPA filter accessory from the dust cup and discard the garbage in the dust cup. |  |

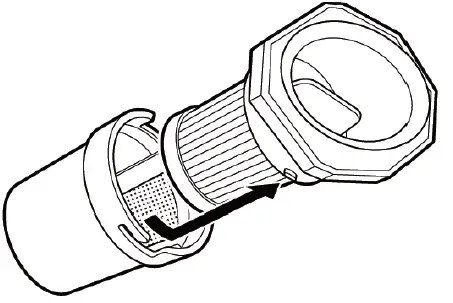

| 3. Hold the HEPA filter accessory. Turn counterclockwise to separate the HEPA filter from the washable filter. |  |

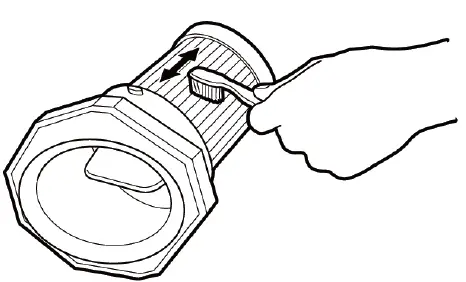

| 4. Clean the HEPA filter with a soft brush and gently rub along the creases to remove dust and dirt. WARNING: DO NOT immerse the HEPA filter in water or let it wet. |
|

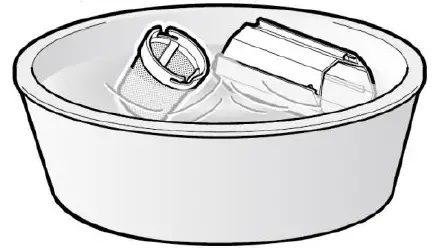

| 5. The washable filter and dust cup can be washed. Install when the washable filter and dust cup is dried. |  |

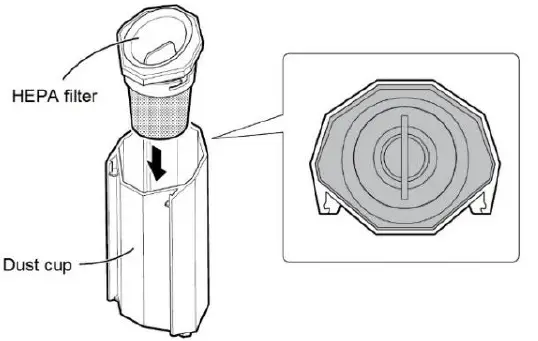

| 6. Put the HEPA filter into the washable filter, align and rotate the HEPA filter in clockwise to lock. Then, insert back to the dust cup. ATTENTION! Do not plug it hard back into the dust cup; otherwise, it will become difficult when taking out. |  |
| 7. Align the convex part at the bottom of the dust cup with the concave part of the main body, and then push the dust cup towards the main body until a “click” sound is heard, indicating that the assembly is finish. |  |

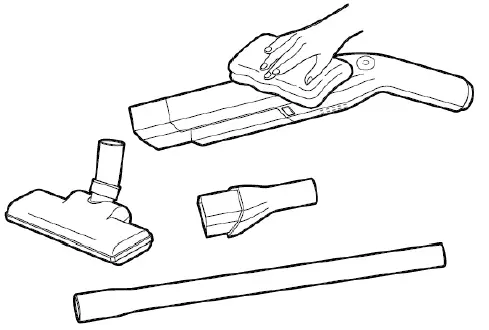

Clean the main body and accessories
| 1. Clean the main body surface and the accessories by a damp cloth, then wipe it dry. Never rinse the main body with water. 2. Never clean with scouring pad or other hard material. 3. Never use poisonous or corrosive detergent for cleaning. Remarks: Please empty the dust cup before cleaning and maintenance. |  |
Clean the floor brush

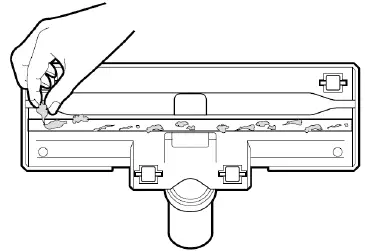

| 1. Dispose the foreign objects such as hair and trash on the floor brush thoroughly. 2. Use tweezers to help remove entangled dirt if necessary. |  |
Storage
The appliance must be cooled down and cleaned before storing in a box. Store it in a cool and dry place.
Product Specifications
| Model | RVC-AJ41/W | RVC-AJ41/B |
| Color | White | Brown |
| Rate Voltage | DC 11.1V | |
| Rated Power | 100W | |
| Rechargeable Battery Type | Lithium-ion Rechargeable battery | |
| Rated Rechargeable Battery Capacity | 2200mAh | |
| Adaptor Input | 100-240V~ 50/60 Hz | |
| Adaptor Output | DC 13.5V 500mA | |
| Charging Time (Approx.) | 4.5hours | |
| Operation Time (Approx.) | Normal：30 minutes* Full：12 minutes* | |
| Dust Cup Capacity | 100 ml | |
| Product Size (WxDxH) (Approx.) (Extension tube & motorized floor brush installed) | 224 x 100 x 1045 mm | |
| Net Weight (Approx.) (Extension tube & motorized floor brush installed) | 0.93 kg | |
The length of operation time can run varies depending on the temperature of the battery and other usage conditions.

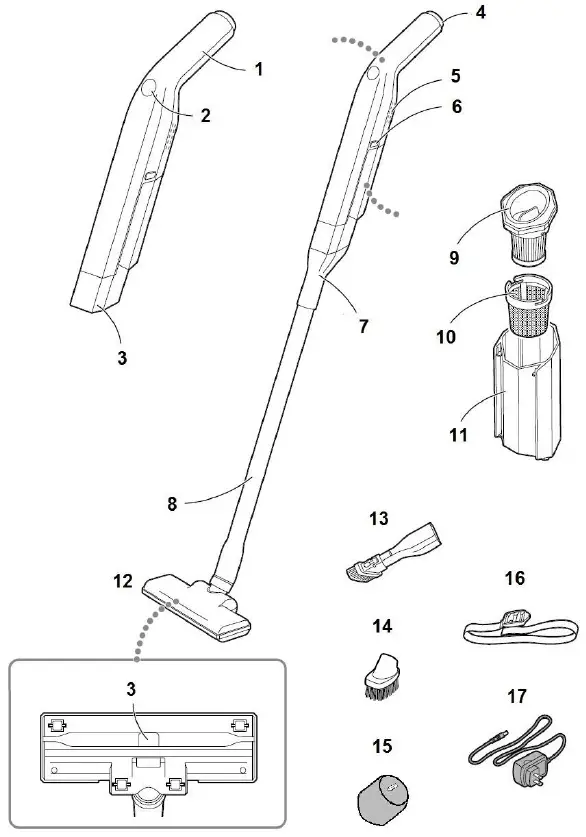

Product Descriptions
Handle- Power indicator/ speed button
- Suction vent
- Power button
- Exhaust vent
- Dust cup release button
- Connector
- Floor brush pipe
- HEPA filter
- Washable filter
- Dust cup
- Floor brush
- 2 in 1 crevice nozzle
- Small brush
- Anti-slip cover
- Hang strap
- Adapter
Accessories Assembly and Disassembly

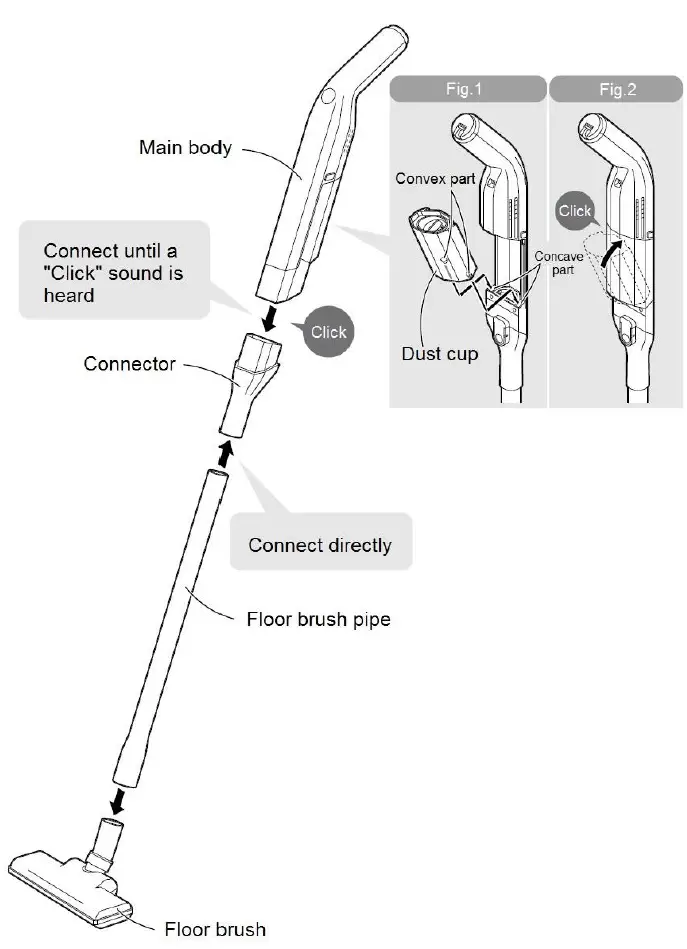

Accessories Assembly

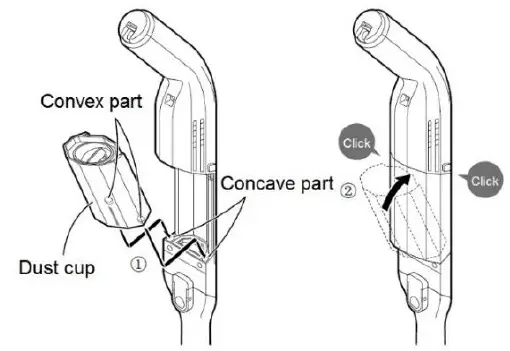

Fig. 1) Align the convex part at the bottom of the dust cup with the concave part of the main body.
Fig. 2) Refer to the illustration, push the dust cup towards the main body until a “click” sound is heard.

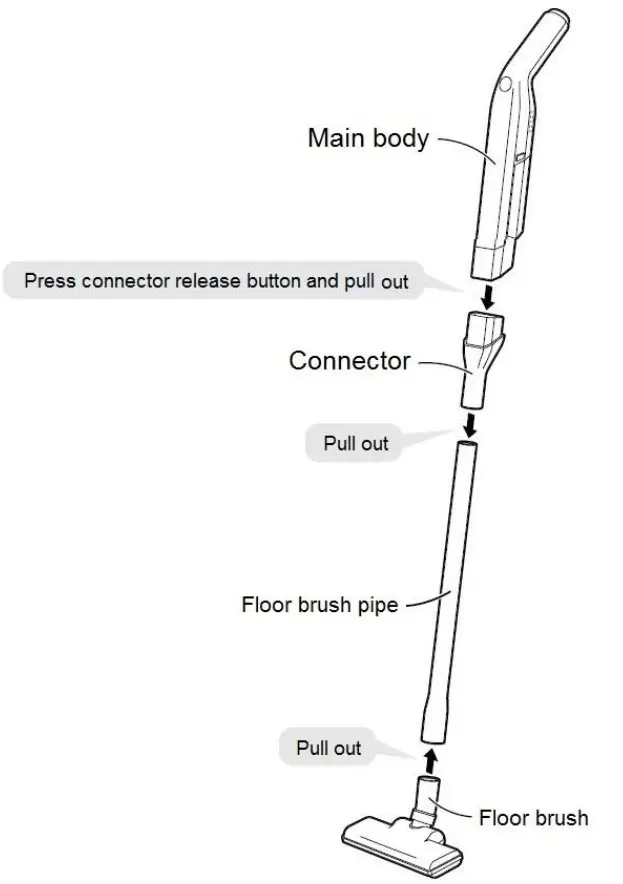

Accessories Disassembly
ATTENTION! User must press the connector release button to detach the connector from the main body.
Operation Instructions
| Operation starts Press the <power> button, the power indicator lights up and the appliance starts to work as default “Normal” mode (low speed). |
|
| Change mode Press the <speed> button every time to change from “Normal” mode (low speed) to “High” mode (high speed). Press the <speed> button repeatedly can change the mode alternately. |
|
| Operation complete Press the <power> button to switch off the appliance. |
|
Accessories Assembly and Usage (handheld)

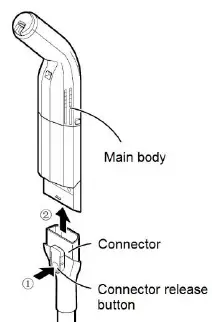

| Detach the connector ① Lift the main body and press the connector release button. ② Detach the connector from the main body. |  |
| Operation starts Press the <power> button, the power indicator lights up and the appliance starts to work as default “Normal” mode. |  |
| Operation complete
Press the <power> button to switch off the appliance. |
|

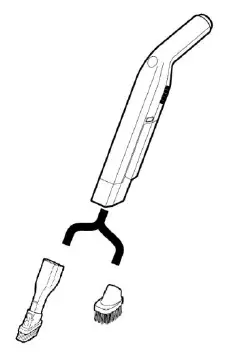

| Accessories install To deal with different environments, user can assemble the accessory brushes according to the actual situation to achieve the ideal cleaning performance. |  |
Install the hang strap

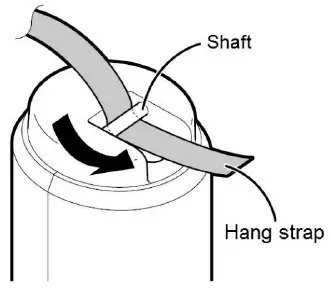

| 1. Pass the tail of the hang strap through the shaft at the back of the handle. |  |

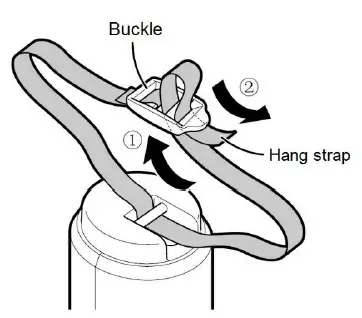

| 2. As illustrated at the right hand side, pass the tail of the hang strap though the bottom of the buckle, go around the shaft in the middle then pass through the buckle again. The assembling completed. (ATTENTION! The hang strap must be fastened to the main body; otherwise, the appliance may accidently fall to the ground or malfunction) |  |

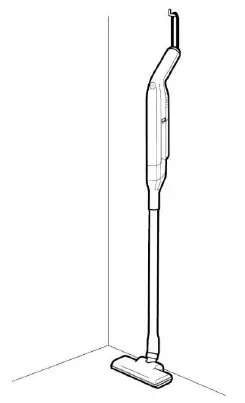

| 3. Make use of the hang strap to hang the appliance on the hook of the wall when the appliance is not in use. (ATTENTION! The hook must be firmly tied to the wall. If the hook or the wall is loose, the appliance may fall over easily, which may cause the appliance and floor damage. |  |
Application of anti-slip cover

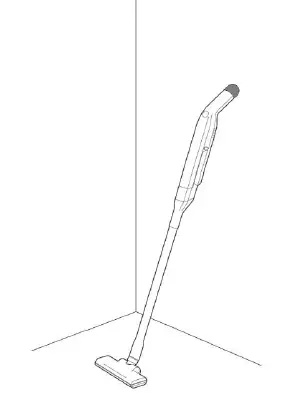

In addition to using a hang line to hang the appliance on the wall, in order to prevent the appliance from accidentally falling when leaning against the wall, user can make use of the anti-slip cover to properly install on the handle of the main body to avoid accidental falling of the product during placement.
| 1. Align the anti-slip cover with the handle, and then push it on the end of the handle until it is secure. |  |
| 2. If the operation needs to be suspended during operation, user can make use of the anti- slip cover installed to lean the appliance against the wall. |  |
Charging
Be sure to fully charge the battery when used for the first time or when not used for a long time. (DO NOT press the <power> button or switch ON when charging)
WARNING! The electricity supply must be 220V AC, and the adapter supplied must be used. It may cause malfunctions and fire if improper adapter is used to charge the appliance.

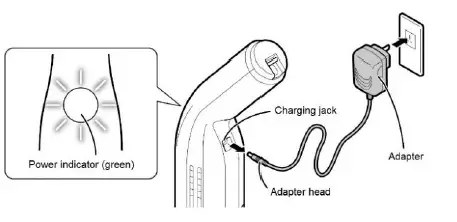

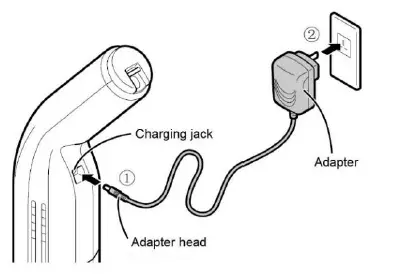

| Connect the adapter ① Plug the adapter head into the charging jack at the back of the appliance. ② Plug the power adapter into the power socket. |  |

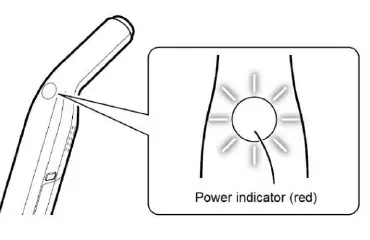

| Identify the power indicator The red light will switch on when charging starts. Normal charging time is about 4.5 hours. If the battery temperature is too high, the red light will flash. Make sure to recharge after the adapter is cooled down completely. |  |
| Charging complete When the power indicator turns to green, representing the charging is finish. User can unplug the adapter from the power socket, then unplug the adapter head. |  |
Remarks: The battery needs to be fully charged before first use.
Remarks: The adaptor and main body will become hot while charging, which is normal.
Remarks: If the appliance is not used for a long time, please charge it every 3 months. Prevent battery aging.
Troubleshooting
| Problem | Cause | Solution |
| The appliance does not work. | The rechargeable battery power is not enough. | Use after fully charged the vacuum cleaner battery. |
| Power indicator flashes while the appliance cannot be charged. | Incorrect adapter is used. | Use the adapter supplied to charge the appliance. |
| Protection has been activated. | Suspend the operation. Let the product to cool down for 30 minutes before using it. | |
| The suction power becomes weak. | Dust cup is full. | Refer to Chapter 2.1 Clean the dust cup and filter to clean them. |
| Too much dust accumulated on the filter. | ||
| The battery power is not enough. | Charge the appliance. | |
| Dust cup is not installed properly. | Refer to Chapter 2.1 Clean the dust cup and filter to install the dust cup. | |
| Foreign object blocked the floor brush. | Refer to Chapter 2.3 Clean the floor brush to remove the foreign object. | |
| When operate, some dust escape from exhaust vent. | Dust cup or filter is not installed properly. | Refer to Chapter 2.1 Clean the dust cup and filter to install the dust cup and filter. |
| Noise. | Dust cup is full. | Refer to Chapter 2.1 Clean the dust cup and filter to clean them. |
| Clogged by foreign object. | Remove the foreign object. | |
| The appliance stops operating during use. | Protection has been activated. | Suspend the operation. Let the product to cool down for 30 minutes before using it. |
If the above solutions cannot fix the problem, do not attempt to repair it by yourself. Please contact Shun Hing Electric Service Centre Ltd. for checking and repairing.
Special Avowal
- The content in the operation manual has been checked. Our company reserves the hermeneutic power to any printing errors or misunderstandings on the content.
- If there are technical improvements on the appliance, the operation manual will be updated in new version without prior notice. The product appearance and specification are subject to the manufacturer information.
- In case there is any inconsistency or conflict between the English versions and Chinese versions of the terms, the Chinese versions shall prevail.
- The e-copy of user manual can be sent by email on requested. For enquiries, please call Shun Hing Electric Works & Engineering Co., Ltd. hotline at 2861 2767.
