V-moda Frzm-w-wsilver Forza Metallo Wireless Headphones Instructions Manual

V-MODA FRZM-W-WSILVER Forza Metallo Wireless Headphones

ROCK SAFELY

Enjoy your music responsibly. According to the American Speech-Language-Hearing Association, “listening to headphones at high volumes for extended periods of time can directly result in lifelong hearing loss”. At V-MODA, we are dedicated to providing an enjoyable listening experience, but we also care greatly about your personal health and safety. We recommend that you listen to your headphones at comfortable volume levels for reasonable periods of time.

How to enjoy your music responsibly

• Turn down the volume. A good point of reference is half volume
• Limit listening time. Give your hearing a “time out”

Be aware of your surroundings and listen responsibly. Caution around children. Keep out of reach of children, the parts included with this product can be a choking hazard. This product is not intended for children under 7 years of age.

WELCOME

Welcome to V-MODA, the music lifestyle. We sincerely hope you enjoy our headphones, the pinnacle of sound and quality design. With the essence of music at the foundation of all we do, we have precisely engineered our headphones to provide an enjoyable and natural sound signature, which invokes the sense of listening to your music live. Play Hard. Rock Harder.

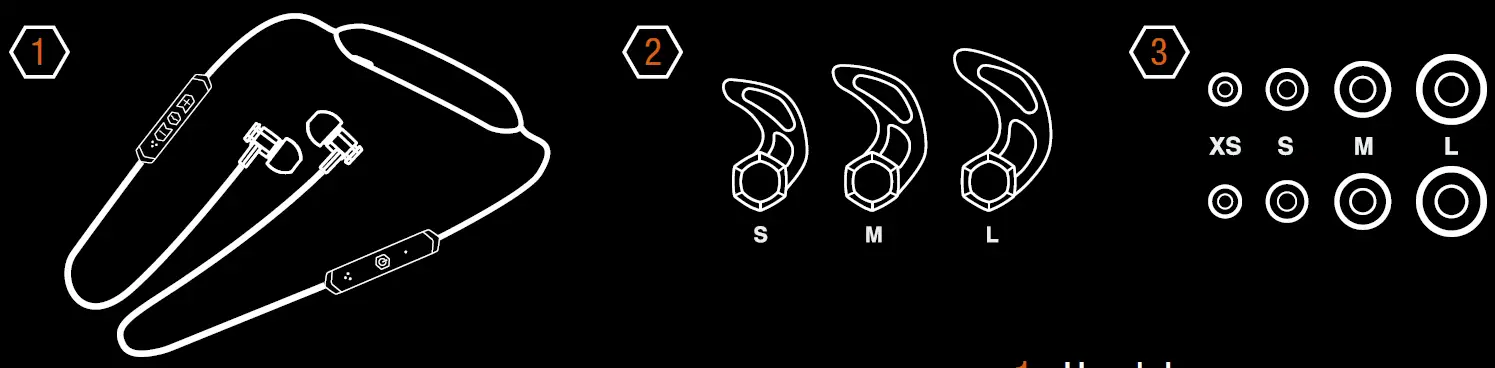

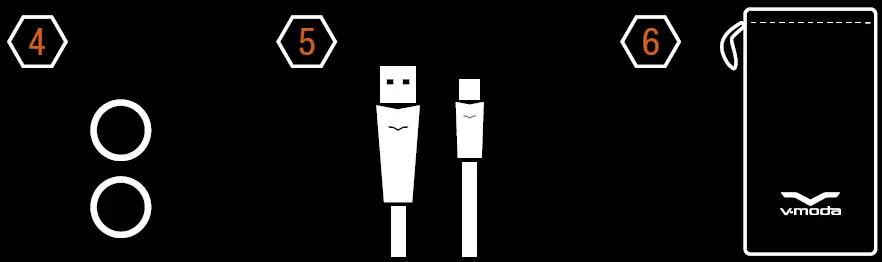

Package Contents

1. Headphones
2. 3 sizes of sports fins
3. 4 sizes of silicone fittings
4.  RemixRings
5. USB Charging Cable
6. Portable carrying pouch

USING YOUR HEADPHONES

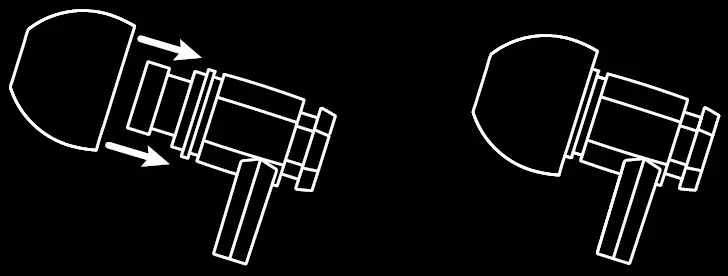

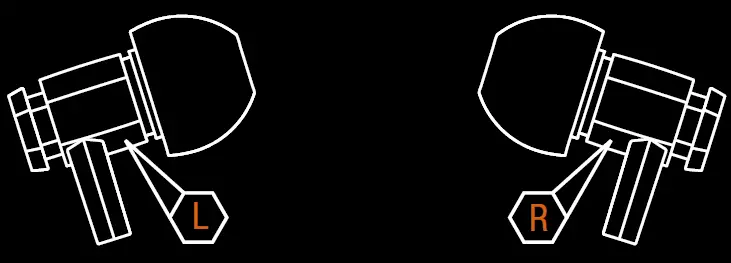

1. Slide silicone fitting onto the earbud
2. Insert earbud in the corresponding ear canal (“L” into the left ear, “R” into the right ear)
3. Verify the earbud is inserted all the way into your ear, creating a snug fit (similar to an earplug) to ensure the highest sound quality and comfort
4. If the earbud does not feel 100% comfortable and inserted into your ear, try swapping the fittings with one of the other three sizes included and match the fittings size in both ears
5. Wear headphones with the titanium headband on your neck to ensure headphones stay put during strenuous activity thanks to TrapLock ergonomics

PROTECTING YOUR HEADPHONES

• Forza Metallo wirelesses are sweat and weather resistant; they are not intended for use while swimming
• Use provided carrying case while idle
• Keep headphones clean and free of debris

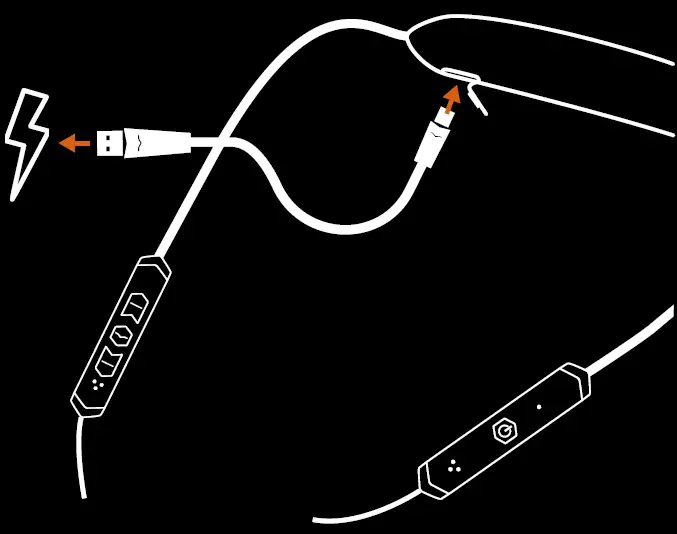

CHARGING YOUR HEADPHONES

Forza Metallo Wireless features a built-in lithium-ion rechargeable battery. Fully charge your headphones for 1 hour before using them for the first time.
Note that headphones are equipped with a Micro-USB charging cable. Do not use any other type of charging cables to charge the headphones.

• Fading orange LED = charging
• White LED = fully charged
• till orange LED + low battery tone every 3 minutes = low battery

TURNING ON/OFF YOUR HEADPHONES – BATTERY STATUS

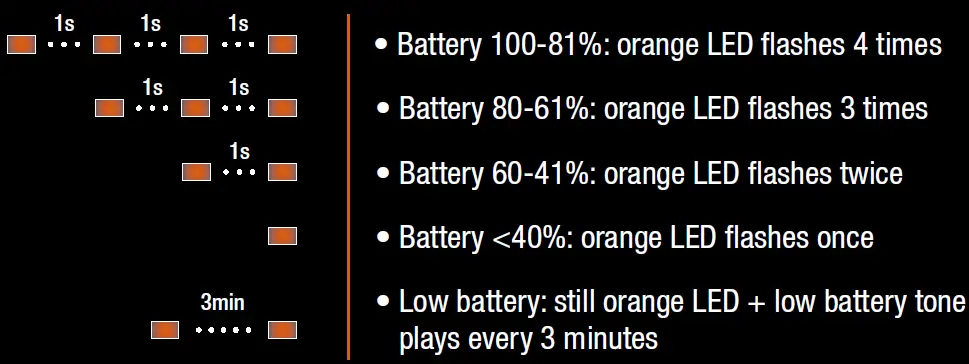

When turning on your headphones, the orange LED indicates the battery level.

1. Press the button to turn on the headphones. Power on tone plays, the headband vibrates and the orange LED flashes a number of times based on the battery level:
2. Press the button to turn off the headphones. The power-off tone plays, the headphone vibrates, and the LED turns off.

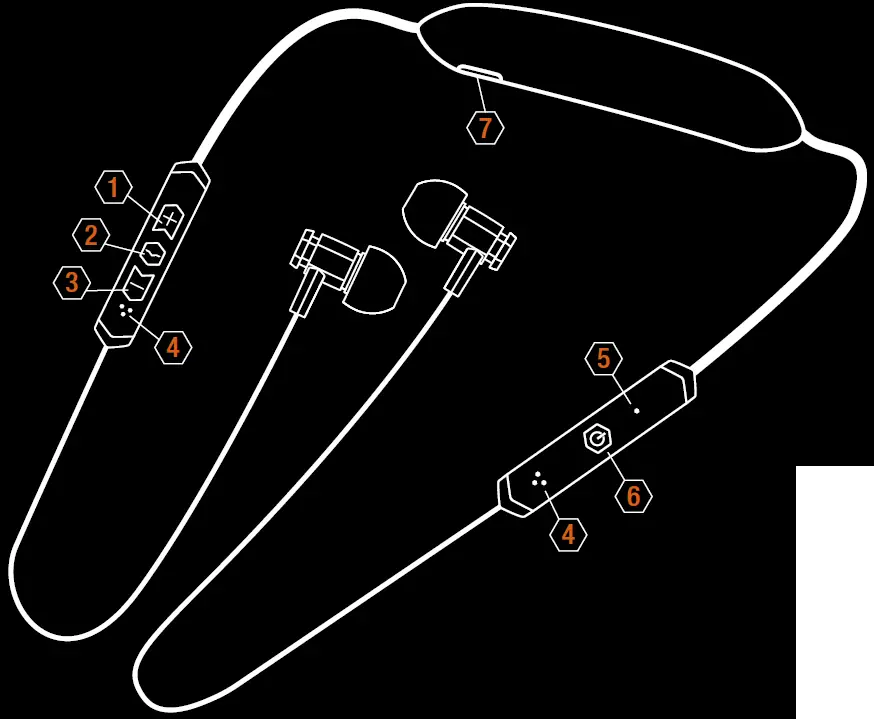

PRODUCT OVERVIEW

1. VOLUME UP
2. MULTIFUNCTION
3. VOLUME DOWN
4. MICROPHONES
5. STATUS LED
6. POWER ON/OFF / PAIRING
7. MICRO-USB PORT

How to use

PAIRING AND CONNECTING WITH A NEW BLUETOOTH DEVICE
When pairing with one, two, or more Bluetooth devices, perform the following pairing procedure every time you pair a new device.

1. Press the button to turn on the headphones.
   Power on tone plays, headband vibrates, battery level orange LED flashes, then white LED flashes twice every second, and pairing tone plays. Your headphones are in pairing mode.

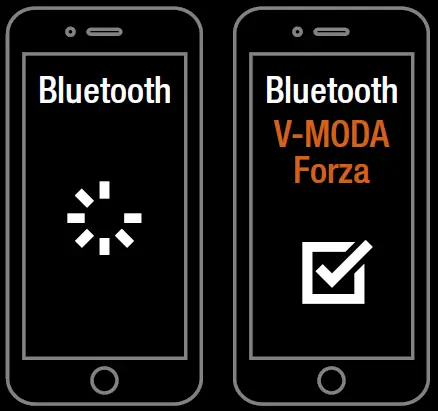

2. Check your Bluetooth device and connect your headphones.
   Once “V-MODA Forza” appears in the “new/available Bluetooth devices” section of your phone/Bluetooth device, select it to begin pairing. If passkey input is required on the display of a Bluetooth device, type “0000”.
3. Ready to rock.
   When the Bluetooth connection is established, the connected tone plays, and the white LED on your headphones stays lit.

CONNECTING WITH A PAIRED BLUETOOTH DEVICE
When pairing with one, two, or more Bluetooth devices, perform the following procedure every time you connect your headphones with an already paired device.

1. Press the button to turn on your headphones.
   Power on tone plays, headband vibrates, battery level orange LED flashes a number of times based on the battery level.
2. Ready to rock.
   When the Bluetooth connection is established, the connected tone plays and the white LED on the headphones stays lit.

If a device does not auto connect, go to Bluetooth settings and select “V-MODA Forza”.

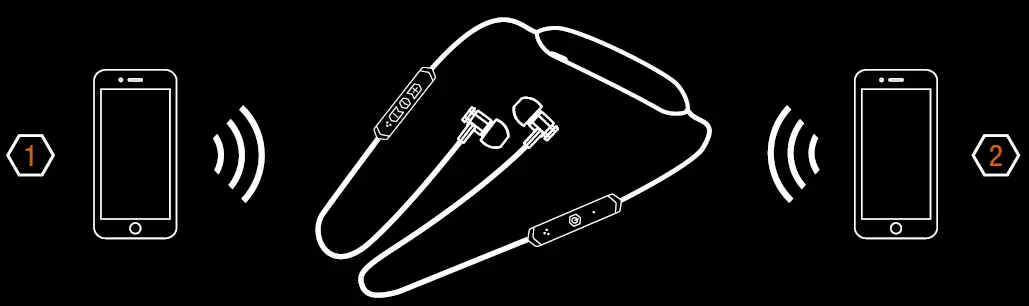

ONE HEADPHONE, TWO AUDIO DEVICES
The headphones can be connected to two audio devices at the same time and play alternatively from both audio devices.

1. Bluetooth connects your headphones and audio player 1 following the instructions.
2. Press and hold the button for 3 seconds.
   A pairing tone plays, and a white LED flashes twice every second. Headphones are in pairing mode and you can connect audio player 2.
3. Shift the audio player from 1 to 2 by controlling the play/pause buttons on the audio players
4. The button on the headphones will control only the play/pause of the playing audio player

If a device does not auto switch using control buttons, go to Bluetooth settings on the device you want to play and select “V-MODA Forza”.

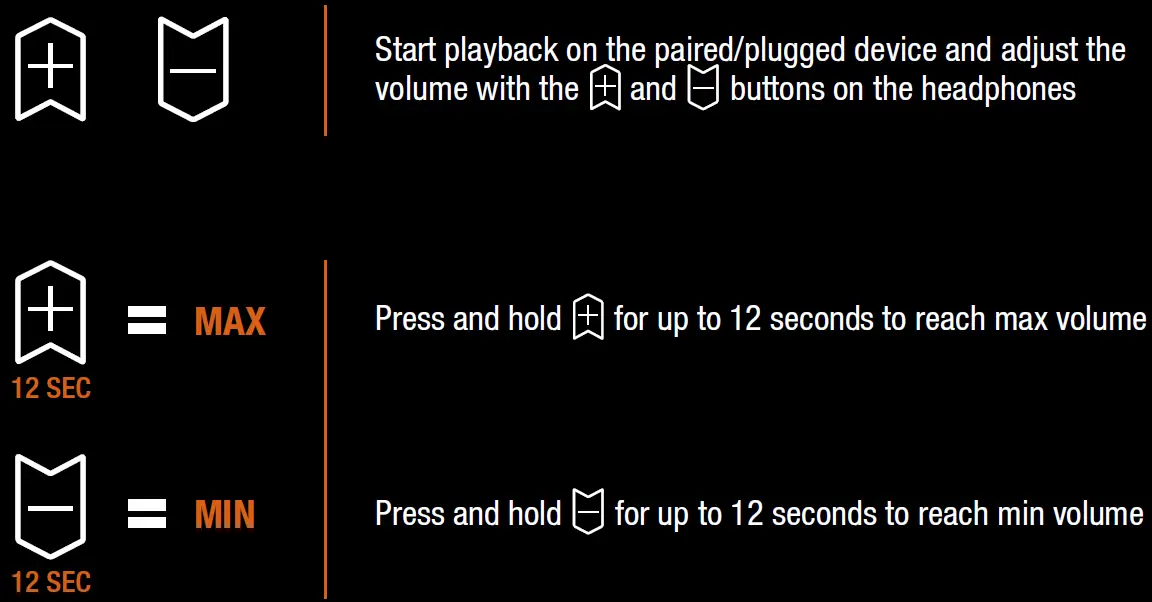

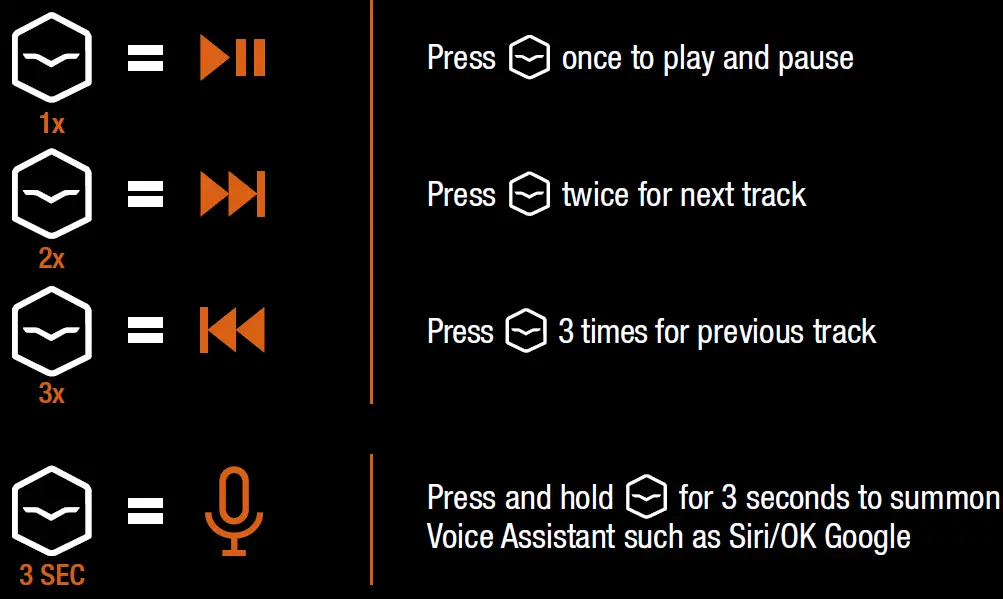

LISTENING TO MUSIC

MAKING A CALL / RECEIVING A CALL

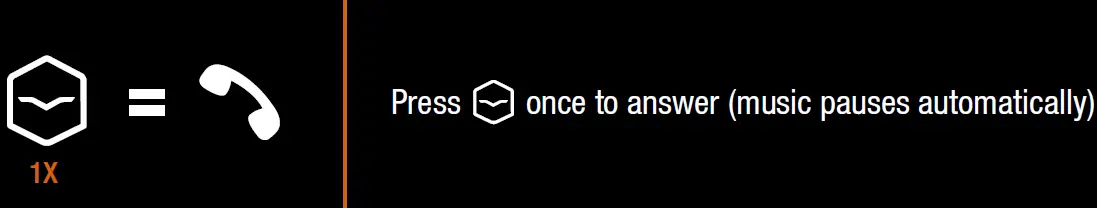

ANSWER A CALL

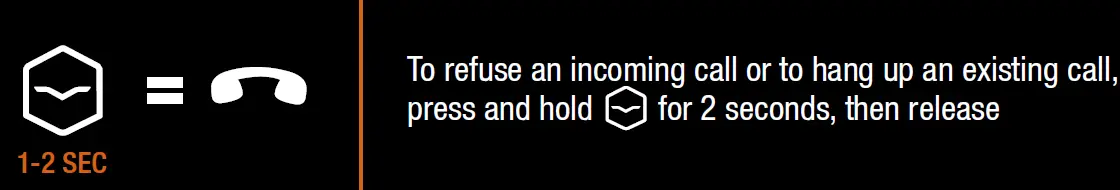

REFUSE / HANG UP

CALL ON HOLD

OTHER USEFUL FUNCTIONS

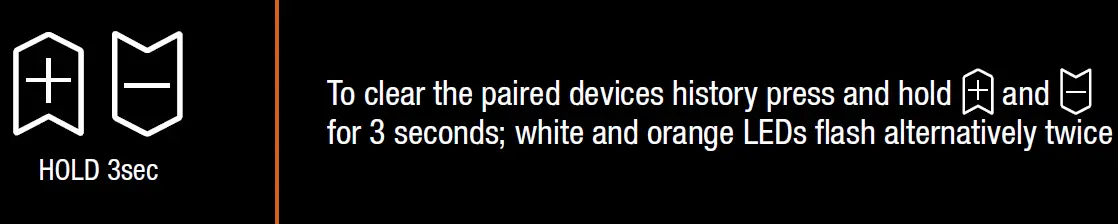

CLEAR THE PAIRED DEVICES HISTORY

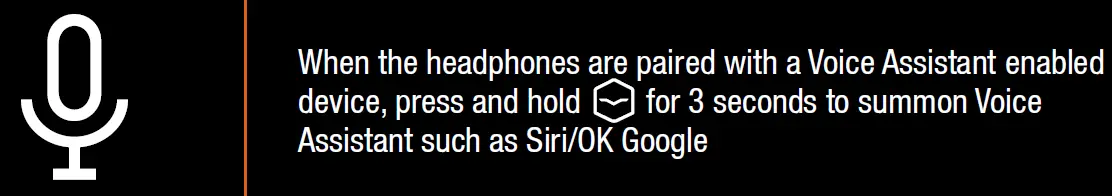

VOICE ASSISTANT CONTROL

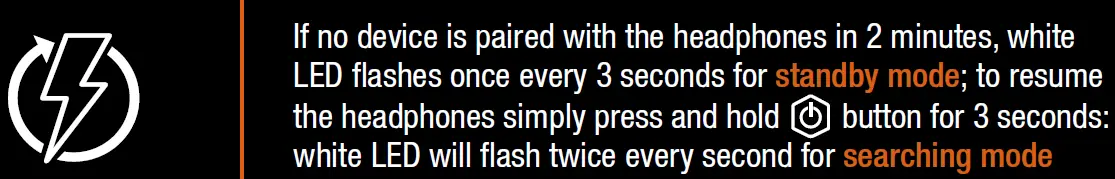

STAND BY MODE

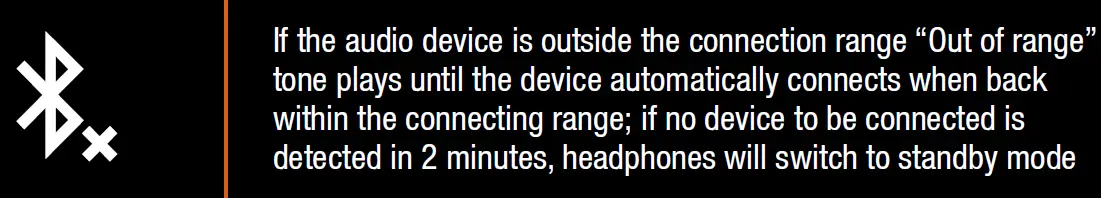

CONNECTION OUT OF RANGE

USING YOUR SPORTS FINS

To provide additional stability when you run or work out, please use the included sports fins, featuring ActiveFlex technology.

Sport fins come in three different sizes
Try them out and choose the ones with the best fit for your ears.

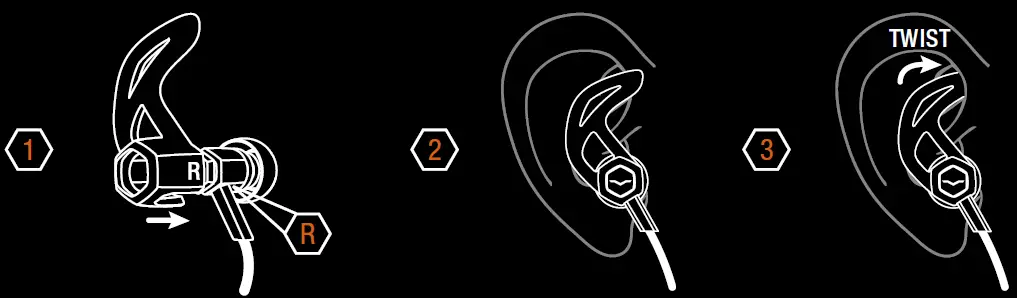

1. Wrap sport fin around earbud making sure to match the corresponding one (“L” earbud with “L” sport fin, “R” earbud with “R” sport fin)
2. Insert earbud in the corresponding ear canal (“L” into the left ear, “R” into the right ear)
3. Once the earbud is inserted, twist the sport fin and adjust it to rest comfortably in the bowl of your ear; the upper part of the fin fits just under your ear ridge

NOTE
When you want to use sport fins you need to remove RemixRings if present on earbuds

USING YOUR 3D PRINTED CUSTOM CAPS

With the 3D printed custom caps, you can revolutionize your in-ear headphones and forge your own personal relic which will be 3D sculpted in Italy and 3D printed in NYC.

1. Install RemixRings to ensure that 3D printed custom caps are stable
2. Slide 3D printed custom caps onto the earbud until the cap reaches the cable creating a snug fit.

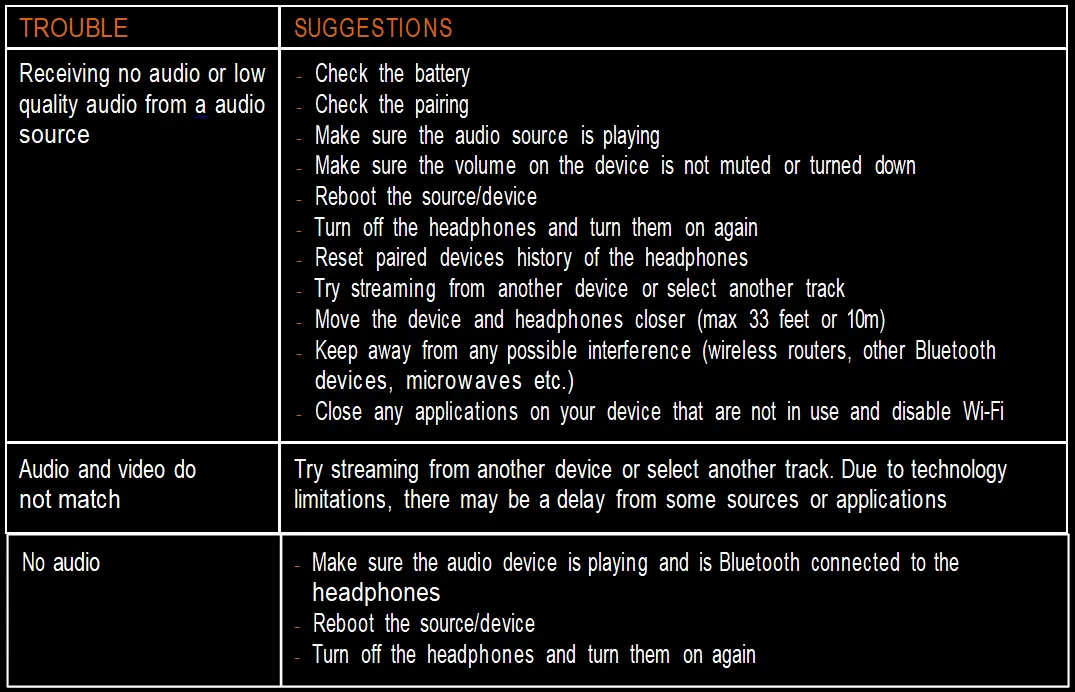

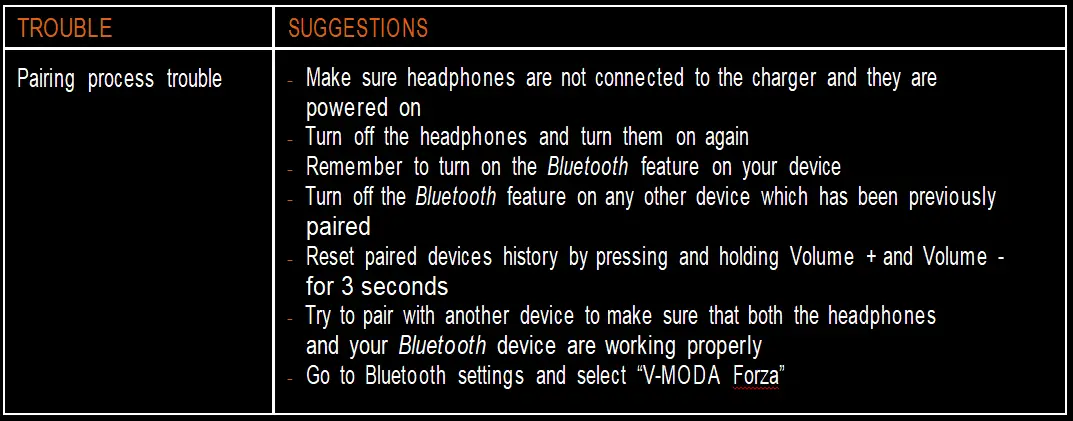

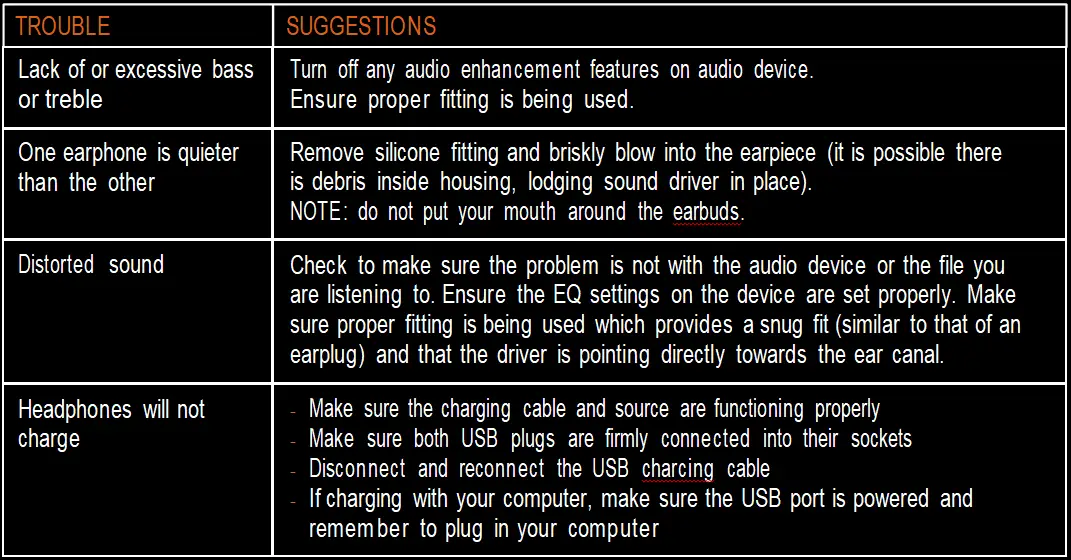

TROUBLESHOOTING

If you are experiencing trouble with your headphones, please refer to the troubleshooting guidelines below. If the problem persists, please contact the V-MODA Six Star Service at V-MODA.com/Support, [email protected], or 1.888.VMODA.LA.

CAUTION
The operation temperature of devices is between -10°C (14°F) to 45°C (113°F). The battery will not work properly if the temperature is beyond that range.

REPLACEMENT ACCESSORIES
Replacement silicone fittings, sport ear hooks, sports fins, and carrying cases may be ordered at V-MODA.com.
CLEANING YOUR HEADPHONES
To keep your headphones clean, periodically remove the silicone fittings and wash them with mild detergent and water. Do not forget to rinse and dry them before putting the fittings back on the earbuds. Make also sure to wipe the earpiece with a dry cloth or equivalent.
NOTE ON STATIC ELECTRICITY
In particularly dry air conditions, mild tingling may be felt on your ears. This is a result of static electricity accumulated in the body and not a malfunction of the headphones. Wearing clothes made from natural materials can minimize the effect.

POWER AND FREQUENCY

• Power Transmission: Bluetooth
• EDR Mode (8DPSK): -1.30dBm
• Frequency Band(s): 2.402GHz~2.480GHz

Limited Warranty

• For a period of one (1) year from the date of retail purchase by the original end-user purchaser, V-MODA warrants that this product is free from any defects in manufacturing, materials, and workmanship, under the following conditions:
• V-MODA will repair or replace the product within a reasonable period of time and free of charge for one (1) year from the date of retail purchase by the original end-user purchaser
• The product must be purchased from a V-MODA authorized reseller and delivered to you in new condition, in original packaging. This warranty does not cover products purchased in an open box, sold as-is, sold by private party resale, or any other third party purchases from unauthorized resellers
• This Limited Warranty does not cover defects resulting from cosmetic damage, acts of God, misuse, accidents, commercial use, unauthorized alteration or modification of the product, improper connection, improper use or attempted repair by unauthorized distributors or resellers
• This warranty is void if the label bearing the serial number has been removed or defaced
• To obtain service under this limited warranty, visit V-MODA.com/Warranty to fill out the online warranty form and obtain further information
• To acquire a printable version of this warranty, please visit V-MODA.com/Warranty
• For other customer service inquiries, please e-mail [email protected]. You may also call 1.888.V-MODA.LA Monday through Friday, 9:00 am to 5:00 pm (Pacific Standard Time)
• This limited warranty gives you specific legal rights, and you also may have other rights that vary from State to State or Country to Country. Some places do not allow limitations on implied warranties or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you

V-MODA Immortal Life Program – Lifetime 50% discount

• We do not judge. If you abuse your headphones crowd surfing, stage diving, spelunking, or otherwise, the V-MODA Immortal Life Program has your back.
• All we ask is that you send the headphones (or what’s left of them) to us and we will email you a 50% off VIP Code towards a comparable product from V-MODA.com.
• Visit V-MODA.com/Immortal for information on the lifetime 50% discount.
• Visit V-MODA.com/Support, e-mail [email protected] or call 1.888.
• V-MODA.LA, Monday through Friday, 9:00 am to 5:00 pm (Pacific Standard Time), for information on how to get your 50% off VIP Code.

COMPLIANCES

NOTE
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, this is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, you are encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment to an outlet on a different circuit than the one to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help

Changes or modifications not expressly approved by V-MODA could void the user’s authority to operate this equipment. This device complies with Industry Canada license-exempt RSS standard(s).

Operation is subject to the following two conditions

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

V-MODA LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and all other applicable EU directive requirements. The complete declaration of conformity can be found at V-MODA.com/COMPLIANCE.

PLEASE DO NOT RETURN TO THE RETAILER

For any issues relating to your V-MODA product, please contact our Six Star Service directly.

• visit
  V-MODA.com/SUPPORT
• email
  [email protected]
• twitter
  @VMODASixStar
• Skype
  V-MODASixStar
• call
  1.888.V-MODALA
