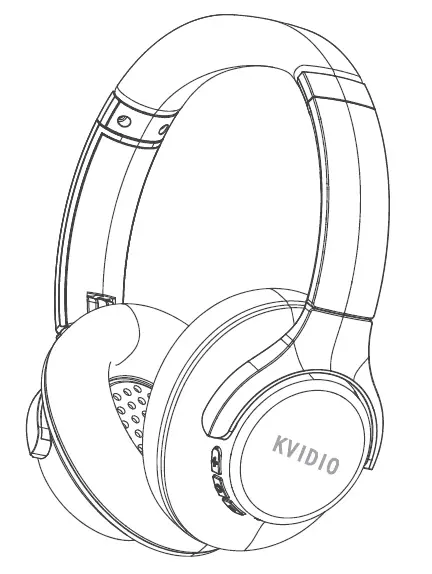

KVIDIO WH201A Wireless Headphones
Model : WH201A KVIDIO Wireless Headphones
Package List
- Wireless Headphones xl
- 3.5mm Audio Cable xl
- User Manual xl
- Charging Cable xl

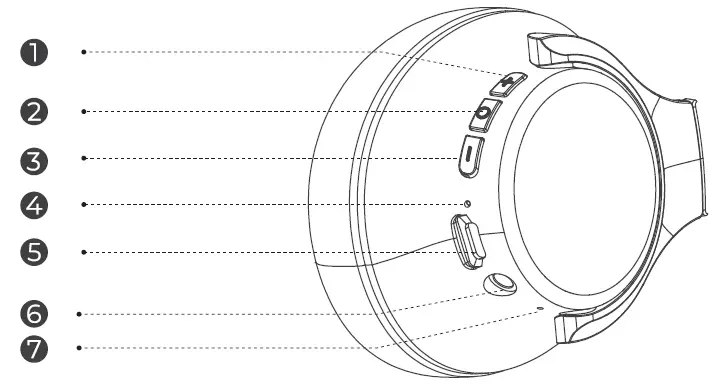

Diagram
- Volume Up/Next Track
- Multi-Function Button
- Volume Down/ Previous Track
- LED Indicator
- USB Charging Port
- 3.5mm Audio Port
- Microphone
Specification
| Model No | WH201A |
| Bluetooth Version | Bluetooth 5.2 |
| Bluetooth Profile | HFP, A2DP, AVRCP |
| Operation Range | 33ft (l0m) |
| Battery Capacity | 3.7V/500mAh |
| Charging Voltage | 5v===1A |
| Charging Time | 2.5 Hours |
| Talk Time /Music | 50″’55 Hours |
Power On/Off
- Power On: Press and hold the 11 MFB11 button for 4 sec.
- Power Off: Press and hold the 11 MFB11 button for 5 sec.
How to Pair
When the headset is power off, press and hold the Multi-function Button until the indicator flashes blue and red alternately to enter the pairing mode. Turn on the Bluetooth of the mobile phone and find 11WH201A” to connect.
Media Playback & Volume Functions
| Play/Pause | Press 11MFB11 button |
| Next Track | Press “+” |
| Previous Track | Press “-“ |
| Volume Up | Press and hold “+” button |
| Volume Down | Press and hold “-” button |
Call Functions
| Answer/Hang up | Press 11MFB11 button |
| End a call | Press 11MFB11 button |
| Decline an incoming call | Press and hold IIMFBII button for 2 sec while a call is coming |
| Switch to mobile phone | Press and hold IIMFBII button for 2 sec during a call |
| Siri/Google Voice | Double-click the 11 MFB11 button |
Clear Paired Device
Long press the “MFB” button and the Volume 11-11 button simultaneously until the red and blue lights flash 3 times at the same time.
Charge the Headphones
In Charging: Red led light stays on.
Full Charge: Blue led light stays on (charging for 2.5 hours).
FCC STATEMENT:
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user1s authority to operate the equipment. This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
- This device may not cause harmful interference,
- This device must accept any interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
NOTICE:
Note: This equipment has been tested and found to comply with these limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
ISEDC RSS Warning:
This device complies with Innovation, Science and Economic Development Canada Compliance licence-exempt RSS standard (s).
Operation is subject to the following two conditions:
- this device may not cause interference, and
- this device must accept any interference, including interference that may cause undesired operation of the device.
ISEDC Radiation Exposure Statement:
This equipment complies with ISEDC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This symbol means the product must not be discarded as household waste and should be delivered to an appropriate collection facility for recycling. Follow local rules and never dispose of the product and rechargeable batteries with normal household waste. Correct disposal of old products and rechargeable batteries helps prevent negative consequences for the environment and human health.
CAUTION:
- To reduce the risk of electrical shocks, fire, etc
- Do not disassemble or modify the equipment.
- Do not allow flammable, water or metal objects to enter the equipment.
- Avoid using the headphones
- In places with high humidity or excessive dust
- In places where the temperature is extremely high (over 40 °C or 104 °F) or low temperature (below 5 °C or 41 °F).
PRECAUTIONS FOR USE:
- Do not use any USB cable other than the one provided.
- Do not use the supplied USB cable with any other devices.
- Store earplugs in a safe place out of the reach of children to avoid possible accidents or dangers.
