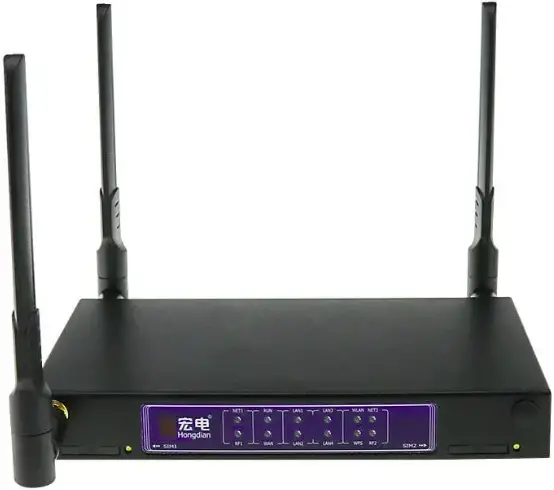

Hongdian H8922 3G/4G Router User Guide
Overview
H8922 4G Router is a data communication terminal on mobile communication network, which independently researched and developed by Hongdian Corporation. The product is based on 4G wireless communication technology. It uses high performance 32-bit embedded operating system and has a full industrial design. It can provide high performance 4G communication speed by accessing the global 4G network via the embedded 4G module. It is widely used for various industries such as telecommunication, finance, information media, electric power, transportation, on-board devices and environmental protection and so on.
Specifications
Table 2-1 H8922 4G router features
| Specifications | Descriptions | Remarks |
| Product Name | H8922 | V40 |
| Network Type | 4G | Supported bands depends on the module |
| Front panel interfaces | 2*SIM slot (1.8V/3.0v) | |
| 9*LED indicators | ||
| Rear panel interface | 3*Antenna interfaces (SMA-K) | |
| 1*Reset button | ||
| 1*WAN interface (10/100 BASE-T) | ||
| 4*LAN interface (10/100 BASE-T) | ||
| 1*DC power socket | ||
| 1*Ground screw | ||
| Power supply | Operating Voltage | (+5V ~ +36V DC) |
| Power consumption (Peak) | During Idle | Approx. 200mA@12V DC |
| During Working | Approx. 400mA@12V DC | |
| Others | Weight | Approx. 540g |
| Size (without power connector and bracket) | Length*width*height(mm) 176*105*25 | |
| Operating temperature | -30°C ~ +75°C | |
| Storage temperature | -40°C ~ +85°C | |
| Relative humidity | ≤ 95°C (non-condensing) | |
Note: The power consumption of the communication is affected by the network signal strength and the module network standard.
Shell Sizes and interface definition

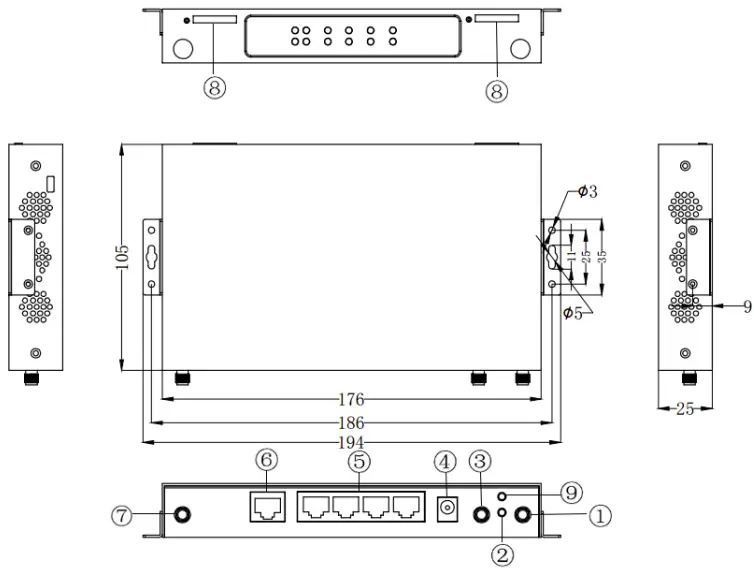

Figure 3-1 Shell size diagram of the H8922 4G router. (Unit: mm.)
Table 3-1 Interface definition of the H8922 4G router
| ① | 4G1-A auxiliary antenna interface |
| ② | RESET button |
| ③ | 4G1-M main antenna interface |
| ④ | DC power socket |
| ⑤ | LAN port |
| ⑥ | WAN port |
| ⑦ | Wi-Fi-M main antenna interface |
| ⑧ | SIM card slot |
| ⑨ | Ground screw |
Panel indicator status
There are 9 working LED indicators on the front side of H8922 4G Router, indicating different status of system and network, shown as below:

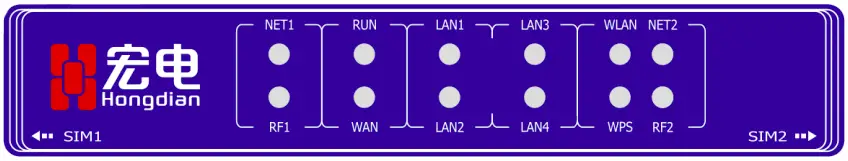

Figure 4-1 Label of the H8922 4G router
Table 4-1 LED indicator description of the H8922 4G router
| Indicators | Status description |
| RUN | On: the system is up and running normally. Off: the system is not fully started (within 10 seconds of power-on or during restart). |
| WAN | On: the WAN port is connected to other devices through the network cable. Flashing: data transmitting via WAN port. Off: cable unplugged or the connection with other devices is abnormal. |
| LAN1~4 | On: the LAN port is connected to other devices through the network cable. Flashing: data transmitting via LAN port. Off: cable unplugged or the connection with other devices is abnormal. |
| RF1 | On: good signal strength, 21~31. Quickly flashing (every 0.5s): medium signal strength,11~20. Slowly flashing (every 2s): poor signal strength, 1~10. Off: no signal. |
| RF2 | Reserved. |
| NET1 | On: modem has connected to 3G/4G network. Quickly flashing (every 0.5s): modem is dialing. Slowly flashing (every 2s): modem has connected to 2G/2.5G/2.75G network. Off: module not found or dialing disabled. |
| NET2 | Reserved. |
| WLAN | On: Wi-Fi is enabled. Flashing: there is data communication. Off: Wi-Fi is disabled. |
| WPS | Reserved. |
