V1.0
TBPCP1-20100
RF PULSE CURRENT MONITORING PROBE
Introduction

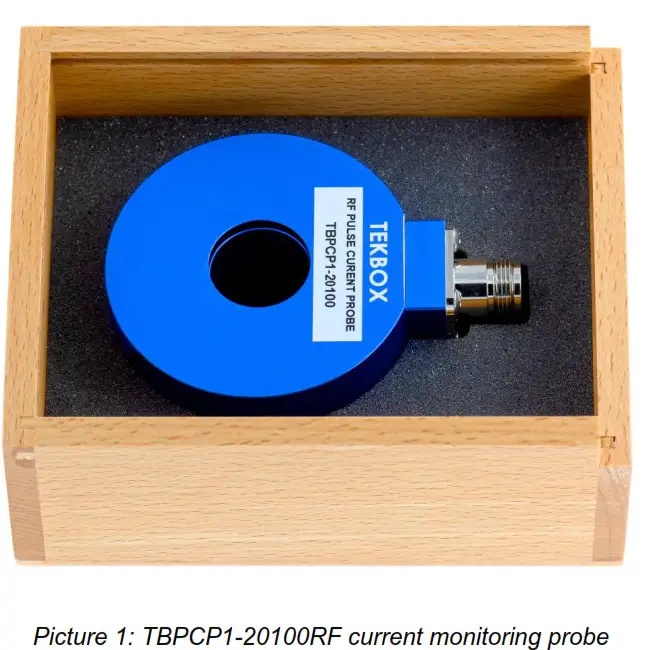

The TBPCP1-20100 is a RF pulse current monitoring probe, expanding the Tekbox product range of affordable test equipment.
The probe has a very flat response from 20 Hz to 100 MHz and is characterized over the frequency range from 1 Hz to 200 MHz. The TBPCP1-20100 is typically used for surge or RF pulse current monitoring applications in the time domain, in contrary to RF current monitoring probes designed for EMC applications, which are typically used for measurements in the frequency domain.
The aperture of the RF current monitoring probe is 25 mm. Its transfer impedance is -20 dB Ohm with a typical 3dB bandwidth from 20 Hz to 100 MHz.
Specification
Characterized frequency range: 1 Hz to 200 MHz
3 dB bandwidth: 20 Hz to 100 MHz (measured in a 50 + 50 Ohm loop)
Transfer impedance into 50 Ohm load: -20 dB Ohm; 0.1 V/A
Transfer impedance into high Z: 0.2 V/A
Probe port impedance: 50 Ohm
Droop rate: < 10% / ms
Rise time: < 5 ns
Max. CW primary RMS AC current with respect to internal resistor dissipation ratings: 300A
Max. primary single pulse current with respect to internal resistor pulse current ratings: 900A@ 100ms pulse width; 3000A @ 1ms pulse width Max. current time product: 0.04 Ampere seconds
Max. RMS AC current, linear: 22 A
Max. core temperature: 80 °C
Aperture diameter: 25 mm
Outside diameter: 76 mm
Height: 31 mm
Weight: 320 g
Connector type: N female
Transfer impedance
Typical transfer impedance table

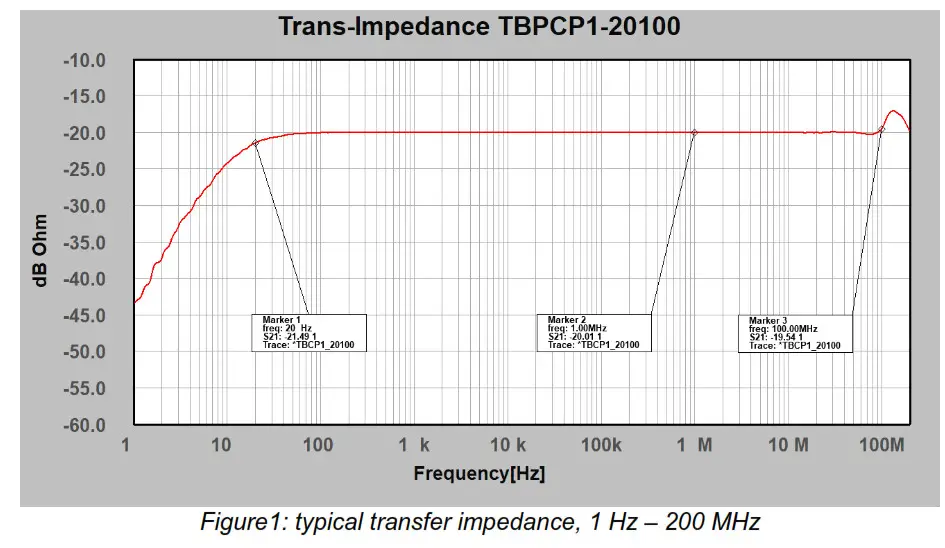

The table below shows typical transfer impedance data of a TBPCP1-20100 pulse current probe. Each current probe is delivered with its corresponding measurement protocol. The transimpedance is given for a 50 Ohm load.
Transimpedance [V/A] = 10^(dBOhm/20) @ 50 Ohm
Transimpedance [V/A] = 2*10^(dBOhm/20) @ High Z
| Frequency | transfer impedance [dBΩ] 50 Ohm load | transfer impedance [V/A] 50 Ohm load | transfer impedance [V/A] high Z load |
| 1 Hz | -43,49 | 0,007 | 0,013 |
| 2,5 Hz | -35,00 | 0,018 | 0,036 |
| 5 Hz | -28,96 | 0,036 | 0,071 |
| 7.5 Hz | -25,98 | 0,050 | 0,101 |
| 10 Hz | -24,27 | 0,061 | 0,122 |
| 12.5 Hz | -23,23 | 0,069 | 0,138 |
| 15 Hz | -22,41 | 0,076 | 0,151 |
| 17.5 Hz | -21,89 | 0,080 | 0,161 |
| 20 Hz | -21,49 | 0,084 | 0,168 |
| 25 Hz | -21,03 | 0,089 | 0,178 |
| 50 Hz | -20,29 | 0,097 | 0,194 |
| 75 Hz | -20,11 | 0,099 | 0,198 |
| 100 Hz | -20,08 | 0,099 | 0,198 |
| 1 kHz | -20,06 | 0,099 | 0,199 |
| 10 kHz | -20,02 | 0,100 | 0,200 |
| 100 kHz | -20,01 | 0,100 | 0,200 |
| 1 MHz | -20,01 | 0,100 | 0,200 |
| 10 MHz | -19,99 | 0,100 | 0,200 |
| 25 MHz | -19,99 | 0,100 | 0,200 |
| 50 MHz | -20,01 | 0,100 | 0,200 |
| 60 MHz | -20,16 | 0,098 | 0,196 |
| 70 MHz | -20,29 | 0,097 | 0,194 |
| 80 MHz | -20,30 | 0,097 | 0,193 |
| 90 MHz | -20,06 | 0,099 | 0,199 |
| 100 MHz | -19,54 | 0,105 | 0,211 |
| 110 MHz | -18,39 | 0,120 | 0,241 |
| 120 MHz | -17,46 | 0,134 | 0,268 |
| 130 MHz | -17,13 | 0,139 | 0,278 |
| 140 MHz | -17,21 | 0,138 | 0,276 |
| 150 MHz | -17,49 | 0,133 | 0,267 |
| 160 MHz | -17,75 | 0,130 | 0,259 |
| 170 MHz | -18,17 | 0,123 | 0,247 |
| 180 MHz | -18,80 | 0,115 | 0,230 |
| 190 MHz | -19,37 | 0,108 | 0,215 |
| 200 MHz | -19,87 | 0,101 | 0,203 |
Table1: Transfer impedance: 1 Hz to 200 MHz, typical data
Accessory

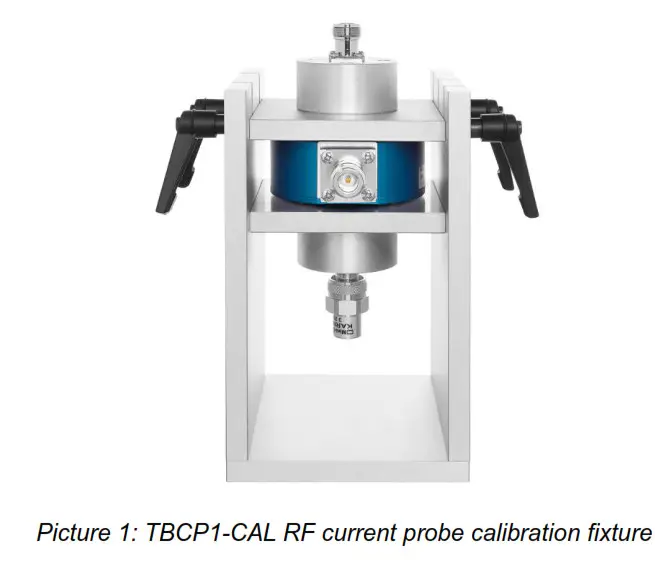

Tekbox supplies a calibrator suitable for the TBPCP1-20100 current probe:
Ordering Information
| Part Number | Description |
| TBPCP1-20100 | Pulse Current Probe 20Hz – 100 MHz |
| TBCP1-CAL | Calibration fixture for TBPCP1-20100 current probe |
History
| Version | Date | Author | Changes |
| V 1.0 | 4.2.2023 | Mayerhofer | Creation |
