NSM-208GP Quick Start
v1.1, December 2022

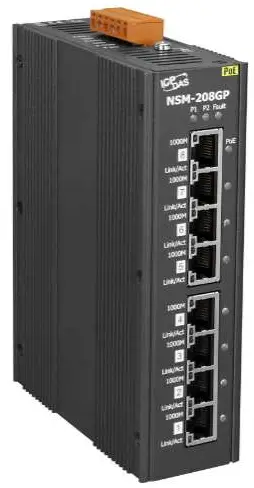

NSM-208GP
User Guide
Packing List
In addition to this guide, the package includes the following items:
Resources
How to search for drivers, manuals and spec information on ICP DAS website.

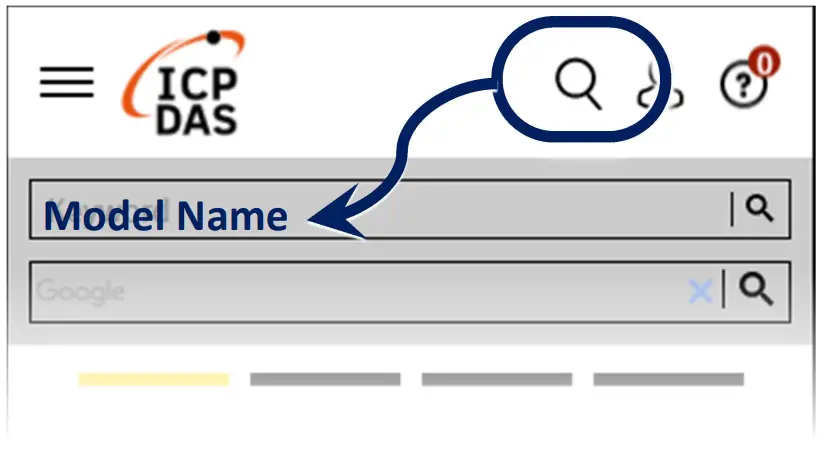

- For Mobile Web
- For Desktop Web
LED Indicator Functions:
| LED | COLOR | STATE | DESCRIPTION |
| P1 | Green | On | PWR1 power input is active. |
| Off | PWR1 power input is inactive. | ||
| P2 | Green | On | PWR2 power input is active. |
| Off | PWR2 power input is inactive. | ||
| Fault | Green | On | PWR1 or PWR2 power input is fault. |
| Off | PWR1 and PWR2 power input are both active, or no power input. | ||
| PoE | Red | On | PD Device is detected |
| Off | PD Device is not detected | ||
| Ethernet Port | Green | On | Link/Act |
| Orange | Off | Link to 100Mbps | |
| On | Link to 1000Mbps |
Pin Assignment for Terminal Block:
| PIN | DESCRIPTION | NOTE |
| PWR1 | 24-53 VDC Power Input 1 | PWR1 power input |
| GND | Ground | |
| PWR2 | 24-53 VDC Power Input 2 | PWR2 power input |
| GND | Ground | |
| R.COM | Alarm Relay (COM) | Relay closed when PWR1 or PWR2 power input is fault. |
| R.NO | Alarm Relay (NO) |
Redundant Power Input：
The design of the redundant power input allows two power supplies to deliver power to the NSM-208GP to increase reliability. Each of the power supplies will have the capacity to run the switch on its own when the other one goes down. The alarm relay can be used to connect with a buzzer to produce an alarm in the case of a power failure. It is recommended to use dual power input if the switch will be used in heavy load applications.
Technical Support
[email protected]
www.icpdas.com
ICP DAS
