Quick Installation Guide

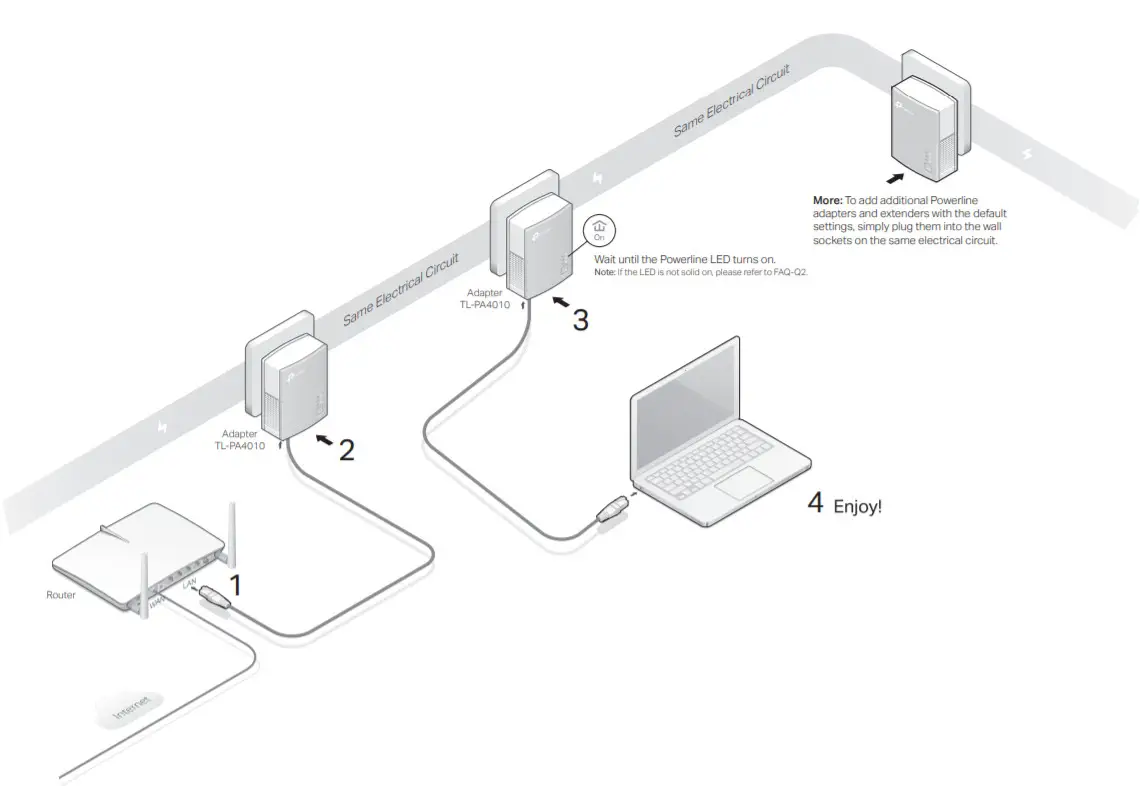

* TL-PA4010 KIT (European version) is used for demonstration in this QIG.
Attention

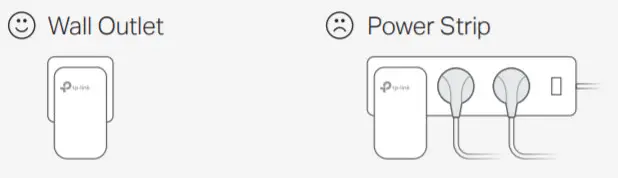

Plug powerline devices into wall outlets instead of power strips.
Set Up a Secure Powerline Network by Pairing (Recommended)
You can create or join a secure powerline network using the Pair button on two devices at a time.
Tip: We recommend that you plug in the powerline devices near each other when pairing.

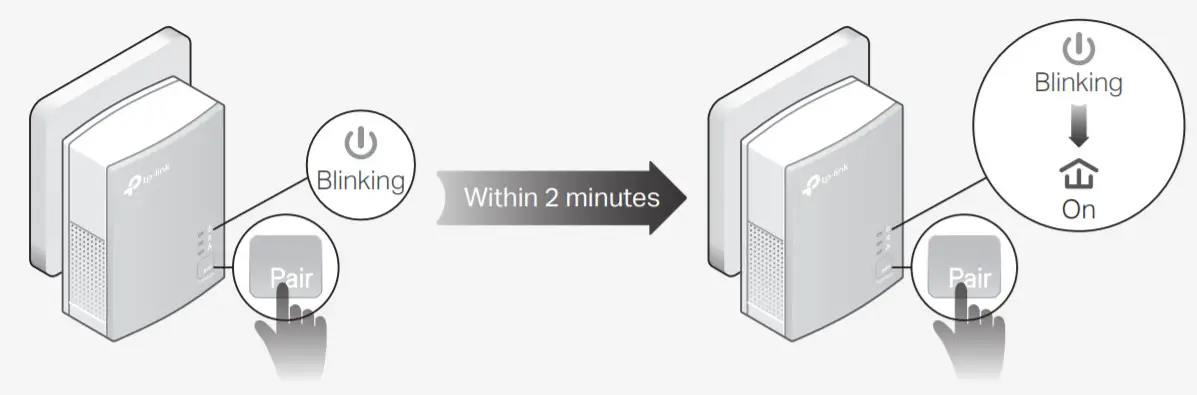

To create a secure powerline network:
- Press the Pair button on one of the powerline devices for 1 second. Its Power LED
starts blinking.
Note: If the Power LED does not blink, press the Pair button again. - Within 2 minutes, press the Pair button on another device for 1 second. Its Power LED starts blinking.
- When the Powerline LED
turns on, it’s done.

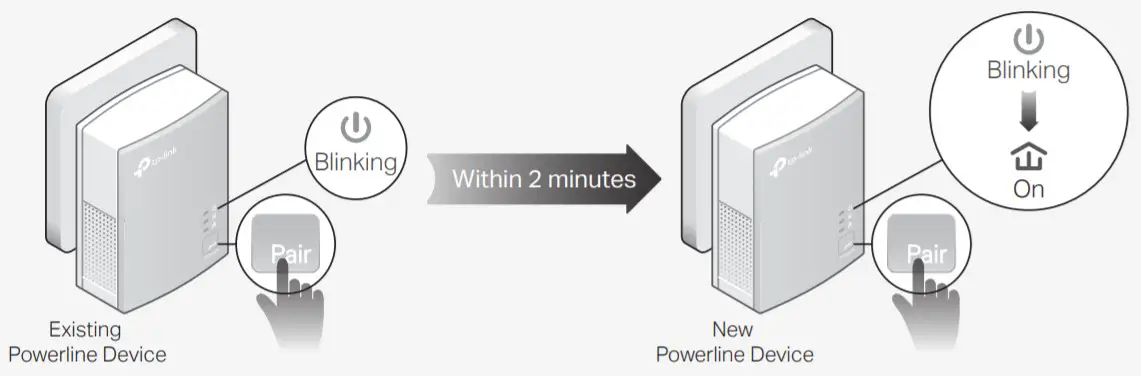

To join an existing secure powerline network:
- Press the Pair button on any of the existing powerline devices for 1 second. Its Power LED starts blinking.
Note: If the Power LED does not blink, press the Pair button again. - Within 2 minutes, press the Pair button on the new powerline adapter for 1 second. Its Power LED starts blinking.
- When the Powerline LED turns on, it’s done.
Physical Appearance
| LED | STATUS | DESCRIPTION |
 Power | On Blinking | The powerline adapter is on. Once every second: Pairing is in process. Once every 15 seconds: Power-Saving Mode is on.* The powerline adapter is off. |
| Off | ||
 Powerline | On Blinking
| The powerline adapter is successfully connected to a powerline network and is in a suitable location. |
| Off | ||
| Ethernet | On/Off | The Ethernet port is connected or not connected. |
* If the device connected to the adapter is turned off or inactive for more than 5 minutes, the powerline adapter will automatically switch to Power-Saving Mode.
| ITEM | DESCRIPTION |
| Pair Button | Press and hold for 1 second to set up or join a secure powerline network. Press and hold for more than 6 seconds to reset the powerline adapter. |
Frequently Asked Questions
Q1. How do I reset my powerline adapter?
A. With the powerline adapter plugged into an electrical outlet, press and hold the Pair button for more than 6 seconds until the Power LED goes off momentarily and then comes back on.
Q2. What should I do if the Powerline LED is not solid?
- If the LED is blinking:
A. The powerline adapter is in a location with poor signal strength. Try another wall socket.
- If the LED is off:
A1. Try another wall socket and make sure all powerline devices are on the same electrical circuit.
A2. Try to set up a powerline network by pairing. Refer to the section above for instructions.
A3. If the problem persists, contact our Technical Support.
Q3. What should I do if there is no internet connection in my powerline network?
A1. Make sure all powerline devices are on the same electrical circuit.
A2. Make sure the Powerline LEDs are lit on all of your powerline devices. If they are not, pair all devices again.
A3. Make sure all devices are correctly and securely connected.
A4. Check if you have an internet connection by connecting the computer directly to the modem or router.
Q4. What should I do if a successfully-paired powerline device does not reconnect after it is relocated?
A1. Try another socket and make sure it is on the same electrical circuit.
A2. Try to pair the device again, and make sure the Powerline LED is on.
A3. Check for possible interference due to a washing machine, air conditioner, or other household appliance that may be too close to one of the powerline devices. Plug the appliance into the integrated electrical socket to remove the electrical noise if your powerline device has an integrated electrical socket.
Easy Management
Using HPLC utility for advanced configuration:
- Visit http://www.tp-link.com, and search for your product.
- Find and download the compatible version of the utility on its Support page.
- Install the utility and start your configuration.
Safety Information
- Keep the device away from water, fire, humidity, or hot environments.
- Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
- The socket outlet shall be installed near the equipment and shall be easily accessible.
- Plug the powerline devices directly into the wall outlets but not the power strips.
Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC, 2011/65/EU, and (EU)2015/863.
The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016.
The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca
For technical support, user manuals, and more information, please visit http://www.tp-link.com/support, or simply scan the QR code.
