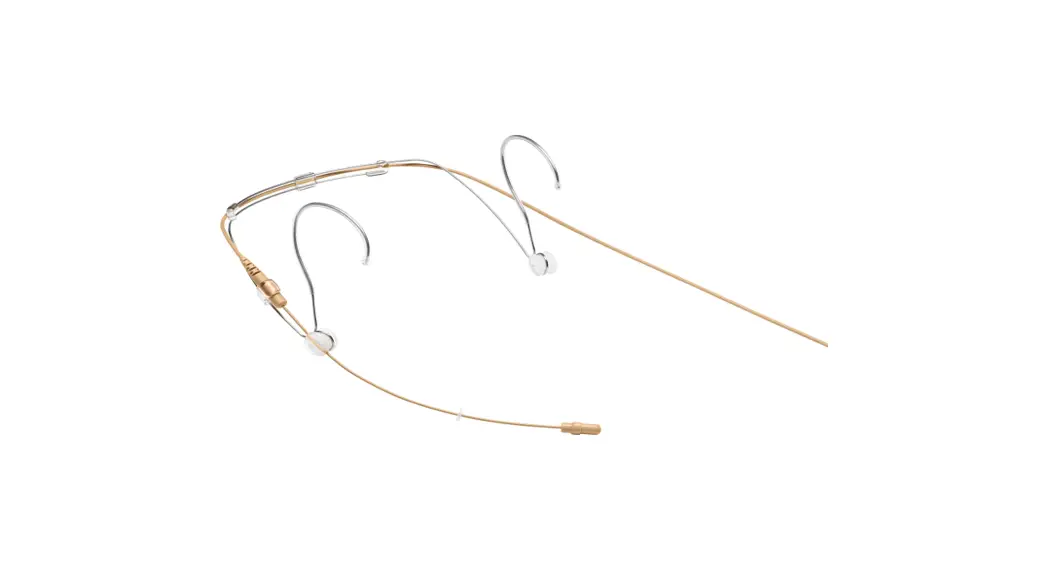

Shure Duraplex Omnidirectional Headset Dh5 User Guide

DuraPlex Omnidirectional Headset DH5

DH5
DuraPlexTM Omnidirectional Headset

The Shure Omnidirectional DuraPlex Headset user guide. Version: 1.0 (2020-J)

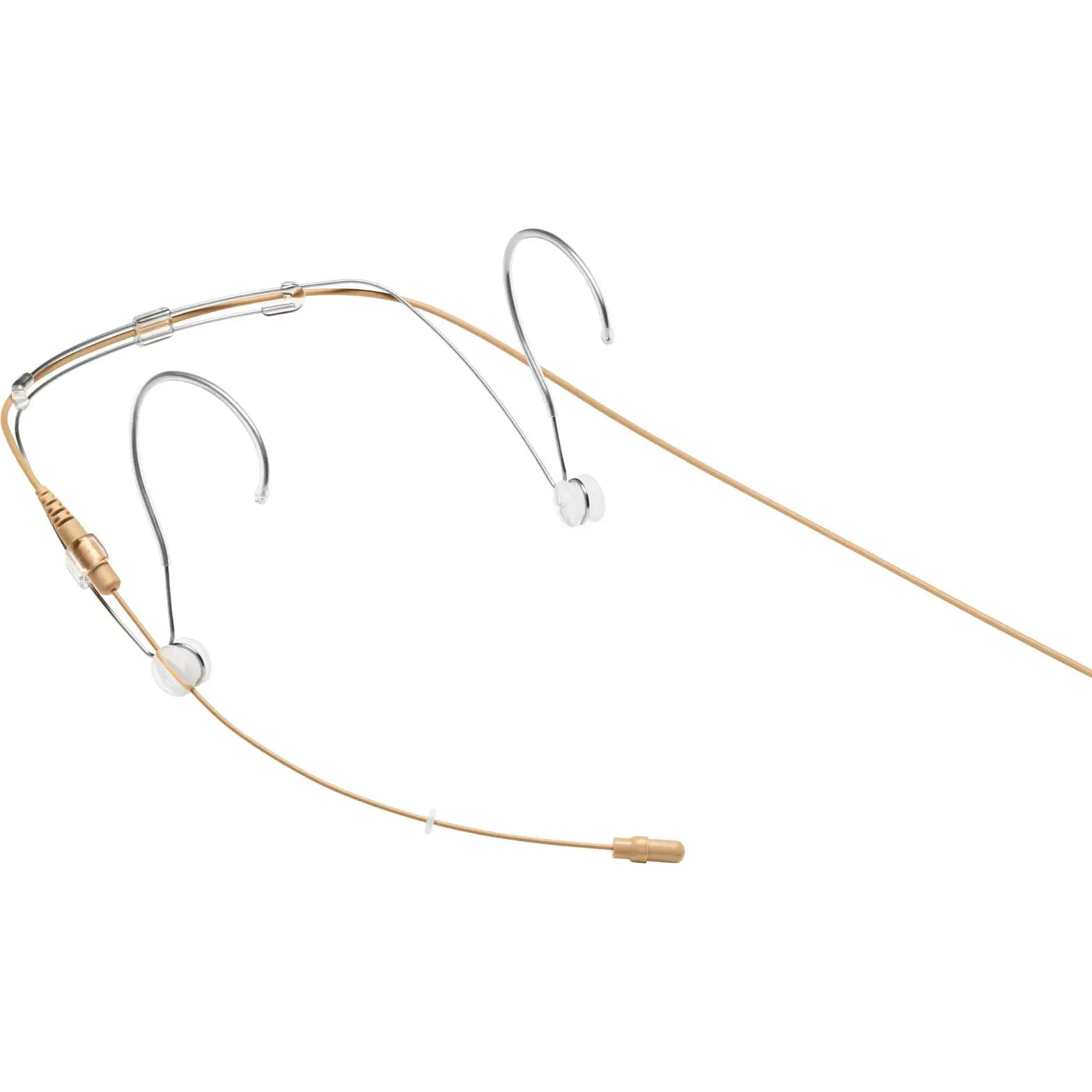

General Description

The DuraPlex DH5 omni directional headset microphone is ideal for both speech and performance applications that require durability and minimal visibility. The bendable lightweight headset features switchable boom mounting placement and a neutral clear design to be used with any DH5 color variant. The certified IP57 rated headset can withstand challenging conditions in volving sweat and dust for use in theater, corporate events, and TV broadcast applications. Each microphone is supplied with a storage pouch, single tie clip, vocal presence frequency response cap, snap fit windscreen, foam windscreen, and TA4F threaded adapter.

Features

• IP57 Certified dust resistant and waterproof/sweatproof headset
• 5mm omnidirectional subminiature design for discrete placement and improved gain before feedback
• 1.6mm PLEX Cable technology, paintable cable, and no memory effect
• Professional sound quality for speech and performance applications
• High RF immunity, compatible with digital wireless systems without RF interference
• Attachable Presence Cap included for tailored frequency response in speech applications
• Included furnished accessories for storage, mounting options, and wind protection
• TA4F and LEMO terminations for variable wireless system connectivity
• Universal clear headset frame with switchable boom mount placement
• Available in Black, Tan, Cocoa finishes

Care and Maintenance

The DuraPlex omnidirectional microphone has been IP57 dust-protected, waterproof rated by extensive internal tests, so you can clean it using distilled water and a mild detergent when necessary.

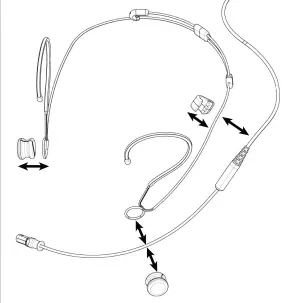

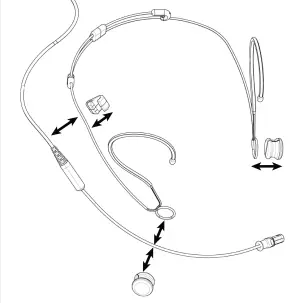

Adjusting the Headband and Microphone

Adjust headband width.

Adjust the earhooks, slide the boom arm in the boom pivot, and twist the pivot to adjust height and length.

Bend boom arm into place. Adjust position.

Use presence cap or leave off. Important: Use slide-fit windscreen with the presence cap Use snap-fit windscreen without the presence cap

Reversing the Boom

The microphone boom can be positioned on the left or right side of the head.

1. Squeeze the earpiece towards the headband. 6/14 Shure Incorporated
2. Push out the boom arm and boom pivot.
3. On the other side, repeat the steps to remove the boom pivot.
4. Move the boom arm to the preferred side, ensuring that the boom arm is placed in the slot in the boom pivot.
5. Squeeze each earpiece towards the headband to push boom pivots back into place.

Presence Cap

Frequency Response

Attaching the Windscreen

There are two windscreens for use with the DuraPlex microphone:

1. A slide-fit windscreen for use with the presence cap Shure Incorporated

2. A snap-fit windscreen for use without the presence cap
   Note: Do not use the snap-fit windscreen with the presence cap–the presence cap can become caught inside the snap-fit windscreen.


Using the Collar Clip

Accessories

Furnished Accessories

Accessories are available in Black (/B), Tan (/T), AND Cocoa (/C) color varieties. Please consult your Shure representative for available options.

Optional Accessories

TA4F/TQG XLR Preamplifier – RPM400TQG
Lemo XLR Preamplifier – RPM400LEMO

Replacement Parts

Threaded Mount Instructions

Wiring and Termination

Typical Wiring Table
Series
Cable Con struction
Electrical Design
Polarity
Replace ment Connector
For Use With
Wiring
Line Art (From Solder Side)

DL4LEMO
1.6mm cable with single conductor and shield
3 wire with additional bias on pin 3
Positive with respect to ground
WA416
Shure Lemo Bodypacks (AD1/ADX1Lemo, Shure UR1MLemo, ULXD1Lemo)
Red wire: Audio/ Bias(2)
Blue wire: Audio(3
Shield: Ground(1)

DL4MTQG
1.6mm cable with 2 con duc tors, 2 shield wires and shield
3-Wire
Posi tive with re spect to ground
WA430
All Shure TA4F Body packs
Red wire: Bias(2) Blue wire: Audio(3) Shield wire: Ground(1) Shield: Ground (Shell)
Note: The conductors have a black, protective coating that you must remove with isopropyl alcohol to see their actual color.

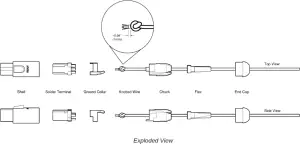

MTQG Connector Assembly

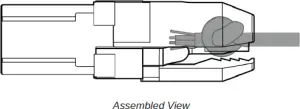

Note: Make sure to solder the shield to ground collar.

Specifications

Note:

• All specification values are based on using a typical bodypack with 5 V bias input or the RPM400MTQG preamplifier. When using the RPM400LEMO amplifier, refer to the RPM400LEMO specifications.
• All specifications measured with a 48 Vdc phantom power supply. The microphone operates at lower voltages, but with slightly decreased headroom and sensitivity.

Microphone Capsule
MEMS
Polar Pattern
Omnidirectional
Frequency Response
20 Hz to 20 kHz
Sensitivity
-42.5 dBV at 1 kHz [1]
Self-Noise, A-Weighted, Equivalent Acoustical
31 dB SPLA
Signal-To-Noise Ratio [2]
63.0 dB
Maximum SPL [3]
132.0 dB SPL,1 kHz at 1% THD, typical
Dynamic Range
101.0 dB typical
Microphone Current Draw
220 µA, maximum
12/14

Bias Voltage
Recommended Operating Voltage
5 V DC, 2.6 V DC minimum

Housing
Molded ABS

Polarity
MTQG
LEMO
Cable Diameter
1.6 mm

Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1

Cable Length
66 in. (1.67 m)

Net Weight
DL4
DH5 [1]1 Pa=94 dB SPL[2]
15.0 g(0.53 oz.) 20.0 g(0.7 oz.)

S/N ratio is the difference between 94 dB SPL and equivalent SPL of self noise, A-weighted
[3]
THD of microphone preamplifier when applied input signal level is equivalent to cartridge output at specified SPL

Dimensions
DH5-MTQG, DH5LEMO
Cable Length Cable Diameter Microphone Length Microphone Diameter Boom Length
66 in. (1.67M) 1.6MM
14.5MM
5.2MM
13.6CM

Certifications
This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking.
The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance
Authorized European representative: Shure Europe GmbH Headquarters Europe, Middle East & Africa Department: EMEA Approval Jakob-Dieffenbacher-Str. 12 75031 Eppingen, Germany Phone: +49-7262-92 49 0 Fax: +49-7262-92 49 11 4 Email: [email protected]
