Beach WP Field Deluxe – Installation instruction Art. No. 1510007

In Beach Water Polo Field Deluxe product (1510007) these items are included,
– 2 units of field lines with PP-silk rope + UV-resistant polyethylene part ❸
– 4 units of goal lines with PP-silk rope + UV-resistant polyethylene part ❶, ❷
– 4 units of goal lines with PP-silk rope + UV-resistant polyethylene part ❶, ❸
– 4 sturdy corner pieces
– 4 units of 10m PP-silk rope for attachment + UV-resistant polyethylene part ❸

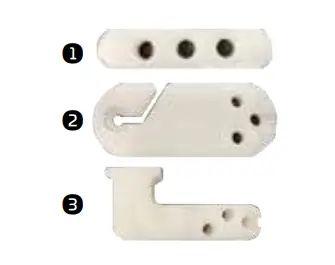

On each end of field lines, UV-resistant polyethylene parts (❶, ❷, ❸) for attachment are equipped

Please follow below instruction for complete installation of Beach Water Polo Field Deluxe including goals.

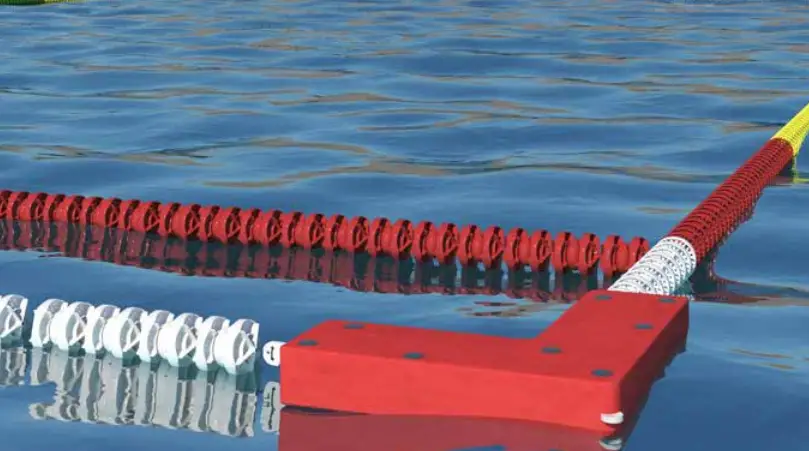

1. Take out the field lines and align 8 goal lines in vertical way and 2 field lines in horizontal way. Also put 4 sturdy corners on every corner of the field. As shown in the picture.
2. Field lines Put the polyethylene parts ❸ in polyethylene anchors on the sturdy corners and turn for fixation.
3. Goal lines Put the polyethylene parts ❶ to eyelet on the goals. Attach the polyethylene hook ❷ to the field lines.
4. Extra 10m PP-silk rope Put the polyethylene parts ❸ in polyethylene anchors on the sturdy corners and turn for fixation.
5. In total the inner dimension shall be 15 x 10m

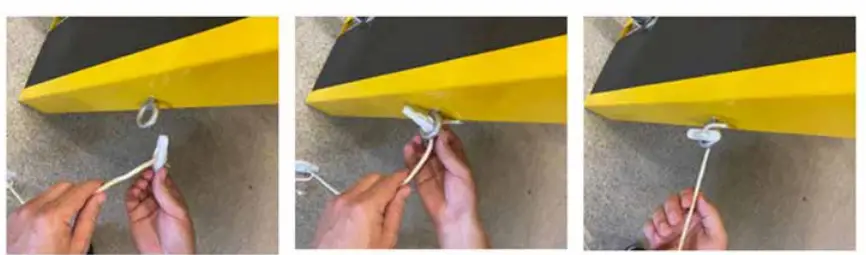

Part ❶ eyelet on the goals

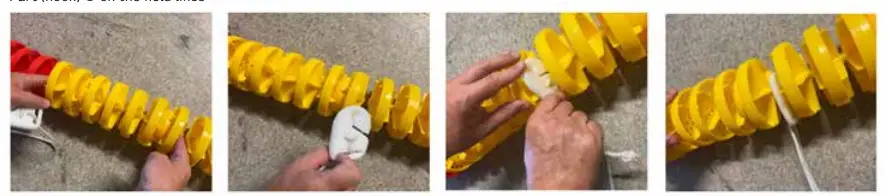

Part (hook) ❷ on the field lines

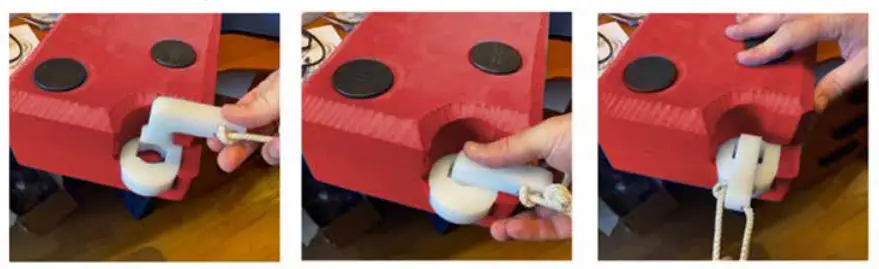

Part ❸ in anchors on the sturdy corners
