Marvo Cm373 Honeycomb Keyboard And Mouse User Manual

CM373 Honeycomb Keyboard and Mouse
User Manual

CM373 Honeycomb Keyboard and Mouse

Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully before first use and keep this user manual for future reference. Pay particular attention to the safety instructions. If you have any questions or comments about the device, please contact the customer line.
✉ www.alza.co.uk/kontakt
✆  +44 (0)203 514 4411
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Prague 7, www.alza.cz

Product Presentation

Features

• Quick 6-step DPI selection button.
• Multiple selectable lighting schemes
• Customizable lighting effects

Technical Specifications

Keyboard

Mouse

Wrist pad

System Requirements

PC system or compatible with one USB port available; Windows 7 or newer operating system.

• Driver programmable
• 6 DPI Steps 800-1600-2400-3200-4800-6400
• Multimedia functions
• 100% pure performance
• Ergo design
• Backlit keyboard

Safety Notes

• Keep the equipment dry. Keep away from precipitation, humidity, all types of liquids and condensation.
• Do not use the product with wet hands.
• Do not use or store the equipment in dusty or dirty areas.
• Do not store the equipment under high-temperature or low-temperature conditions (this may damage it).
• Do not drop, knock, or shake the equipment (use may result in breakage).

Installation

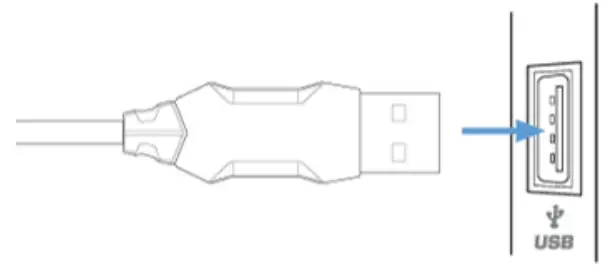

Connect the keyboard and mouse to the available USB ports on your computer; if the peripherals are used for the first time wait approx. 15 seconds to install the generic driver.

For advanced keyboard and mouse configuration, please download and install the specialized driver at www.marvopro.com (an Internet connection is required):

• download the driver and double-click the executable file
• follow the on-screen instructions and install the application
• after installing the application successfully, an icon will be displayed in the taskbar
• double-click this icon to launch the application

Use

Keyboard use
The keyboard configuration and using the special functions is done by using the various key combinations detailed below.

Multimedia and office functions

Backlight control functions

FN+		: switch backlight modes
FN+		: increase LED speed
FN+		: switch color
FN+		: switch backlight
FN+		: switch color
FN+		: decrease LED speed
FN+		: switch color
FN+		: switch backlight
FN+		: switch color
FN + brightness		: decrease LED
FN + mode 2		: User-defined backlight
FN + backlight mode 4		: User-defined
FN + brightness		: increase LED
FN + mode 1		: user-defined backlight
FN + mode 3		: user-defined backlight
FN + mode 5		: User-defined backlight

Other functions

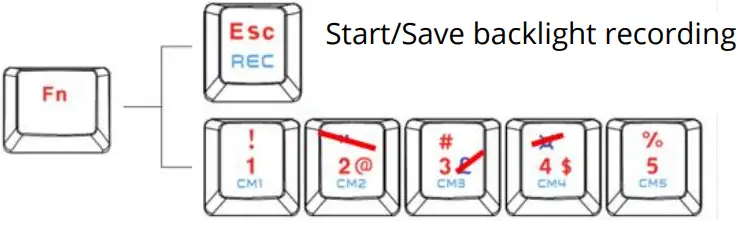

Start/Save backlight recording
5 custom backlight recording slots (CM1-CM5)
Press Fn+1 to choose CM1-slot then press FN+ESC to start backlight recording.
Then choose the keys you want have lit. Press FN+ESC again to stop and save your recording. All the custom slots (CM1CM5) operate in the same way.

FN + WIN Lock. Press to lock Win-key. Press again to unlock.
FN + Reset. Press for 5 seconds. The backlight will flash 3 times and the keyboard will be restored to default settings.
FN + FN lock. Press FN + End to lock FN. If FN is locked, it can’t function with other keys. (Press again to unlock.)

Troubleshooting

In case of incorrect operation follow the steps below:

• Check the integrity of the connectors.
• Check the connection to the computer.
• Check your computer settings.
• Disconnect and reconnect the equipment; restart the computer.

If the problem persists, please contact your local seller.

Warranty Conditions

A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you need repair or other services during the warranty period, contact the product seller directly, you must provide the original proof of purchase with the date of purchase.
The following are considered to be a conflict with the  warranty conditions, for which the claimed claim may not be recognized:

• Using the product for any purpose other than that for which the product is intended or failing to follow the instructions for maintenance, operation, and service of the product.
• Damage to the product by a natural disaster, the intervention of an unauthorized person or mechanically through the fault of the buyer (e.g., during transport, cleaning by inappropriate means, etc.).
• Natural wear and aging of consumables or components during use (such as batteries, etc.).
• Exposure to adverse external influences, such as sunlight and other radiation or electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage, electrostatic discharge voltage (including lightning), faulty supply or input voltage and inappropriate polarity of this voltage, chemical processes such as used power supplies, etc.
• If anyone has made modifications, modifications, alterations to the design or adaptation to change or extend the functions of the product compared to the purchased design or use of non-original components.

EU Declaration of Conformity

This product complies with the essential requirements of Directives 2014/30/EU and 2011/65/EU including amendments 2015/863/EU.

WEEE
This product must not be disposed of as normal household waste in accordance with the EU Directive on Waste Electrical and Electronic Equipment (WEEE – 2012/19 / EU). Instead, it shall be returned to the place of purchase or  handed over to a public collection point for the recyclable waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. Contact your local authority or the nearest collection point for further details. Improper disposal of this type of waste may result in fines in accordance with national regulations.
