aune Flamingo-BD Tube DAC
Preface
DearCusto mers: Thanks for purchasing the aune Flamingo-BD and congratulations on choosing this high-quality Bluetooth tube DAC. We sincerely hope the Flamingo- BD will bring you an excellent Hi-Fi experience. Please read this manual carefully before using the device.

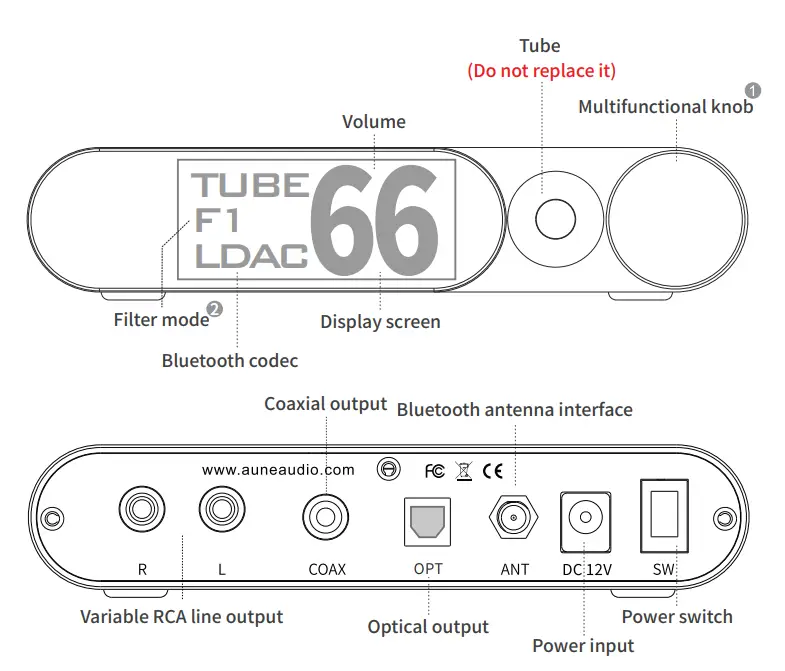

Flamingo-BD at a Glance
Press:
One short press: change filter mode
Long press: change display orientation
Turn:
- Clockwise: volume+
- Counterclockwise: volume-
- F1. APODIZING FAST
- F2. FAST LINEAR
- F3. SLOW LINEAR
- F4. FAST MINIMUM
- F5. SLOW MINIMUM
- F6. CORRECTED MINIMUM
- F7. BRICK WALL
Introduction
The Flamingo -BD is one of the 5th generation models of the aune tube DAC series, and it’ s the one focusing on Bluetooth. Supports HD Bluetooth like AAC/ aptX HD/ LDAC. With the ES9318 DAC chip and the carefully selected tube, it has the sound of a special taste.
Specifications
- Bluetooth:24bit/96k MAX
- RCA Line Out:
- Output level @0dB: 2.1Vrms MAX
- Frequency response (20Hz-20kHz): t0.5dB
- THD+N@1kHz: 0.02% (TUBE)
- Noise Floor: 10uV
- Dimensions: 135mm>x103 mm X26.8 mm
- Weight: 1kg
- Accessories: power cord, quick start guide, Bluetooth antennah:24bit/96k MAX
- RCA Line Out:
- Output level @0dB: 2.1Vrms MAX
- Frequency response (20Hz-20kHz): t0.5dB
- THD+N@1kHz: 0.02% (TUBE)
- Noise Floor: 10uV
- Dimensions: 135mm>x103 mm X26.8 mm
- Weight: 1kg
- Accessories: power cord, quick start guide, Bluetooth antenna
- The tube can be hot when the device is working. Do not touch it.
Operations
- 1. Search for the device “aune Flamingo-BD” on a Bluetooth transmitter device (smartphone, computer, etc.)
- 2. Play music on the connected device.
- Option A: Connect a DAC or an AV receiver to the Flamingo-BD digital output (coaxial/optical)
- Option B: Connect an amplifier ora pair of active speakers to Flamingo s variable RCA line output.
- aune | 430034 WUHAN I CHINA
- Emall: [email protected]
- FAX:+86-27-85840435
- www.auneaudio.com
