Halo

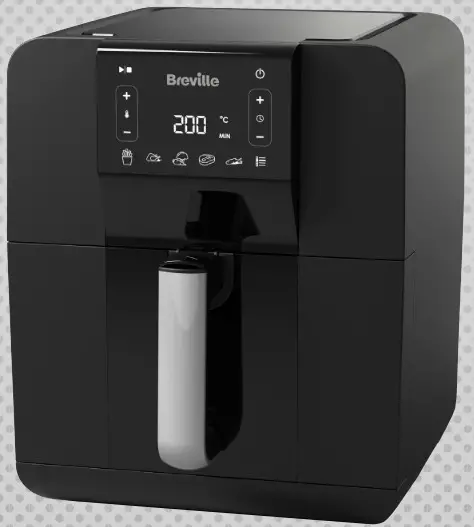

5.5L Digital Air Fryer
VDF126
product safety
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
Keep the appliance and its cord out of reach of children less than 8 years.
This product must be positioned on a stable surface with the handles positioned to avoid the spillage of hot liquids.
Surfaces of the product are liable to get hot during use.
Never operate the product by means of an external timer or separate remote-control system.
Never immerse any part of the appliance or power cord and plug in water or any other liquid.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Ensure the appliance is kept clean after use. For details see the Care and Cleaning section. Pay particular care regarding items that can be immersed in water and/or a dishwasher.
Never use this appliance for anything other than its intended use. This appliance is for household use only. Do not use this appliance outdoors.Always ensure that hands are dry before handling the plug or switching on the appliance.Always use the appliance on a stable, secure, dry, and level surface.Ensure the appliance is switched off and unplugged from the supply socket if it is left unattended when it is not in use or before cleaning.Never leave the appliance unattended when it is in use.Never use this appliance with an external timer ir separate remote-control system.Always allow the appliance to fully cool down before cleaning or storing.Do not use the appliance if it has been dropped, if there are any visible signs of damage or if it is leaking.Never let the power cord hang over the edge of a worktop, touch hot surfaces or become knotted, trapped or pinched.Do not touch the external surfaces of the appliance during use as they may become very hot.Only use spares or accessories that are recommended by the manufacturer.Allow adequate space above and on all sides for air circulation.Do not allow the appliance to touch any flammable material during use (such as curtains or wall coverings).Care is required when using the appliance on surfaces that may be damaged by heat. The use of an insulated pad is recommended.

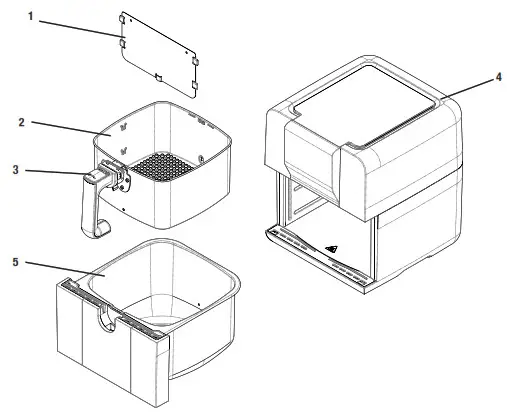

Parts
1. Basket Divider
2. Fryer Basket
3. Basket removal Button
4. Air Flow Vent
5. Air Basket Drawer

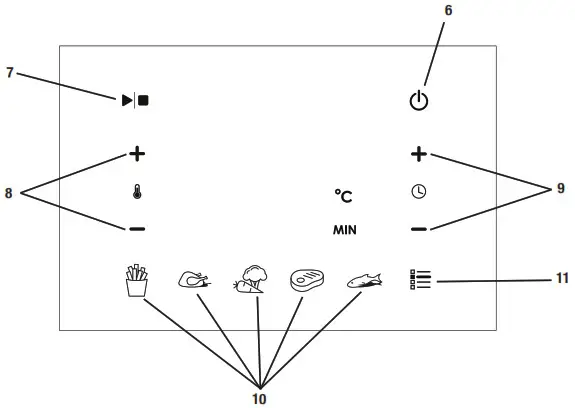

Control Panel
6. Power
7. Start/Stop
8. Temperature Setting
9. Timer Setting
10. Presets: Fries, Chicken, Vegetables, Steak, and Fish
11. Manual Mode
Preset Chart
| Presets | Temp. | Time |
| Fries | 200˚C | 18mins. |
| Chicken | 200˚C | 22mins. |
| Vegetable | 180˚C | 10mins. |
| Meat | 200˚C | 15mins. |
| Fish | 180˚C | 12mins. |
| Manual | 160˚C | 16mins. |
USAGE INSTRUCTIONS
Preparing Your Air Fryer For First Use
- Remove all packaging materials, stickers, and labels in and on the unit.
- Clean the interior of the Air Fryer wipes with a damp cloth using only mild, soapy water. DO NOT IMMERSE IN WATER. Abrasive cleaners, scrubbing brushes, and chemical cleaners will damage the unit.
- Place the unit on a flat surface.
- Plug the air fryer into an electrical outlet.
- Press the Power button
the unit turns on. - Select any preset cooking mode for appromixmately 15 minutes to eliminate any manufacturing residue that may remain.
the unit turns on.Preset Mode
- Place the unit on a flat surface.
- Plug the air fryer into an electrical outlet.
- Add food into the air fryer basket and insert the air fryer drawer back into the air fryer.
- Press the Power button () the unit turns on.
- Choose the desired Preset – Fries, Chicken, Vegetables Steak, or Fish. Temperature and time will automatically appear.
NOTE: The preset temperature and timer are a guidance only, please see Air Fryer Cooking Chart for details. To adjust temperature and time uses the plus and minus signs next to the temperature (
) and time (
) symbol. - Press Start (
) for Air Fryer to start. - An audible alert will sound once the timer is done. Carefully remove the air fryer drawer and the food with a heat-safe cooking utensil. Do not put it on a surface that is not heatproof.
NOTE: To pause the cooking cycle open the fryer drawer, the cooking cycle will continue when the drawer is reinserted. To stop the cooking cycle press Start/Stop ().
) and time (
) symbol.
) for Air Fryer to start.Manual Mode
- Place unit on a flat surface.
- Plug the air fryer into an electrical outlet.
- Add food into the air fryer basket and insert the air fryer drawer back into the air fryer.
- Press the Power button ( ) the unit turns on.
- Press the manual button to appear. Temperature and time will automatically appear.
NOTE: The preset temperature and timer are guidance only, please see Air Fryer Cooking Chart for details. To set temperature and time use the plus and minus signs next to the temperature () and time ( ) symbol. - Press Start () for Air Fryer to start.
- An audible alert will sound once the timer is done. Carefully remove the air fryer drawer and the food with a heat-safe cooking utensil. Do not put it on a surface that is not heatproof.
NOTE: To pause the cooking cycle open the fryer drawer, the cooking cycle will continue when the drawer is reinserted. To stop cooking cycle press Start/Stop ().
Cleaning & Maintenance For Your Air Fryer
- Clean the Air Fryer and accessories after each use.
- Before cleaning your Breville® Air Fryer, unplug it, and allow it to cool.
- To clean the interior of the Air Fryer wipe with a damp cloth using only mild, soapy water. DO NOT IMMERSE IN WATER. Abrasive cleaners, scrubbing brushes, and chemical cleaners will damage the unit.
- Empty fryer drawer and basket frequently to avoid an accumulation of crumbs.
- The Fryer basket and basket divider are dishwasher safe.
| Food | Weight | Function | Time | Temperature | Shake/Turn halfway through?; cooking | Oil? |
| POTATOES | ||||||
| Maud Cul Fries | 5009 – 7009 | Fries | 25.30 mins | 200°C | Yes | 1 tbsp |
| Hand Cul Fries | 250g | Rift | 12 -15 mins | 200°C | Yes | ih tbsp |
| Frozen Fries. (Thick CA) | 500g- 700g | Fries | 20.25 mins | 200°C | Yes | Pb |
| Frozen Fries. (Thick Cut) | 250g | Flies | 13 – 15 Neira | 200°C | Yes | No |
| Frozen Fries. (Thin co | 5009 – 7009 | Flies | 18 – 20 mins | 200°C | Yes | No |
| Frozen Fries. (Thin Cut) | 250g | Flies | 10 -12 mire | 200°C | Yes | No |
| Frozen Sweet Potato fries | 500g | Fries | 12 – 15 mins | 200°C | Yes | No |
| Frozen Hash BMWS | 6002 | Fries | 18- 20 miss | 200°C | Yes | No |
| Fresh Jacket Potatoes | 1kg (4) | Manual | 60 carriers | 180°C | No | ‘A tbsp |
| 1EAT/POULTRYIRSH | ||||||
| Steak | 250g (1) | Meat | 10 – 15 mins | 200°C | Yes | 1/2 tbsp |
| Pork Chops | 6009 (3) | Meat | 15 – 20 mins | 180°C | Yes | 1 tbsp |
| Beef Burgers | 340g (2) | Meat | 16 -18 mins | 180°C | Yes | 1/2 tbsp |
| Whole Roast Chi: ken | 1.8kg – 2.24 | Chicken | 80-90 mins | 170’C | No | 1 tbsp |
| Whole Roast Chicken | 1.3kg – 1.6kg | Chicken | 60 mins | 170C | No | 1 tbsp |
| Chicken InIngs | 1 kg | Chicken | 30 – 35 mins | 180°C | Yes | No |
| Salmon Feet | 480g (2) | Fah | 12 -15 mins | 180°C | No | No |
| FROZEN FOODS | ||||||
| Frozen Battered Fah | 4009 (2) | Fen | 12 – 15 mins | 180°C | Yes | No |
| Frozen Chides) Nuggets | 4009 | Chicken | 12 -15 mins | 180°C | Yes | No |
| Frozen Vegetable Burgers | 450g (4) | Vegetables | 15 – 20 mins | 200°C | Yes | No |
| Frozen garlic bread slices | 6 shoes | Manual | 10 mins | 180°C | Yes | No |
| VEGETABLES | ||||||
| Frozen Orion Rings | 400g | Vegetables | 12 -15 mins | 200°C | Yes | Pb |
| Fresh Roasting Vegetables | 800g | Vegetables | 15 – 20 mins | 180°C | Yes | 1 tbsp |
Recipes
| Whole Roast Chicken Serves 4 | Prep time 10 minutes | Cook time 60 minutes | |
| 1.3-1.6kg whole chicken | 1 tbsp dried oregano Salt and pepper | ||
| 1 tbsp olive oil |
Rub the chicken with the oil, coating the skin all over. Dust with the oregano and seasoning.
Place into the basket and cook on the Chicken setting, 170ºC for 60 minutes.
Once cooked, carefully remove from the basket and set aside to rest for 5 minutes before carving.
Takeaway Style Salt and Pepper Chicken Wings
Serves 3-4
1 kg fresh Chicken Wings
1 tsp Chinese 5 spice
1 tbsp vegetable oil
1 medium onion, diced
1 green pepper, thinly sliced
Prep Time 20 minutes
Cook Time 40 minutes
2 red chillies, thinly sliced
2 green chillies, thinly sliced
1 tsp dried chilli flakes
3 garlic cloves, finely chopped
To serve – 1 tbsp sesame oil, 3-4 spring onions sliced
For the salt and pepper seasoning
| 2 tbsp salt | 1 tbsp sugar |
| ¼ tsp freshly ground pepper | ½ tbsp Chinese 5 spice |
Place the chicken wings in a large bowl, sprinkle over 1 generous tsp of Chinese 5 spices and rub well in, coating each wing with some of the seasonings.
Place into the air fryer basket and cook at 200ºC, for 35 minutes, shaking halfway through cooking for even colouring.
Whilst these are cooking, combine the salt and pepper seasoning ingredients into a small bowl.
Heat a suitably sized frying pan over medium heat, add the oil, onion and green pepper and stir fry for approx. 3-5 minutes until softened.
Add the chillies, chilli flakes, and garlic and continue cooking for a further minute, remove from the heat.
Once the chicken wings have finished cooking, spoon over the cooked onion and pepper mixture and return to the air fryer, cooking for a further 5 minutes, 200ºC.
Remove the wings from the basket, dust with some of the salt and pepper seasoning and drizzle with a little sesame oil.
Serve immediately scattered with the spring onions.
Moroccan Cous Cous with Roasted Vegetables
| Serves 4-6 | Prep Time 20 minutes | Cook Time 15-20 minutes |
| 1 red pepper, deseeded and cut into quarters | ½ tsp ground cinnamon | |
| 1 yellow pepper, deseeded and cut into quarters | 250g dried couscous | |
| 1 large courgette, sliced | 400ml boiling water | |
| 1 red onion, cut into chunks | 1 tsp turmeric | |
| 4 tbsp olive oil | 400g tin chickpeas, drained and rinsed | |
| Zest and juice of 1 large lemon | 75g raisins | |
| 1 large clove of garlic, finely chopped | 15g roughly chopped coriander leaves | |
| 1 tsp cumin | A small handful of mint leaves, shredded | |
| 1 tsp ground coriander |
Place the peppers, courgette and red onion into a large bowl, add 1 tbsp of olive oil and mix well. Tip the vegetables into the air fryer basket and cook for 15 – 20 minutes, 180ºC, shaking halfway through cooking to ensure even browning.
Whilst the vegetables are cooking, mix the remaining olive oil, lemon zest and juice, garlic, cumin, coriander and cinnamon in a small bowl and set aside.
Place the couscous into a heatproof bowl, add the boiling water and turmeric, mix well and cover with some food wrap for approx. 5 minutes.
Remove the vegetables from the oven and allow them to cool.
Once cool enough to handle cut into bite-sized pieces.
Stir the lemony oil into the couscous, along with the remaining ingredients, add the cooked vegetables, mix well and adjust the seasoning.
Will keep for approx. 2 days in a refrigerator in a covered container.
Steak with Chimichurri Dressing
| Serves 2 | Prep Time 15 minutes | Cook Time 10 minutes, medium-rare. |
For this recipe you will need a small food processor or mini chopper to prepare the chimichurri.
| 2 sirloin steaks approx. 225-250g weight per steak | Freshly ground black pepper |
| 1 tsp vegetable oil |
Dressing
| Small bunch parsley leaves picked | 2½ tbsp extra virgin olive oil |
| 2 garlic cloves, peeled | Juice of ½ lemon |
| 1 shallot, quartered | 2 tsp red wine vinegar |
| ½ tsp chilli flakes |
Remove your steak from its packaging and allow it to sit at room temperature for approx. 30 minutes to 1 hour before cooking.
Brush the steak on both sides with the oil and add a dusting of freshly ground black pepper.
Place both steaks into the air fryer basket and cook for 10-12 minutes, turning halfway.
Place all the dressing ingredients into your mini food processor and blend until the parsley is chopped.
Remove the steak from the fryer place it onto a warm plate and allow to rest for approx. 5 minutes.
Carve the steak on the diagonal, serving the chimichurri on the side.
Helpful Tips / Troubleshooting
| PROBLEM | POTENTIAL CAUSE | SOLUTION |
| Overcooked / Undercooked Foods | •Incorrect temperature or time setting | •You may have to adjust the time and temperature to desired taste. |
| •Because your Air Fryer is smaller than your regular oven, it will heat up faster and generally cook in shorter periods of time. | ||
| Burning Smell | •Food build-up inside fryer drawer | •Refer to “Cleaning Your Air Fryer” Section, Page 9. |
| Touch panel interface is non-responsive
| •The panel is dirty or greasy •Excess moisture on panel •Controller is malfunctioning •Fryer drawer is not inserted | •Ensure the panel is clean and free of debris before using. •Ensure panel is clean and dry, and use dry hands to operate. •Unplug the unit and let it rest for 60 seconds before plugging in. |
| Small water drips and steam escape from drawer during cooking | •Water released from food during the cooking cycle | •This is not a concern and is part of the normal cooking cycle. Please mop up drips with a soft cloth. |

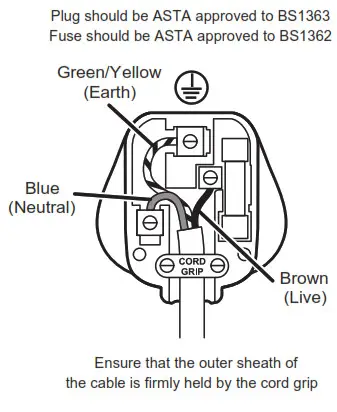

Fitting of a plug – for U.K. and Ireland only
This appliance must be earthed.
If the plug is not suitable for the socket outlets in your home, it can be removed and replaced by a plug of the correct type.
If the fuse in a moulded plug needs to be changed, the fuse cover must be refitted. The appliance must not be used without the fuse cover fitted.
If the plug fuse requires replacement, a fuse of the same rating as that fitted by the manufacturer must be used. In order to prevent a hazard do not fit a fuse of a lower or higher rating.
If the terminals in the plug are not marked or if you are unsure about the installation of the plug please contact a qualified electrician.
After-sales service & replacement parts
In the case, the appliance does not operate but is under warranty, return the product to the place it was purchased for a replacement.
Please be aware that a valid form of proof of purchase will be required. For additional support, please contact our Consumer Service
Department at 0800 028 7154 or email: [email protected].
Waste Disposal
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. E-mail us at
[email protected] for further recycling and WEEE information.
