BEAN TO CUP ESPRESSO AND CAPPUCCINO MACHINE
Instruction for use

INTRODUCTION

The principal functions of the machine are illustrated step by step in the Quick Guide.
Take a few minutes to read this Instruction for Use. This will avoid all risks and damage to the appliance.
The LEDs and indicator lights on the panel will help you interact with the machine and use the various functions correctly:

	Off	—
	On steadily	Function available
	Flashing	Function     in progress
	Fast blink	Attention is required on the part of the user

The same symbols are also used in the Quick Guide provided with the product.

SETTING UP THE APPLIANCE

• The instructions for setting up the appliance are given in the QUICK GUIDE.
• When using the machine for the first time, 4-5 coffees will need to be made before it starts giving satisfactory results.
• The first time you use the machine, the water circuit is empty and the appliance could be very noisy. The noise becomes less as the circuit fills.
• Possible traces of coffee in the mill are the result of settings tests performed on the appliance before the sale, proof of the meticulous care and attention we invest in our products.

TURNING THE MACHINE ON AND OFF

• Each time the appliance is turned on, it performs an automatic preheat and rinse cycle which cannot be interrupted. The appliance is not ready for use until the cycle has been completed.
• Whenever the machine is turned off after being used to make coffee, it performs an automatic rinse cycle.

The danger of scalding!
During rinsing, a little hot water flows from the coffee spouts.
Take care to avoid contact with splashes of water.

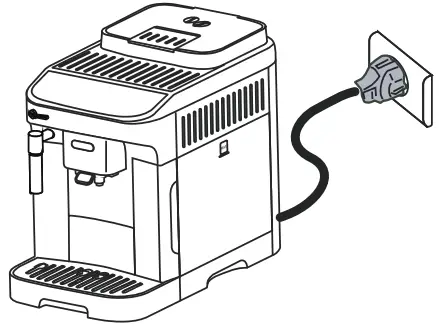

• To turn the appliance on or off, press the button.
  If you will not be using the appliance for some time, unplug it from the mains socket:

MAKING COFFEE BEVERAGES

4.1 Making coffee using coffee beans

• Do not use green, caramelized, or candied coffee beans as they could stick to the coffee mill and make it unusable.
• If the “Energy Saving” mode is activated, there may be a few seconds delay before the first coffee is delivered.

4.2 Making coffee using pre-ground coffee

• Never add pre-ground coffee when the machine is off or it could spread through the inside of the machine and dirty it. This could damage the machine.
• Never use more than one level measure as it could dirty the inside of the machine or block the funnel.
• Making LONG coffee: halfway through preparation, when the lights come on, add one level measure of pre-ground coffee and press the Long button again.
• You cannot make Doppio+ coffee using pre-ground coffee.

4.3 Varying the coffee aroma

1. Press the button corresponding to the preferred aroma:


   	Mild
   	Medium
   	Strong

2. Select the desired coffee beverage.
   Please note:
   • When the next coffee is made, the machine will propose the last aroma selected.
   • In the event of power failure, the machine will revert to the medium default setting.

4.4 Rinsing
Use this function to deliver hot water from the coffee spouts to clean and heat the appliance’s internal circuit.

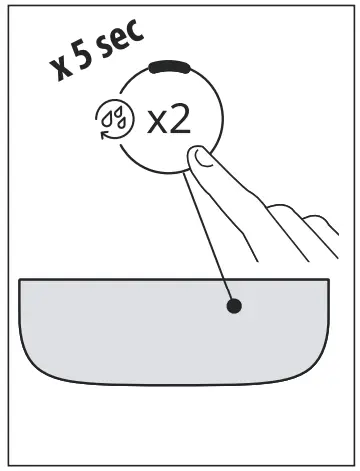

To perform the rinse cycle, just press and hold the button for about 5 seconds. Delivery stops automatically (to interrupt delivery earlier, press the same button again).

4.5 Tips for a hotter coffee
To make a hotter coffee, proceed as follows:

• perform a rinse cycle (see paragraph “Rinsing”);
• warm the cups by rinsing them first using the hot water function;
• increase the coffee temperature (see section “9. Settings menu”).

4.6 Adjusting the coffee mill
The coffee mill is set by default to prepare coffee correctly and should not require regulation initially. To adjust, while the coffee mill is in the operation, turn the dial as follows:

If the coffee is delivered too slowly, or not at all. This adjustment will not take ef- fect until at least 2 cups of coffee have been delivered.	Turn one click towards “7”
For a fuller-bodied creamier coffee This adjustment will not take ef- fect until at least 2 cups of coffee have been delivered.	Turn one click towards “1”

Please note:
The grinding adjustment dial must only be turned when the coffee mill is in operation during the initial phase of coffee preparation.
4.7 Customising the quantity in the cup

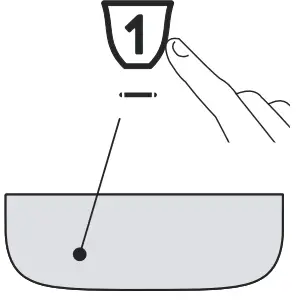

1. Press the button relative to the beverage being programmed and hold for a few seconds: the programming menu is accessed when the indicator switches to a fast blink. Delivery begins;
2. Once the cup is filled to the desired level, press the beverage button again. Delivery ceases and the quantity is stored in the memory.

Beverage*		Default (ml)	Programmable (ml)
	Espresso	40	from ≃ 20 to ≃ 180
	Coffee	180	from ≃ 100 to ≃ 240
	Long	160	from ≃ 115 to ≃ 250
	Doppio+	120	from ≃ 80 to ≃ 180
	Americano	Espresso: 40 Water: 110	Espresso: da ≃ 20 a ≃ 180 Water: da ≃ 50 a ≃ 300
	Long Black	Water: 120 Espresso: 80	Water: da ≃ 50 a ≃ 300 Espresso: da ≃ 40 a ≃ 360
	Over ice	100	from ≃ 40 to ≃ 240

(*) The numbers and types of beverages differ according to the model.
Please note!
To cancel the current program, press a button corresponding to another beverage

MAKING CAPPUCCINO

• Fill a container with about 100 grams of milk for each cappuccino to be made. When choosing the size of the container, bear in mind that the milk doubles or triples in volume.
• For a richer, denser froth, use skimmed or partially skimmed milk at refrigerator temperature (about 5°C).
  To ensure the heated milk does not end up with meager froth or large bubbles, clean the cappuccino maker every time after use.
• The quality of the froth may vary depending on:
• the type of milk or vegetable beverage;
• the brand used;
• the ingredients and nutritional values.

MEASURING WATER HARDNESS

The descaling alarm is displayed after a period of time established according to water hardness. The machine is set by default for a hardness value of “4“. The machine can also be programmed according to the hardness of the water supply in the various regions so that descaling is required less often.

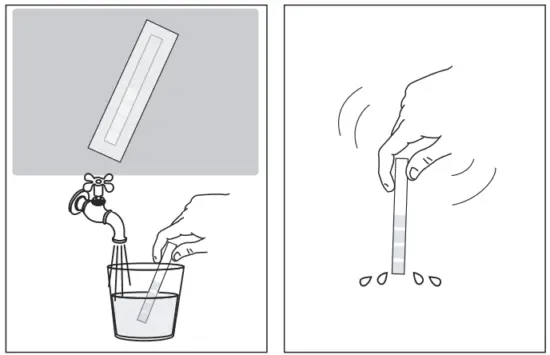

1. Remove the indicator paper from its packaging. If provided with your model, you will find it attached to the Quick Guide.
2. Immerse the paper completely in a glass of water for about one second.


3. Remove the strip from the water and shake lightly. After about a minute, 1, 2, 3, or 4 red squares appear, depending on the hardness of the water. Each square corresponds to one level.

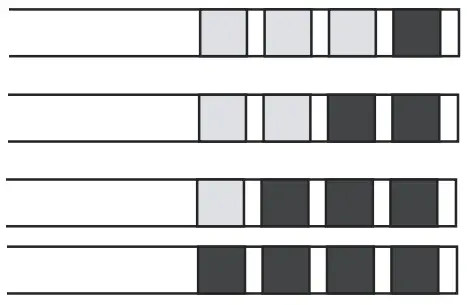

   Total Hardness Test	Hardness
   	1 Low
   	2 Medium
   	3 Medium/High
   	4 High

   See instructions in section “9. Settings menu” to set the machine

WATER SOFTENER FILTER

To ensure the constant performance of the machine over time, we recommend using a De’Longhi water softener filter. For more information, visit the www.delonghi.comwebsite.

EAN: 8004399327252

To use the filter correctly, follow the instructions below.

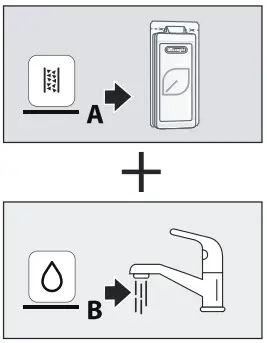

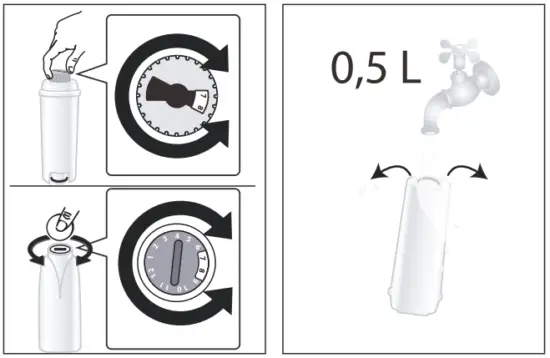

1. Remove the filter from the packaging and turn the date indicator to view the next two months;

2. To activate the filter, run tap water through the hole in the center of the filter until water comes out of the openings at the side for more than a minute;

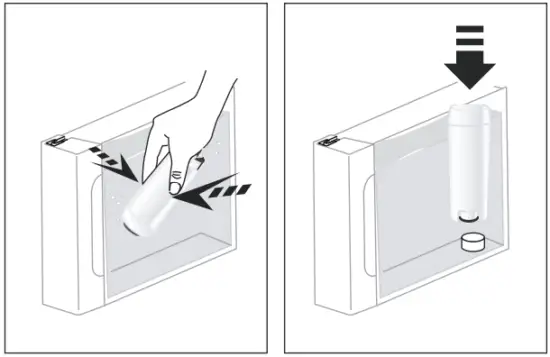

3. Extract the water tank and fill it with water; insert the filter in the water tank and immerse it completely for about ten seconds, sloping it and pressing it lightly to enable the  air bubbles to escape;

4. Insert the filter in the filter housing and press as far as it will go;

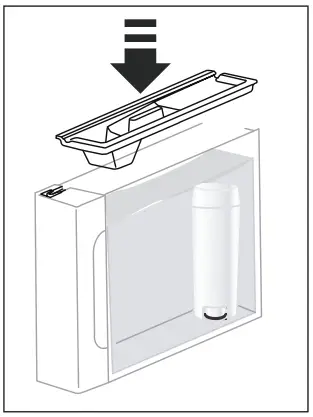

5. Close the tank with the lid, then put the tank back in the machine;

6. Place an empty container with a minimum capacity of 0.5 liters under the steam/hot water spout.
7. See instructions in section “9. Settings menu” to install the filter.
8. The appliance delivers hot water, then stops automatically;
9. The filter is now active and you can use the coffee machine.

7.1 Replacing the filter
Replace the filter when the corresponding light comes on.

1. Extract the water tank and exhausted filter;
2. Follow the operations described in the previous section to activate the filter;
3. See instructions in section “9. Settings menu” to set the machine.

Please note:
After two months (see date indicator) or when the appliance has not been used for 3 weeks, you should replace the filter even if the message has not yet been displayed.

7.2 Removing the filter
If you want to use the appliance without the filter, you must remove it and notify the appliance of its removal.

1. Extract the water tank and exhausted filter;
2. See instructions in section “9. Settings menu” to set the machine.

Please note!
After two months (see date indicator) or when the appliance has not been used for 3 weeks, you should replace the filter even if the message has not yet been displayed.

TIPS FOR ENERGY SAVING

• Set auto-off to 15 minutes (see “9. Settings menu”);
• Enable Energy Saving (see “9. Settings menu”);
• Always carry out the descaling cycle when prompted by the machine.

SETTINGS MENU

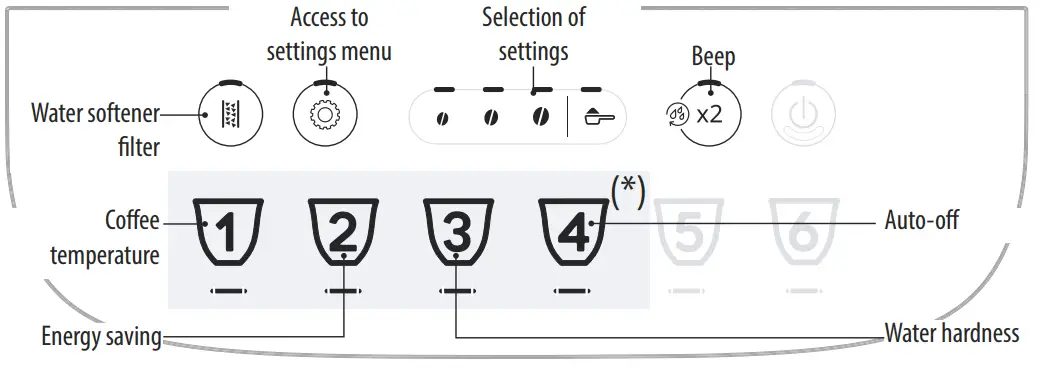

When in the menu, use the action buttons to select the corresponding functions:

(*) Beverages differ according to model

1. Access the menu:
		Press and hold the button for a few seconds: the settings buttons light up. Proceed by pressing the button corresponding to the setting to be adjusted.
2. Adjust the machine settings:
Water softener filter	Press one of the bean symbols to install or replace the water softener filter	INSERTED	Confirm selection
	Press the pre-ground symbol to remove the water softener filter	REMOVED
Beep	Press one of the bean symbols to enable the beep	ON	Confirm selection
	Press the pre-ground symbol to disable the beep	OFF
Coffee temperature	Press the bean symbol corresponding to the required temperature	LOW	Confirm selection
		MEDIUM
		HIGH
Energy saving	Press one of the bean symbols to  enable energy saving	ON	Confirm selection
	Press the pre-ground symbol to  disable energy saving	OFF
Water hardness	Press the symbol corresponding to the level to set		Confirm selection
Auto-off	Press the symbol corresponding to the time to set		Confirm selection
3. Exit the menu:
		Press the  button: The machine is ready for use again. Please note! The machine exits the settings menu automatically if there is no activity for 30 seconds.

9.1 Reset default values

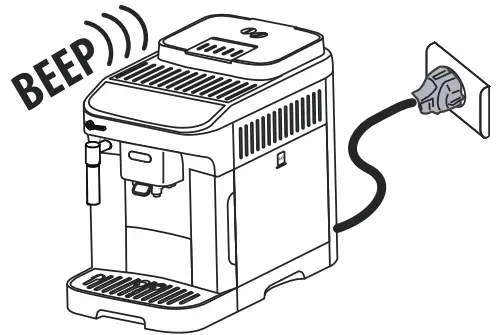

Make sure the machine is on standby (off, but connected to the mains power supply).

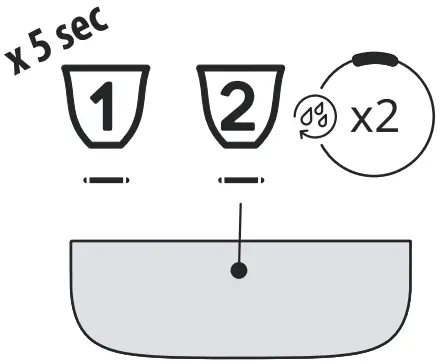

Press the buttons corresponding to beverages 1, 2 and hold for 5 seconds. All the settings and beverage quantities are reset to the default values.
The machine emits a long beep and all the lights flash to confirm the reset

CLEANING THE MACHINE

Important!

• Do not use solvents, abrasive detergents, or alcohol to clean the coffee machine. With De’Longhi superautomatic coffee machines, no chemical products are required for cleaning purposes.
• Do not use metal objects to remove encrustations or coffee deposits as they could scratch metal or plastic surfaces.

Component	Frequency	Procedure
Grounds container	When the light comes on, the grounds container must be emptied and the machine can no longer make coffee.	•  Remove the drip tray, empty and clean. • Empty the grounds container and clean thoroughly to remove all residues left on the bottom. • Check the red condensate tray and empty it if necessary.
	The appliance cannot be used to make coffee until you have cleaned the grounds container. Even if not full, the empty grounds container message is displayed 72 hours after the first coffee has been prepared. For the 72 hours to be calculated correctly, the machine must never be disconnected from the main power supply.

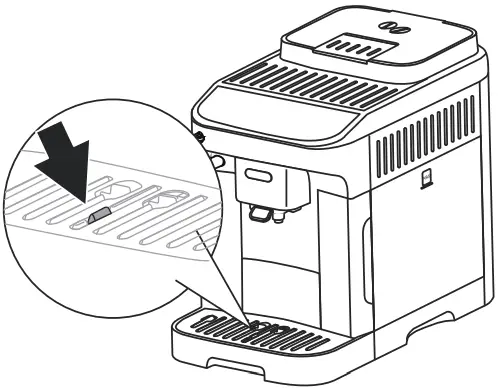

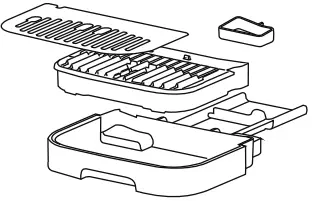

Drip tray components	The drip tray is fitted with a level indicator (red) showing the level of water it contains. Before the indicator protrudes from the cup tray, the drip tray must be emptied and cleaned	• Remove the drip tray and grounds container; • Remove the cup tray and drip tray grille, then empty the drip tray and grounds container and wash all the components; • Check the red condensate tray and empty it if necessary; • Replace the drip tray complete with grille and the grounds container. When removing the drip tray, the grounds container must be emptied, even if it contains only a few grounds.

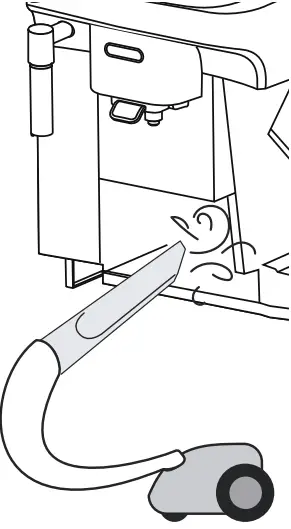

Inside the machine	Check periodically (about once a month) that the inside of the appliance (accessi- ble by removing the drip tray) is not dirty.	Switch the machine off and disconnect from the power supply. Never immerse the machine in water. • Remove coffee deposits with a brush or sponge; • Remove all residues with a vacuum cleaner
Coffee spouts	Clean the coffee spouts regularly (once a month)	• Clean the coffee spouts regularly with a sponge or cloth; • Check the holes in the coffee spout are not blocked. If necessary, remove coffee deposits with a toothpick.

CLEANING THE INFUSER

Important!
The infuser cannot be extracted while the machine is on.

1. Press the button to turn the machine off;
2. Remove the water tank;

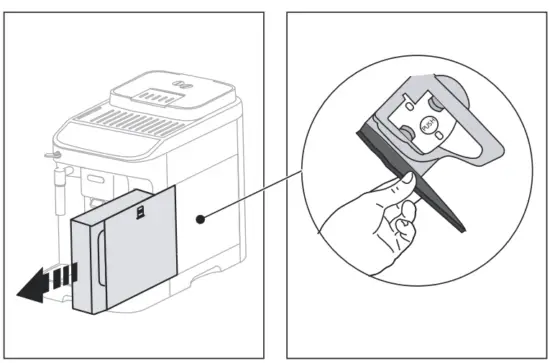

3. Open the infuser door on the right side of the machine;

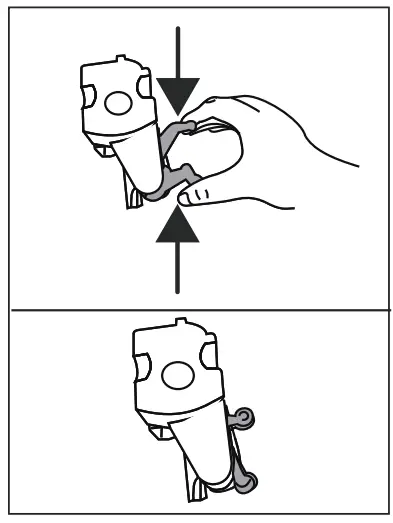

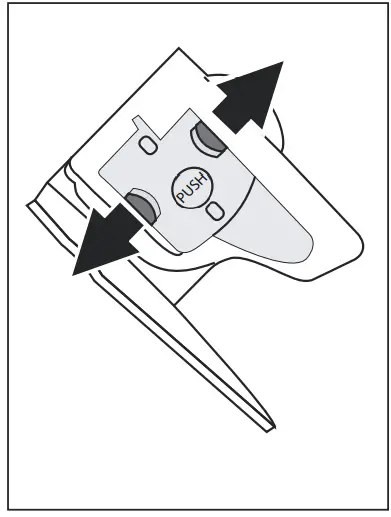

4. Press the two colored release buttons inwards, at the same time pulling the infuser outwards;
5. Soak the infuser in water for about 5 minutes, then rinse under the tap;
   Important!
   RINSE WITH WATER ONLY
   NO DETERGENTS – NO DISHWASHER
6. Do not use detergents when cleaning the infuser, as they could damage it.
7. Use the brush to remove any coffee residues left in the infuser housing, visible through the infuser door;
8. After cleaning, replace the infuser by sliding it onto the internal support, then push the PUSH symbol fully in until it clicks into place;
   Please note:
   If the infuser is difficult to insert, before insertion, position it correctly by pressing the two levers.

9. Once inserted, make sure the two colored buttons have snapped out;

10. Close the infuser door;
11. Put the water tank back.

DESCALING

To complete the descaling cycle correctly, pay close attention to the quantities required in the water tank for each step:
Step 1: Descaling action

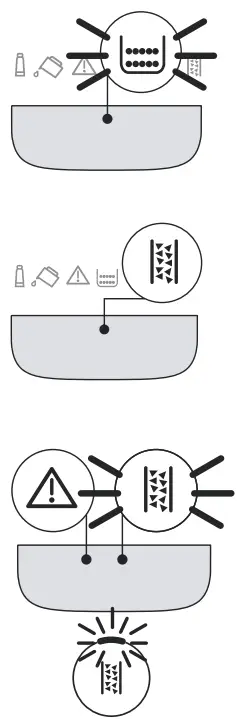

Step 2: First rinse
Step 3: Second rinse

• Before use, read the instructions and the labeling on the descaler pack.
• Use De’Longhi descaler only. Using an unsuitable descaler and/or performing descaling incorrectly may result in faults not covered by the manufacturer’s guarantee.
• Descalers can cause damage to delicate surfaces. If the product is accidentally spilled, dry immediately.

The descaling procedure is described in the Quick Guide.
Please note:

• Once the descaling cycle has begun, it cannot be interrupted and must be completed with the entire rinse cycle.
• After descaling, it is normal for the grounds container to contain water.
• If the water tank has not been filled to the MAX level after descaling, the appliance prompts for a third rinse to ensure that the descaler solution has been completely eliminated from the machine’s internal circuits. Before starting rinsing, remember to empty the drip tray.

EXPLANATION OF INDICATOR LIGHTS

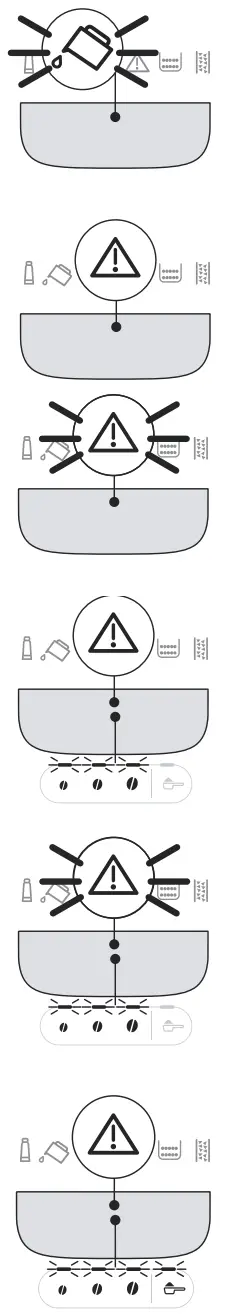

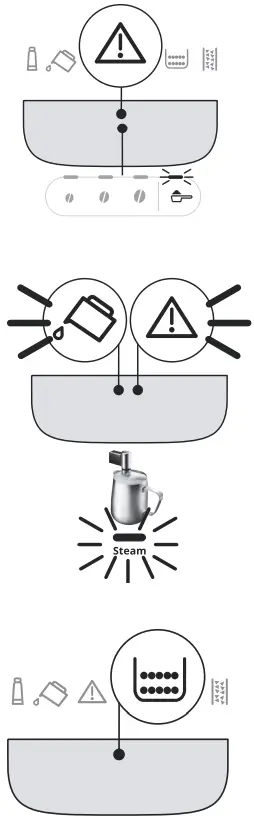

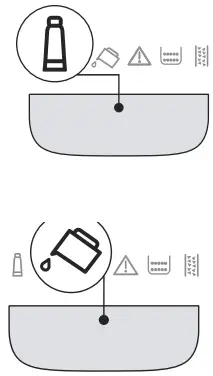

Light	Meaning
The beverage lights flash	The machine is warming up: wait
The beverage and settings lights are on steadily	The machine is ready for use: select the desired bev- erage and relative options
	Replace the filter (see section “7. Water softener filter”)
	Insufficient water in tank: fill the tank
	The water tank is missing, or is not positioned correctly: insert the tank correctly
	General alarm: the inside of the machine is very dirty. Clean the machine thoroughly. If the  message is still displayed after cleaning, contact De’Longhi Customer Services and/or an approved Service Centre
	The infuser has not been replaced after cleaning: insert the infuser as described in section “11. Cleaning the infuser”
	No coffee beans: fill the beans container, then press any button to reset the alarm.
	The grinding is too fine and the coffee is delivered too slowly or not at all. Adjust the coffee mill (section “4.6 Adjusting the coffee mill”)
	Too much coffee has been used. Select a milder taste or reduce the quantity of pre-ground  coffee
	Preparation with preground coffee has been selected without placing any pre-ground coffee in the funnel. Make sure the funnel is not blocked, then add one level measure of pre-ground coffee and repeat delivery.
	The water circuit is empty. Deliver hot water by turning the dial to the position or pressing the “Steam” button
	The grounds container needs emptying
	The grounds container is missing, or not inserted correctly: insert the drip tray complete with the grounds container and press as far as it will go
	Descaling is required (“12. Descaling” and the dedicated section of the Quick Guide)
	Descaling has been interrupted. To use the machine again: 1. Press the button; 2. If the steam dial is in the O position, turn it to the position; delivery will begin and descaling will resume from Fig. 14, page 10.

TROUBLESHOOTING

The coffee is weak or not creamy enough.	The coffee is ground too coarsely.	Adjust the grinding level (“4.6 Adjusting the coffee mill”). The effect is not visible until at least 2 coffees have been made.
	The coffee is unsuitable.	Use coffee for espresso machines.
	Coffee is not fresh.	The coffee pack has been opened for too long and has lost its taste.
The coffee is delivered too slowly or drops by drop.	The coffee is ground too finely.	Adjust the grinding level (“4.6 Adjusting the coffee mill”). The effect is not visible until at least 2 coffees have been made.
The machine does not make coffee	Impurities have been detected in the in-internal circuits	Wait until the machine is ready for use again, and proceed to select the required beverage. Contact customer services if the problem persists.
Coffee does not come out of one or both spouts.	The coffee nozzles are blocked.	Clean the nozzles with a cloth. Any encrusted deposits can be removed with a toothpick, if necessary.
The coffee delivered is watery.	The pre-ground coffee funnel is clogged.	Open the door and clean the funnel with the help of a brush.
The infuser cannot be extracted.	The machine has not been turned off.	Turn the machine off by pressing the button.
At the end of descaling, the appliance requests the third rinse	The water tank was not filled to the MAX level during the course of the two rinse cycles	Empty the drip tray, fill the tank up to the MAX level and run the third rinse cycle.
The milk has big bubbles	The milk is not cold enough or is not semi-skimmed or skimmed.	Use skimmed or semi-skimmed milk at refrigerator temperature (about 5° C). If the result is not as you wish, try changing the brand of milk.
	Cappuccino maker dirty.	Remove the components and clean them thoroughly.
	Vegetable beverages have been used.	The effect varies widely depending on the nutritional properties of the beverages.
The cup tray on top of the machine is hot	A number of beverages have been prepared in rapid succession
The machine emits noises or small puffs of steam while not in use	The machine is ready for use or has re- recently been turned off, and condensate is dripping into the hot vaporizer.	This is part of normal operation. To limit the phenomenon, empty the drip tray.
The appliance emits puffs of steam from the drip tray and/or there is water on the surface the appliance rests on.	The drip tray grille has not been replaced after cleaning.	Put the drip tray grille back in the drip tray.

5713250274_00_0421
De’Longhi Appliances via Seitz, 47 31100 Treviso Italia www.delonghi.com

References

• De'Longhi | Kitchen Appliances, Coffee Machines and Comfort
