Thule Kit 187129 Kitsats Fixpoint 4-pack Instructions

THULE Kit 187129 Kitsats Fixpoint 4-Pack

Product Information

This product is a kit designed for specific vehicle models with factory tracks. The compatible vehicle models are:
The kit includes the following components:

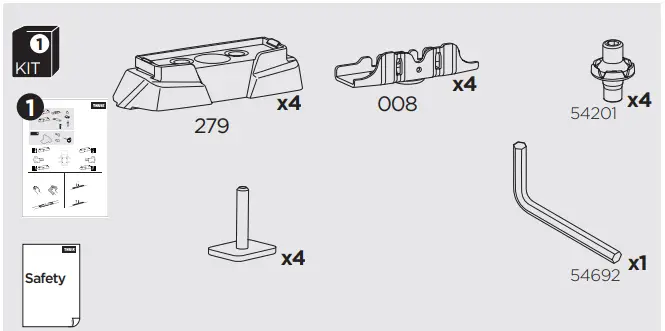

• 1 x Kit 187129

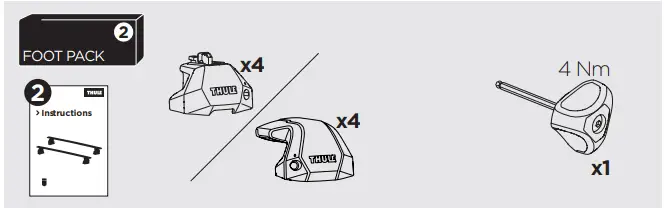

• 1 x Foot Pack
• 4 x Instructions

The product is manufactured by Thule Sweden AB, located at Borggatan 5, 335 73 Hillerstorp, SWEDEN. For more information, visit their website at www.thule.com.

Product Usage Instructions:

1. Ensure that your vehicle model matches the compatibility list mentioned above.
2. Verify that your vehicle has a T-Profile before proceeding with the installation.
3. Refer to the provided instructions for guidance on installing the kit.

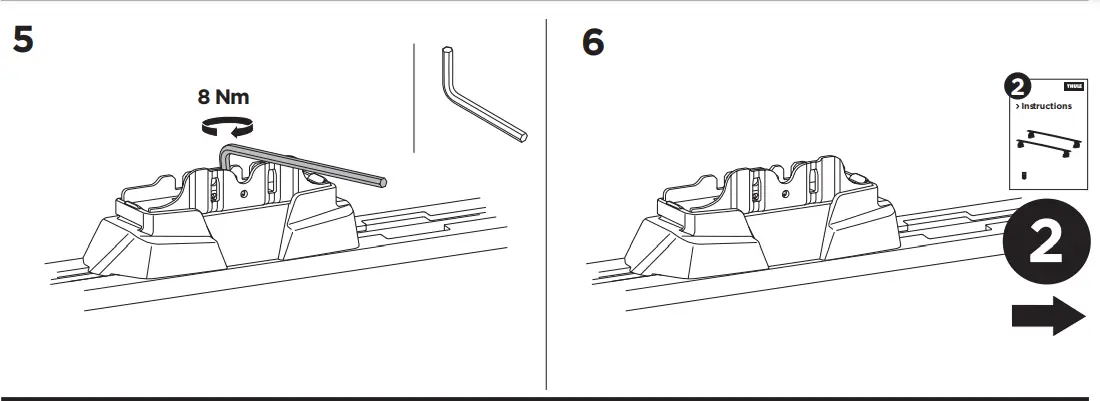

4. Follow the specified torque settings (4 Nm and 8 Nm) when tightening the components.
5. The maximum load capacity of the kit is 100 kg or 220 lbs.

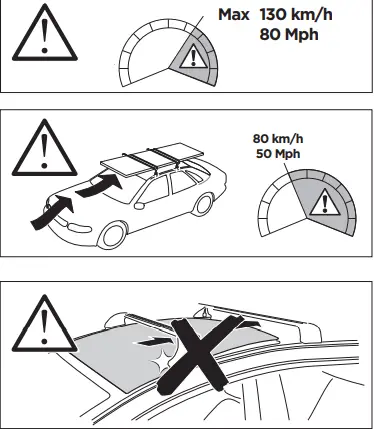

6. The maximum driving speed with the kit installed is 130 km/h or 80 mph.
7. When using the kit, do not exceed the speed of 80 km/h or 50 mph in case of crosswinds.

Kit 187129

• LAND ROVER LR3 w/Factory Track, 5-dr SUV, 05-09
• LAND ROVER LR4 w/Factory Track, 5-dr SUV, 10-16
• HUMMER H3 w/Factory Track, 5-dr SUV, 05-10
• HUMMER H3T w/Factory Track, 4-dr Pickup, 09-10

This kit is only for vehicles with T-Profile.

WHAT IN THE BOX

KIT

PRECAUTION

PARTS

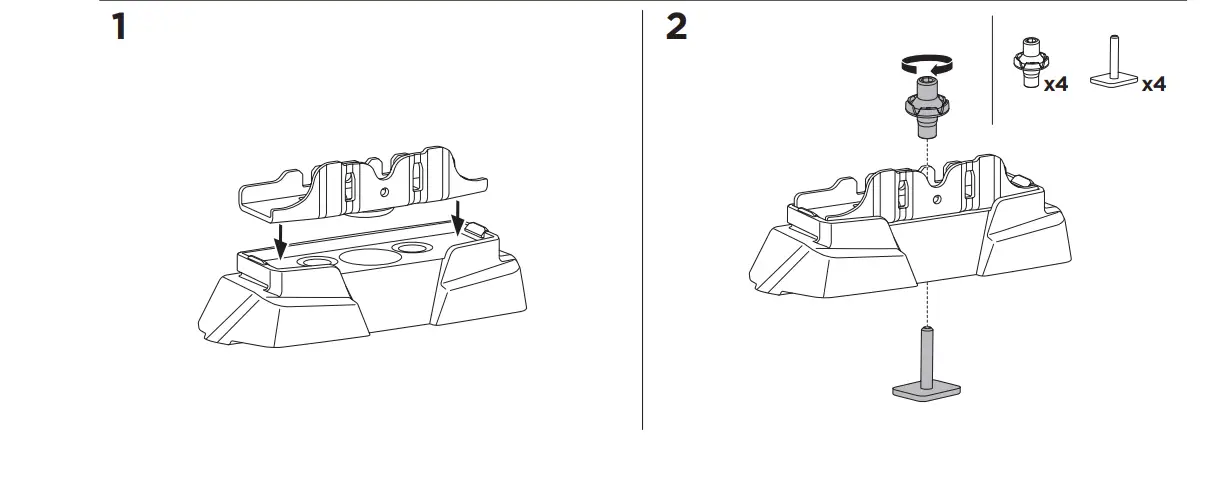

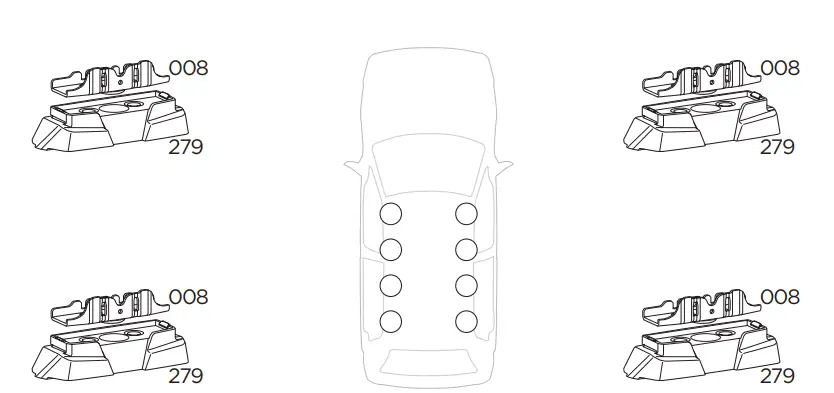

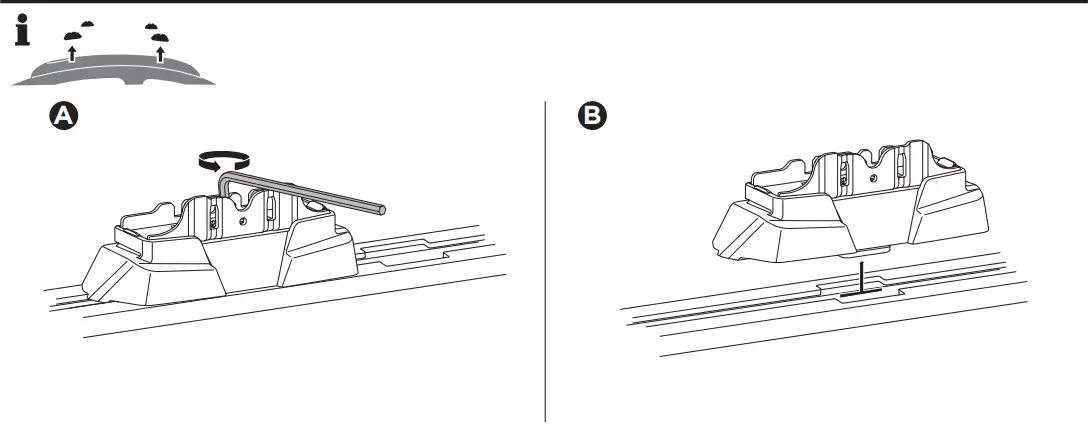

INSTALLATION

CONTACT

• ADDRESS: Thule Sweden AB, Borggatan 5 335 73 Hillerstorp, SWEDEN
• EMAIL: [email protected]
• Thule Group 2022. All rights reserved.
• www.thule.com
• 5562698002
