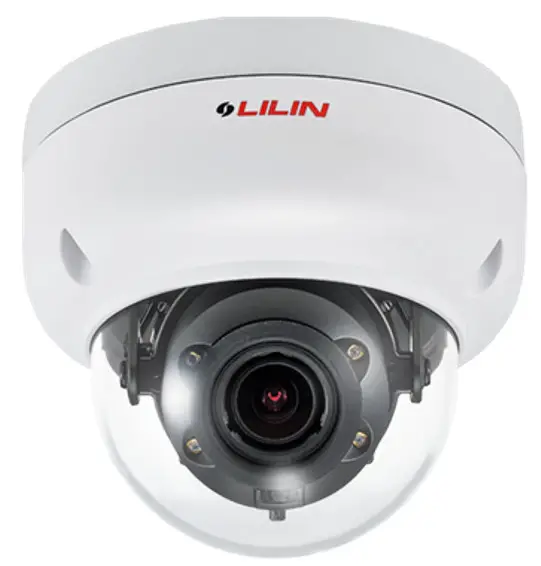

Z5R6422X3
1080P Day & Night Auto Focus IR Vandal Resistant
Dome IP Camera
Z5R6422X3 1080P Day and Night Auto Focus IR Vandal Resistant Dome IP Camera
Auto Focus, 1080P Resolution
The Z5 series cameras with auto-zoom lens can effectively and precisely capture the details of the object, which is more advantageous in applications that require magnified view. H.265 encoding also saves bandwidth to stream the video in a smart manner.
Features
- Z5 Series | IP Dome Camera
- Z5R6422X3 1080P Day & Night Auto Focus IR Vandal Resistant
- Dome IP Camera
- www.meritlilin.com
- Full HD 2 megapixel CMOS image sensor
- 2MP H.265/HEVC and H.264/AVC high-performance video
- compression
- Simultaneous streaming of H.265 and H.264 encoded streams
- Auto focus with zoom / focus motorized lens
- 3D noise reduction (MCTF)
- 2D WDR function
- DWDR function up to 70dB
- High efficiency IR LED, radiant distance up to 30m
- Day & Night (IR cut removable)
- Digital I/O : 1 in, 1 out
- Impact Resistant Polycarbonate Dome Cover
- 3-Axis construction
- ONVIF Profile S supported
- IP67 rain and dust resistant
- Vandal resistant approve
Video Performance
| Minimum | Color : 0.01 Lux at F1.8 ; B/W : 0.001 Lux at F1.8 ; 0 |
| Illumination | Lux with IR LED ON |
| Lens / Night Vision (Infrared LED) | |
| Focal Length | 2.8 – 12 mm (zoom / focus motorized) |
| Iris / Aperture | F 1.8(W) – F 3.3(T) |
| Iris Control | DC-IRIS |
| Angle of View (H) | 105.9° (W) – 36.5° (T) |
| Angle of View (V) | 56.3° (W) – 20.4° (T) |
| Angle of View (D) | 128.0° (W) – 41.6° (T) |
| Peak Wavelength | 850nm |
| Beam Spread | 60° , 90° |
| Radiant Distance | 30M |
| Sensor | |
| Pick Up Element | 1/2.7″ CMOS image sensor |
| Effective Pixels | 1932(H) X 1092(V) = 2,109,744 (Pixels) |
| Light Sensor | Yes |
| Certifications | |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| IP Rating | IP67 |
| Vandal Resistant Rating | IK10 |
| PC Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web Browser | Microsoft® Internet Explorer® 9 or above |
| Input / Output | |
| Alarm Input / Output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load. max. 40VDC,450mW/300mA,450mW), Terminal block |
| Video Streaming | |
| Video Compression | H.265/HEVC Main Profile, H.264 Main Profile , Motion JPEG |
| Video Streaming | RTSP/UDP, RTSP/TCP, configurable streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of Streams | 3 |
| Video Bitrate | 128Kbps – 8192Kbps, Frame rate and bit rate controllable on-the-fly, VBR / CBR / GOP supported, H.264/H.265 |
| Network Security | |
| Encryption | Base64 HTTP encryption, Digest HTTP authentication, RTSP Authentication |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Access | Multiple user access levels with password protection |
| User accounts | 7 user accounts available |
| Video Resolutions (H x V) | |
| Resolution | 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), 720 × 576, 720 × 480, 720 × 384, VGA(640 × 480), CIF(352 × 256) |
| Maximum Frame Rate | 60Hz: 30 fps @ 1920 × 1080 50Hz: 25 fps @ 1920 × 1080 |
| Video Functions | |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | Auto / Manual |
| Back Light Compensation | Off / On |
| Electrical Shutter | 1/30(1/25)s – 1/20000s |
| Sense Up | Off / x2 / x4 |
| Sense Up+ | Yes |
| Auto Gain Control | 42 dB Variable Gain |
| S/N Ratio | More than 48dB (AGC off) |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 |
| High Dynamic Range | Up to 70dB (DWDR on) |
| Privacy Masking | Off / On (4 zones) color mask configurable |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip |
| Auto Focus | One Push |
| EV (Exposure Value) | Adjustable |
Integration
| Mobile Application | Integrated to LILIN mobile app (LILIN Viewer) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / LILIN Navigator Enterprise 2.0 support, Third party VMS through LILIN HTTP API |
| SD Card Recording | Support (128GB) Micro SD/SDHC/ SDXC card for circular recording (card is not included) |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| Event Triggers | Motion / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| Event actions | FTP / SMTP / HTTP POST / SD Card / SAMBA / Alarm / Global Counter / Virtual Input / Push service notification |
| Languages | English, Traditional Chinese, Simplified Chinese, Spanish, Italian, Turkish, Russian, Korean, French, Arabic, Hungarian, Japanese |
| Network | |
| Ethernet | 10/100 Mbps Base-T, RJ-45 |
| OSD | Text overlay for date, time, and camera name (position configurable text overlay for date, time, camera name) |
| CPU, Memory | SoC ARM Cortex-A7 Single Core 800MHz, Embedded 128MB DDR3, 128MB flash memory |
| OS | Embedded Linux 3.10 |
| Network Protocols | IIPv4, TCP, UDP, HTTP, HTTPS, SMTP, NTP, DDNS, FTP, ARP, DHCP, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, SSL/TLS |
| Max number of online users | 7 simultaneous users |
| Video Display | LILIN Universal ActiveX |
| Log | Event & operation log & IVS event log |
| Power and Environment | |
| Starting Temperature | -10°C – +50°C (14°F – 122°F) |
| Operating Temperature | -30°C – +50°C (-22°F – 122°F) |
| Storage Temperature | -25°C – +60°C (-13°F – 140°F) |
| Humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 7.4W / PoE, 9.6W |
| Mechanical | |
| Dimension | Ø120 × 106 mm |
| Weight | 760g |
| Casing Material | Aluminum alloy |
Dimensions
Diagram of mounting holes
Easy access to NVRs

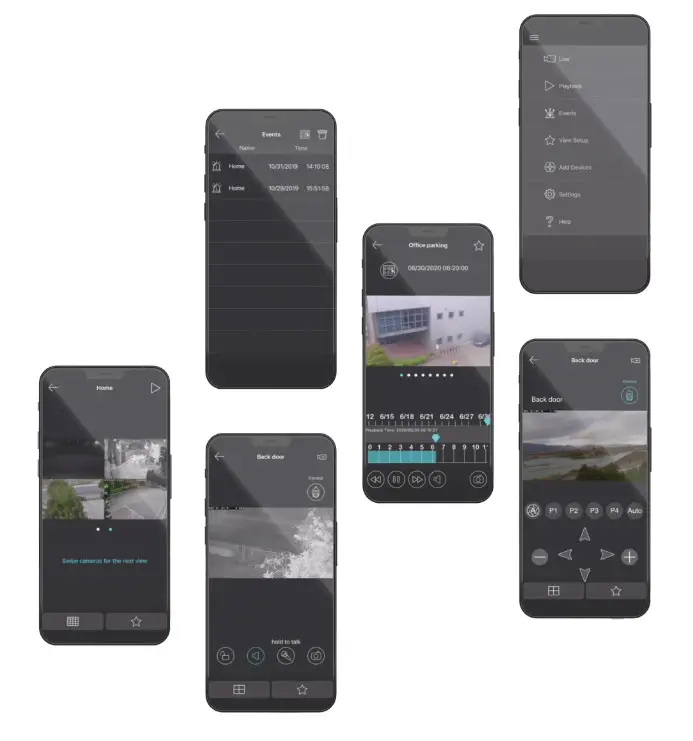

LILIN Home App is designed for accessing live video and recording for LILIN NAVs VMS, NVRs, and cameras. Two-way audio, push notification, digital output control, and PTZ control are supported by the App. Easy configuration for LILIN P2P NVR is supported, no complicate camera settings. Secured credentials stored and cloud configurations are also supported.
- No cameras of NVRs configuration needed
- No window division configuration needed
- Designed for end users accessing NVR

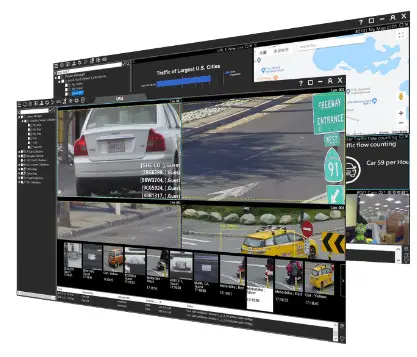

Navigator 3.0 Corporate version supports multiple input sources, each station can record and manage up to 108 channels and support alarm trigger and output function.
It can support POS system, ANPR, Face Recognition, AIDA recognition.It can provide complete remote software to perform multi-site monitoring and statistics display, which can be used for various applications with LILIN IO box.It provides a complete TV wall and eMap alarm display.And a very reliable disconnection recovery and backup mechanism.
- Manage and record 108 IP cameras per station
- User can decide to record main stream or substream
- Integrated alarm management for various alarm outputs
- User-friendly UI and TV Wall application are supported
- Compatible with third party ONVIF Profile S IP camera
- User account customizable
- Support failover up to 36 channel per server, can monitor up to 8 recording server
- Several alarm input with logical control and support schedule management
- Support 4K UHD camera, 120FPS camera
- Support corridor mode and increase the monitoring area in the vertical narrow environment
*Specifications are subject to change without notice. Please contact our regional sales for latest information
