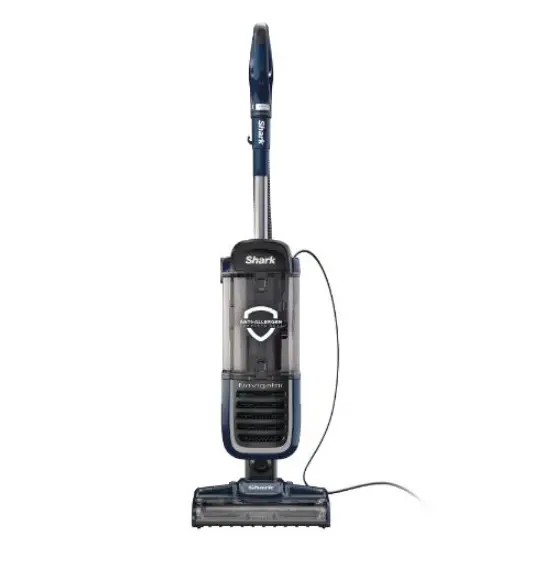

Shark Nv150 Series Navigator Swivel Pro Complete Upright Vacuum User Manual

Shark NV150 Series Navigator Swivel Pro Complete Upright Vacuum User Manual

QUICK START GUIDE

[ This article contains the Quick Start Guide for the NV150 Series Shark Navigator® Swivel Pro Complete Upright Vacuum. This supports the following product SKUs NV150, NV151, NV150C, and CU50WM. ]

Please be sure to read the enclosed Shark® Owner’s Guide prior to using your unit.

WHAT’S INSIDE

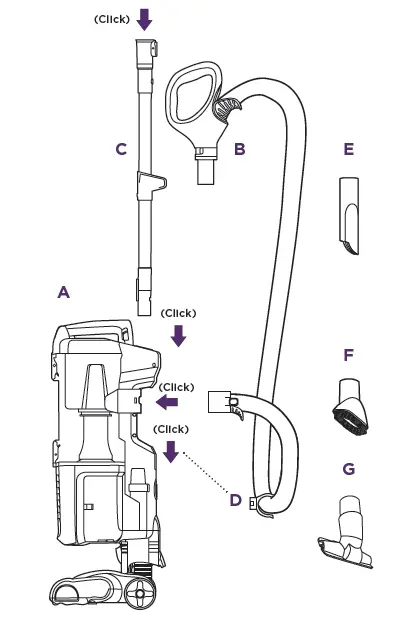

ASSEMBLY

NOTE: For proper operation, ensure all parts are firmly CLICKED into place.

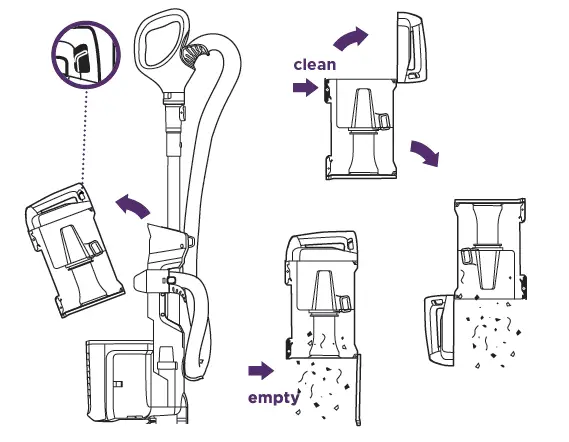

EMPTYING THE DUST CUP

Empty the dust cup after each use.

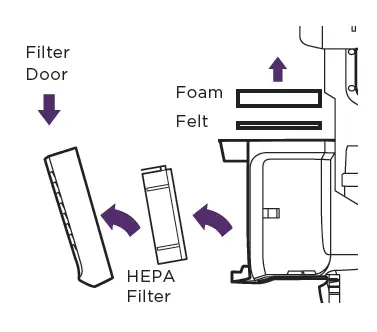

MAINTENANCE

Remove dust cup to access foam and felt filters. To remove HEPA filter, press down on top of filter door, then tilt and lift out door. Press tab at top of HEPA filter and pull out filter.
To reinstall, insert HEPA filter into unit and replace the filter door.
Rinse foam and felt filters every month to keep the suction strong. Rinse HEPA filter every year.

Rinse filters with water only and allow them to air-dry completely before reinstalling. Between washes, tap loose dirt from filters as needed.

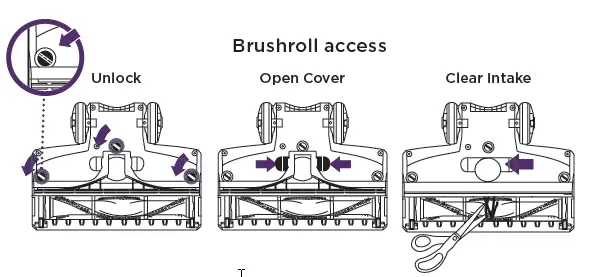

Use a coin to turn the locks counterclockwise until they click open, then lift the cover to access the brushroll. Clear the debris intake.

2 WAYS TO CLEAN

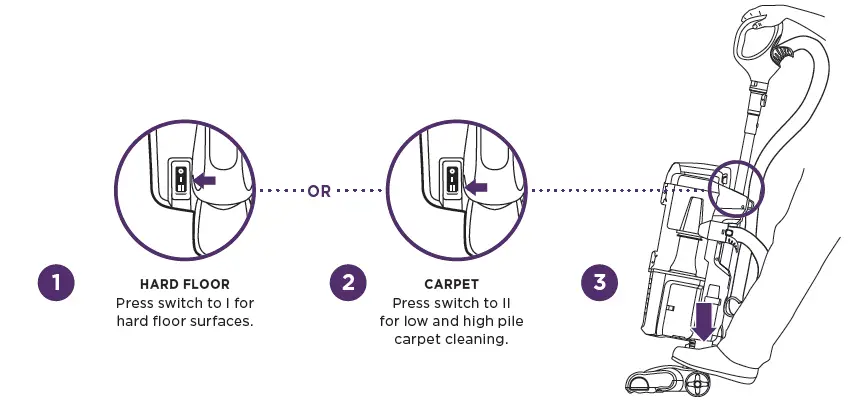

FLOOR CLEANING

To engage brushroll, step on floor nozzle and tilt handle back.

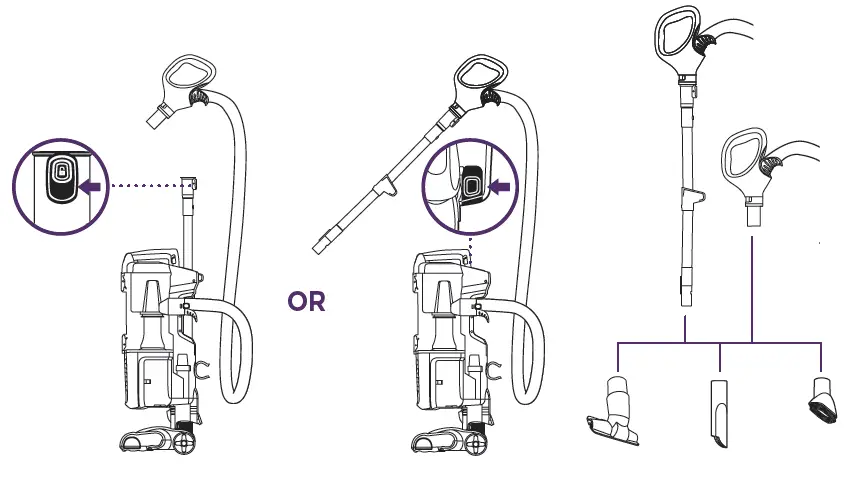

ABOVE-FLOOR CLEANING

1. To clean above-floor areas, remove the handle from the wand. Or for more reach, remove the wand from the pod.

2. Attach a cleaning accessory to handle or wand.

For additional parts and accessories, visit sharkaccessories.com

For additional information or to register your product, visit us online at sharkclean.com

© 2019 SharkNinja Operating LLC

NV150_QSG_MP_Mv1
