Resideo Braukmann Fy69p 65mm Double Sieve Y-strainer Instruction Manual

Braukmann
FY69P, FY71P
Installation Instructions

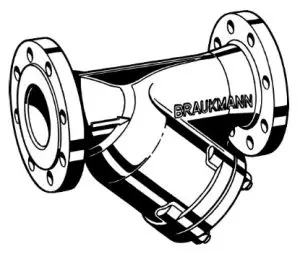

Y-Strainer

Index

Installation

It is necessary during installation to observe codes of good practice, to comply with local requirements and to follow the installation instructions. The installation location should be protected against frost and be easily accessible.

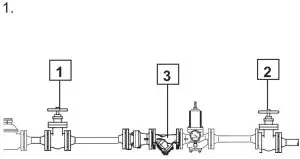

1.1 Assembly (Fig. 1)

1. Thoroughly flush pipework.
2. Close valves 1 and 2 .
3. Install the Y strainer 3
   ● Where possible, fit in horizontal pipework.
   ● Seal plug 6 pointing downwards
4. Slowly open valves 1 and 2

Cleaning

Regular cleaning of the strainer is recommended.
2.1 Drinking water systems
In drinking water systems it is recommended that the strainer be cleaned at interval of more than six months.
2.2 Other installations
The time interval between cleaning depends on the degree of contamination in the system. Where exessive dirt is present, the blanking plug 6 can be replaced by a valveto enable bulk deposits to be cleaned out.

• If this is not done, strainer blockage can occur, resulting in pressure loss and reducing water flow rate
• The strainers are of stainless steel. Red deposits from the pipework do not affect the function or filtering efficiency.

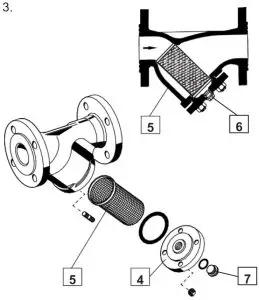

Maintenance (Fig. 3)

1. Close valves 1 and 2
2. Open seal plug 4
3. Remove strainer 5
4. Clean strainer or, if necessary, replace.
5. Reassemble in the reverse sequence.
6. Open valves 1 and 2

Range of application

For FY69P

Connection sizes: DN 15 – DN 200
Medium: Water, oil, compressed air, steam and other non- aggressive mediums
Operating pressure:Maximum 16.0 bar (for water, oil or compressed air) Maximum 6.0 bar (for steam)
Operating temperature: Maximum 150 °C
Installation position: In horizontal or vertical pipework with seal plug pointing downwards

For FY71P
Connection sizes: DN 65 – DN 150
Medium: Water, oil and compressed air up to 40 bar, for steam according to DIN 2401 pressure rating PN 40
Operating pressure: according to DIN 2401, pressure rating PN 40
Operating temperature: according to DIN 2401, pressure rating PN 40
Installation position: In horizontal or vertical pipework with seal plug pointing downwards.

Safety guidelines

1. Use the appliance
   ● In good condition
   ● According to regulations
   ● With due regard to safety.
2. Follow installation instructions
3. Immediately rectify any malfunctions which may influence safety.
4. The strainers are exclusively for use in applications detailed in these installation instructions. Any variation from this or other use will not comply with requirements.

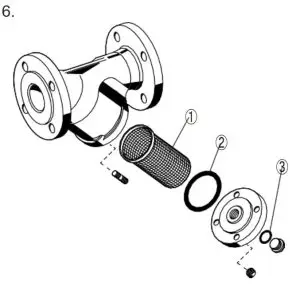

Replacement parts (Fig. 6)

① Replacement sieve

② Lid seal

③ Blanking plug seal
