Ezona Heated Eye Mask User Manual

Ezona Heated Eye Mask User Manual

Ezona LogoHeated Eye Mask

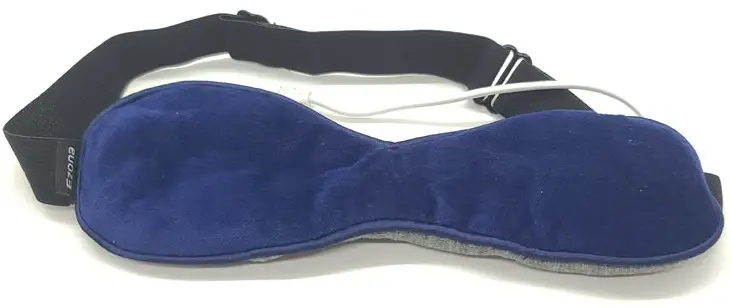

User ManualEzona Heated Eye Mask - Figure 8

Thanks for choosing Ezona heated eye mask. For optimum operation, please read this manual carefully before use.

Product Description

Name: Heated eye mask
Material: 100% cotton
The fillers: Mini glass beads
Brand: Ezona
NO WORRY WARRANTY
If you have any problem or dissatisfaction during shopping experience,please feel free to contact us by email. We promise to try our best to solve your problem.
Email: [email protected]

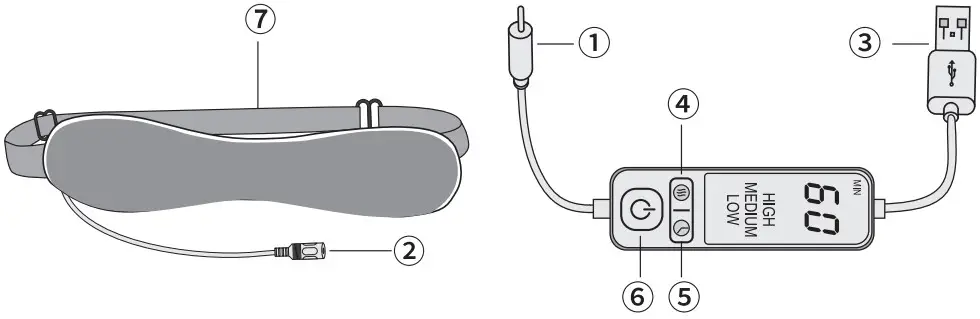

Components

Ezona Heated Eye Mask - OverviewEye mask

  1. DC plug on controller
  2. DC socket on eve mask
  3. USB connector
  4. Heat setting button
    Controller
  5. Time setting button
  6. Switch button
  7. Adjustable strap

How to Use

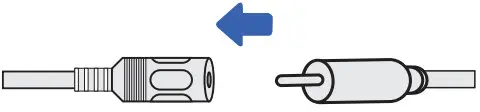

  1. Insert the DC plug on controller into the DC socket on eye mask.Ezona Heated Eye Mask - Figure 1
  2. Insert the USB connectors on controller into the mobile charging adapter or the USB interface on the computer & power bank.Ezona Heated Eye Mask - Figure 2

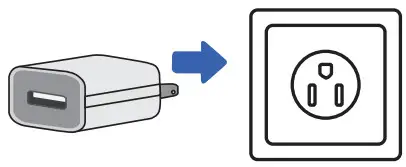

  3. Plug the mobile charging adapter into a power socket.Ezona Heated Eye Mask - Figure 3

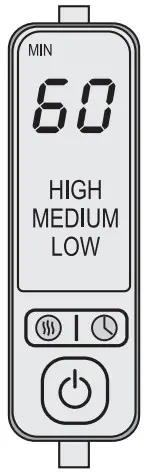

  4. Press the < Power button >button to turn it on/off. Press the < Ezona Heated Eye Mask - Icon 2 > button to select a temperature mode(High/Medium/Low). Press the < Ezona Heated Eye Mask - Icon 1 > button to select the heating time. Without any operation, the eye mask will shut off automatically when timing is over.Ezona Heated Eye Mask - Figure 4
  5. Adjustable strap allows you to fine-tune eye mask to fit your head comfortably.Ezona Heated Eye Mask - Figure 5
  6. If eyes feel dry while using, spray 2-3 drops of warm water on the fabric of eyes side of the eye mask to have a moist compress.Ezona Heated Eye Mask - Figure 6

(Note: There is no battery inside the eye mask . Keep it power on when using it.)

Specifications

InputDC 5V/1A–2A
OutputDC 3-5V Max 1A
Dimension8.52.0 inches
Preset Timer15 mins/30 mins/45 mins/60 mins
Heating TemperatureHigh/Medium/Low

Important Safety Warnings

  1. Do not use while sleeping
  2. This eye mask is not to use on an invalid, sleeping or unconscious person, or a person with poor blood circulation.
  3. Never pull this eye mask by the supply cord. Do not fold while heating. To avoid overheat, do not put it under the pillow and comforter. Burns will result from improper use.

Wash Care
Do not wash with water. If the eye mask is dirty, gently wipe the surface with a wet towel and brush.Ezona Heated Eye Mask - Figure 7

Warm Tip: Stop heating when feeling too hot. Be care of moderate temperature burn.

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
