GRANERO O1 TV Stand
Instruction Manual
GRANERO O1 TV Stand
Table accessories
GRANERO 01

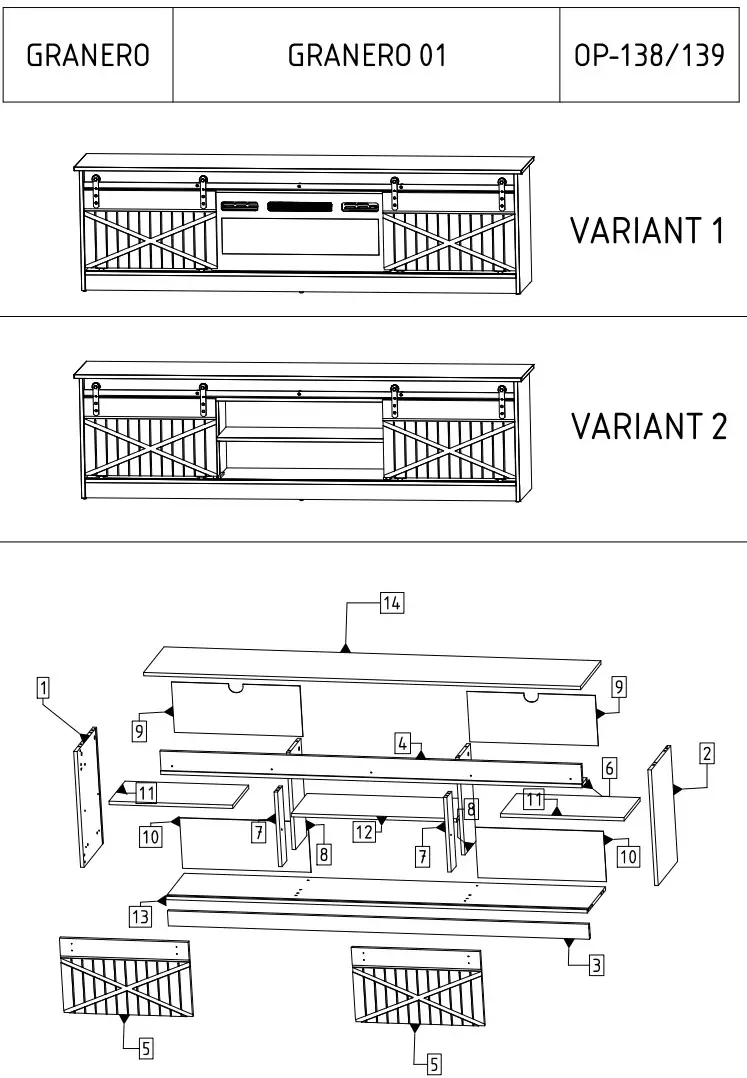

Elements
| SYMBOL | LENGTH | WIDTH | QUANTITY |
| BL [1 1 | 21.26 | 13.07 | 1 |
| BP [21 | 21.26 | 13.07 | 1 |
| CD [31 | 75.91 | 2.76 | 1 |
| CG 141 | 75.91 | 3.54 | 1 |
| FT [51 | 23.19 | 13.7 | 2 |
| LT 161 | 75.91 | 3.54 | 1 |
| P1 [7) | 13.7 | 3.27 | 2 |
| P2 [8] | 17.87 | 7.48 | 2 |
| PC1 [9] | 23.15 | 9.25 | 2 |
| PC2 [101 | 23.15 | 9.25 | 2 |
| PK1 [11) | 22.28 | 10.75 | 2 |
| PK2 [12] | 29.8 | 10.75 | 1 |
| WD [131 | 75.91 | 12.32 | 1 |
| WO [14) | 78.74 | 13.78 | 1 |
SCAN THIS QR CODE FOR INSTRUCTION MANUALS AND ASSEMBLY VIDEOS

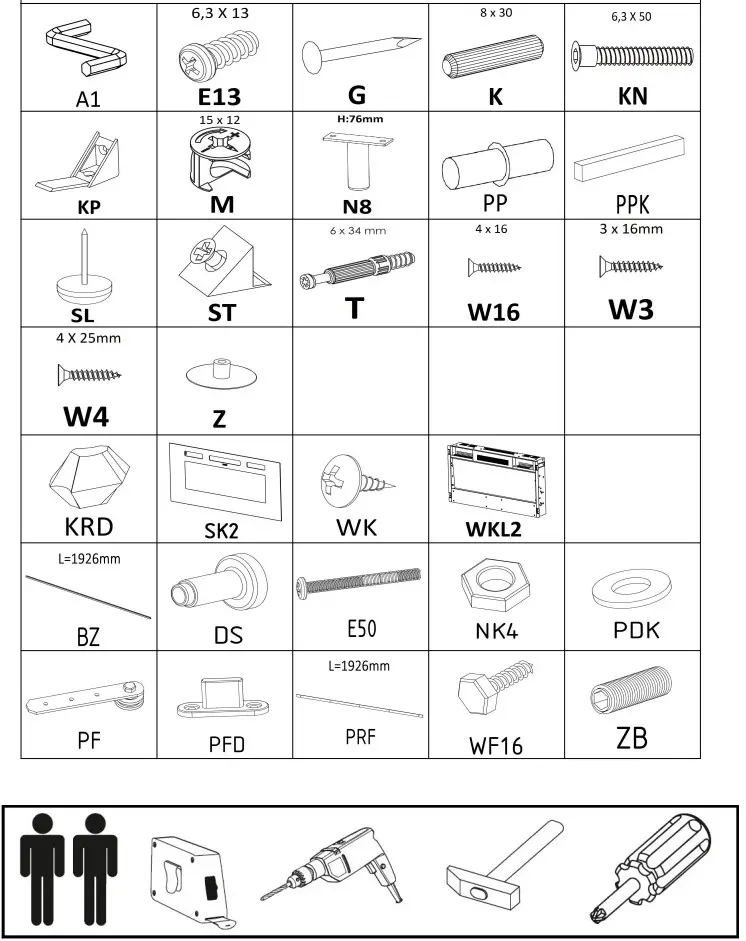

Accessories
| SYMBOL | QUANTITY |
| Al | 1 |
| BZ IL=1926mml | 1 |
| OS | 5 |
| 0.00E+00 | 2 |
| 0.00E+00 | 5 |
| G | 22 |
| K | 24 |
| KN | 10 |
| KP | 2 |
| KRO (attached to the electric fireplace) | 62 |
| twl | 12 |
| N8 | 1 |
| NK4 | 5 |
| P0K | 10 |
| PF | 4 |
| PFO | 4 |
| PP | 12 |
| PPK | 2 |
| PRF(L:1926mm) | 1 |
| SK2 (attached to the electric fireplace) | 1 |
| SL | 5 |
| ST | 12 |
| T | 12 |
| W16 | 4 |
| W3 | 8 |
| W4 | 4 |
| WF16 | 8 |
| WK (attached to the electric fireplace) | 6 |
| WKL2 (attached to the electric fireplace) | 1 |
| Z | 12 |
| ZB | 4 |
