Stands 442382 Fasten and Solar Module User Guide
mounting set

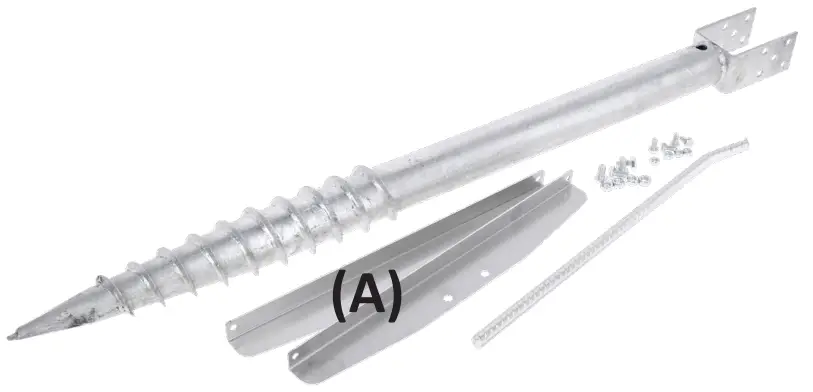

Scope of delivery
1 x spiral ground/holding anchor
2 x stainless steel vertical rail (A)
1 x insertion aid
1 x screw set:
- M6x18 + M6 nut (4x)
- M8x16 + M8 nut (4x)
- M10x20 + M10 nut (4x)

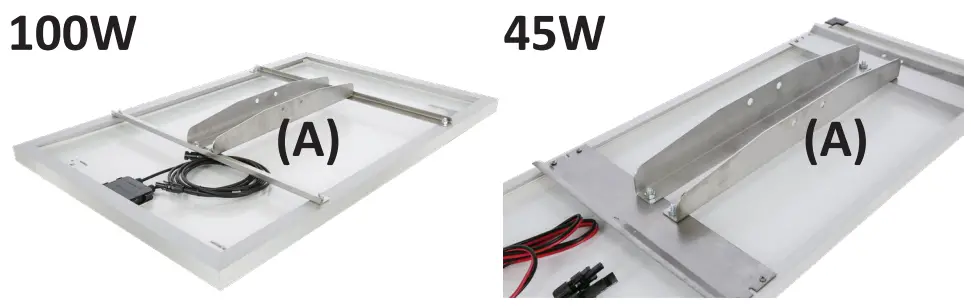

Fix the vertical rail (A) with M8x16 and M8 nut to the cross braces.
(ATTENTION: For 45W, the lower crossbar must be turned be rotated by 180°).

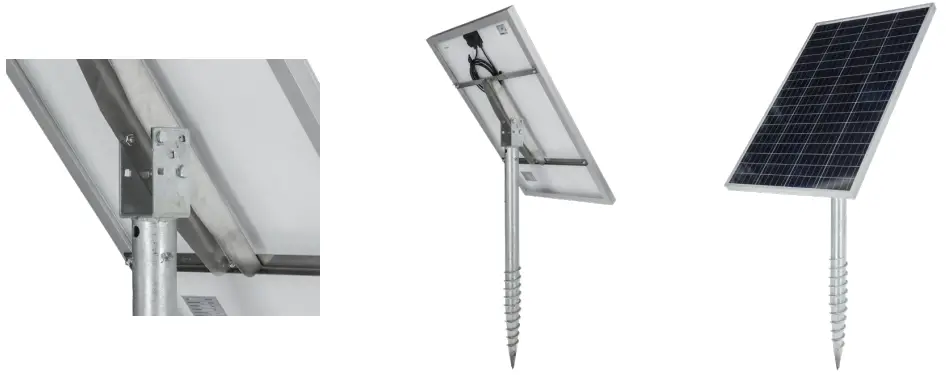

Fasten the solar module with M10x20 and M10 nut to the ground anchor.
