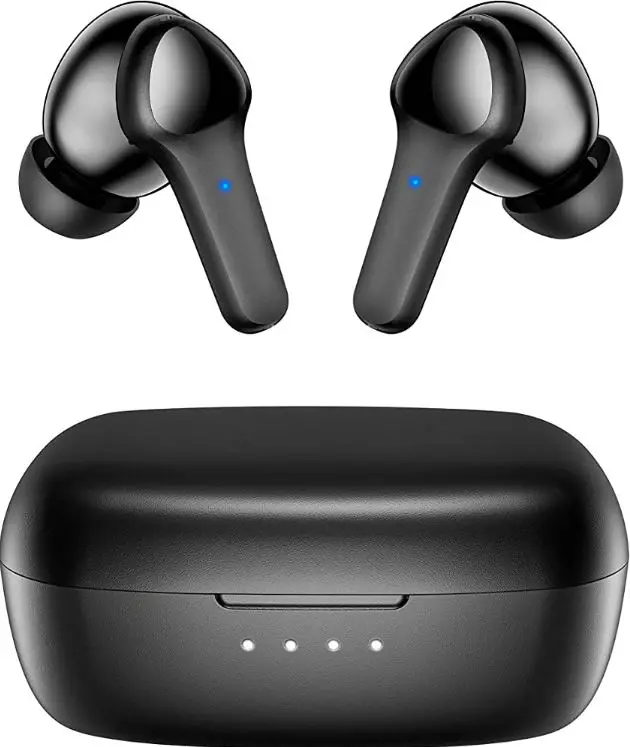

xiwxi N09-001 Bluetooth Wireless Earbuds

xiwxi-N09-001-Bluetooth-Wireless-Earbuds-PRODUCT

HOW TO USE

xiwxi-N09-001-Bluetooth-Wireless-Earbuds-FIG 1

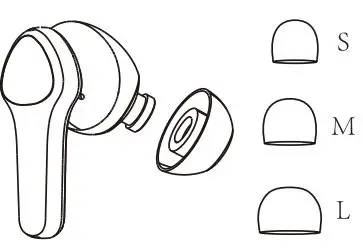

Choose the ear cap that suits you. xiwxi-N09-001-Bluetooth-Wireless-Earbuds-FIG 2

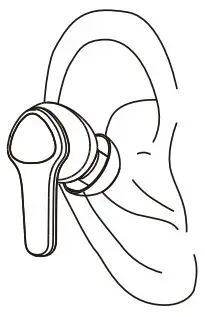

Put the earbuds into the ear in the angle shown as the picture above. xiwxi-N09-001-Bluetooth-Wireless-Earbuds-FIG 3

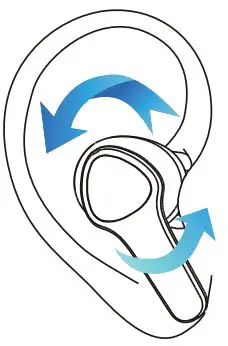

Gently rotating the earbuds to a comfortable position. xiwxi-N09-001-Bluetooth-Wireless-Earbuds-FIG 4

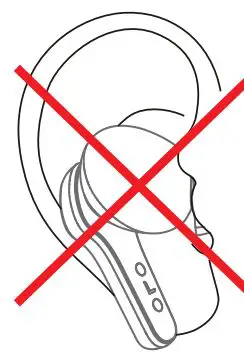

Error demonstration

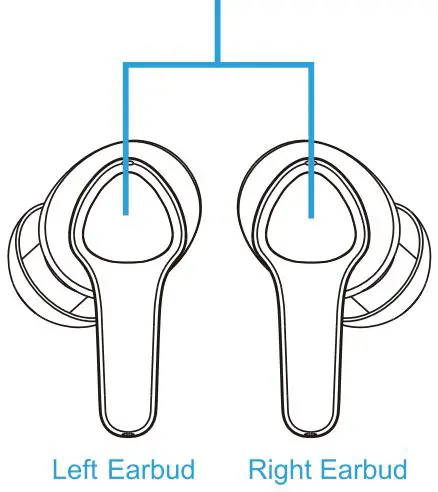

MFB Power Switch xiwxi-N09-001-Bluetooth-Wireless-Earbuds-FIG 5

xiwxi-N09-001-Bluetooth-Wireless-Earbuds-FIG 6Take-out from case
OR
press and hold for 5 seconds.

xiwxi-N09-001-Bluetooth-Wireless-Earbuds-FIG 7When back into case
OR
no connection for 5 minutes.xiwxi-N09-001-Bluetooth-Wireless-Earbuds-FIG 8

Warm notice
For any single earbud, when it is in standalone mode, you can’t use it to play the previous song or decrease the volume.

First time using

  1. Tear off the insulating film.xiwxi-N09-001-Bluetooth-Wireless-Earbuds-FIG 9
  2. Put the earbuds into the charging case to charge.xiwxi-N09-001-Bluetooth-Wireless-Earbuds-FIG 10
  3. Take out from case, the indicator will turn to Red and Blue alternately.xiwxi-N09-001-Bluetooth-Wireless-Earbuds-FIG 11

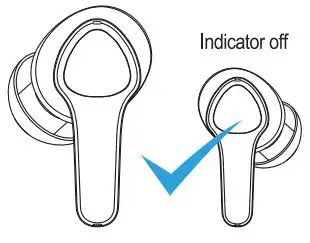

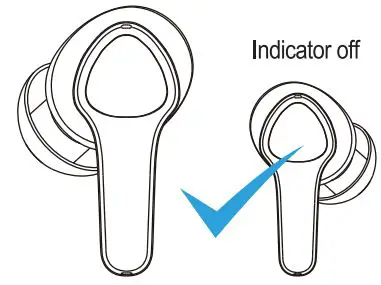

  4. The indicator of one earbud will go off and another will flash red and blue light alternately. (In painng mode) xiwxi-N09-001-Bluetooth-Wireless-Earbuds-FIG 12

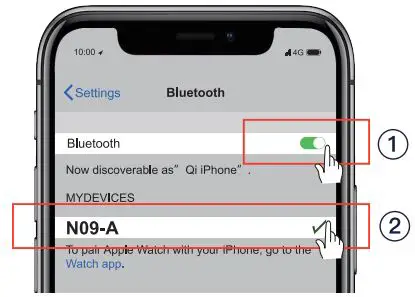

  5. Turn on the Bluetooth function on your phone and search for (NO9-A] and connect it.

xiwxi-N09-001-Bluetooth-Wireless-Earbuds-FIG 13

  1. Red & Blue Flashxiwxi-N09-001-Bluetooth-Wireless-Earbuds-FIG 14
  2. Red & Blue Flashxiwxi-N09-001-Bluetooth-Wireless-Earbuds-FIG 15

Warm notice

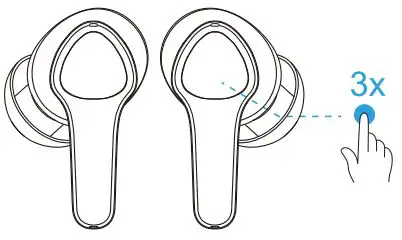

If the left/right earbuds can’t be paired or no sound, pis turn off the Bluetooth of the mobile phone, when the red/blue lights of the earbuds flash alternately, tap any earbud for 3 times to re-pair. One earbud’s indicator turns off, aonther one’s indicator flashes red and blue altemately(in pairing mode)

Restore factory setting

  1. When the earbud is on with mobile phone unconnected, click the left and right power switch simultaneously four times quickly. The red and blue lights will be on for 2 seconds and then it will clear its memory and the earbuds will shut down.xiwxi-N09-001-Bluetooth-Wireless-Earbuds-FIG 16xiwxi-N09-001-Bluetooth-Wireless-Earbuds-FIG 17

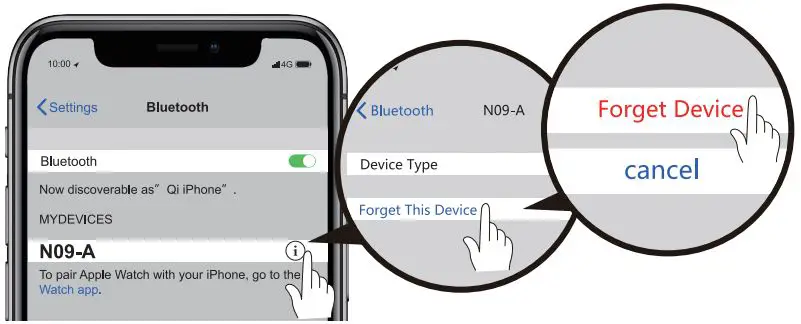

  2. Please delete all paired records on the phone and search again for “N09-A”on the bluetooth of mobile phone and reconnect.

xiwxi-N09-001-Bluetooth-Wireless-Earbuds-FIG 18

www.xiwxi.com

xiwxi-N09-001-Bluetooth-Wireless-Earbuds-FIG 19

[email protected]
