Basil 70197 Hook On System Sports Instruction Manual

BASIL 70197 Hook On System Sports

Included items

2x Side plates

Insert the plates in the correct position

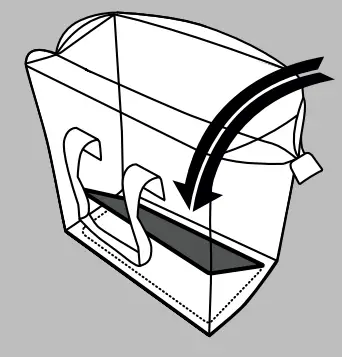

1.  Push the bottomplate in position

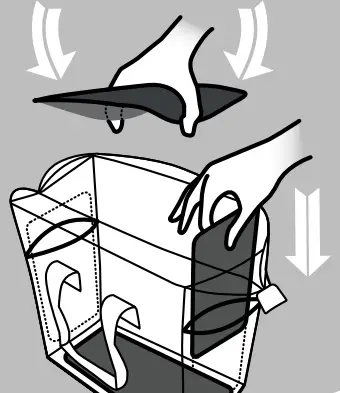

2.  Put the side pannels in the side-pockets by squeezing the sides

Strap Safety warnings

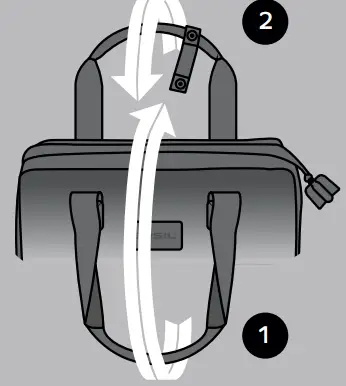

1.  Place strap 1 under strap 2

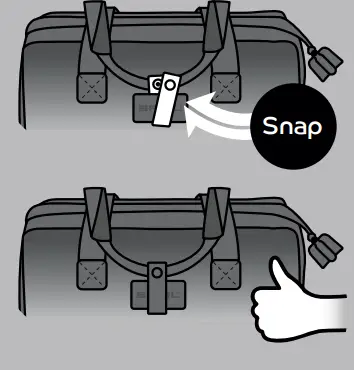

2. Secure the straps by closing the press button

How to mount the Basil Hook on system

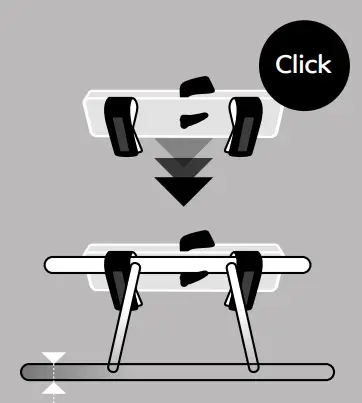

1.  Click your bag with the  hooks onto the bicycle carrier
   Max. Ø 16 mm.

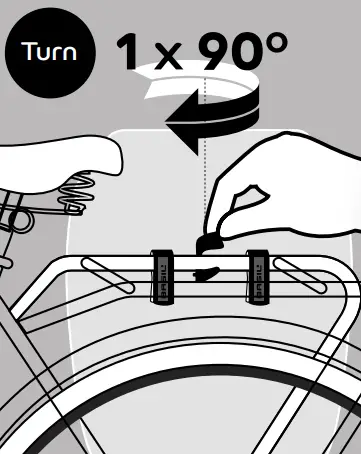

2.  Turn the “green flag” to lock

Optional adjustability

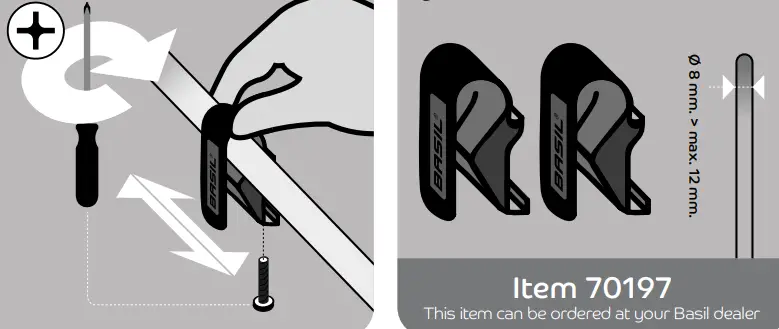

1. Horizontal adjustability / Replacement Adjust the position of the hooks to avoid that it will slide over the carrier
2. In case of carriers with small tubes there is an alternative hook available which avoids that the bag will rattle on your carrier.

Terms & conditions

May only be mounted by adults

1.  Please make sure that you regularly check if the Basil products are properly and safely installed on your bicycle
2.  The warranty will be no longer valid once modifications have been made to the product by its owner and/or when the product has not been assembled and/or used according to the instructions supplied.
3.  Weather influences can affect the product.
4.  When using Basil products, that are also compatible with / or can be mounted onto third-party products please make sure that the instructions with regards to assembly and/or use of the products supplied by the manufacturer are being followed. In this case Basil cannot be held liable for the assembly and/or the use of the products delivered by third parties
