Moko H1-beaconx Portable Ibeacon Eddystone Instructions (+ PDF)

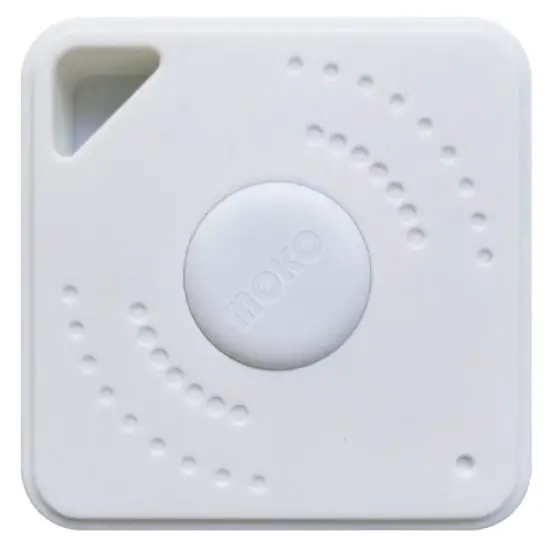

H1 2.4GHz radio signals at regular and adjustable intervals. H1 can be heard and interpreted by iOS and Android BLE-enabled devices that are equipped with many mobile apps.

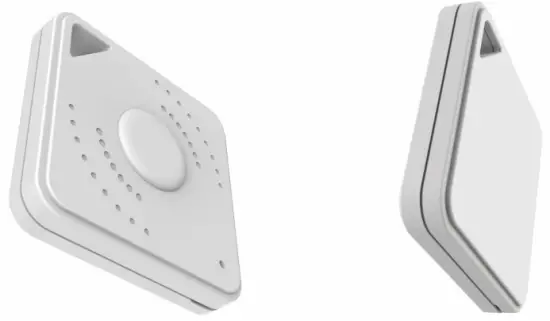

Features

Programmed Moko standard BeaconX firmware;
Portable H1-BeaconX with external ON/OFF push button;
Ultra-low power consumption chipset nRF52832 with ARM® core;
Easy to print a customization Logo/branding on the case or the button.

Specification

Compatibility

Supported iOS 7.0+ and Android 4.3+ system;
Compatible with Apple iBeacon standard and Google Eddystone standard;
Compatible with all Bluetooth Low Energy® 4.0 devices.

Replaceable Battery and Battery Level

Replaceable coin battery（CR2032 230mAh）;
6 months battery lifetime (at default settings);
Easy to get the real-time battery level notification.

Configurable SLOTs and parameters

Up to 5 configurable SLOTs;
Each SLOT can be set to iBeacon, UID, URL or TLM;
Device Name, Password, Connection Mode, Tx Power, RSSI@1m and Advertising Interval are configurable;
Special Configuration APP ( MokoBeaconX, Pls visit http://doc.mokotechnology.com/index.php?s=/16 for more ).

Transmission Power Levels

8 adjustable grades;
Transmission power range: -40dBm to +4dBm.

Long Range

The max. Range 60 meters in the open space;
The range depends on the physical environment.

Security

8 characters password (Lock/Unlock parameters);
AES HW encryption.

Low power reminder

Led flashes every 10 seconds if the battery capacity is under 5%.

Connection Mode

Advertising mode, non-connectable;
Configuration mode, connectable.

Custom made mounting

Keychain / neck chain;
3M sticker;
Logo and color customizable;
Provided with your own configuration.

OTA and DFU

Supported upgrade via Over-The-Air;
NORDIC® official Device Firmware Upgrade(DFU);
Reserved J-Link port on the board for programming.

Electronic parameters

Item		Value		Remarks
Case Color		White		Other colors can be customized
Main material		ABS		–
Battery Model		CR2032		Coin battery, 1pc, 230mAh
Operation Voltage		1.8-3.6V		DC
Waterproof level		IP67		–
Average Current		50 uA		Tested at 0dBm transmission power and 1000ms Advertising Interval
Transmission Range		Up to 60m(+4dBm)		Depending on the environment where the H1 is placed these value might differ.
Antenna	50ohm		Ceramic Antenna
Size	32.5 x 32.5 x 6.22mm		Refer to H1-iBeacon mechanical draws for details.
Net Weight	7.8g		With battery
Operating Temperature	-25 to +60ºC		–
Storage Temperature	20 to +30ºC		–

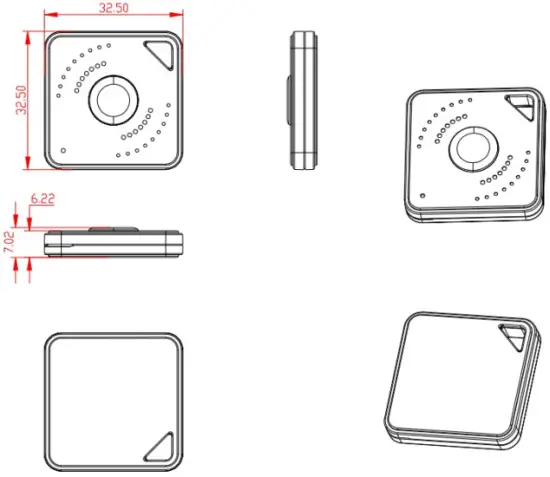

H1-iBeacon mechanical draws

Configurable parameters

Item	Value	Default Setting	Remarks
iBeacon	UUID	E2C56DB5-DFFB-48D2-B060- D0F5A71096E0	16bytes
	Major	0	0-65535
	Minor	0	0-65535
UID	Namespace	–	10bytes
UID	Instance ID	–	6bytes
URL	Encoded Scheme Prefix	http://www.	4types: http://www. ; https://www. ; http:// ; https://
URL	Encoded URL	mokosmart.com	2-17 bytes
TLM	–	–	Up to 1 SLOT can be set to TLM
Advertising Interval	–	1000ms	100-4000ms, Unit:100ms
Tx Power	–	0dBm	-40dBm to 3.92dBm, 8 adjustable grades
Device Name	–	BeaconX	Up to 8 characters
Password	–	Moko4321	8 characters, only letters and numbers
Connection Mode	–	Connectable	Connectable/Uncontestable

Technical support

Item	File Name	Remarks
Configure APP for IOS & Android	Moko Beacon	http://doc.mokotechnology.com/index.php?s
User Mannul	H1- User Manual	http://doc.mokotechnology.com/index.php?s
SDK for Android APP	—	https://github.com/MokoBeaconX/mokoBeaconX_Android
SDK for IOS APP	—	http://p29zydyfu.bkt.clouddn.com/MokoBeaconX%20APP%20SDK20180314.rar
Datesheet	H1-BeaconX Datasheet	http://doc.mokotechnology.com/index.php?s

Declaration

The contents of this datasheet are subject to change without prior notice for further improvement. MOKO team reserves all the rights for the final explanation. Please contact MOKO sales team or visit http://www.mokosmart.com to get more related information if needed.

Contact Information

MOKO TECHNOLOGY LIMITED Address : 2F, Building1,No.37 Xiaxintang Xintang village, Fucheng Street, Longhua District Shenzhen，Guang Province，China
Telephone : 86-75523573370
Fax : 86 75523573370-808 Website : http://www.mokosmart.com

Revision History

Revision	Description	Approved	Date
V1.0	Initial Release	Kevin	2018.04
V1.1	Specifications updated	Kevin	2018.07.21
V1.1	Added mechanical draws	Kevin	2018.07.21
