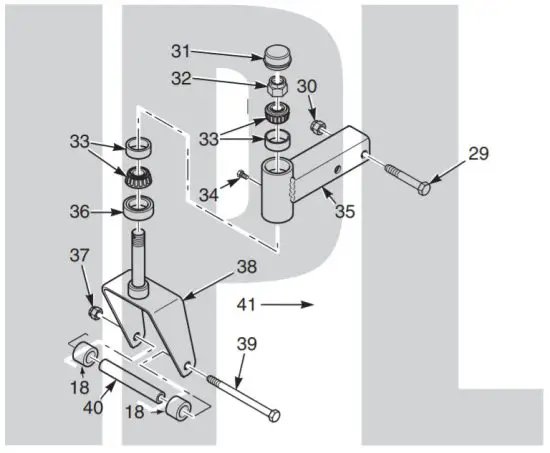

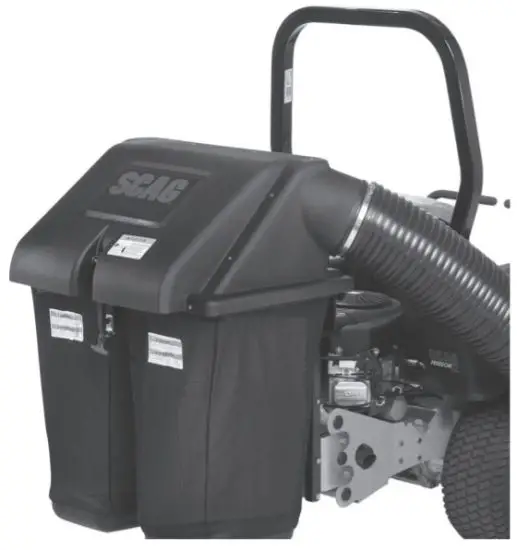

GC-SZL Fabric 2-Bag Grass Catcher
Instruction Manual
ILLUSTRATED PARTS
THIS MANUAL CONTAINS THE ILLUSTRATED PARTS LIST FOR MODELS:
GC-SZL/SFZ/SPZ
with a serial number of
T0200001 to T0299999
ILLUSTRATED PARTS LIST
SCAG-APPROVED ATTACHMENTS AND ACCESSORIES.
Attachments and accessories manufactured by companies other than Scag Power Equipment are not approved for use on this machine.

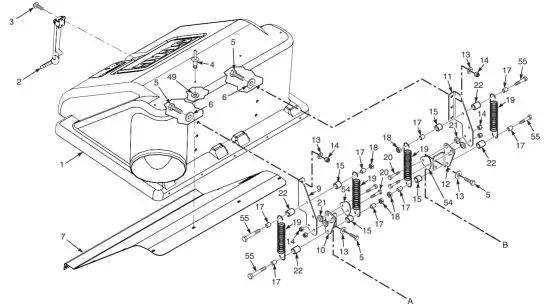

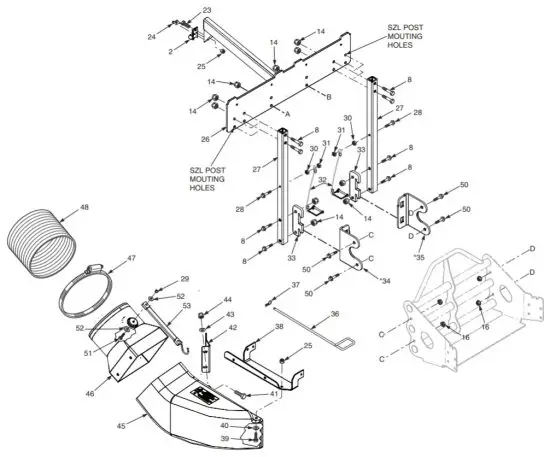

GC-SZL/SFZ/SPZ HOOD AND DISCHARGE ASSEMBLY
| Part No. | Qty | Description | |
| 1 | 462782 | 1 | Hood Assembly (incl. screen & seal) |
| 2 | 482409 | 1 | Latch |
| 3 | 04010-25 04041-09 04021-01 | 2 | Screw, #10-32 x 3/4″ |
| 2 | Flat washer, 3/8-.193 x .496 x .048 | ||
| 2 | Nut, Elastic Stop #10-32 | ||
| 4 | 04090-02 | 8 | Pop Rivet, 3/16 x .652 |
| 5 | 04001-32 | 10 | Bott, Hex Head 3/8-16 x 1-1/4′ |
| 6 | 04041-11 | 6 | Flat washer, 3/8-.406 x 1.5 x 7 Ga. |
| 7 | 424731 | 1 | Screen, GC Hood |
| 8 | 04001-46 | 10 | Bolt, Hex Head 3/8-16 x 2-1/4′ |
| 9 | 425831 | 1 | Hinge, Upper RH |
| 10 | 425876 | 1 | Hinge, Lower RH |
| 11 | 425830 | 1 | Hinge, Upper LH |
| 12 | 425875 | 1 | Hinge, Lower LH |
| 13 | 04041-01 | 4 | Flat washer, 3/8-391 x .938 x .105 |
| 14 | 04021-09 | 18 | Nut, Elastic Stop 3/8-16 |
| 15 | 43277 | 4 | Spacer |
| 16 | 04019-04 | 10 | Nut, Serrated Flange 3/8-16 |
| 17 | 43212 | 8 | Sleeve |
| 18 | 04021-05 | 4 | Nut, Center Lock 3/8-16 |
| 19 | 482304 | 4 | Spring |
| 20 | 04001-20 | 4 | Bolt, Hex Head 3/8-16 x 1-1/2″ |
| 21 | 43546 | 4 | Bushing, Hopper Pivot |
| 22 | 43886 | 4 | Spacer |
| 23 | 04001-08 | 1 | Bolt, Hex Head 5/16-18 x 3/4° |
| 24 | 04090-03 | 2 | Pop Rivet, 3/16 x .402 |
| 25 | 04021-10 | 5 | Nut, Elastic Stop 5/16-18 |
| 26 | 452675 | 1 | Frame Weldment, Bag Support |
| 27 | 424750 | 2 | Tube, Grass Catcher Mount |
| 28 | 04001-03 | 2 | Bolt, Hex Head 1/4-20 x 2″ |
| 29 | 04021-08 | 1 | Nut, Elastic Stop 1/4-20 |
| 30 | 04019-02 | 2 | Nut, Serrated Flange 1/4-20 |
| 31 | 04021-02 | 2 | Nut, Center Lock 1/4-20 |
| 32 | 485859 | 2 | Snap Pin Assembly w/Lanyard |
| 33 | 424752 | 2 | Latch, GC |
| ’34 | 424751 | 2 | Bracket, GC Mount RH |
| ’35 | 424749 | 2 | Bracket, GC Mount LH |
| 36 | 44166 | 1 | Latch Pin, GC Chute |
| 37 | 04062-02 | 1 | Hair Pin Cotter |
| 38 | 424915 | 1 | Bracket, GC Boot – 36* Deck |
| 424734 | 1 | Bracket, GC Boot – 42′,48″, 52′ & 61″ Deck | |
| 39 | 04001-09 | 4 | Bolt, Hex Head 5/16-18 x 1″ |
| Part No. | Qty | Description | |
| 40 | 04040-04 | 8 | Flat washer, 5/16-.344 x .688 x .065 |
| 41 | 04001-14 | 2 | Bolt, Hex Head 1/4-20 x 1° |
| 42 | 424754 | 1 | Baffle, Boot Deflector – 36″ Deck |
| 424735 | 1 | Baffle, Boot Deflector – 42″ & 48″ Deck | |
| 424754 | 1 | Baffle, Boot Deflector – 52″ Deck | |
| 424348 | 1 | Baffle, Boot Deflector – 61″ Deck | |
| 43 | 04040-14 | 2 | Flat washer, 1/4-.312 x .750 x .065 |
| 44 | 04021-08 | 2 | Nut, Elastic Stop 1/4-20 |
| 45 | 462048 | 1 | Boot Assembly |
| 46 | 461723 | 1 | Adapter w/Strap |
| 47 | 48136-02 | 2 | Clamp, 8.621′ Max Dia. |
| 48 | 48135-13 | 1 | Hose. 8″ x 56′ |
| 49 | 04041-19 | 8 | Flat washer, 3/16-.196 x .469 x .048 |
| 50 | 04001-19 | 4 | Bolt, Hex Head 3/8-16 x 1″ |
| 51 | 04001-59 | 1 | Bolt, Hex Head 1/4-20 x 1-1/4″ |
| 52 | 04040-14 | 2 | Flat washer, 1/4-.312 x .750 x .065 |
| 53 | 48137-04 | 1 | Rubber Strap |
| 54 | 425832 | 2 | Guard, Hinge |
| 55 | 04001-30 | 4 | Bolt, Hex Head 3/8-16 x 4″ |
* GC Mounting Brackets for the SZL36 & SZL42, p/n 424751 are mounted on the LH side of the machine, and p/n 424749 are mounted on the RH side of the machine.

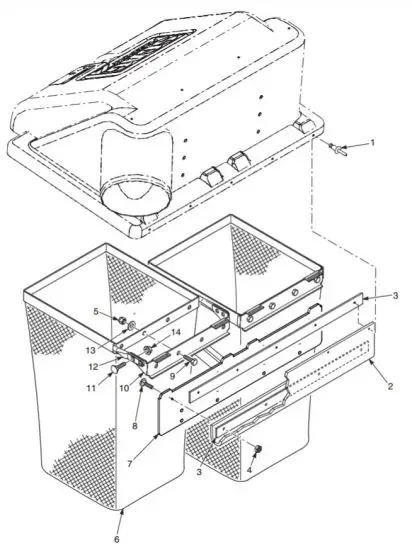

GC-SZL/SFZ/SPZ BAG SUPPORT COMPONENTS
| Ref. No. | Part No. | Qty | Description |
| 1 | 04090-02 | 5 | Pop Rivet, 3/16 x .652 |
| 2 | 483589 | 1 | Seal, GC Hood |
| 3 | 424753 | 1 | Retainer, Seal |
| 4 | 04021-02 | 4 | Nut, Center Lock 1/4-20 |
| 5 | 04021-10 | 8 | Nut, Elastic Stop 5/16-18 |
| 6 | 462966 | 2 | Bag Assembly |
| 7 | 451959 | 1 | Frame Weldment, Bag Support |
| 8 | 04001-01 | 4 | Bolt, Hex Head 1/4-20 x 3/4″ |
| 9 | 04001-08 | 8 | Bolt, Hex Head 5/16-18 x 3/4″ |
| 10 | 423198 | 2 | Mount, Bag Frame Tube |
| 11 | 04003-12 | 8 | Bolt, Carriage 5/16-18 x 3/4″ |
| 12 | 423197 | 2 | Tube, Bag Support |
| 13 | 04040-15 | 8 | Flat washer, 5/16-.375 x .875 x .083 |
| 14 | 04019-03 | 8 | Nut, Serrated Flange 5/16-18 |

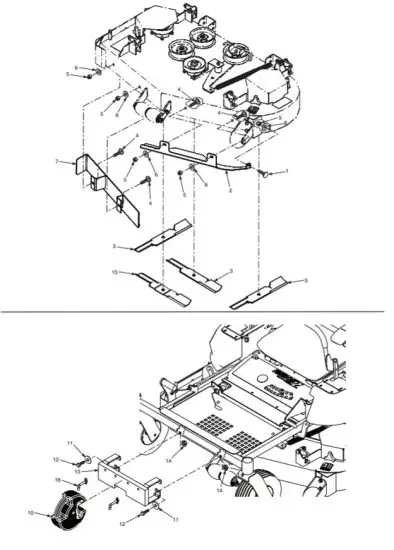

GC-SZL/SFZ/SPZ CUTTER DECK AND FRONT WEIGHT COMPONENTS
| Ref. No. | Part No. | Qty | Description |
| 1 | 04003-12 | 1 | Bolt, Carriage 5/16-18 x 3/4′ |
| 2 | 428853 | 1 | Baffle, LH – 42″ Deck |
| 424743 | 1 | Baffle, LH – 48″ Deck | |
| 424745 | 1 | Baffle, LH – 52″ Deck | |
| 425267 | 1 | Baffle, LH – 61″ Deck | |
| 3 | 481711 | 2 | Cutter Blade, High Lift (36″ Deck) |
| 487117 | 3 | Cutter Blade, High Lift (42′ Deck) | |
| 481710 | 3 | Cutter Blade, High Lift (48′ Deck) | |
| 481711 | 3 | Cutter Blade, High Lift (52′ Deck) | |
| 481712 | 3 | Cutter Blade, High Lift (61″ Deck) | |
| 4 | 04003-23 | 4 | Bolt, Carriage 3/8-16 x 1″ |
| 5 | 04021-09 | 4 | Nut, Elastic Stop 3/8-16 |
| 6 | 04040-13 | 4 | Flat washer, 3/8-.438 x 1.00 x .083 |
| 7 | 452003 | 1 | Baffle Weldment, RH – 36″ Deck |
| 453317 | Baffle Weldment, RH – 42″ Deck | ||
| 451956 | 1 | Baffle Weldment, RH – 48″ Deck | |
| 451958 | 1 | Baffle Weldment, RH – 52″ Deck | |
| 452108 | 1 | Baffle, Weldment, RH – 61″ Deck | |
| 8 | 04040-04 | 1 | Flat washer, 5/16-.344 x .688 x .065 |
| 9 | 04021-04 | 1 | Nut, Center Lock 5/16-18 |
| 10 | 484758 | 2 | Weight Assembly |
| 11 | 04040-13 | 2 | Flat washer, 1/2-.562 x 1.375 x .109 |
| 12 | 04001-70 | 2 | Bolt, Hex Head 1/2-13 x 1-1/4″ |
| 13 | 452419 | 1 | Support Weldment, Weight Mounting |
| 14 | 04019-06 | 2 | Nut, Serrated Flange 1/2-13 |
| 15 | 483655 | 1 | Cutter Blade, Cross – 36″ & 52″ Deck |
| 487118 | Cutter Blade, Cross – 42″ Deck | ||
| 483654 | 1 | Cutter Blade, Cross – 48″ Deck | |
| 484021 | 1 | Cutter Blade, Cross – 61″ Deck | |
| 16 | 485172 | 2 | Pin, Weight Retention |

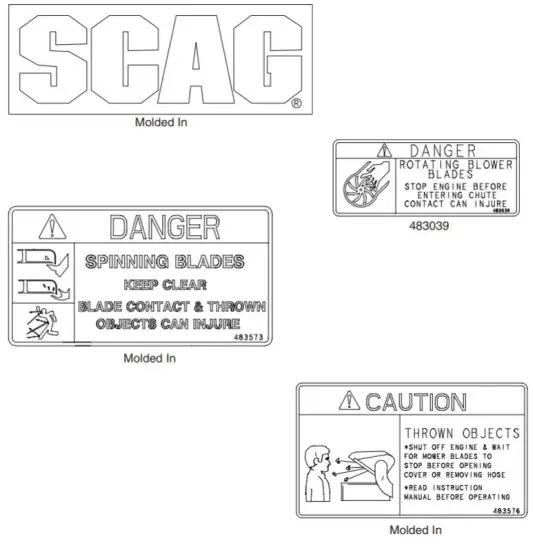

GC DECALS
© 2021
Scag Power Equipment
Division of Metalcraft of Mayville, Inc.
Part No. 06375
Printed 9/2021
