Caterlite J709/j722 8ltr Water Boiler Instruction Manual

Water Boiler
Instruction manual
Model: J709 / J722

Safety Tips

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:
  – Health and Safety at Work Legislation
  – BS EN Codes of Practice
  – Fire Precautions
  – IEE Wiring Regulations
  – Building Regulations
• Ensure the location for the appliance can support its weight when full.
• DO NOT fill the appliance above the ‘MAX’ level.
• DO NOT move the appliance when full.
• DO NOT immerse the appliance in water.
• DO NOT leave the machine unattended during operation.
• DO NOT operate this appliance when less than one-third full.
• DO NOT touch the outer surfaces of the appliance. They become hot during use.
• Suitable for indoor use only.
• Always switch off and disconnect the power supply to the appliance when not in use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a Caterlite agent or a recommended qualified technician in order to avoid a hazard.
• Caterlite recommends that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to Visual Inspection, Polarity Test, Earth Continuity, Insulation Continuity, and Functional Testing.
• Caterlite recommends that this product be connected to a circuit protected by an appropriate RCD (Residual Current Device).

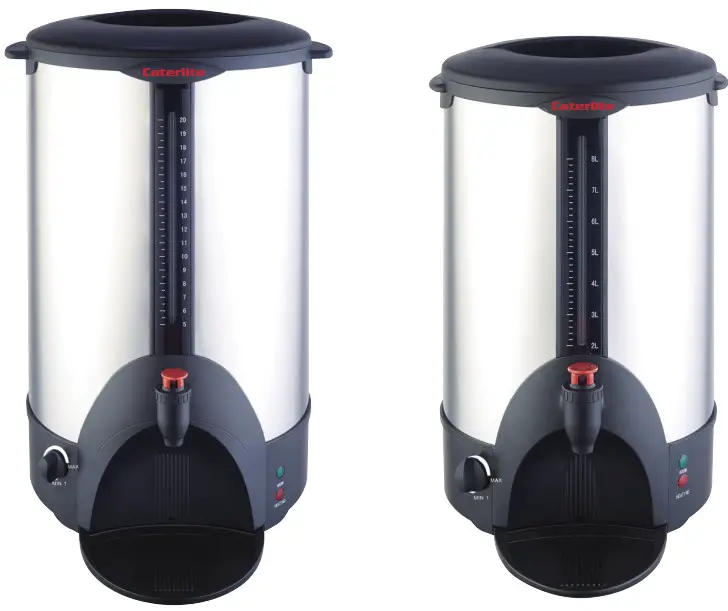

Product Description

• J709 – 8 liter Water Boiler
• J722 – 20 liter Water Boiler

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your Caterlite product.

Pack Contents

The following is included:

• Caterlite Water Boiler
• Instruction manual

Caterlite prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.
Should you find any damage as a result of transit, please contact your Caterlite dealer immediately.

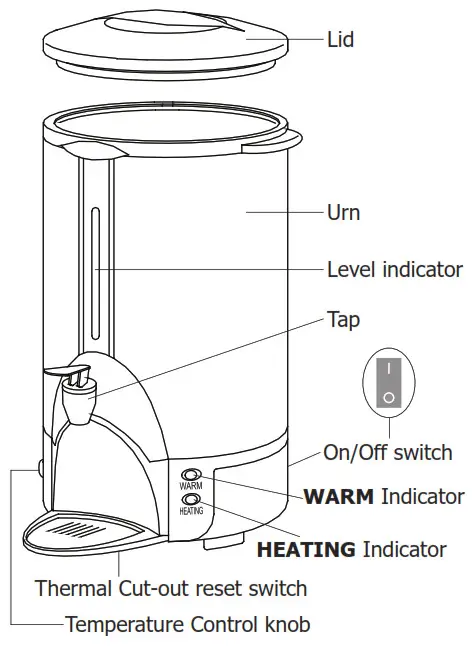

Operation

1. Remove the appliance from the packaging. Make sure that all protective plastic film and plastic coatings are thoroughly removed from all surfaces.
   Note: Before using for the first time, clean the interior of the appliance and all parts in warm soapy water, then rinse thoroughly.
2. Ensure the Temperature Control knob is set to “MIN”.
3. Remove the lid and fill the appliance to at least half of its capacity.
4. Replace the lid. Twist to lock.
5. Connect to the mains power supply and turn the power switch On (I). The Power Indicator light illuminates.
6. Set the Temperature Control knob to the required temperature. The Heat Indicator illuminates and the appliance heats the water.WARNING: Reduce the set temperature if the water begins to boil. DO NOT allow the water to boil constantly.
7. When the water has reached the set temperature the ‘Warm’ light illuminates and the water is ready to be dispensed.
   Note: Once the water temperature drops 5-10ºC then the appliance will reheat the water.

Serving

1. Place a suitable vessel beneath the tap.
2. Pull the tap towards you to begin dispensing.
3. Raise the tap handle to close the tap.

Emptying the Appliance

Drain the appliance by using the tap to empty.

 Thermal Cut-Out Reset

This appliance is fitted with a Thermal Cut-Out safety feature. Should the temperature exceed safe levels the appliance will automatically cut power.
The Safety Cut-out switch is located on the underside of the appliance. To reset the appliance:

1. Empty the appliance and allow to cool.
2. Press the reset button until it clicks.
   WARNING: Ensure the appliance has cooled down and is empty before resetting the switch, as it may need to be tipped slightly to gain access to the switch.
3. The appliance is now reset and can be used as normal.

Cleaning, Care & Maintenance

• Always turn off and disconnect the appliance from the power supply before cleaning.
• Use soapy water and a damp cloth to clean the exterior of the appliance.
• Dry thoroughly after cleaning.

De-scaling

In hard water areas, limescale can build up within the appliance after prolonged use. For best taste and extended appliance life, de-scale it regularly. Installation of a water filtration system is also recommended.
To de-scale the appliance:

1. Pour a solution of de-scaler and water into the appliance.
2. Brush the interior gently with a soft-bristled brush.
3. Discard the solution collected in the jug.
4. Fill the appliance with clean water and turn it back On to flush out the system. Flush out the system thoroughly to remove any de-scaler residue.
5. The appliance is now ready for use.

Note: Use a suitable de-scaler and always follow the instructions on the packaging.
Caterlite recommends that this appliance is de-scaled every 3 months or more frequently in hard water areas.
IMPORTANT: Failure to de-scale or maintain will invalidate your guarantee.

Troubleshooting

Technical Specifications

Electrical Wiring

This appliance is supplied with a 3 pin BS1363 plug and lead.
The plug is to be connected to a suitable mains socket.
This appliance is wired as follows:

• Live wire (colored brown) to the terminal marked L
• Neutral wire (colored blue) to the terminal marked N
• Earth wire (colored green/yellow) to terminal marked E

This appliance must be earthed.
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency, disconnection is required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.
Caterlite parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.
Caterlite products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Caterlite.
Every effort is made to ensure all details are correct at the time of going to press, however, Caterlite reserves the right to change specifications without notice.

DECLARATION OF CONFORMITY

This product is UKCA marked to demonstrate compliance with the applicable requirements of the conformity assessment procedure(s).
A Declaration of conformity may be found at {URL & QR code} or by scanning the QR code below.

ANZ:
This product is RCM marked to demonstrate compliance with the applicable requirements of the conformity assessment procedure(s).
A Declaration of conformity may be found at {URL & QR code} or by scanning the QR code below.

http://productip.com/?f=6ed3f

+44 (0)845 146 2887

J709_J722_ML_A5_v6_20201223

2020/12/23 14:16
