BY-VG380
Multifunctional Smartphone Video Kit
Instruction Manual
Instruction
Thanks for purchasing BOYA!

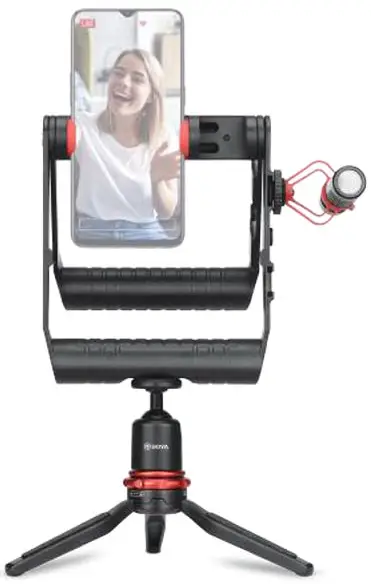

BY-VG380 is an all-in-one smartphone video kit that is compatible with iOS and Android devices. It’s well-suited for vlogging, podcasting, recording at home, and more.
It adds all the accessories needed to create a portable and versatile video rig, especially BOYA BY-MM1 included to help to create the broadcast quality to your phone no matter you are indoor or outdoor.
NOTE: Smartphones are not included.
Features:
– Multifunctional smartphone video kit
– Ideal for Youtuber, vlogger, videographer
– Tilt and swivel ball head control
– Includes BY-MM1Cardioid shotgun microphone, shock mount, fur windscreen, ball head, mini tripod, smartphone video rig
Specification:
| Transducer: | Electret Condenser |
| Polar Pattern: | Cardioid |
| Frequency Response: | 35-18KHz +/-3d13 |
| Sensitivity: | -42d134-/- ldB / OdB=1V/Pa, 1kHz |
| Signal to Noise Ratio: | 76dB SPL |
| Plug: | 3.5mm TRS and TRRS connector |
| Microphone Size: |  22*81 mm |
| Kit’s Weight: | 527g |

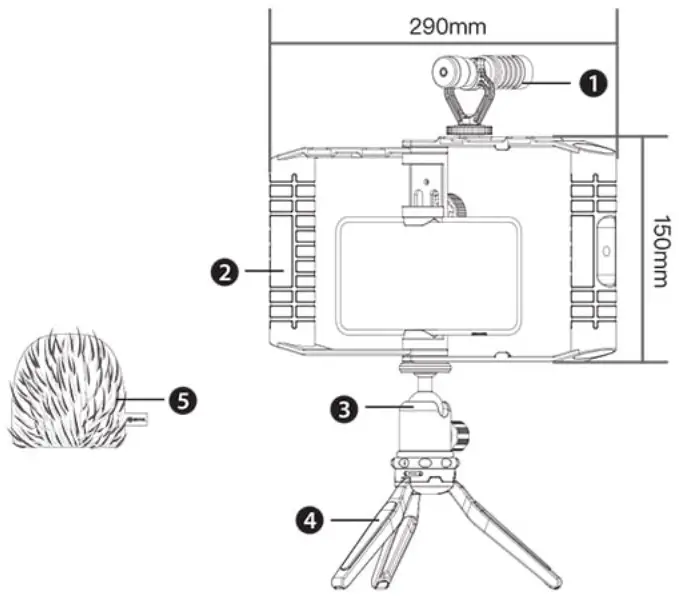

Product Structure:
- BY-MM1 Shotgun Microphone
- Smartphone Video Rig
- Ball Head
- Mini Tripod
- Fur Windscreen

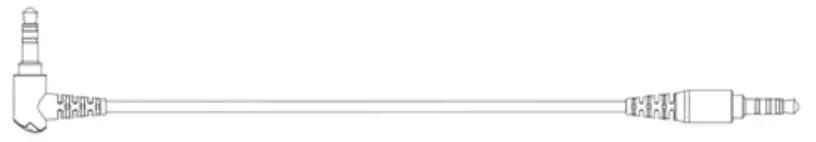

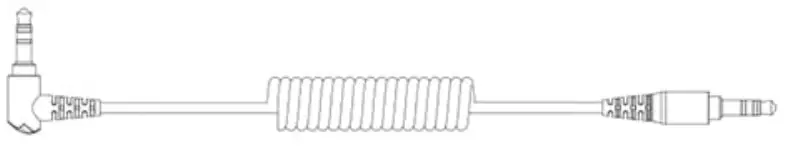

What’s the Difference?
(1) 3.5 mm TRRS connector
– For Smartphones, tablet and computers taw
(2) 3.5 mm TRS connector
– For cameras, camcorders, audio recorders and other audio/video recording devices.
Quick Setup Guide:

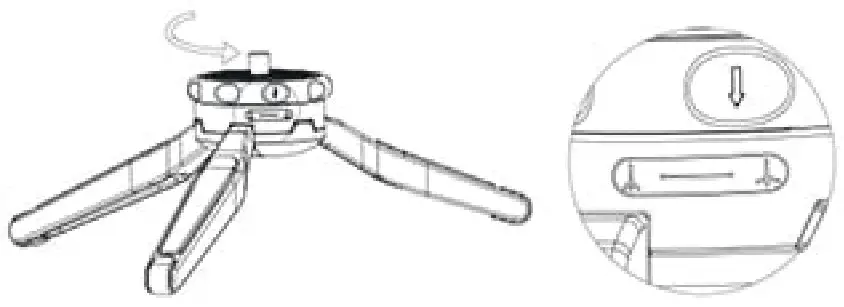

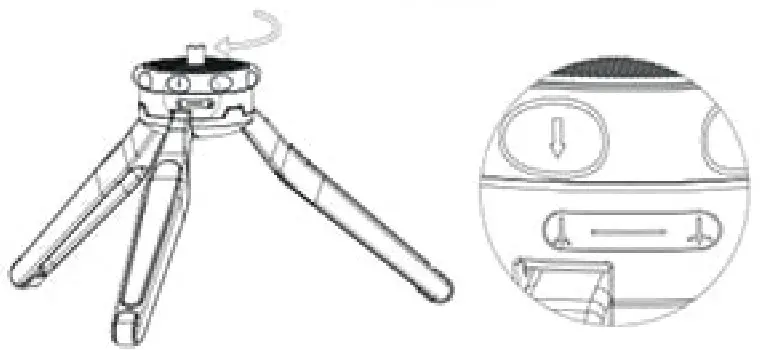

Adjust the height of the feet

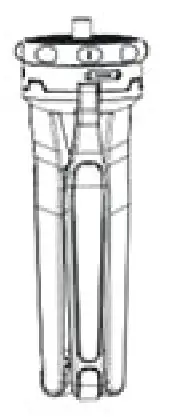

- The mini tripod can be folded up in any position, and before adjusting the angle of the feet, the feet must be folded up.
- Rotate the adjustment screw on mini tripod clockwise to make the feet stand taller.
- Rotate the adjustment screw on mini tripod counter-clockwise to make the feet stand at a wider angle to make it shorter.

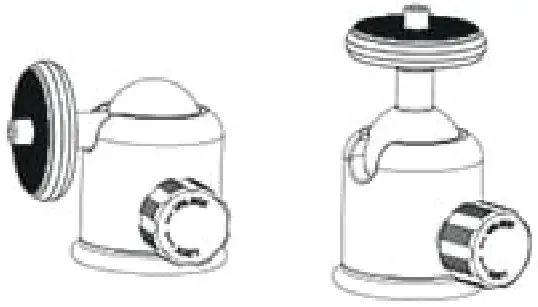

Adjust the ball head:
Turn the ball head locking screw counter-clockwise, then adjust the upper part to your desired position. Turn the ball head locking screw clockwise to tighten

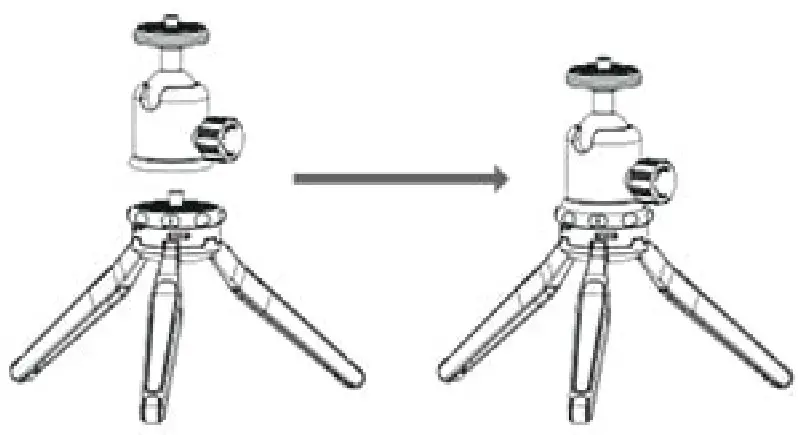

Tripod’s attachment:
Mount the ball head onto the mini tripod directly as shown below.
Quick Setup Guide

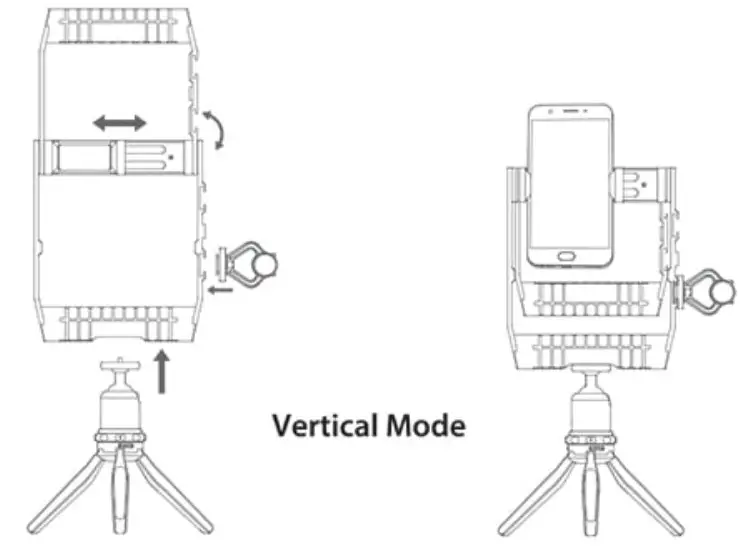

Setup A
Quick Setup Guide

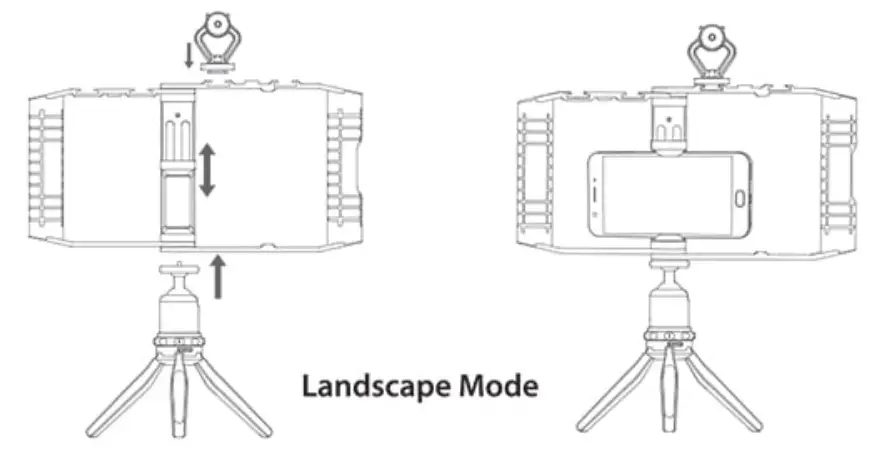

Setup B
