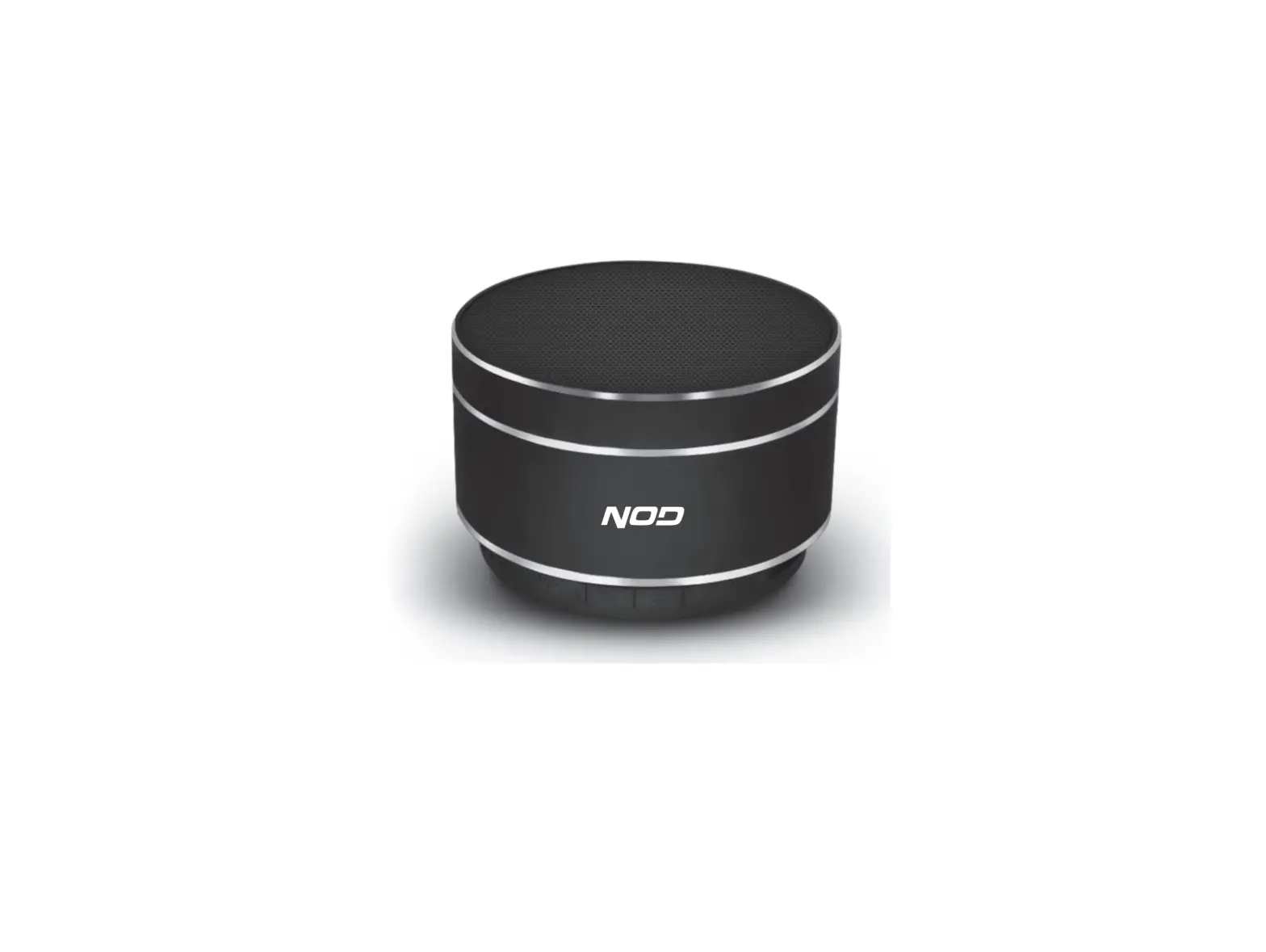

NOD Soundcheck Portable Aluminum Bluetooth Speaker 5W
SOUNDCHECK package contains
|
|

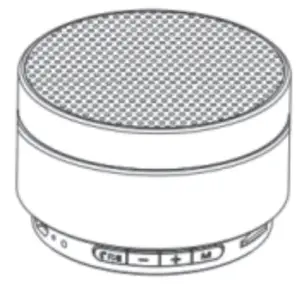

Bluetooth speaker

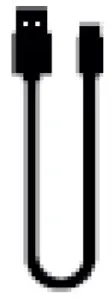

USB charging cable
OPERATION INSTRUCTIONS
Turn on/off the speaker
- Press
to on the speaker.

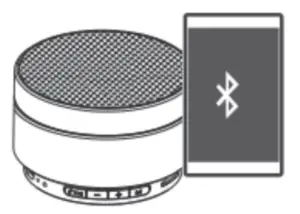

Automatically, RoundSound activates bluetooth paring mode.
Pairing name is NOD SOUNDCHECK. - Press
once to go to the desired mode selection. The available functions are: Bluetooth function / MicroSD card read The LED flashes slowly while detecting bluetooth devices. Once the paring is matched, the LED flashes constantly. During music playing, the LED flashes in a slow pace.
to
once to go to the desired mode selection. The available functions are: Bluetooth function / MicroSD card read The LED flashes slowly while detecting bluetooth devices. Once the paring is matched, the LED flashes constantly. During music playing, the LED flashes in a slow pace.

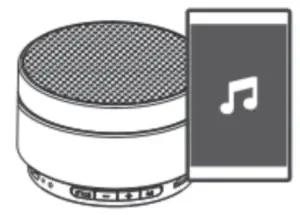

Music
- Press once
to pause the music, and press again to resume playing music. - Press once
to go to the previous song, or press and hold to decrease the volume.
In the same way, press once to go to the next song or press and hold to increase the volume.
to pause the music, and press
to go to the previous song, or press
to go to the next song or press

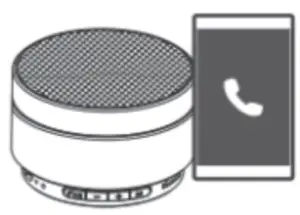

Handsfree function
- Press once to answer an incoming call.
To end a call, press once again - To redial the last number, just press twice.

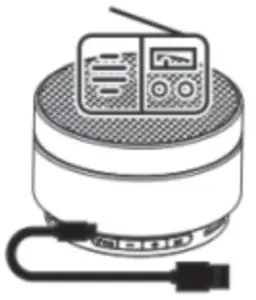

FM radio
- Press once to switch to radio mode.
- Connect the USB cable (antenna operation).
- Press to start channel operation). search. Do not press any button during searching. When the light stops blinking, you can press & to select the saved channel you want.
The quality of the signal is better if you use the device as a radio outdoors.
Technical Specifications
| Model | SOUNDCHECK |
| Loudspeaker | (Φ) 52mm |
| Loudspeaker Output | 90dB |
| Frequency Response | 90Hz-20KHz |
| Power Input | DC5V-600mA |
| Net Weight | 133g |
