Ngs Artica Crown True Wireless Stereo Earphones User Manual

Artica Crown True Wireless Stereo Earphones
User ManualWelcome to use these Bluetooth earphones, Artica Crown. Please read this user’s manual carefully before using it.www.ngs.eu

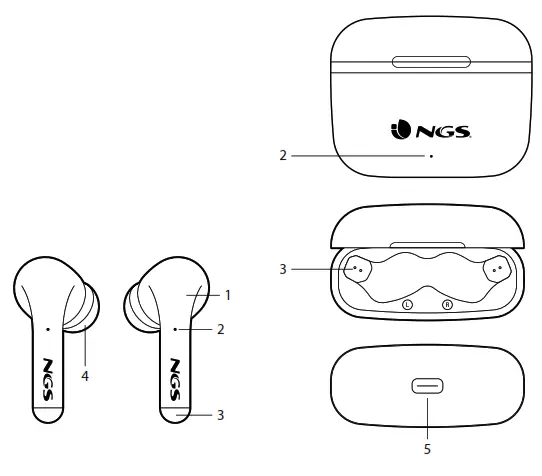

OVERVIEW

1. Touch area
2. LED indicator
3. Charging connection points
4. Silicone earcap
5. USB type C input

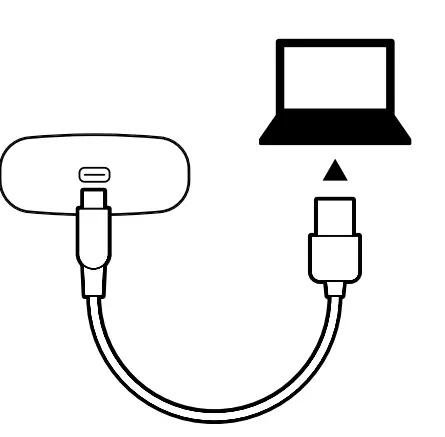

CHARGE STATUS

First time charging
Before you use these Bluetooth earphones, please charge the battery fully.

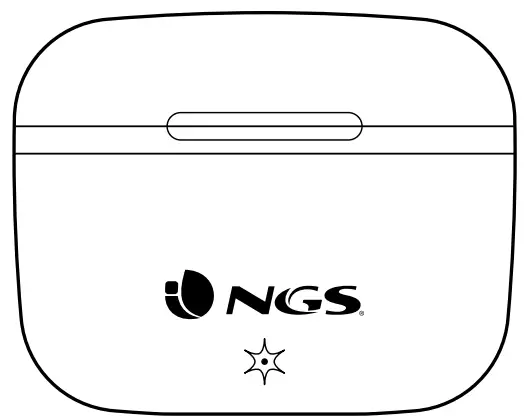

Dock charge status
Charging – Base charging LED blinks every 2 seconds.
Charged – LED turns off.
Low battery – Base LED blinks every second to indicate that the base battery is below 20% charge and that you need to charge the base.

Earphones charge status
Charging – Fixed base light.
Charged – Base light off.

Warning:

1. The battery is recyclable.
2. Do not dispose of the battery in fire, as it may cause an explosion.

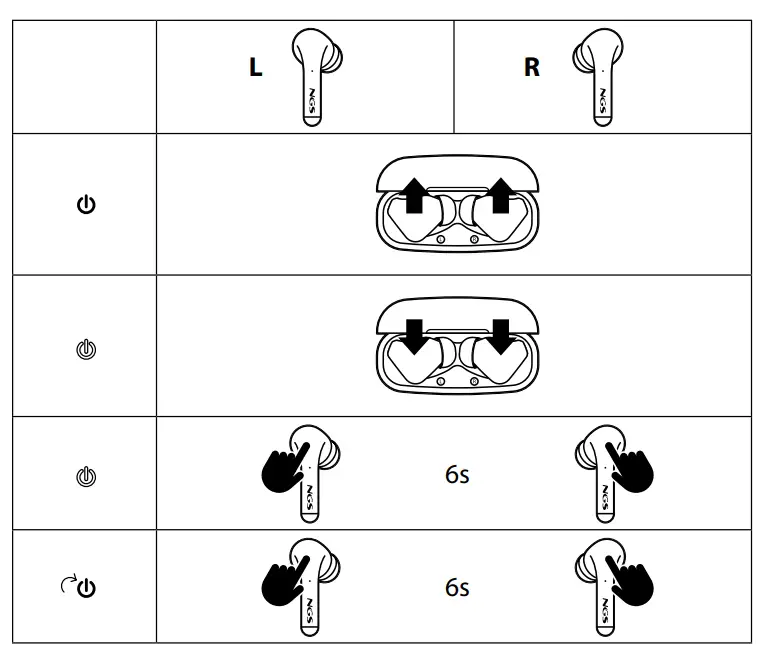

TURN ON/OFF THE EARPHONES

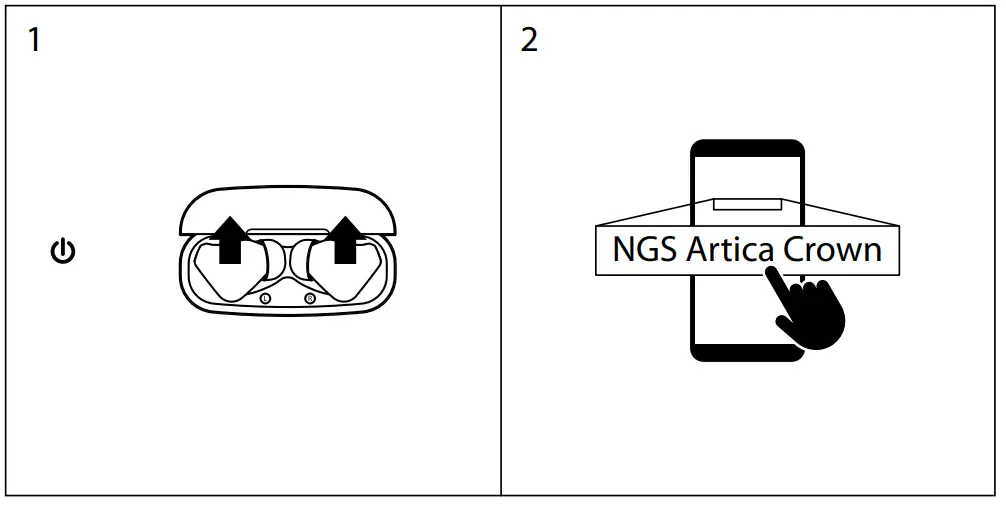

PAIRING EARPHONES WITH BLUETOOTH DEVICES

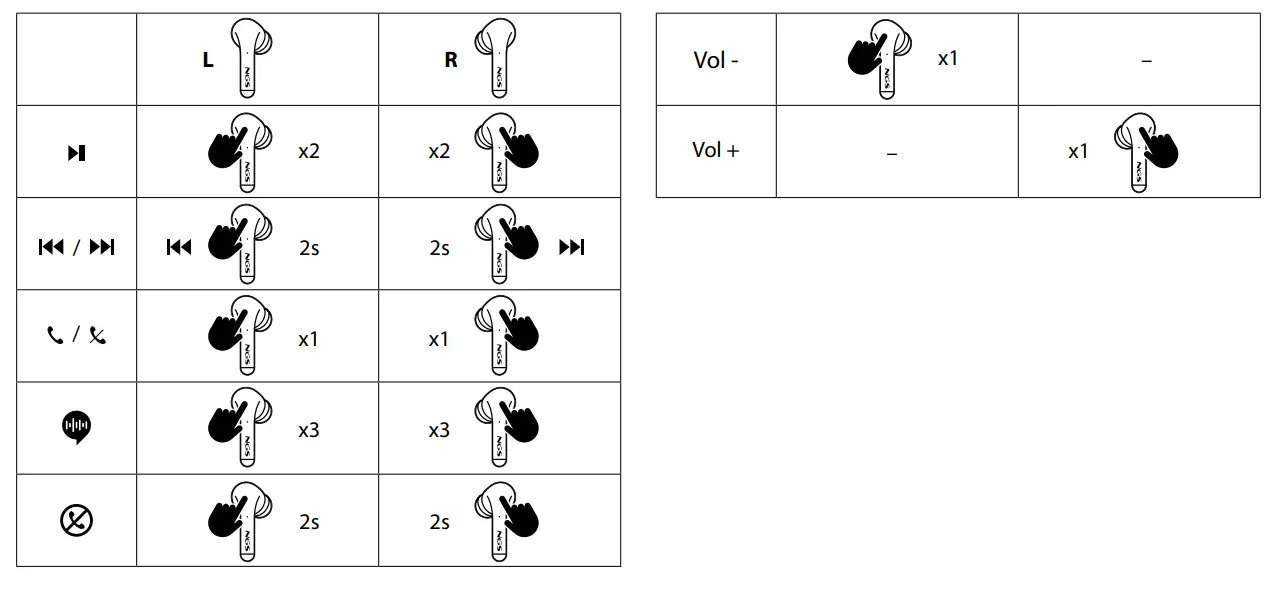

MULTIFUNCTION BUTTON CONTROLS

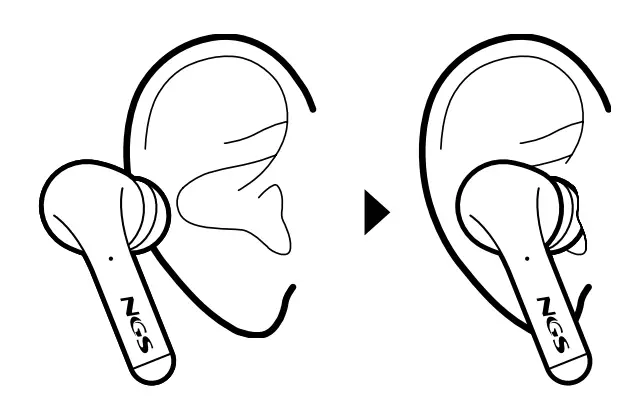

HOW TO USE

SPECIFICATIONS

Compatible with Bluetooth 5
Hands-free
Earphone battery: 40mAh / 3.7V
Earphone charging time: 1 hour
Working time: 8 hours*
Charging dock: 350mAh / 3.7V
Charge earphones 3 times
Dock charging time: 2 hours
Working distance: up to 10m

* 8,5 hours at 50% volume
8 hours at 70% volume
7 hours at 100% volume

WARRANTY

Limited warranty. NGS warrants that any hardware products accompanying this documentation shall be free from significant defects in material and workmanship for a period  f two (2) years, three (3) years or five (5) years from the date of purchase. NGS’s limited warranty is non-transferable and is limited to the original purchaser. This warranty gives you specific legal rights, and you may also have other rights, which vary under local laws.
Battery warranty. The battery is a consumer product, and as such, it is under warranty for 12 months.

If at any time in the future you should need to dispose of this product please note that:
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
(Waste Electrical and Electronic Equipment Directive)

DECLARATION OF CONFORMITY

WE, AUTHORIZED REPRESENTATIVE, LURBE GRUP S.A, SAN SEBASTIÁN, SPAIN, DECLARE UNDER OUR SOLE RESPONSIBILITY THAT THE FOLLOWING PRODUCT:
NGS: TRUE WIRELESS EARPHONES NGS / MODEL: ARTICA CROWN

AND THEREFORE COMPLY WITH THE ESSENTIAL REQUIREMENTS AND PROVISIONS OF THE FOLLOWING DIRECTIVES OF THE EUROPEAN PARLIAMENT AND EUROPEAN COUNCIL:

RADIO EQUIPMENT DIRECTIVE 2014/53/EU
ROHS DIRECTIVE 2011/65/EU & (EU) 2015/863

SIGNED

AUTHORIZED REPRESENTATIVE: LURBE GRUP S.A
PRODUCT MANAGER

technical support: www.ngs.eu/support
www.ngs.eu
