User Guide

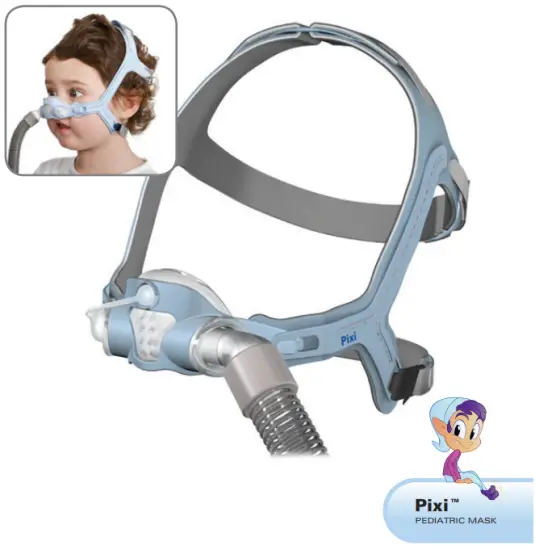

Pixi™
PEDIATRIC MASK
Contents
Mask components

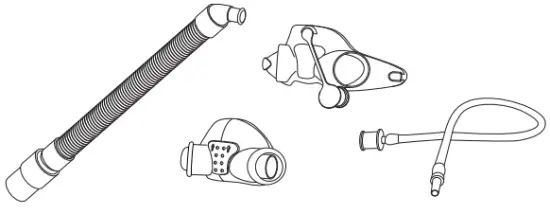

A
B

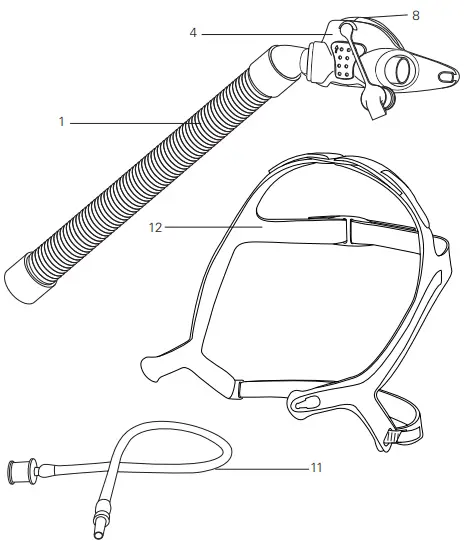

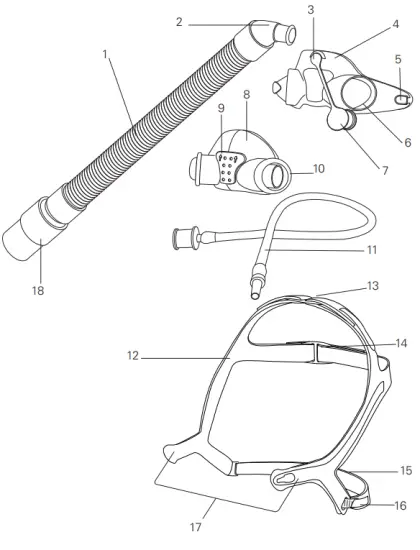

Mask components
| Item | Description | Part number |
| 1 | Short tube assembly | —- |
| 2 | Elbow | — |
| 3 | Plug tether | — |
| 4 | Mask frame | —- |
| 5 | Frame nodes | — |
| 6 | Mask socket, | — |
| 7 | Plug | — |
| 8 | Cushion | 61033 |
| 9 | Vent. | —- |
| 10 | Cushion shoulder | — |
| 11 | Pressure port | — |
| 12 | Headgear | 61034 |
| 13 | Top headgear strap and buckle | — |
| 14 | Middle headgear strap and buckle | — |
| 15 | Lower headgear strap | — |
| 16 | Quick-release clip | — |
| 17 | Lower headgear arms | — |
| 18 | Swivel | — |
| A | Complete system | 61031 |
| B | Frame System | 61035 |
Pixi™
Manufacturer:
ResMed Pty Ltd 1 Elizabeth Macarthur Drive Bella Vista NSW 2153 Australia.
Pixi
Protected by patents: AU 712236, AU 724360, AU 2007100086, AU 2007100205,
AU 2007100208, AU 2007100622, EP 0968022, JP 3687981, JP 4188883, NZ 536545,
NZ 553757, NZ 553822, NZ 553823, NZ 553825, NZ 562417, NZ 567740, US 6561190,
US 6561191, US 7207335. Other patents are pending. Design registrations pending.
Pixi is a trademark of ResMed.
| 618307/1 2018-10 |
| Pixi |
| USER |
| APAC |
© 2018 ResMed.
Global leaders in sleep and respiratory medicine
www.resmed.com
