Fitting Guide
Prior to fitting your mask, remove the orange spring frame support from the rear of your mask and retain it for future use.
 |  |  |

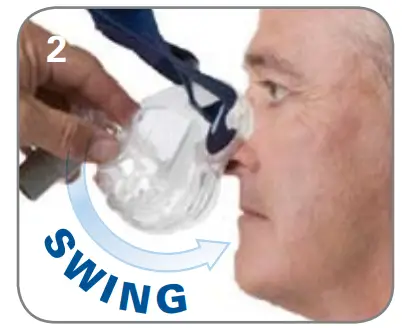

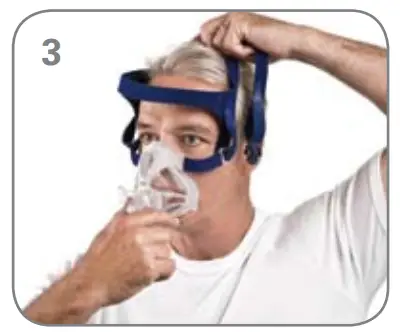

| • With both lower headgear clips released, position the cushion at an angle on the nasal bridge. | • Keeping the upper position of the mask in place, swing the lower half of the mask down against the face. | • Hold the mask firmly against the face and pull the headgear over the head. |
 |  |  |

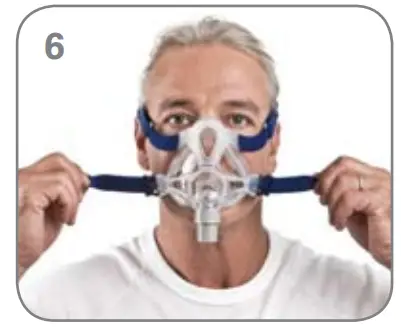

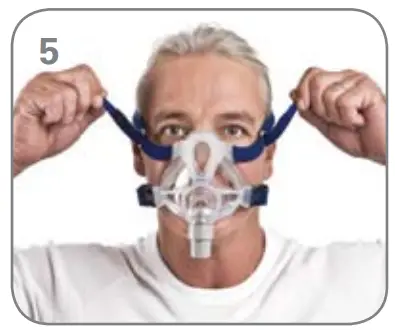

| • Bringing the lower straps below the ears, clip the headgear into the lower part of the spring frame. | • Unfasten the Velcro®, pull the upper headgear straps evenly until they are comfortable and firm, and reattach the Velcro. | • Repeat step 5 with the lower headgear straps. |
 | ||

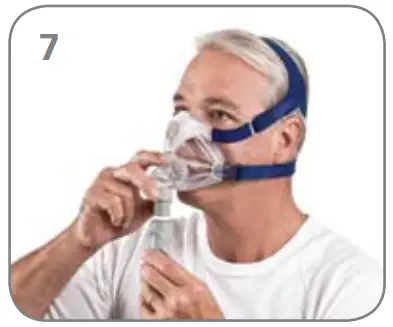

| • Connect one end of the air tubing to the swivel and the other end to the airflow device. • Turn on the airflow device. | ||

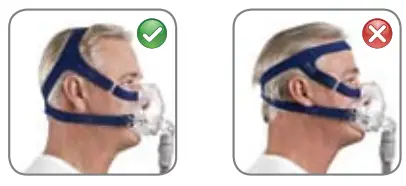

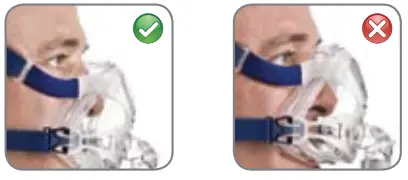

| Tip One | Tip Two |
 |  |
| • Ensure the headgear is correctly positioned on the head. | • Ensure the mask sits mid-bridge and does not encroach on the eyes. |
Quattro FX TM FULL FACE MASK
www.quattrofx.com
Manufacturer: ResMed Pty Ltd 1 Elizabeth Macarthur Drive Bella Vista NSW 2153 Australia.
Distributed by: ResMed Corp 9001 Spectrum Center Boulevard San Diego CA 92123 USA; ResMed (UK) Ltd 96 Milton Park Abingdon Oxfordshire OX14 4RY UK See www.resmed.com for other ResMed locations worldwide. Quattro is a trademark of ResMed Pty Ltd and Velcro is a trademark of Velcro Industries B.V. © 2010 ResMed. Specifications may change without notice. 1013934/2 2010-08
