Einhell logo

CLASSIC
POWERX-CHANGE

Cordless Hedge Trimmer
GC-CH 1846 Li Kit (1×2,0Ah)
Item No.: 3410683
Ident No.: 21041
Bar Code: 4006825615432

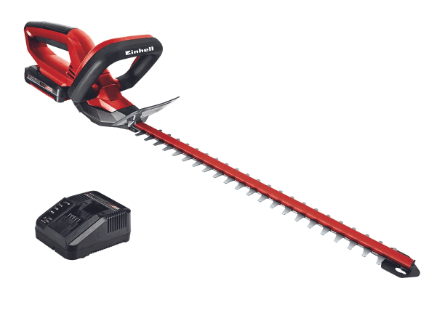

Einhell 3410683 GE CH 1846 Li Kit Cordless Hedge Trimmer

3410683 GE-CH 1846 Li Kit Cordless Hedge Trimmer

The GC-CH 1846 Li Kit cordless hedge trimmer is an efficient tool which thanks to its low weight and handy size provides good service for the trimming of hedges, shrubs and bushes on large grounds and allotments where there is no connection to the electric power grid. With the Power X-Change battery system from Einhell, the hedge trimmer has an 18 V battery pack with 2.0 Ah for long work sessions.

Features & Benefits

Battery charge level indicator with 3 LEDs
Member of the Power X-Change family
Small and easy to handle
Low weight for user-friendly operation
Metal gearing for a long life
Two-hand safety switch
Aluminum cover on cutters
Bumper guard with holder for wall mount
Blades made of laser-cut and diamond-ground steel
Sturdy cutter guard for storage and transportation
Supplied with 2,0 Ah battery and high-speed charger

Technical Data

– Max. running time80 min
– Charging time40min
– Blade length520 mm
– Cutting length460 mm
– Spacing between teeth15 mm
– Cuts per minute2200 min^-1
– Accumulator18 V  |  2000 mAh  |  Li-Ion
– Number of accumulators1 Pieces

Logistic Data

– Product weight2.3 kg
– Gross weight single packaging3.98 kg
– Dimensions single packaging907 x 175 x 180 mm
– Pieces per export carton4 Pieces
– Gross weight export carton14 kg
– Dimensions Export Carton940 x 380 x 270 mm
– Container quantity (20″/40″/40″HC)1152 | 2368 | 2664

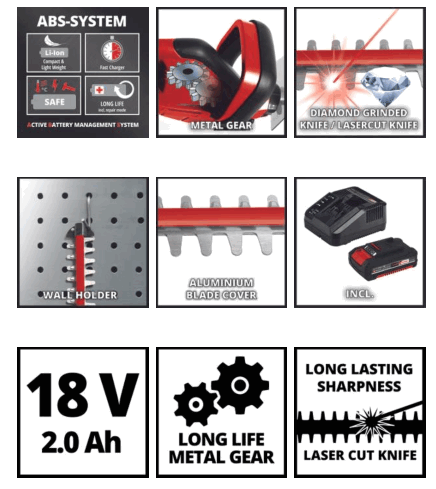

Einhell 3410683 GE CH 1846 Li Kit Cordless Hedge Trimmer - fig 5

Available as special accessories

Einhell 3410683 GE CH 1846 Li Kit Cordless Hedge Trimmer - fig 118V 2,0Ah Power X-Change
Battery
Item No.: 4511395
Bar Code: 4006825610369
Einhell Accessory
Einhell 3410683 GE CH 1846 Li Kit Cordless Hedge Trimmer - fig 218V 4,0Ah PXC Starter Kit 1
PXC-Starter-Kit
Item No.: 4512042
Bar Code: 4006825613704
Einhell Accessory
Einhell 3410683 GE CH 1846 Li Kit Cordless Hedge Trimmer - fig 4Power X-Twincharger 3A
Charger
Item No.: 4512069
Bar Code: 4006825629729
Einhell Accessory
Einhell 3410683 GE CH 1846 Li Kit Cordless Hedge Trimmer - fig3Power X-Boostcharger 6A
Charger
Item No.: 4512064
Bar Code: 4006825629019
Einhell Accessory
Einhell 3410683 GE CH 1846 Li Kit Cordless Hedge Trimmer - fig 518V 4,0Ah Power X-Change 1
Battery
Item No.: 4511396
Bar Code: 4006825610376
Einhell Accessory
Einhell 3410683 GE CH 1846 Li Kit Cordless Hedge Trimmer - fig618V 5,2Ah Power X-Change Plus
Battery
Item No.: 4511437
Bar Code: 4006825616606
Einhell Accessory
Einhell 3410683 GE CH 1846 Li Kit Cordless Hedge Trimmer - fig718V 2,0Ah PXC Starter Kit
PXC-Starter-Kit
Item No.: 4512040
Bar Code: 4006825613681
Einhell Accessory
Einhell 3410683 GE CH 1846 Li Kit Cordless Hedge Trimmer - fig818V 3,0 Ah Power-X-Change 2
Battery
Item No.: 4511341
Bar Code: 4006825590593
Einhell Accessory

Battery-Running-Times

One Battery for AllEinhell 3410683 GE CH 1846 Li Kit Cordless Hedge Trimmer - figa6 running time (min.)
1.5 Ah60
2.0 Ah80
2.5 Ah100
3.0 Ah120
4.0 Ah160
5.2 Ah210
6.0 Ah240

Test setup:
1) –

Illustrations can contain accessories, which are not included in standard extent of delivery
Illustration similar (in design), production-wise modifications reserved
GS mark belongs to the product itself only, excluded accessory
Generated at: 01.02.2022 10:03
