Sweetlf Sws7105 Electric Shaver Wet & Dry Rotary Shavers User Manual

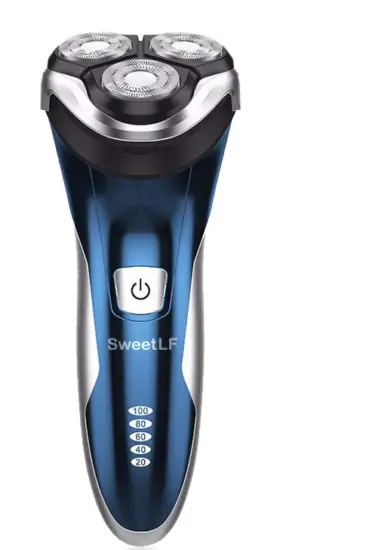

SweetLF SWS7105 Electric Shaver Wet & Dry Rotary Shavers

Specifications

• PRODUCT DIMENSIONS : 6.18 x 2.52 x 2.36 inches; 11.29 Ounces
• BATTERIES: 1 Lithium Ion batteries
• RECOMMENDED USES FOR PRODUCT: Beard, Face
• SPECIAL FEATURE: Waterproof
• POWER SOURCE: Battery Powered
• BATTERY LIFE: 120 minutes
• BRAND: SweetLF

Introduction

Electric razors utilise the suppleness of the skin to produce longer shaving results. The way the skin is moved by the shaver is similar to how a ship makes a bow wave. The outcome is that the skin rubs against the foil’s holes, exposing more hair.

What’s In the Box?

• 1 x Electric Shaver
• 1 x USB cable
• 1 x Cleaning Brush
• 1 x Manual Note

General information

Hello
Thank you so much for your support!
For better after-sales service , please register your purchase information by www.sweetlf.com/warranty_register or QR code.
For more warranty details, please visit  http://www.sweetlf.com/warranty

NORTH AMERICA
E-mail: [email protected] (US)

EUROPE
E-mail
[email protected] (UK)
[email protected] (FR)
[email protected] (DE)
[email protected] (ES)
[email protected] (IT)

ASIA PACIFIC E-mail:
[email protected] (JP)
[email protected] (CN)

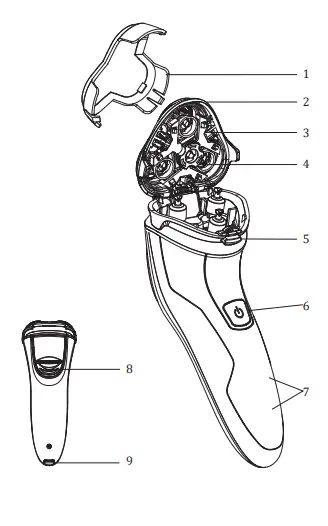

General Information

(Please refer to page 2 of the parts instruction)

1. Protective cover
2. Shaving unit
3. Fixing rack
4. Fixed frame lock
5. Shaver head release button
6. Shaver on / off button
7. Five level electric digital display
8. Trimmer
9. USB charging connect

When charging this product, please keep away from water to prevent personal injury.

This product is designed to be fully washable and is suitable for cleaning under open taps.Please note during operation: Please separate the Handle part from the power cord (adapter) before cleaning the Handle part in water.

Product Introduction

Please read this user manual, as it contains information about the wonderful features of this shaver as well as some tips to make shaving easier and more enjoyable.

Attention
Before using this product, please read User manual carefully and keep it for future reference.

• Close supervision is necessary when this shaver is used in the presence of children.
• To avoid injury, never use the shaver if there is any damage.
• The temperature range to operate, store and charge this product is 0 ℃~ 40℃.
• This product can be charged by phone charger.
• The shaver is designed to be IPX7 waterproof and can bewashed directly under the water. It’s not suggested toimmerse the shaver under water for a long time,which will reduce the life time of the shaver. Remember to check if the water is too hot to avoid scalding your hands.
• When you are on a trip, make sure the protective cover is on to protect the shaver heads. If there is a significant change in temperature, pressure, or humidity, please allow the shaver 30 minutes adaptation to new conditions before use.
• Use the USB charging cable in the package. Please connect the shaver to an AC outlet with 5V output or less, such as a phone charger or computer USB port.

Charging instruction

When Charging
white displays will all light on to display the remaining battery one by one and light down one by one to show the battery. When it was 0-10% of the electricity, the light displays as red one. When reach to 10%, the red light turnto white with flash. When filled to 20% capacity, the light will become always bright and stop the flash immediately.  At the Same time the second white light become flashing. When the fifth LED filled full battery , 5 LED will always light and display full charge.

When the battery is fully charged
Fully charged needs 1 hour charging time to last approximately 120 minutes shaving time.

When the battery is running low
When the first indicator light turns red blinking, that means you need to recharge the shaver.

Charging Procedure

• Connect the USB cable to your adapter and other power supply or directly to your computer.
• After the battery is fully charged, unplug it from the wall socket and unplug the cable from the shaver USB plug.

Using
Connect the shaver to an AC outlet with 5V output or less, such as a phone charger or computer USB port.

• Press the on / off button to open or close the shaver.
• The shaving heads detour on your skin. Your skin may need 2-3 weeks to adapt to the SweetLF shaving system.(Figure 1)
• Trimming sideburns: push the slide down key under the sideburns knife to make sideburns knife pop out and trim sideburns beard.
• After shaving, press the on / off button to turn off the shaver; then put on protective cover to prevent damage.

Note
When the head is damaged, do not shave, so as not to damage your skin.

Clean instruction

Do not use compressed air, scouring pads, abrasive cleaning agents or petrol, acetone and other corrosive liquid to clean the shaver.

• You can rinse the shaver under the tap or clean it with a brush we equip.
• Be careful when using hot water. Always check the water temperature to make sure is not too high to prevent scald.
• Clean it each time after shaving to obtain the best shaving performance.
• Damp cloth is available to clean the outside of the shaver, but do not wipe the shaving blade parts with a towel or tissue, as this may damage the shaving blades.
• Switch off the shaver. Press the release button, and open the shaving    unit (Figure 2)
• Pull out the Shave blades part from the shaver.(Figure 3)
• Turn the locking device (A) counterclockwise, remove the retaining   frame (B). (Figure 4)
• Remove and clean the shaving heads one by one. Each contains a set of razor head cutters and guards. (Figure 5)

Note
Remove the blade from the guards and use the brush for cleaning. Do not clean more than one cutter and guard because they are matched with each other. If you accidentally mix up the cutters and guards, it may take several weeks to restore the best shaving functions.

• Clean inside and out with a clean brush grille. (Figure 6)
• Make sure the shaver head recess portion aligned with the recessed (Figure 8)
• Put the shaving heads back into the shaving unit.(Figure 7)
• Put the holder (B) back into the shaving unit, then turn the locking device (A) clockwise.(Figure 9)
• Put the flange fork shaving unit into the slot at the top of the shave-shaving unit. (Figure 10)

Note
If the shaving unit closed sluggishly, check the shaving head  to make sure it is inserted correctly and the holder is locked.

Store instructions

With a protective cap on the shaver shaving heads to avoid  damage.(Figure 11)

Change blades

For the best shaving performance, we recommend replacing blades regularly. To replace the blades, follow the steps below.

Switch off the shaver. Disconnect the shaver. Press the release button to open the shaving unit. Pull out the Shave blades parts from the shaver   (Figure 12)

Turn the locking device (A) clockwise to remove the retaining frame (B).    Remove the shaving blades and put the new one in the shaving unit. (Figure 13)

• Ensure alignment of just shaving heads recessed portion recessed (Replace it with adverse way of the above sequence ) (Figure 14)
• The holder (B) back into the shaving unit, the clockwise rotation of the locking device (A). (Figure 15)

• Put the flange fork shaving unit into the slot at the top of the shave close the shaving unit. (Figure 16)

Note
If the shaving unit closed sluggishly, check the shaving head to  make sure it is inserted correctly and the holder is locked.

Environmental protection

• To throw away the product, please do not stack with the normal  household waste; it should be handed over to an official  collection cente
• Remove the rechargeable battery shaver
• To remove the battery out only when you discard the shaver and make sure the battery is completely depleted.

Specific steps

• Turn off the shave
• Let the shaver run until stopped.
• Remove the razor stubble storage Indoor screws.
• Remove the screw shell.
• Remove the batter
