Iscooter Ix5 Electric Scooter User Manual

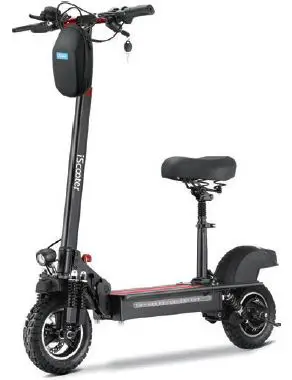

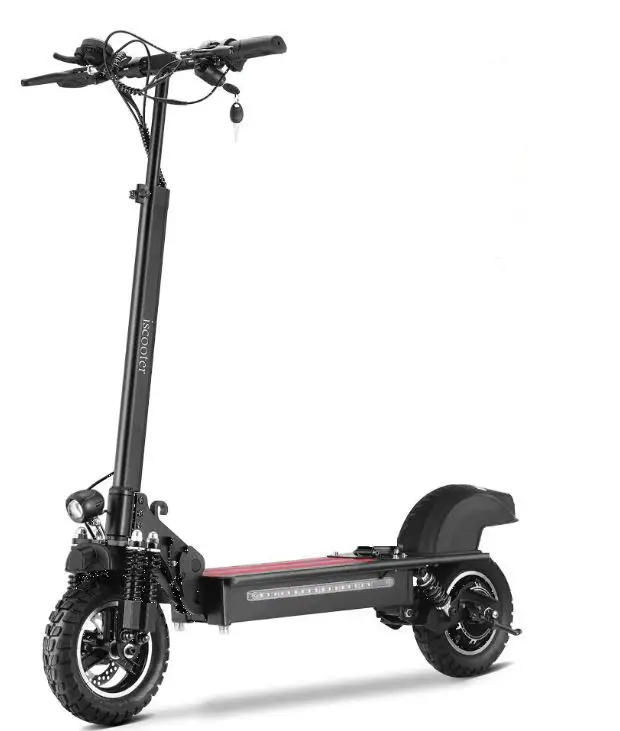

iScooter iX5 Electric Scooter

Vehicle display

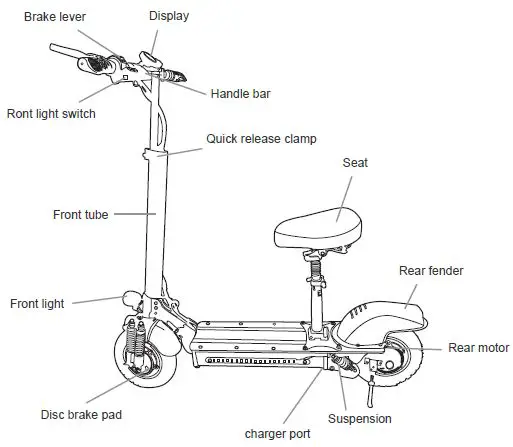

Name of major parts

SAFETY INSTRUCTION

1. This product is suitable for adults which can be used only by one person.
2. Please wear the helmet and other protective equipment when you are riding.
3. Please ride on the road safely and legally.
4. Practice before riding.
5. Be careful and safe; Both hands and feet should be keep on the scooter.
6. Don’t turn off the power when you are riding.
7. Please try to avoid riding over 3cm steps which maybe hurt your body and broken the scooter.
8. Move slowly when the road condition is not good.
9. Please adjust to the proper height to ensure safety.
10. Please do not ride on the slippery road.
11. Please do not use the product when the temperature is under -10℃
12. Do not immerse the product into water which the depth is more than 3cm to avoid the electrical parts ‘ broken.
13. Please ride in good weather.
14. Please charge every 20 days if the product is not used for a long time.

Product introduction

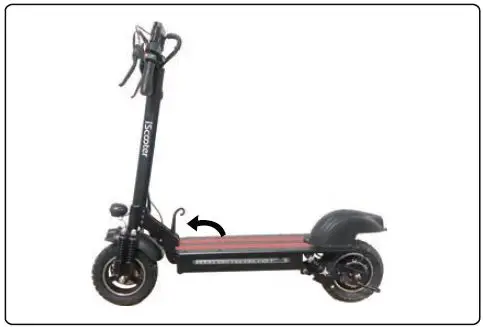

Unfolding pic

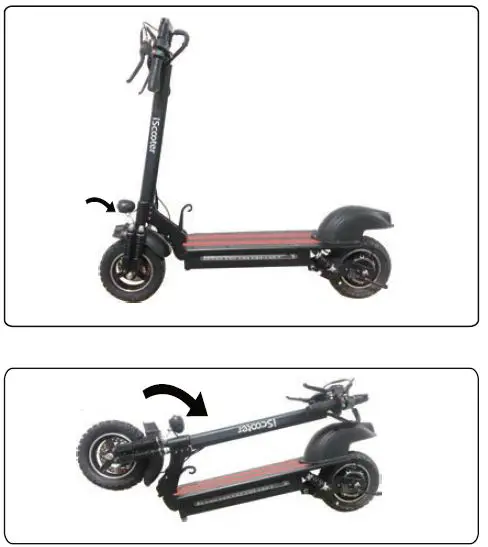

step1: press the foiding clamp to unfold the scooter

step2: lock the folding lever

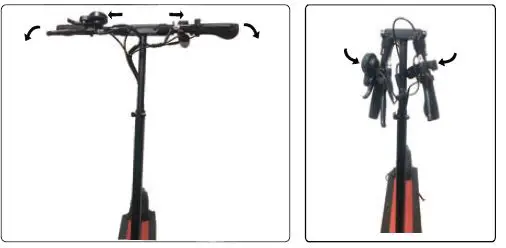

step3: Expand the handlebar upward,keep the handlebar straight

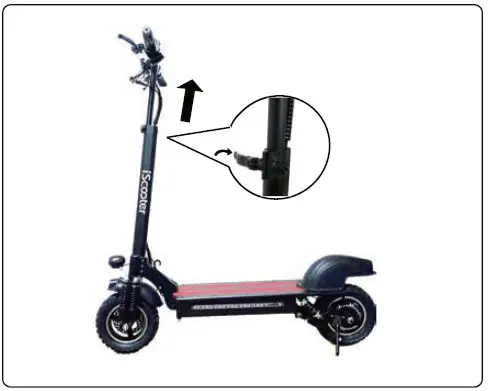

step4: Adjust the handlebar to the suitable height.Tighten the quick release clamp.

Folding pic

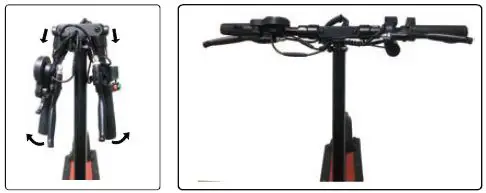

step1: pull the sleeve out and fold down the handlebar.

step2: Release the quick release on the front tube. press down the handlebar to the bottom

step3: pull out the folding lever,pull the folding clamp,fold down thefront tube

Basic operations

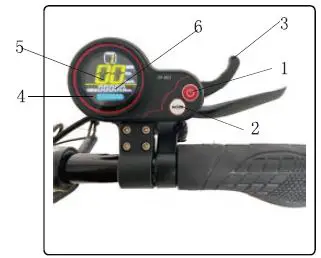

Display

Picture:

1. power switch
2. mode switch
3. thumb throttle
4. power display
5. speed display
6. mileage display

power switch

1. In power off status,press the button for 3 seconds,the display works.Keep the scooter on for 5 minutes without any operation, it will turn off automatically
2. ln the power on status, press for 3 seconds, the device will be turned off.

In the power on status，press “mode” to choose the mode, there are three modes, the speed of mode3 is the fastest.

OTHER FUNCTIONS

ERROR CODE

1. If the battery indicator flashes,please charge your scooter.
2. When power on, if abnormal occurs,error code will be showed on the display screen. Please ask distributor for help.

Brake
Please avoid urgently braking, it will cause the tire broken and slip down.

Riding operation

Start

1. Practice outside, choose good road condition.
2. Open the scooter according to the user manual.
3. Adjust the height of the handlebar to your suitable height.
4. open the seat, adjust the seat to the suitable height.
5. Lock the quick release clamp.

Riding

1. Press for 3 seconds，check the mode before riding.
2. Push your scooter front, and pull the display slowly at the same time, the scooter goes.
3. Please set the riding mode,speed can be controlled by the throttle.
4. Please slow down or brake if necessary.

Stop riding
slow down,pull the brake lever lightly.Put one of your feet on the ground until your scooter stopped.
Notice:
Please not drive the scooter on rainy day or on freezing weather,or it will cause danger.

BATTERY AND CHARGER
Each scooter has its own battery and charger,each part has different serial number. Please do not charger the scooter with other brands” chargers.

Battery
Please charge your scooter when you get this scooter, it is better to take your scooter full charged before riding.
Please charge your scooter at least 1 month a time, it will cause the battery broken if no charging for a long time. Please contact the distributor if the battery can’t be charged.
The warranty is invalid if the battery is deformative or caused by water inside.

Charger
When full charged, the charger will stop charging.
The warranty is invalid if the charger is deformative or caused by water inside.

Charging operation

1. Open the charger port protector, connect the plug with the charger port.
2. The indicator light shows red means in charging,the indicator light shows green means full charged.
3. Please charge your scooter in cool，dry，well-ventilated area.

Maintenance

Parameter table

WARRENTY

Any of the parts in the following sheet occurs failure in normal use,please contact us, we will provide complete after-sale service.

Notice: Please use the scooter in the correct way.
The warranty is invalid if failure occurs in abnormal use.

Warranty invalid if caused by the following reasons:

1. Haven’t do maintenance according to this manual.
2. Parts broken caused by playing or some dangerous actions.
3. Disassembling and assembling by users or use the other brand’s parts in this scooter. Parts broken cause by traffic accident or stroke by user.
4. Water inside, serial number lost.
5. Parts broken caused by riding in very bad road.
6. Rental scooter Parts broken caused by force majeure.
